Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 6 illustrations

Illustrations

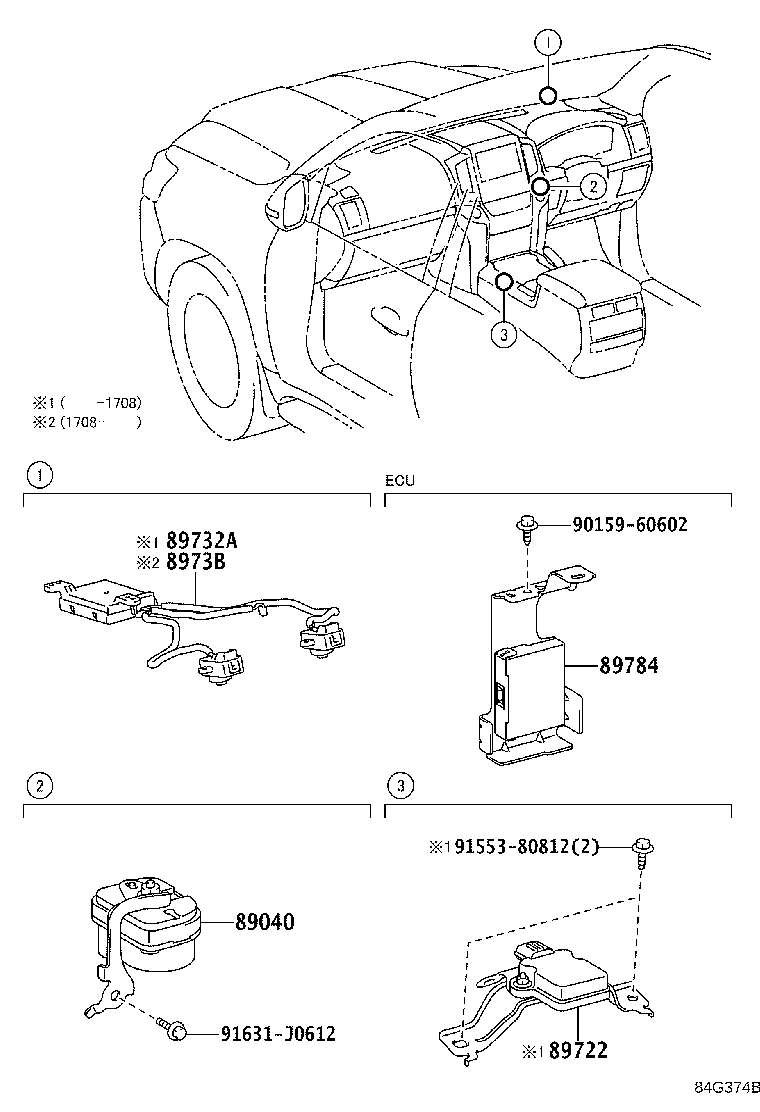

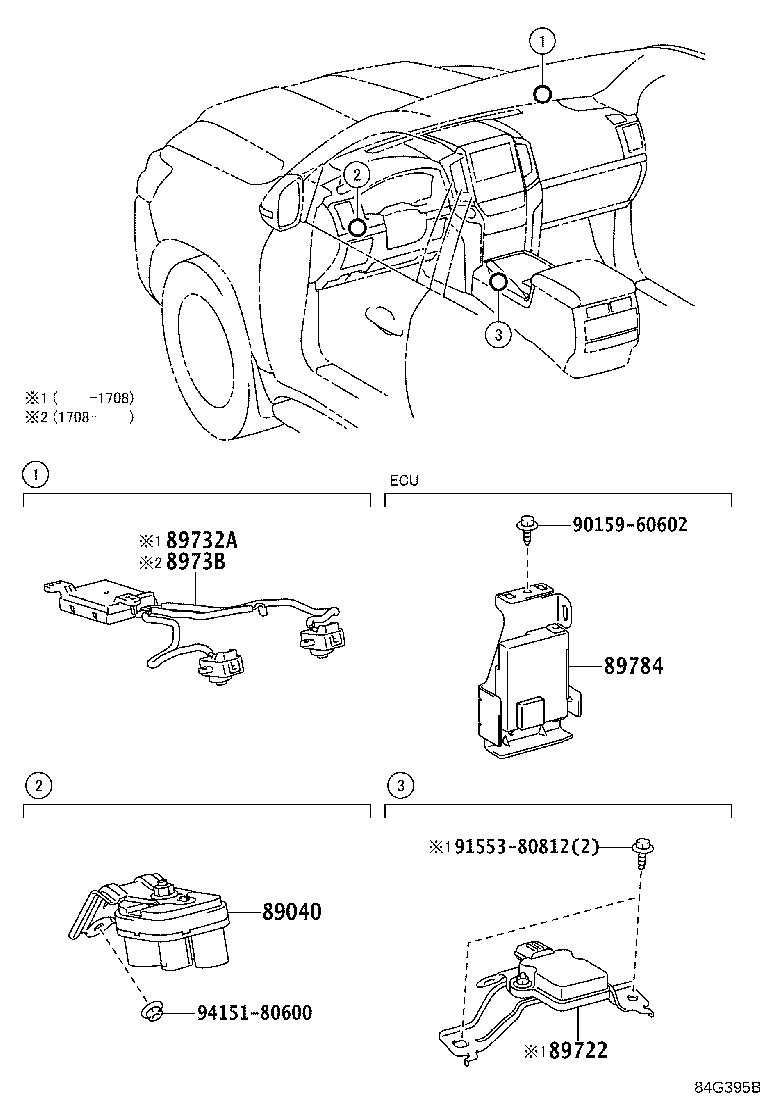

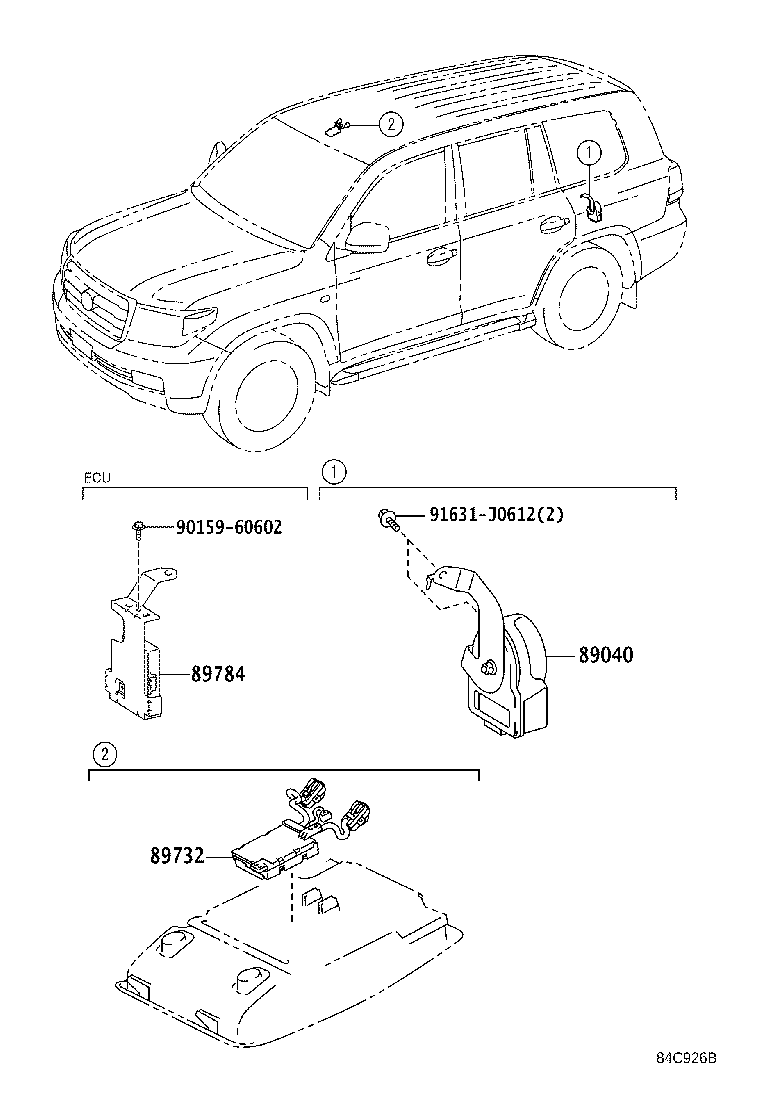

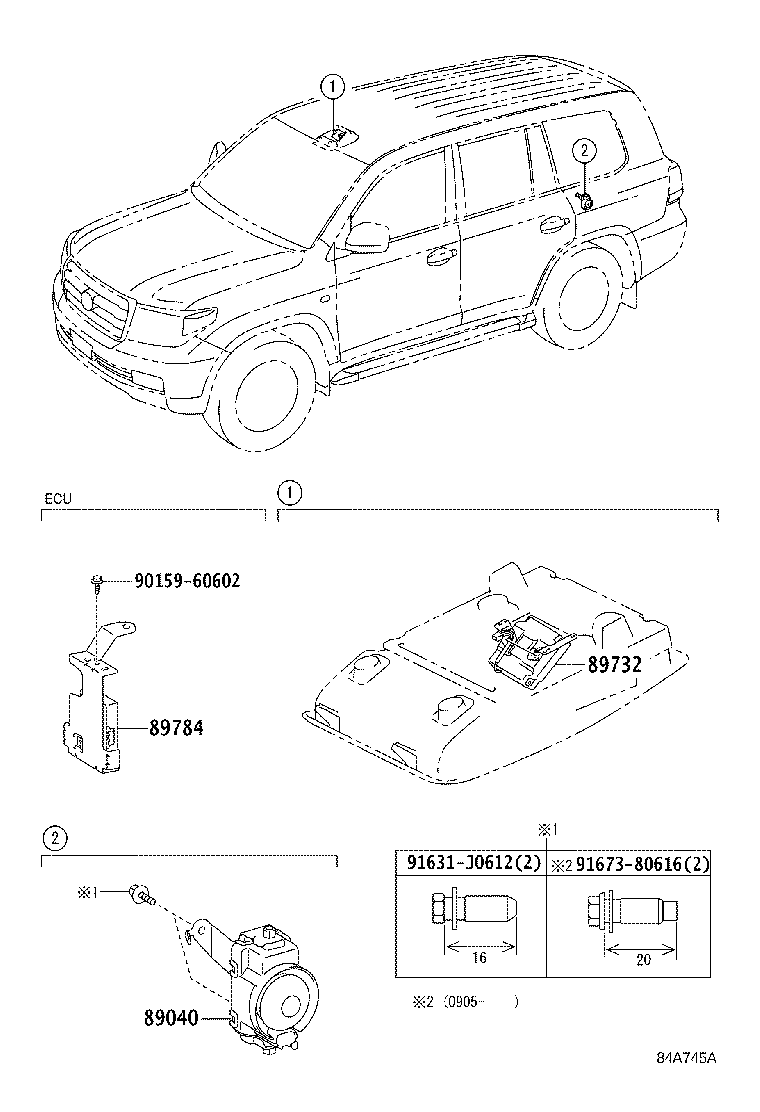

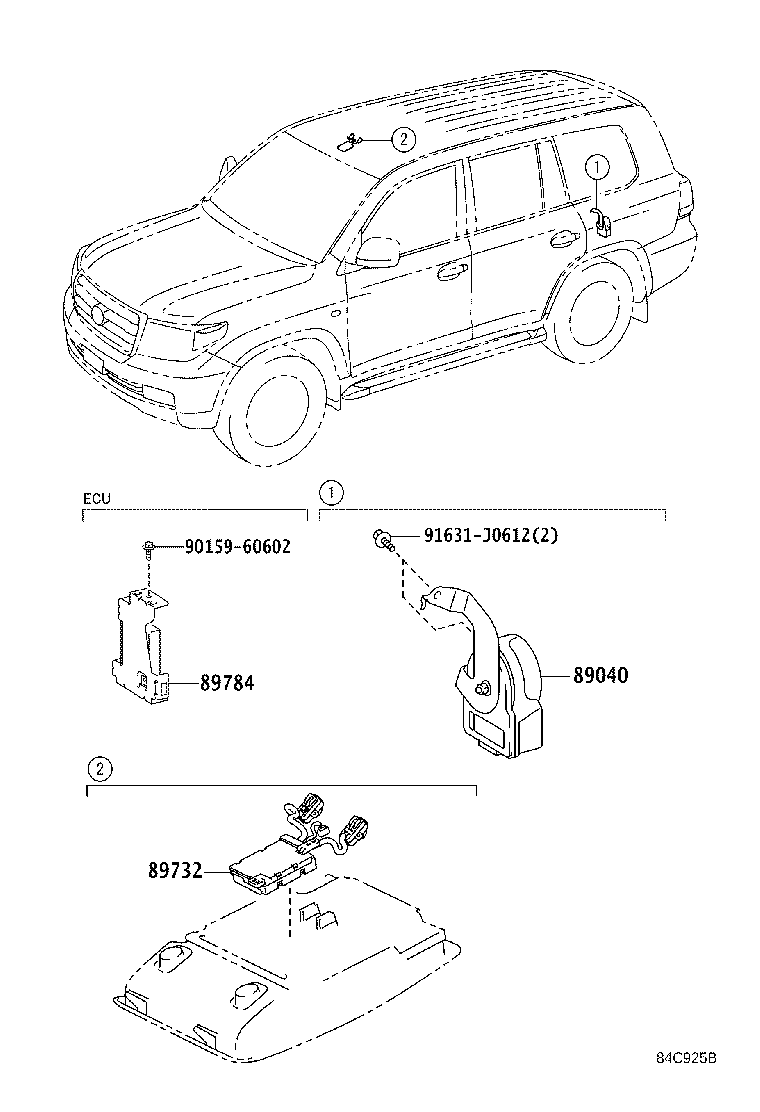

Figure 849223B 849223B 2007-09 → 2012-01 Figure 84A745A 84A745A 2007-09 → 2012-01 Figure 84C925B 84C925B 2012-01 → 2015-08 Figure 84C926B 84C926B 2012-01 → 2015-08 Figure 84G395B 84G395B 2015-08 → — Figure 84G374B 84G374B 2015-08 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89722 Sensor, Theft Warning Tilt
89732 Sensor, Theft Warning Radar
89732A Sensor, Theft Warning Ultrasonic
8973B Sensor, Theft Warning Ultrasonic & Tilt
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
