Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

13 part groups · 2 illustrations

Illustrations

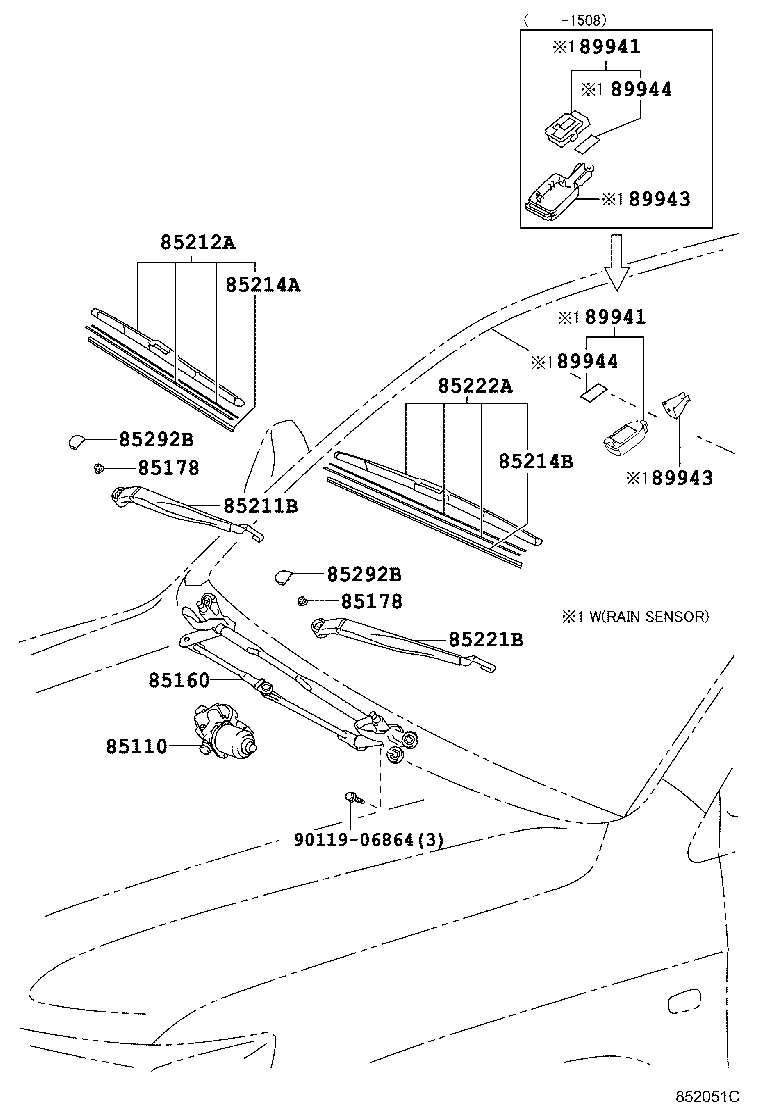

Figure 852412B 852412B 2007-09 → — Figure 852051C 852051C 2007-09 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85292B Cap, Front Wiper Arm Head
89941 Sensor, Rain
89943 Cover, Rain Sensor
89944 Tape, Rain Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
