Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 8 illustrations

Illustrations

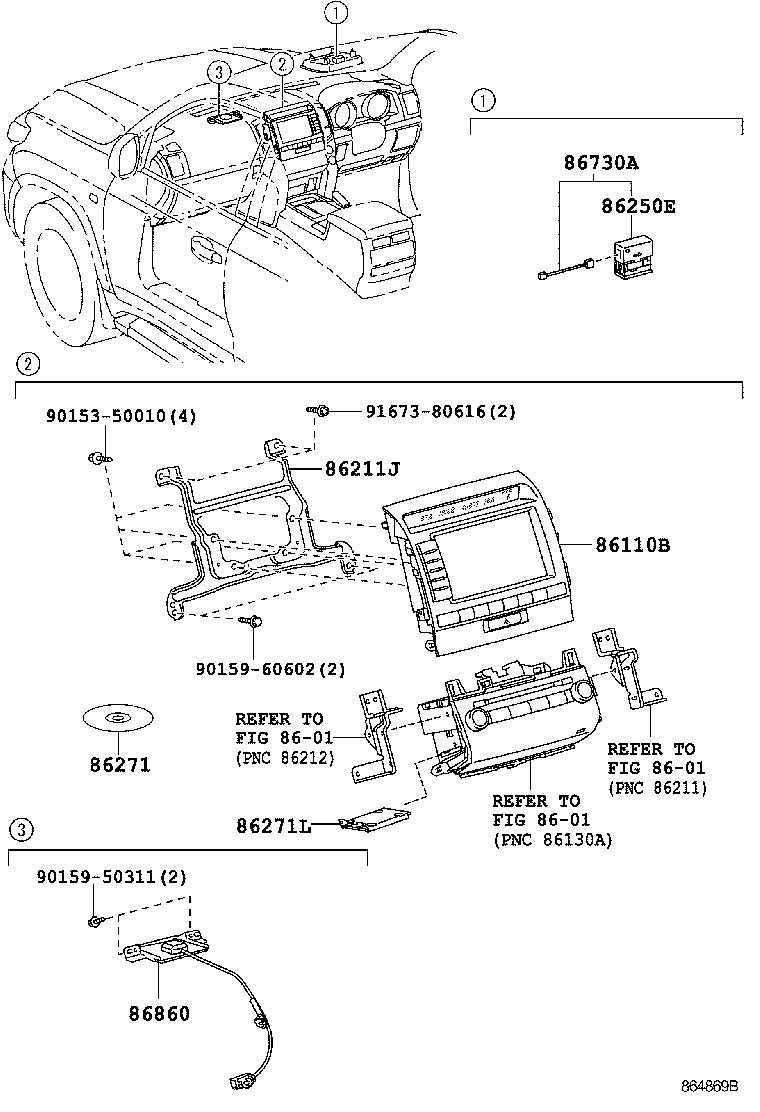

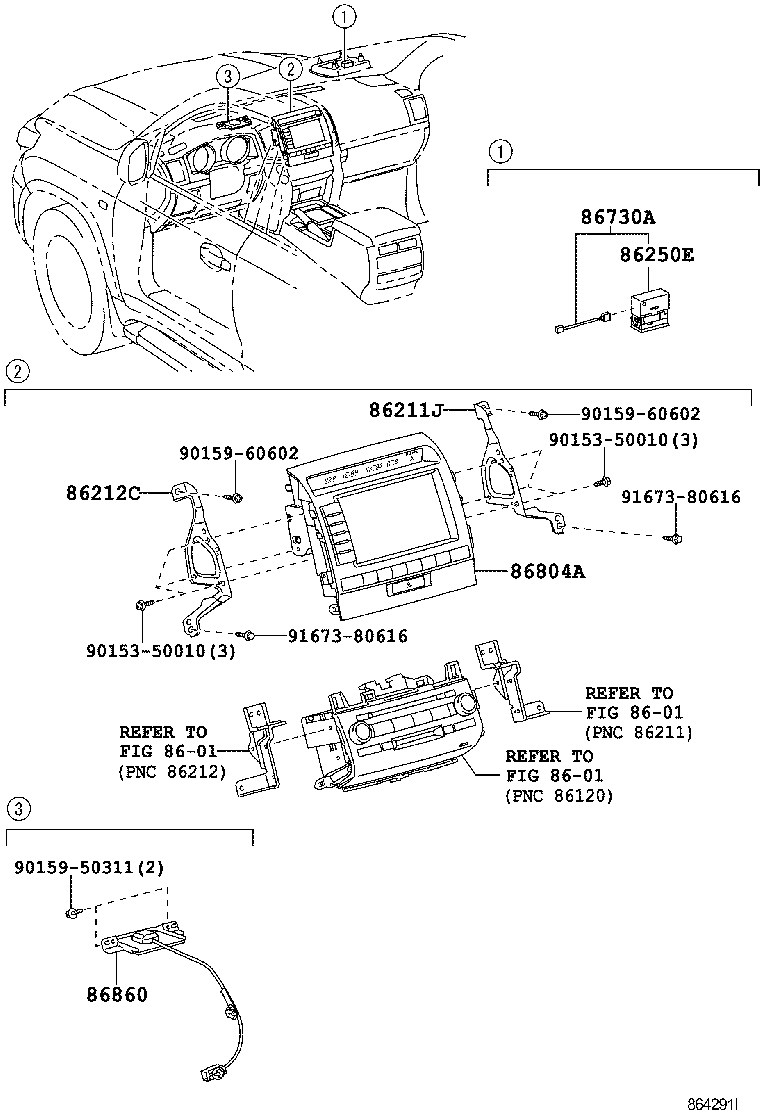

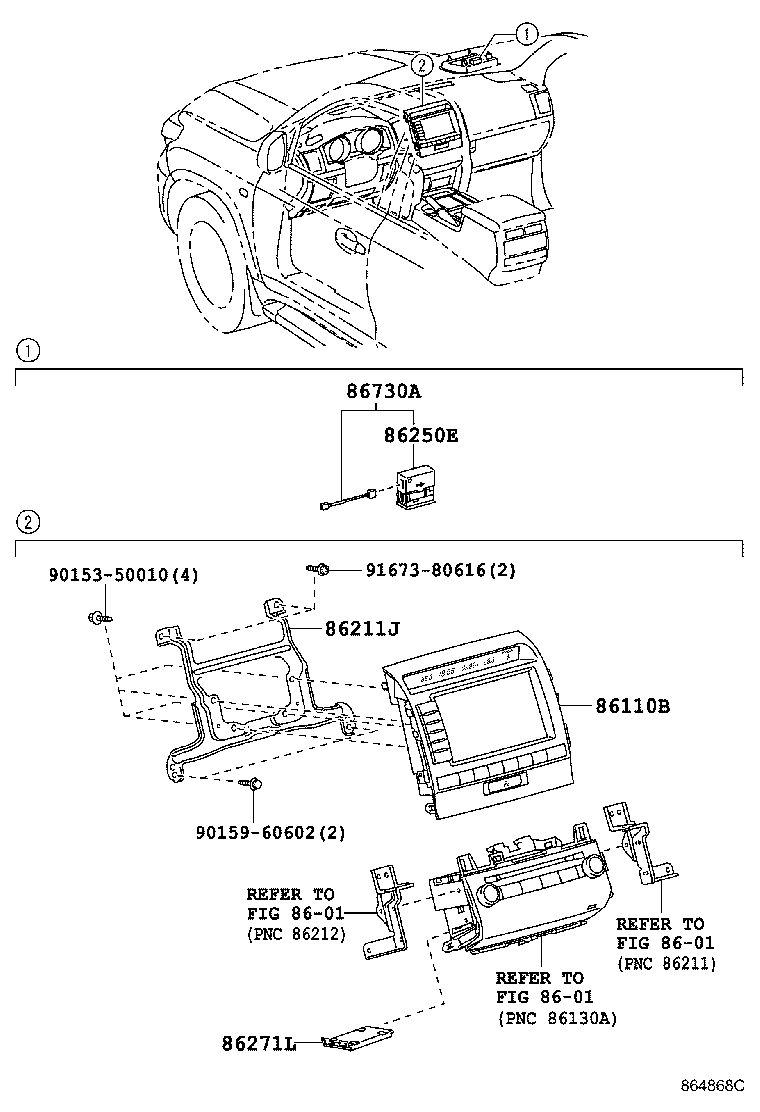

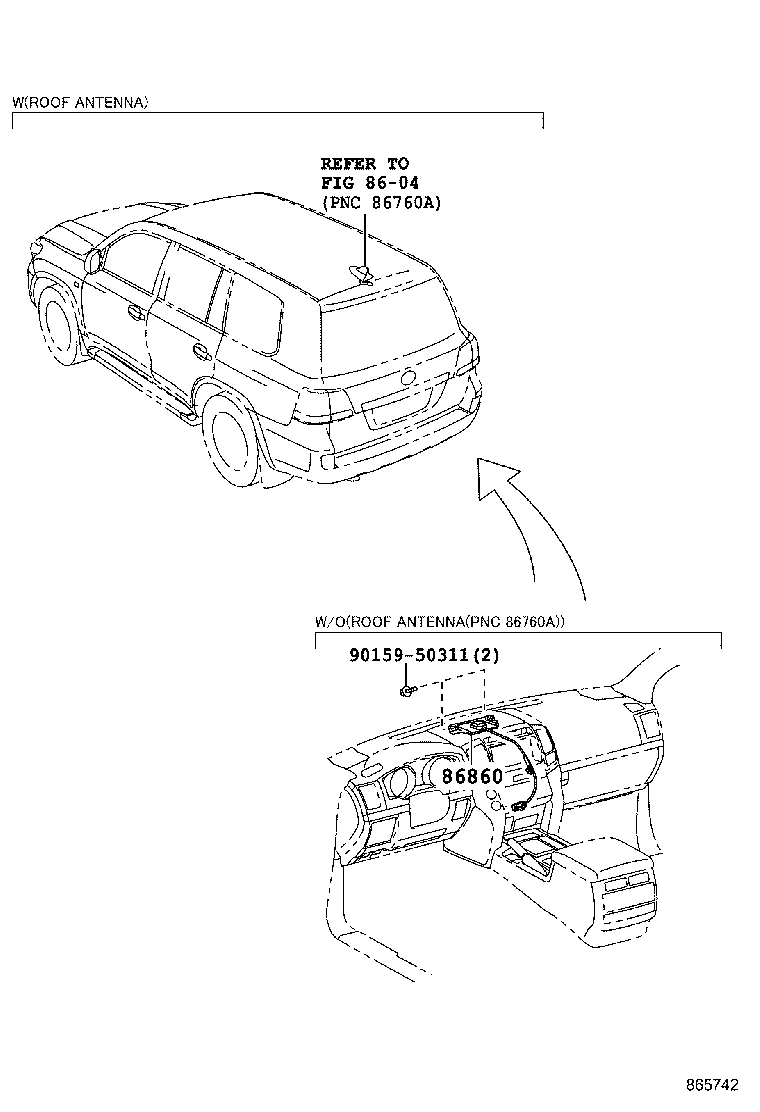

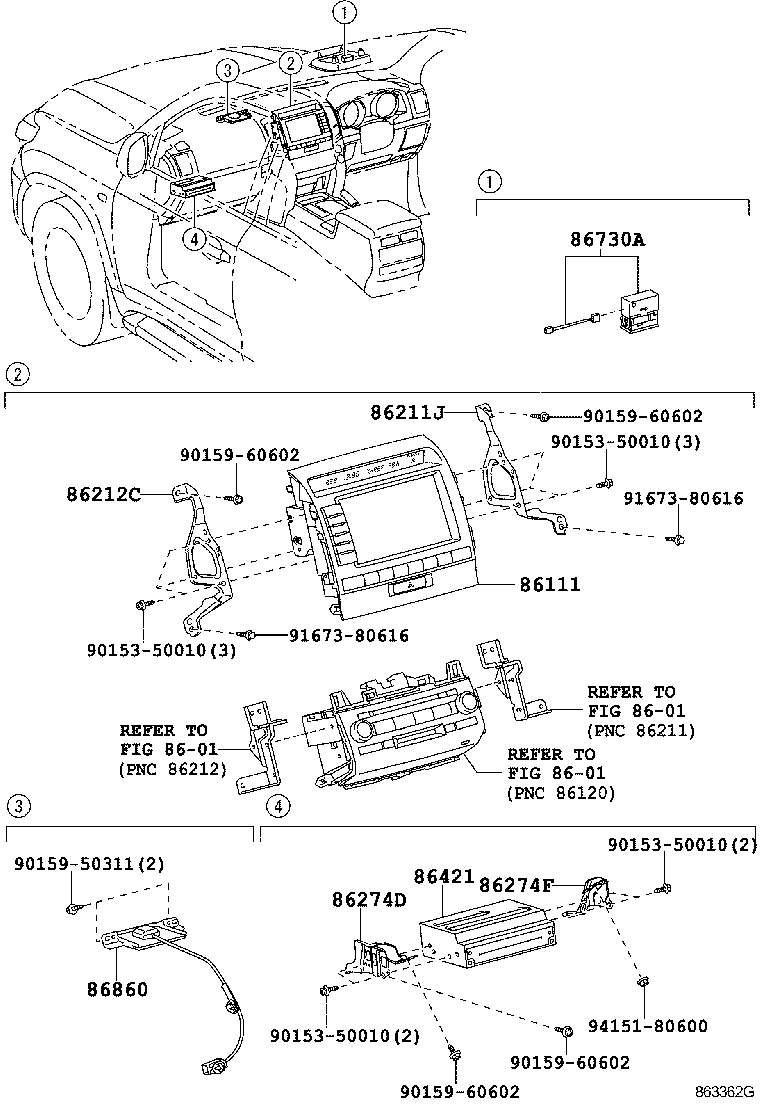

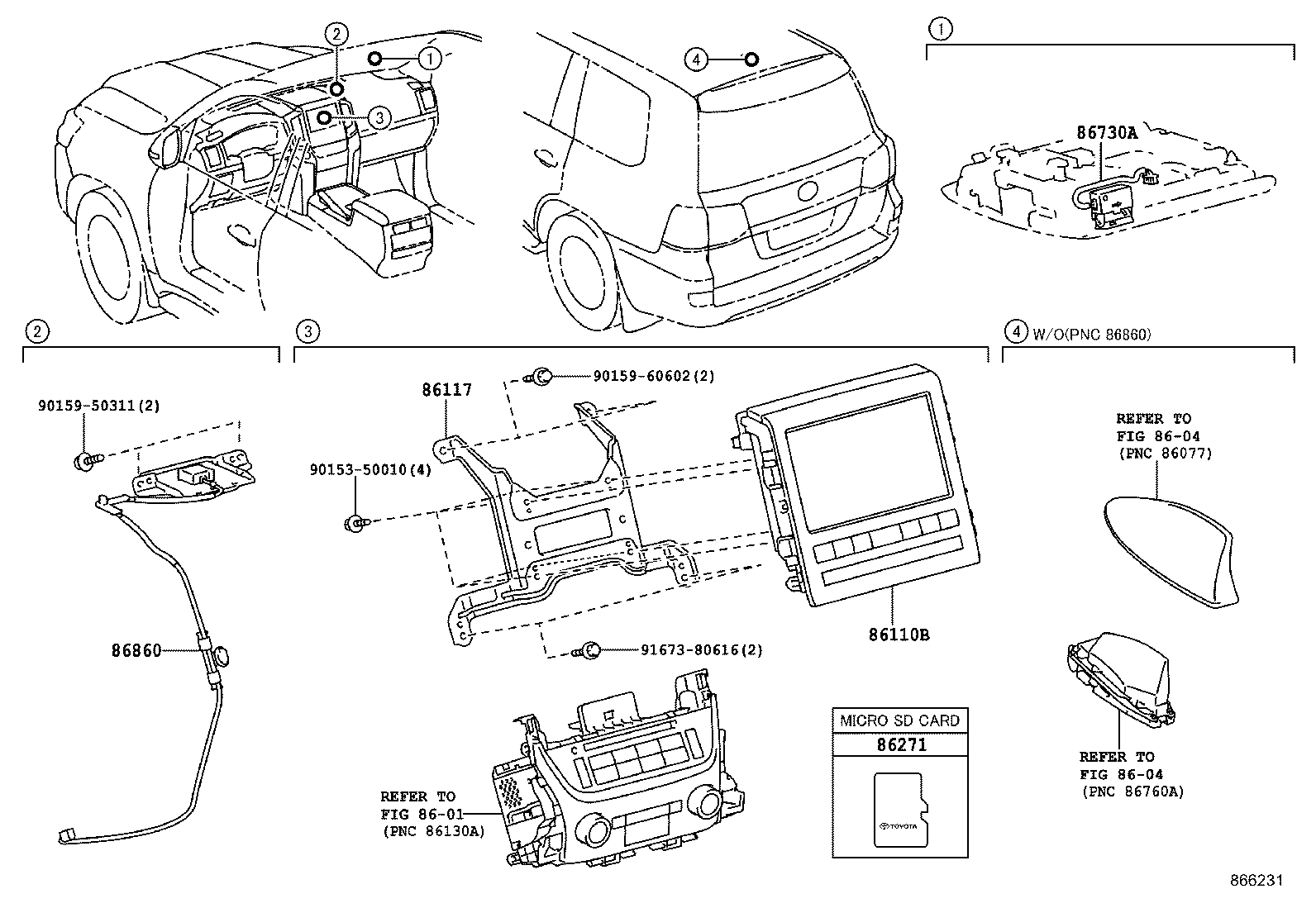

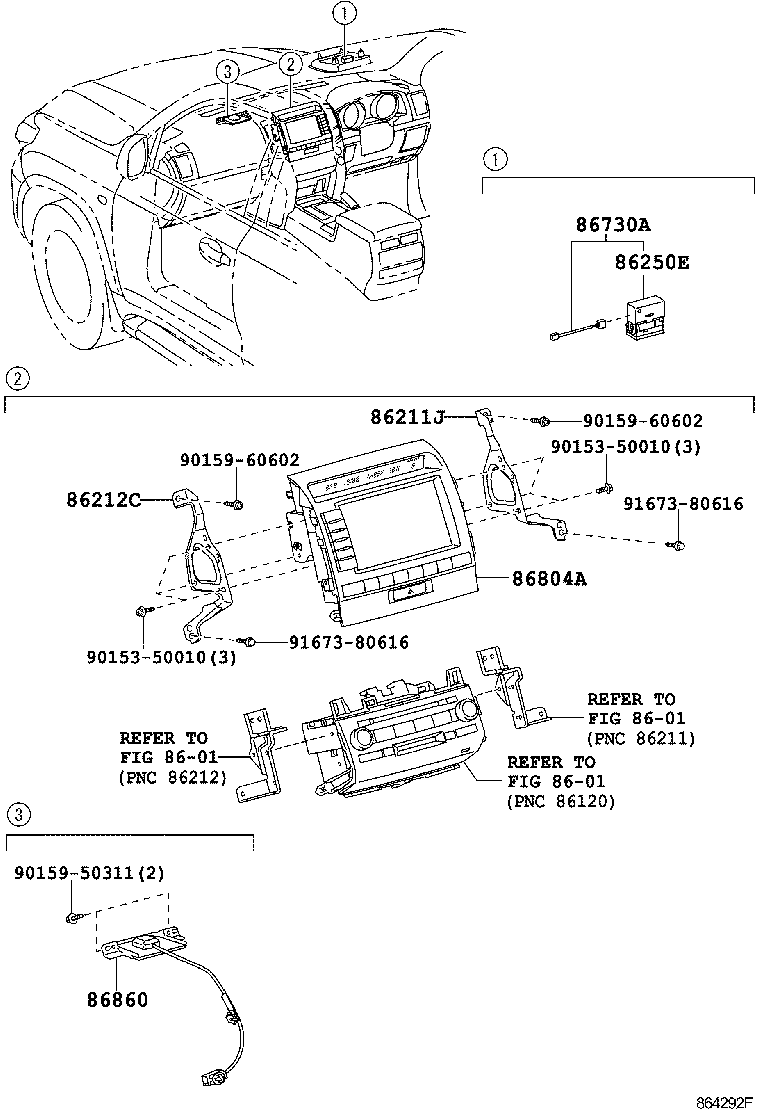

Figure 863360I 863360I 2007-09 → 2009-07 Figure 863362G 863362G 2007-09 → 2009-07 Figure 864291I 864291I 2009-07 → 2012-01 Figure 864292F 864292F 2009-07 → 2012-01 Figure 864868C 864868C 2012-01 → 2015-08 Figure 864869B 864869B 2012-01 → 2015-08 Figure 865742 865742 2012-01 → 2015-08 Figure 866231 866231 2015-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86421 Board, Navigation Module
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
