Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

11 part groups · 2 illustrations

Illustrations

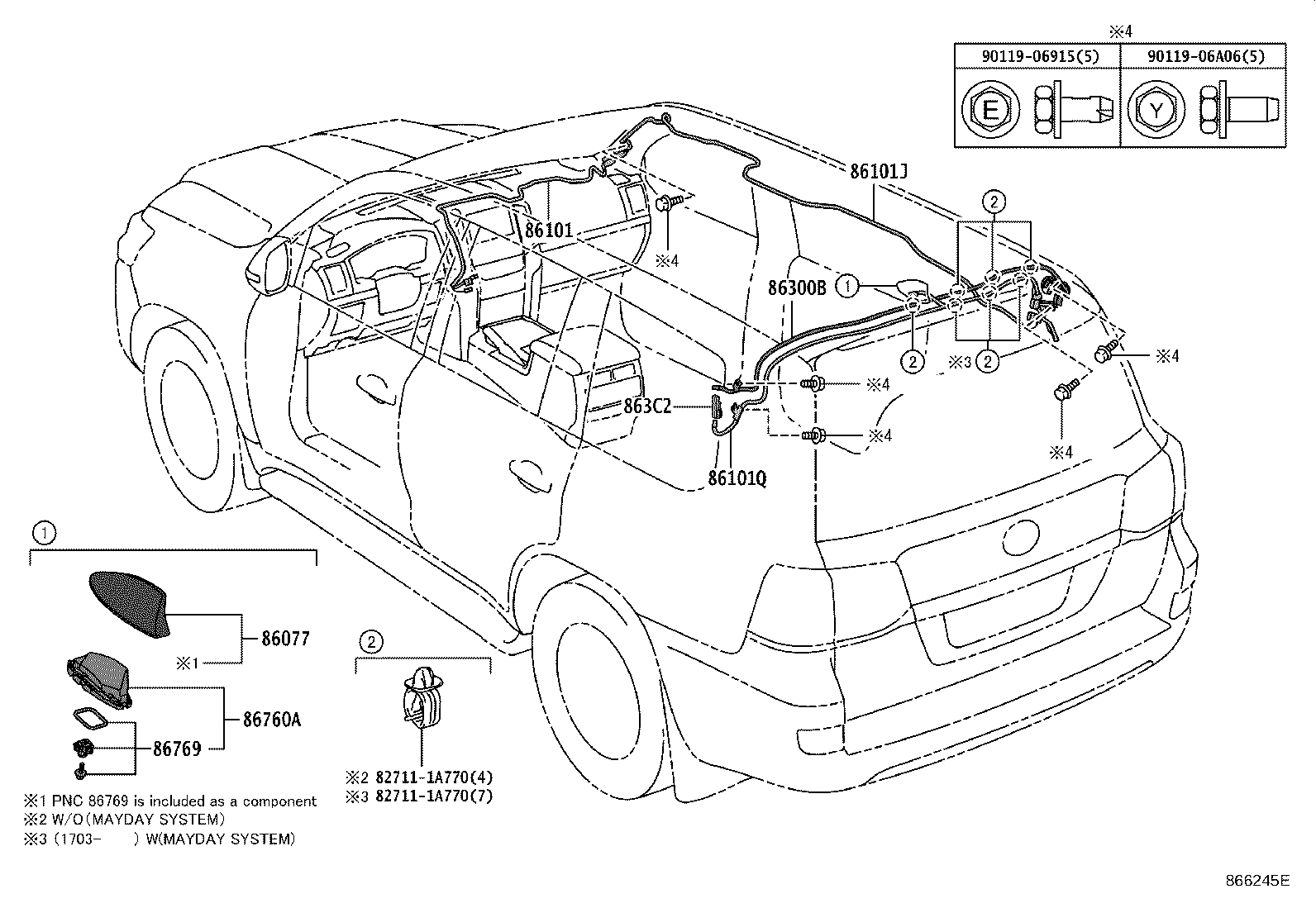

Figure 864874B 864874B 2007-09 → 2015-08 Figure 866245E 866245E 2015-08 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86300B Antenna Assy, Amplifier, NO.1
86396 Nut, Antenna
863C0 Antenna Assy, Digital Audio Broadcasting
863C2 Base, Digital Audio Broadcasting Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
87268R Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
