Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

18 part groups · 8 illustrations

Illustrations

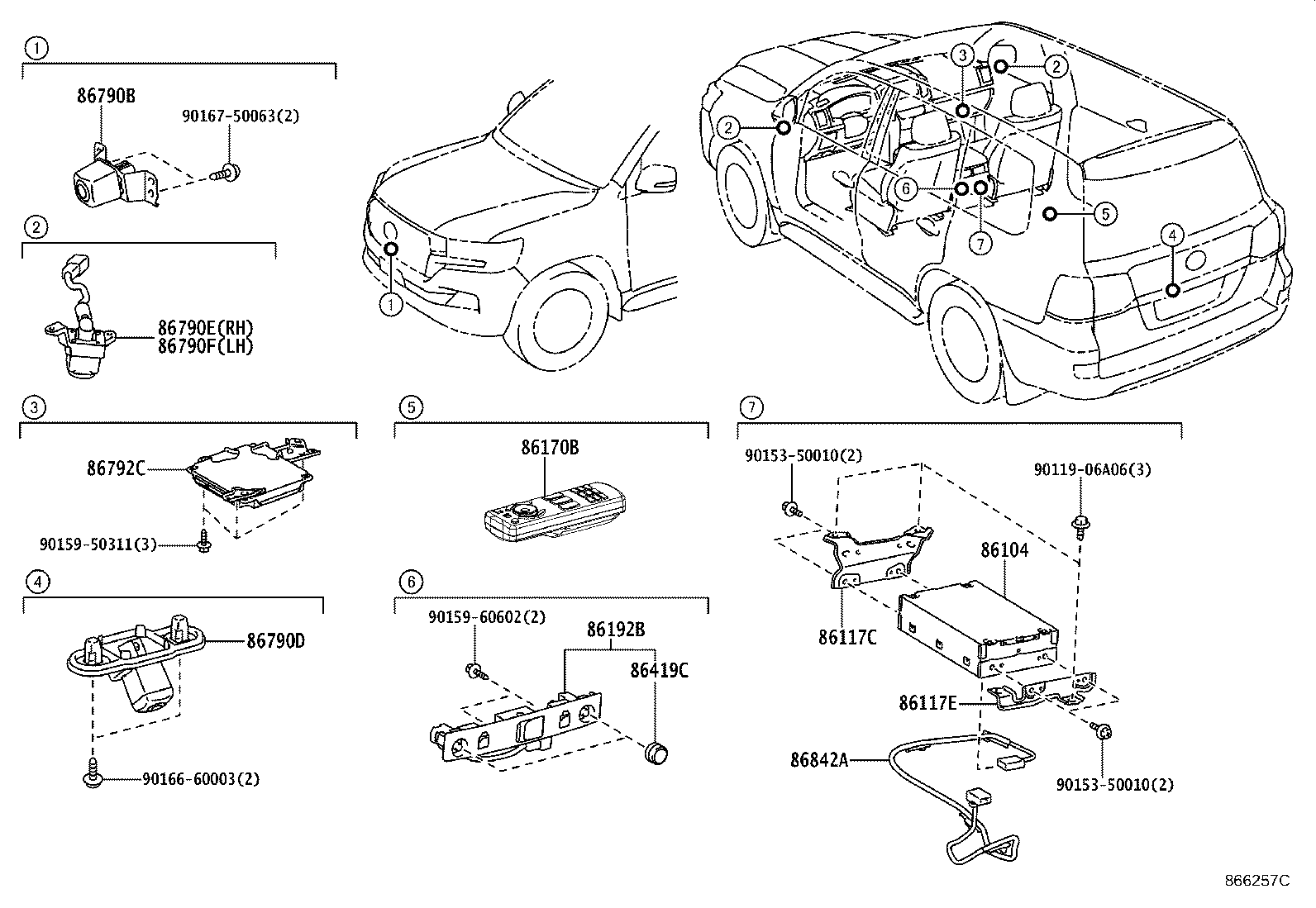

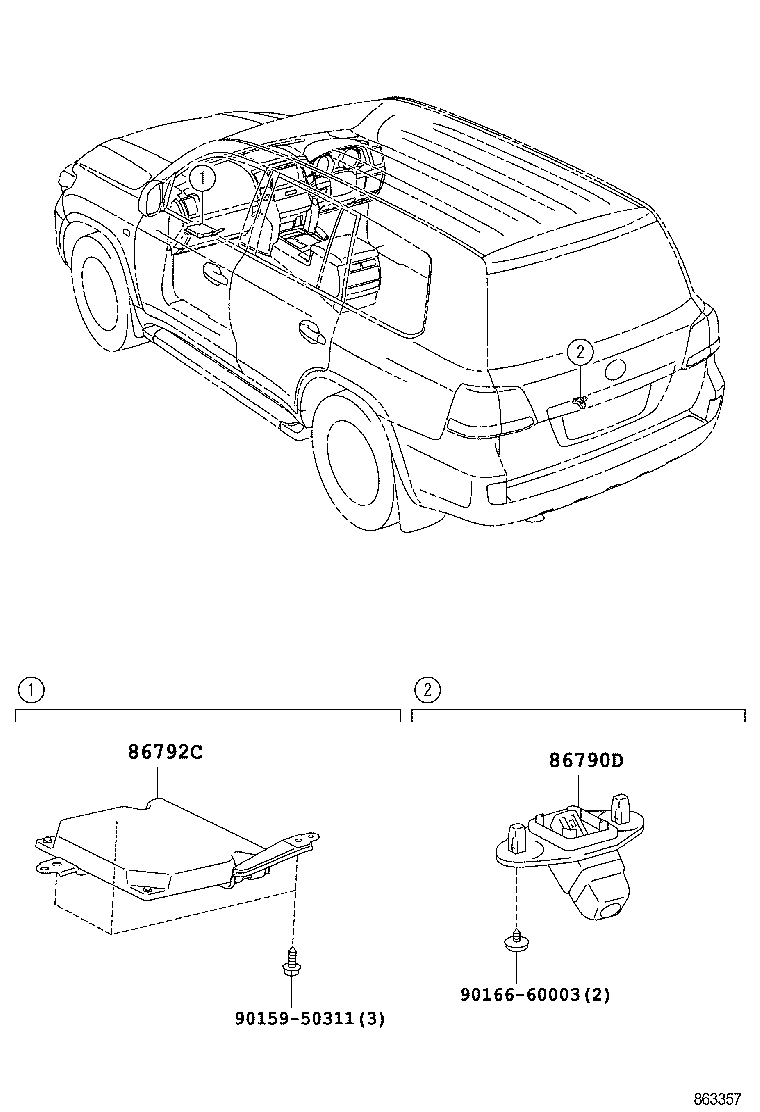

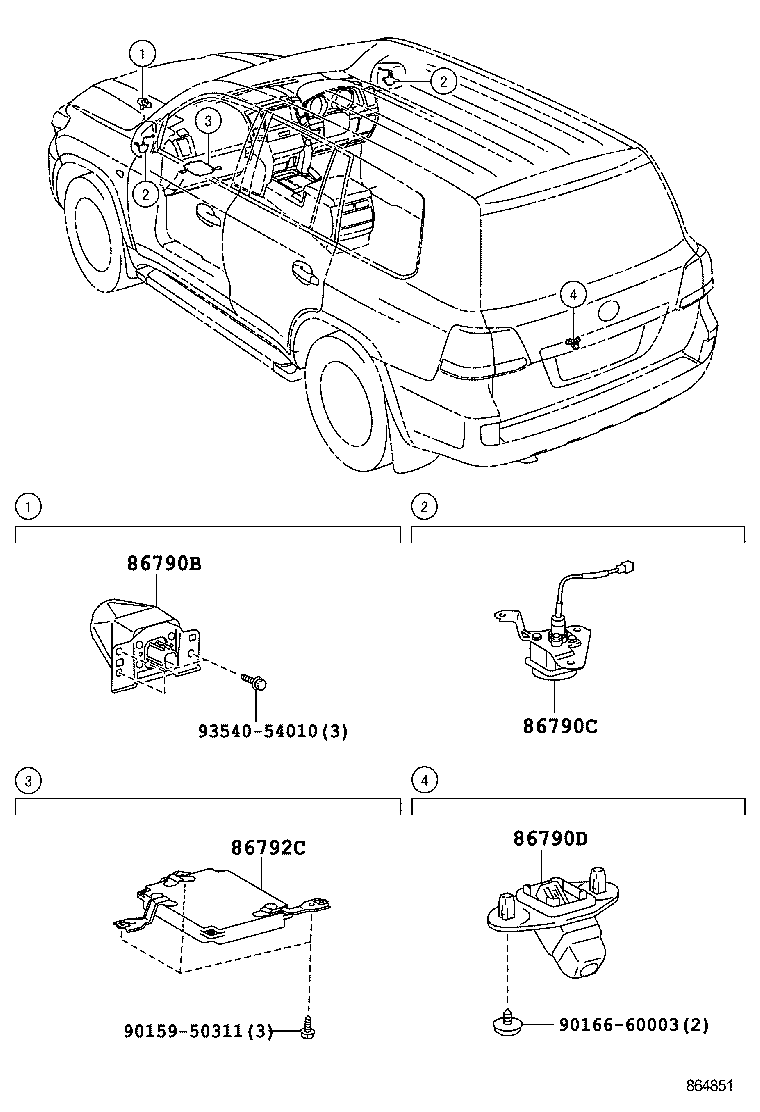

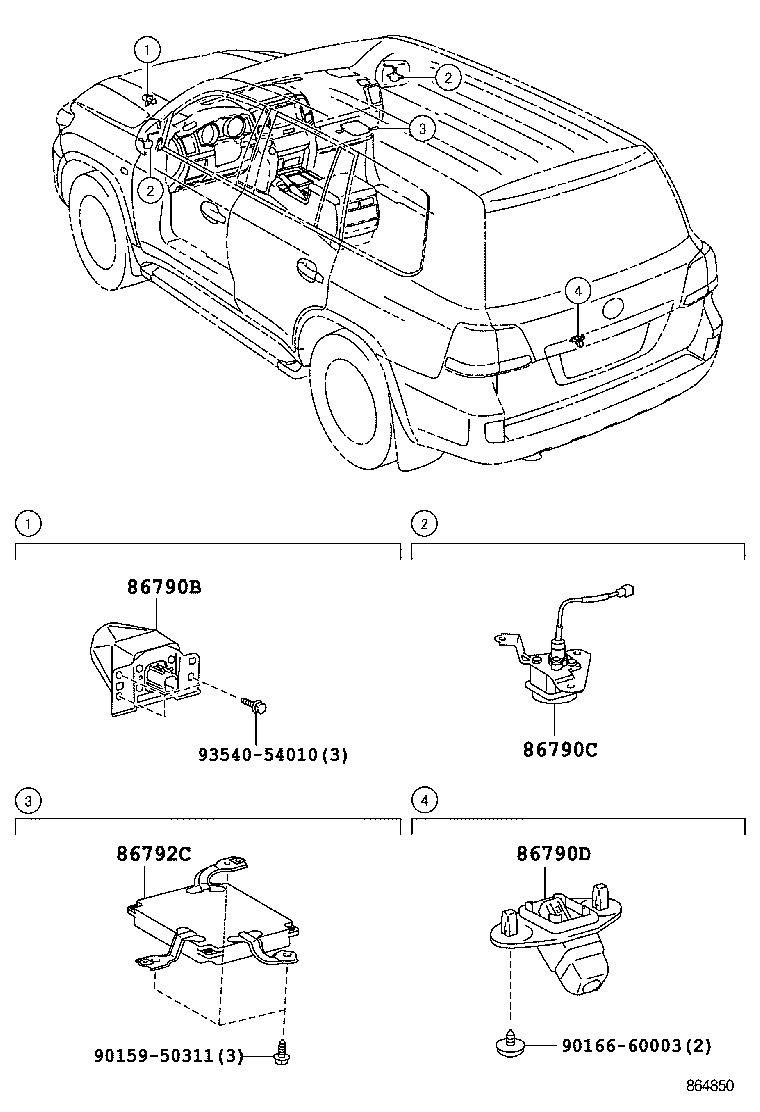

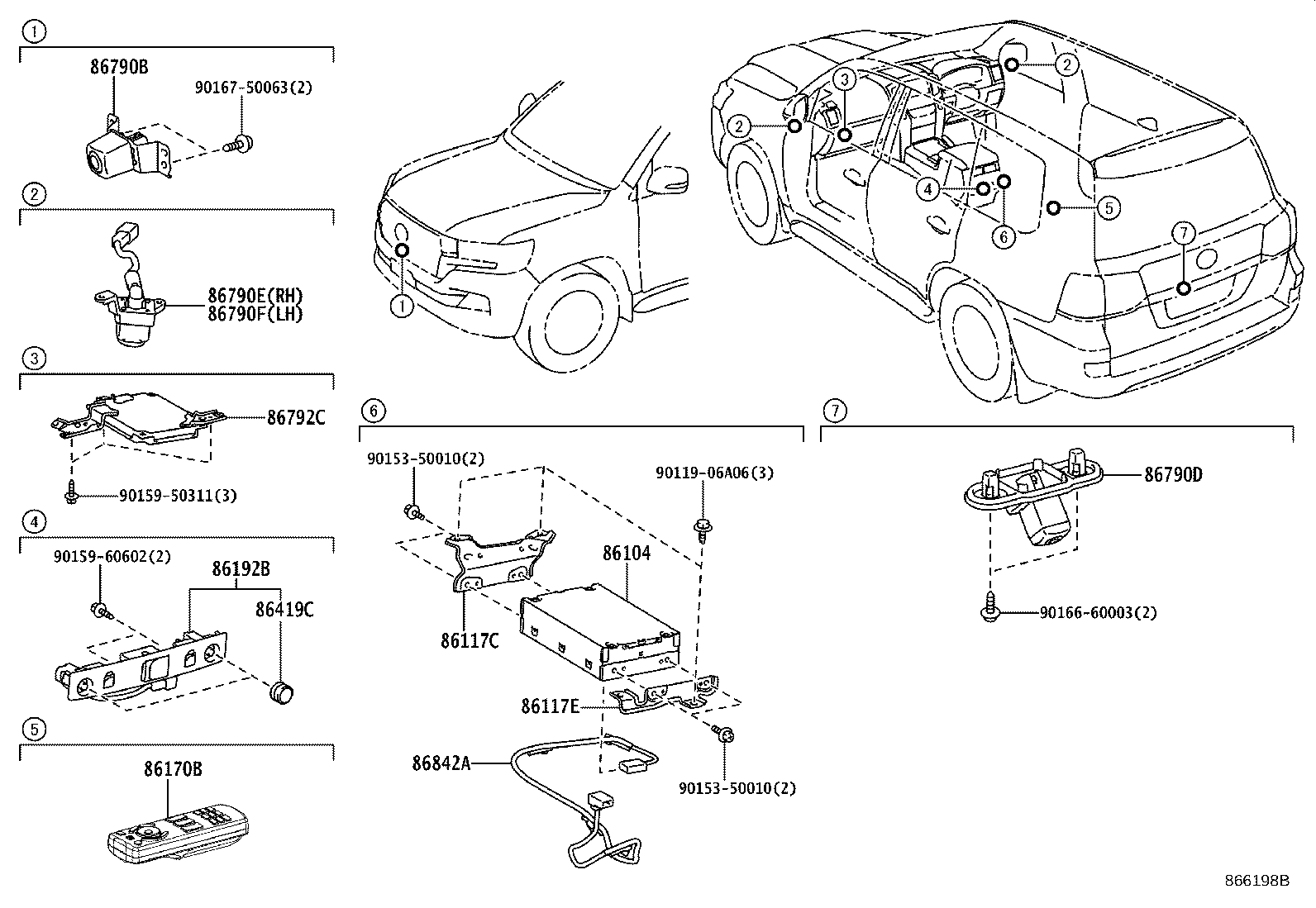

Figure 863356 863356 2007-09 → 2012-01 Figure 863357 863357 2007-09 → 2012-01 Figure 864850 864850 2012-01 → 2015-08 Figure 864851 864851 2012-01 → 2015-08 Figure 866257C 866257C 2015-08 → — Figure 866198B 866198B 2015-08 → — Figure 866277D 866277D 2015-08 → — Figure 866277D 866277D 2017-08 → —

Part groups

PNCDescription
86104 Controller Sub-assy, Multi-display
86117C Bracket, Multi-display Controller, NO.2
86117E Bracket, Multi-display Controller, NO.3
86170B Switch & Volume Assy, Television
86192B Terminal, Headphone
86292 Cover, Television Set
86292D Clip(FOR TELEVISION SET COVER)
86295 Base, Television
86295E Base, Television, NO.2
86419C Knob, Audio Module
86680A Display Assy, Television
86790B Camera Assy, Television, FR
86790C Camera Assy, Television, Side
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
86842A Wire, Navigation, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
