Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

55 part groups · 14 illustrations

Illustrations

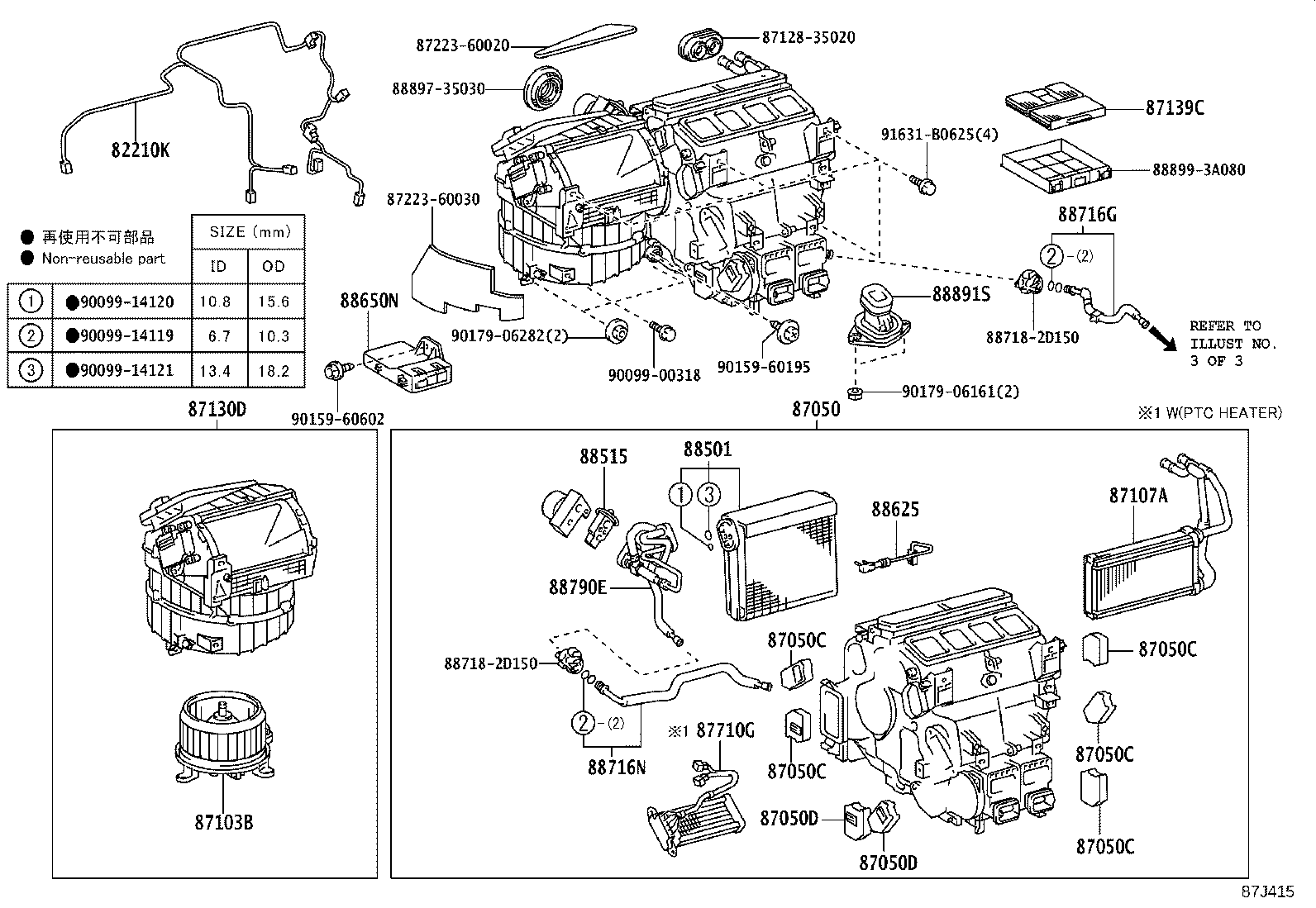

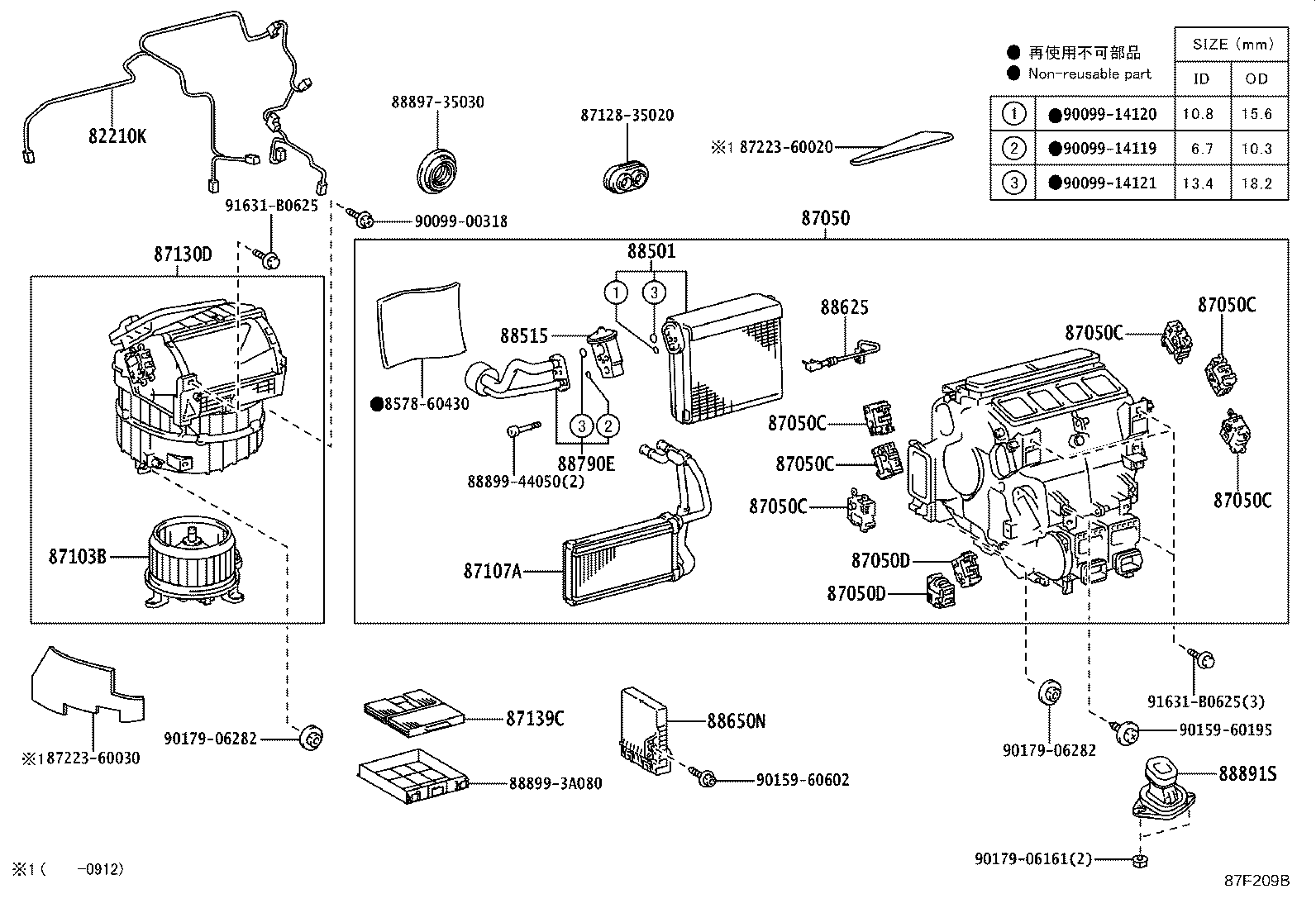

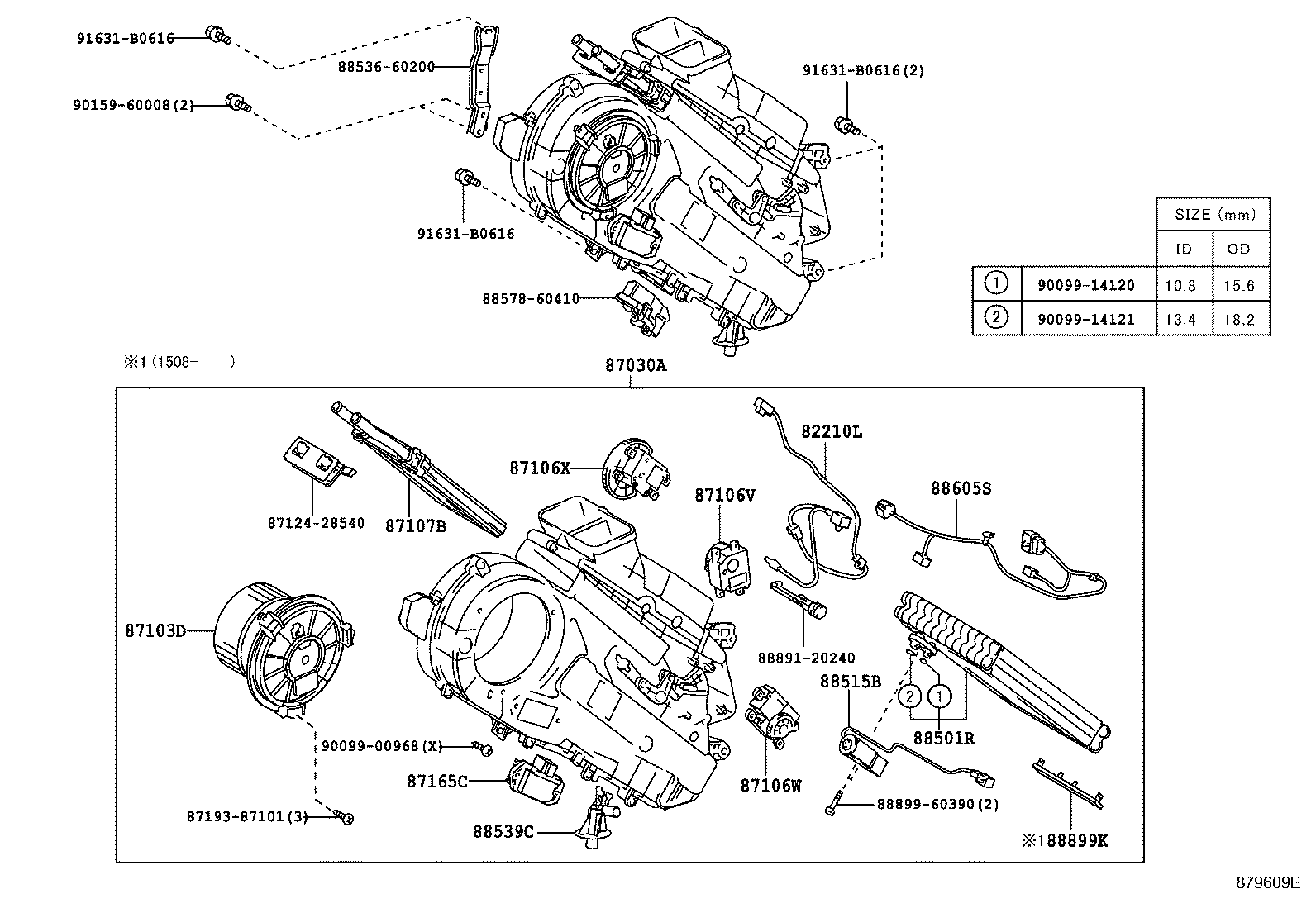

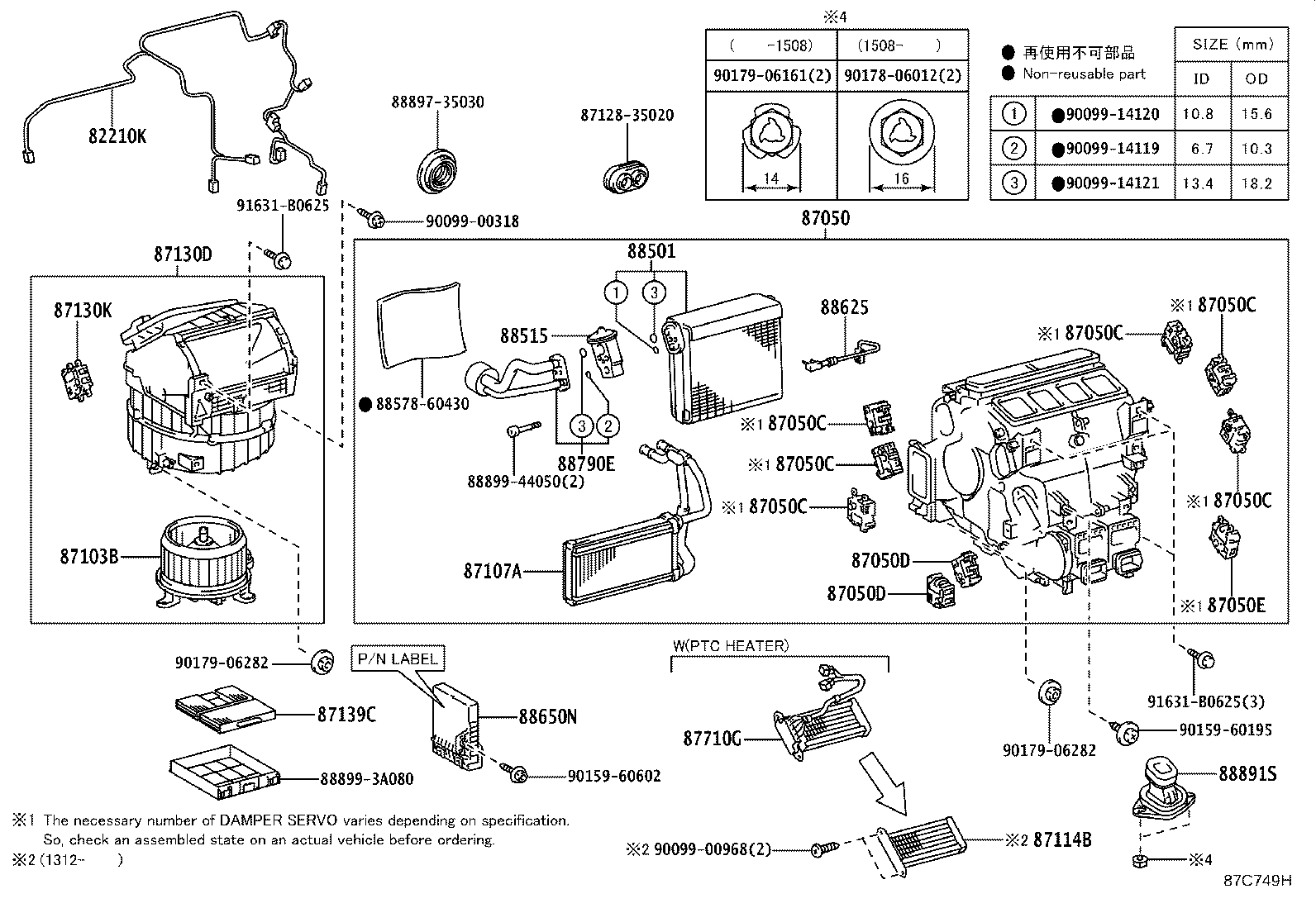

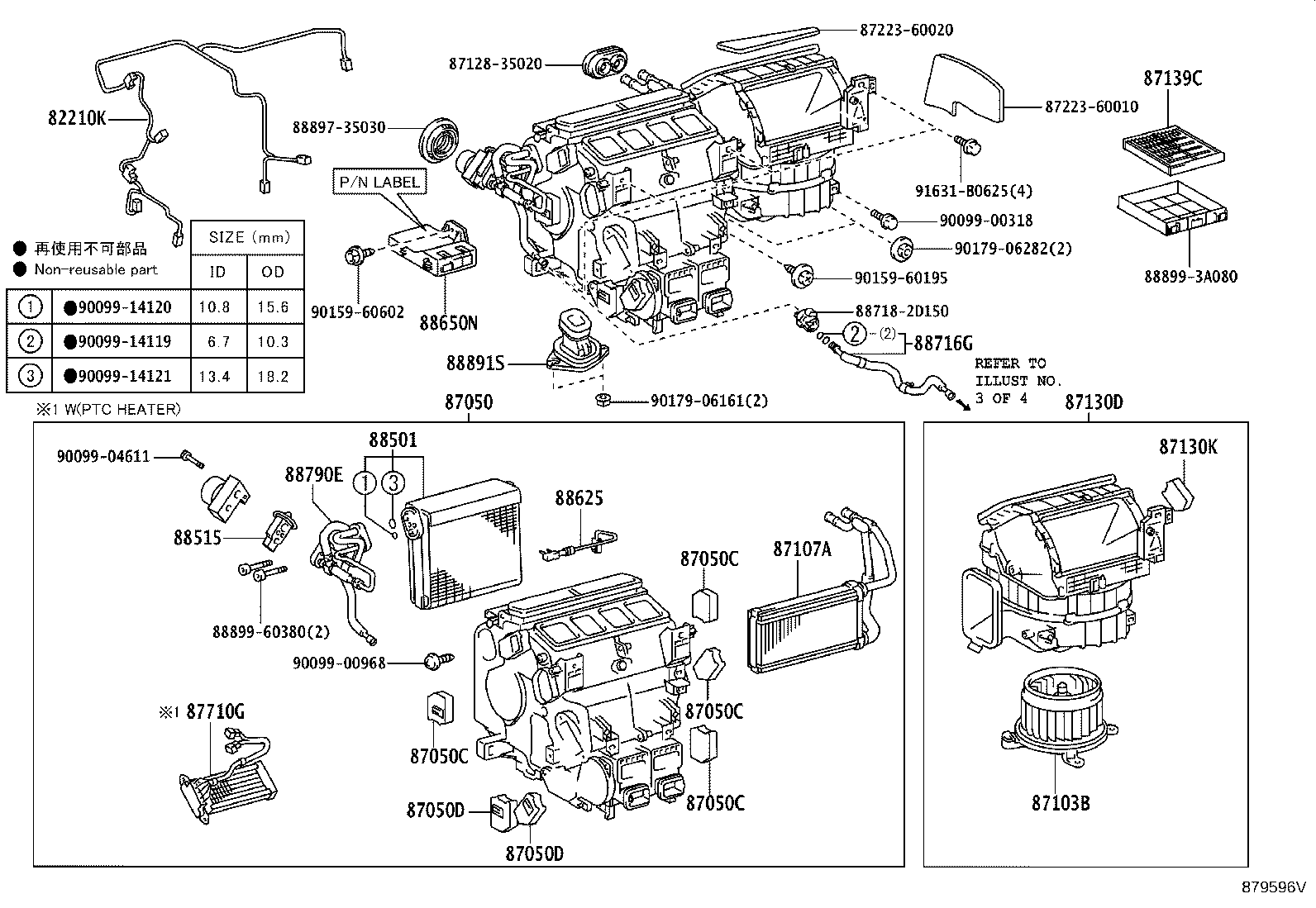

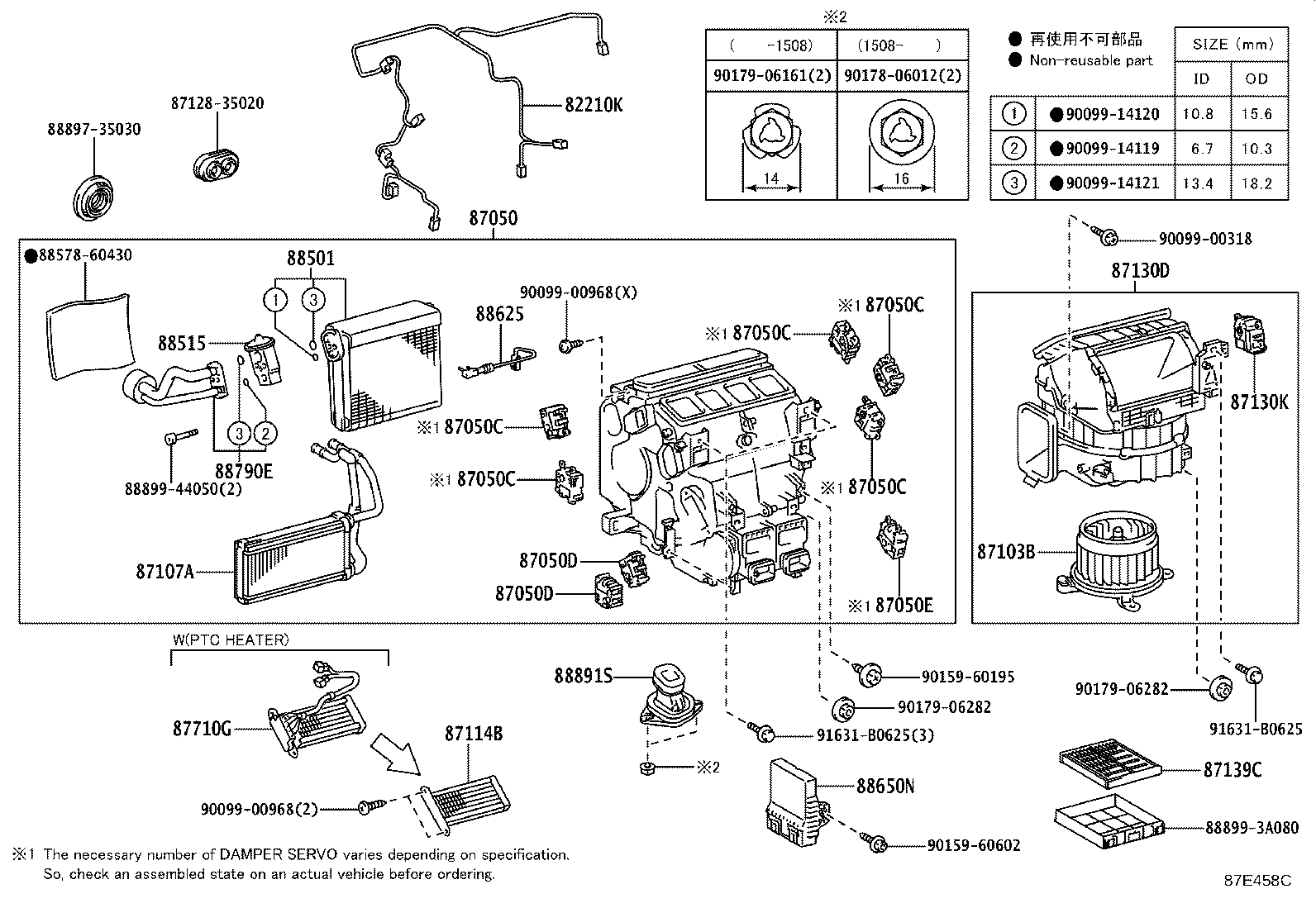

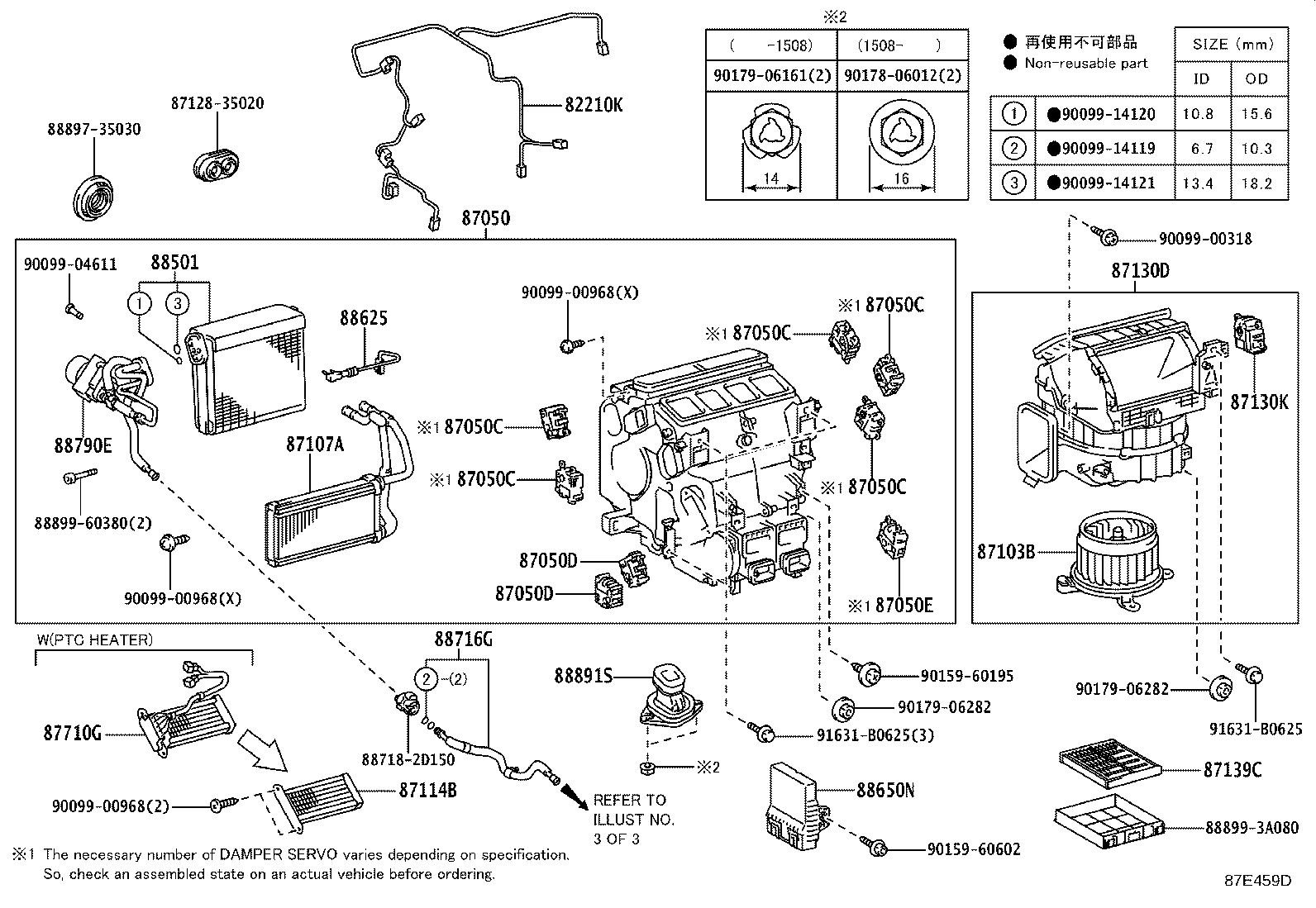

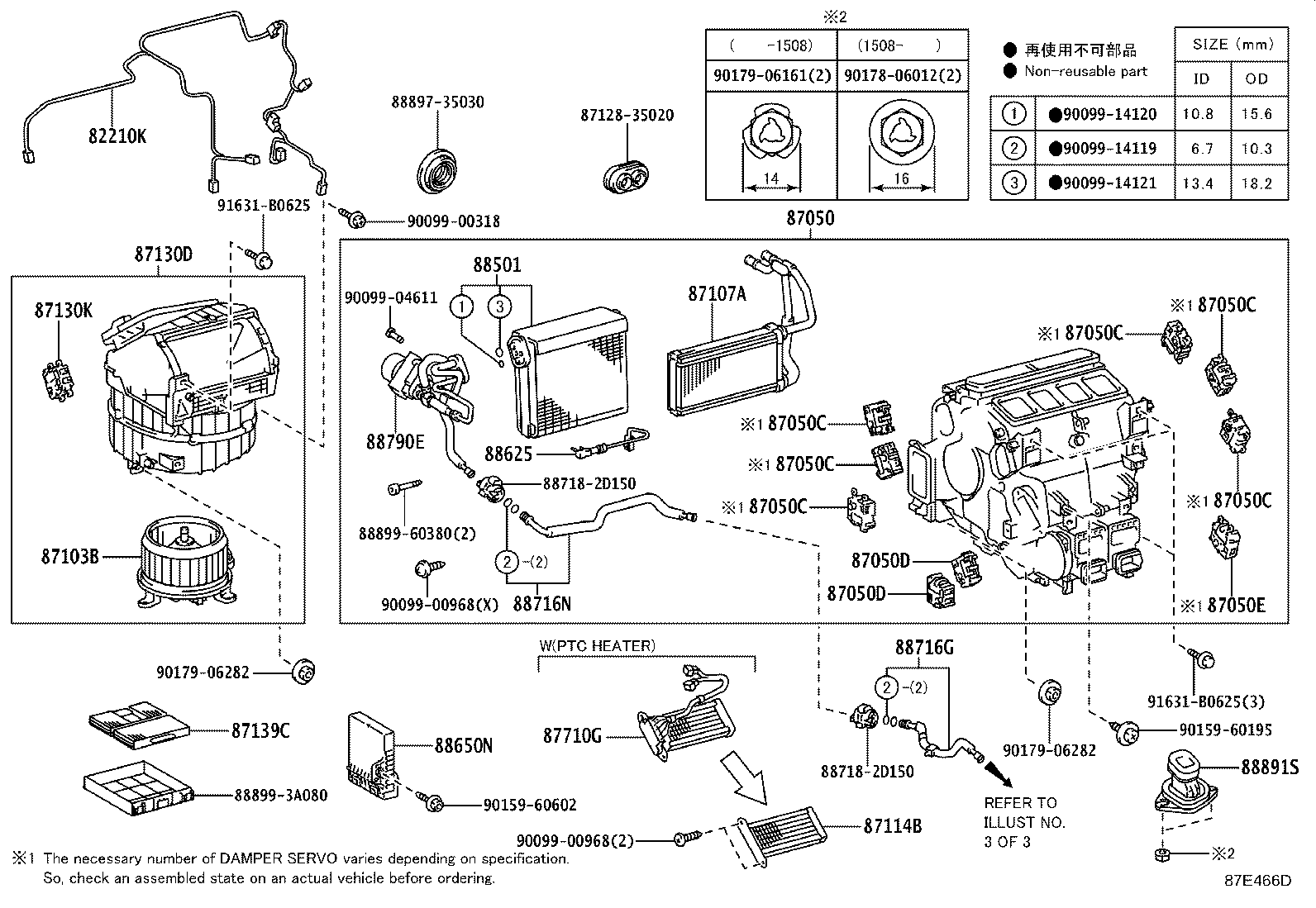

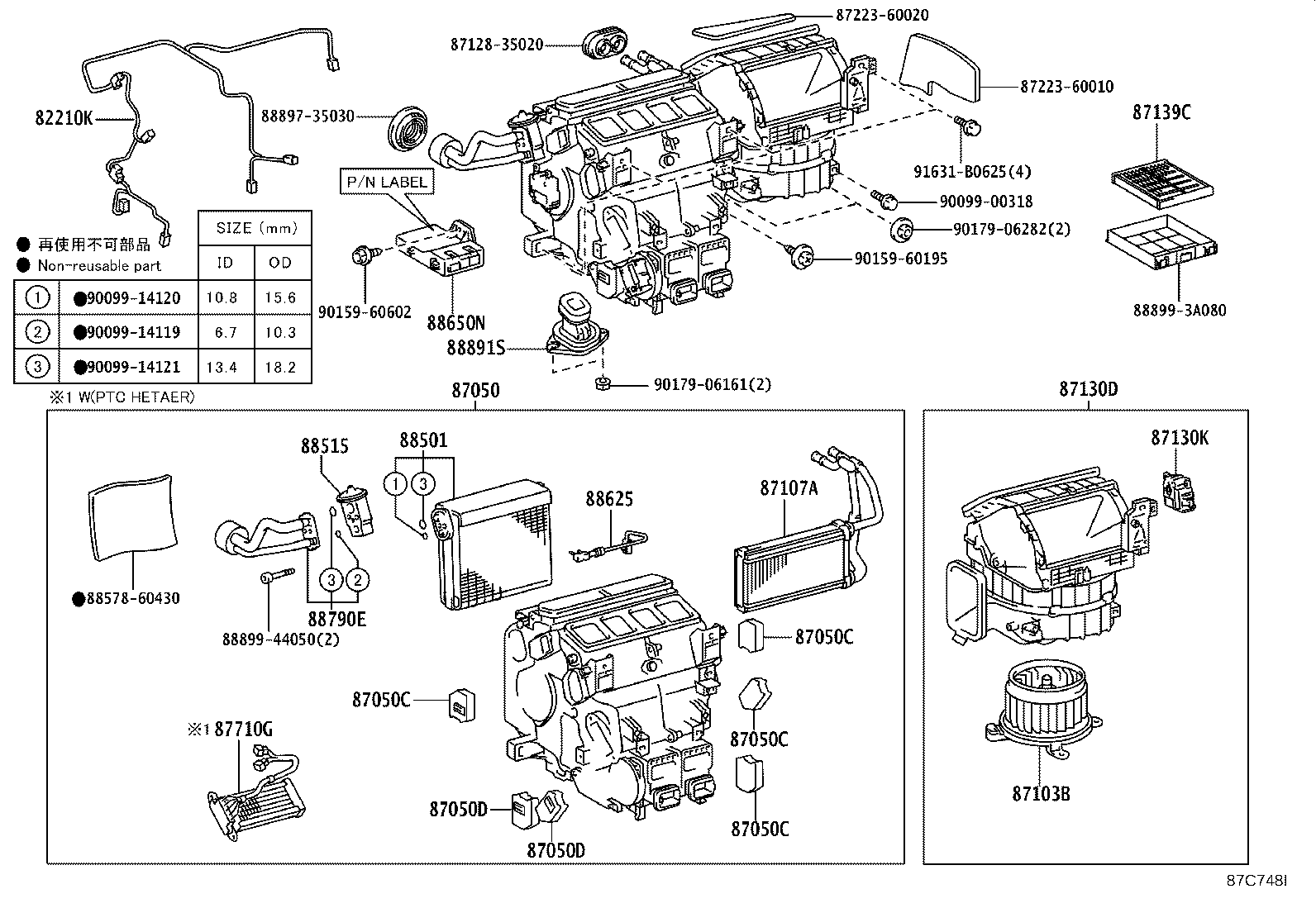

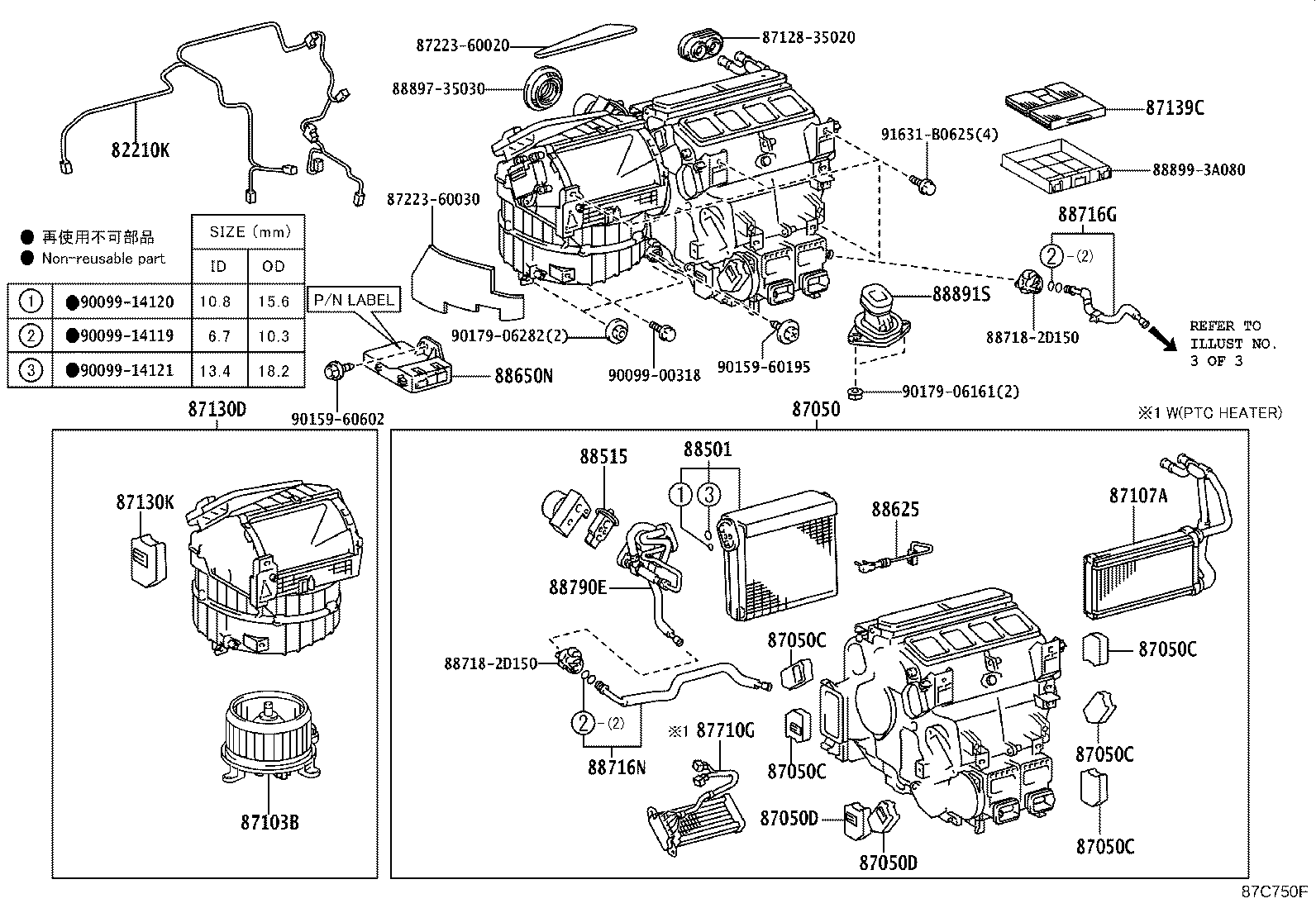

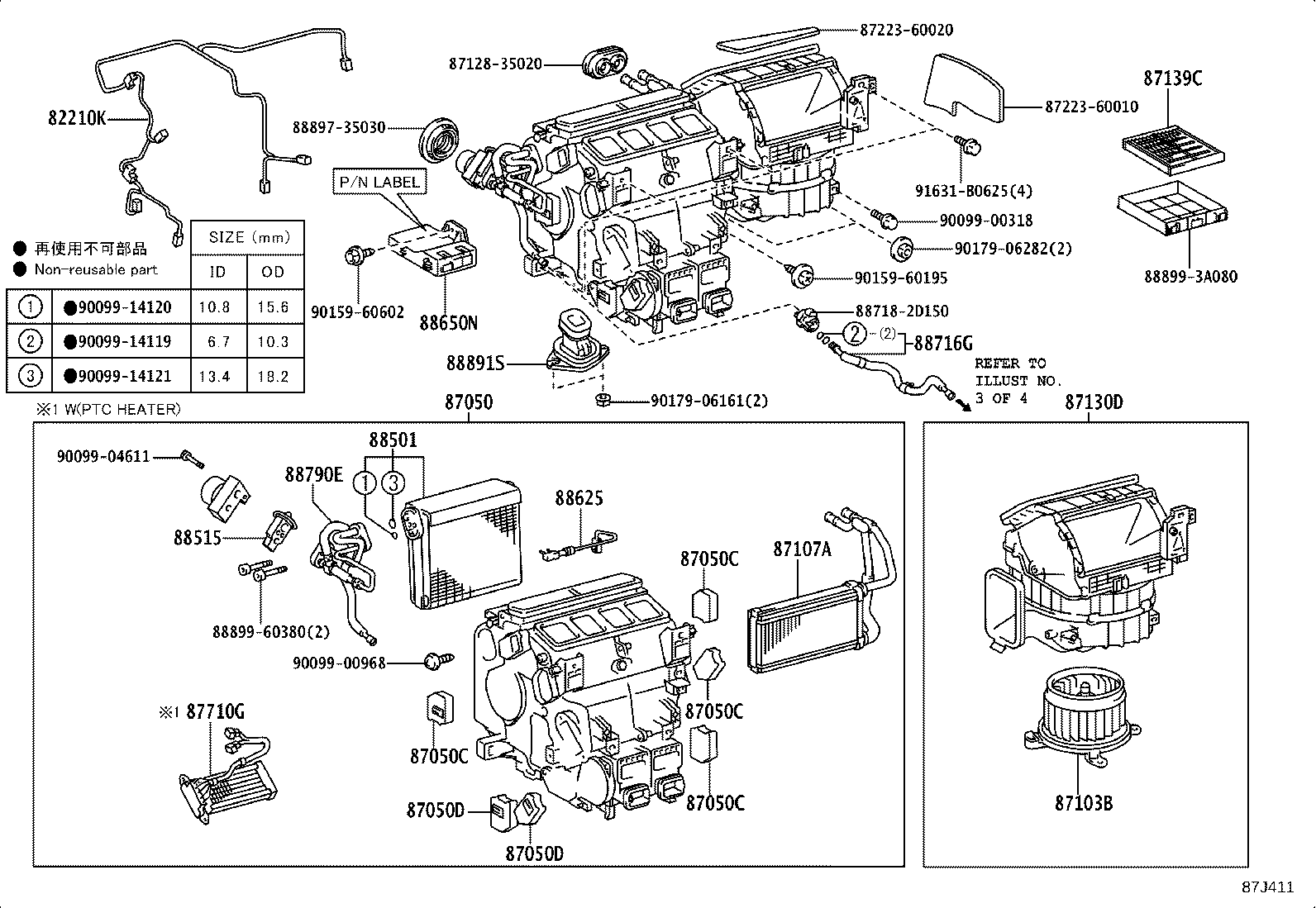

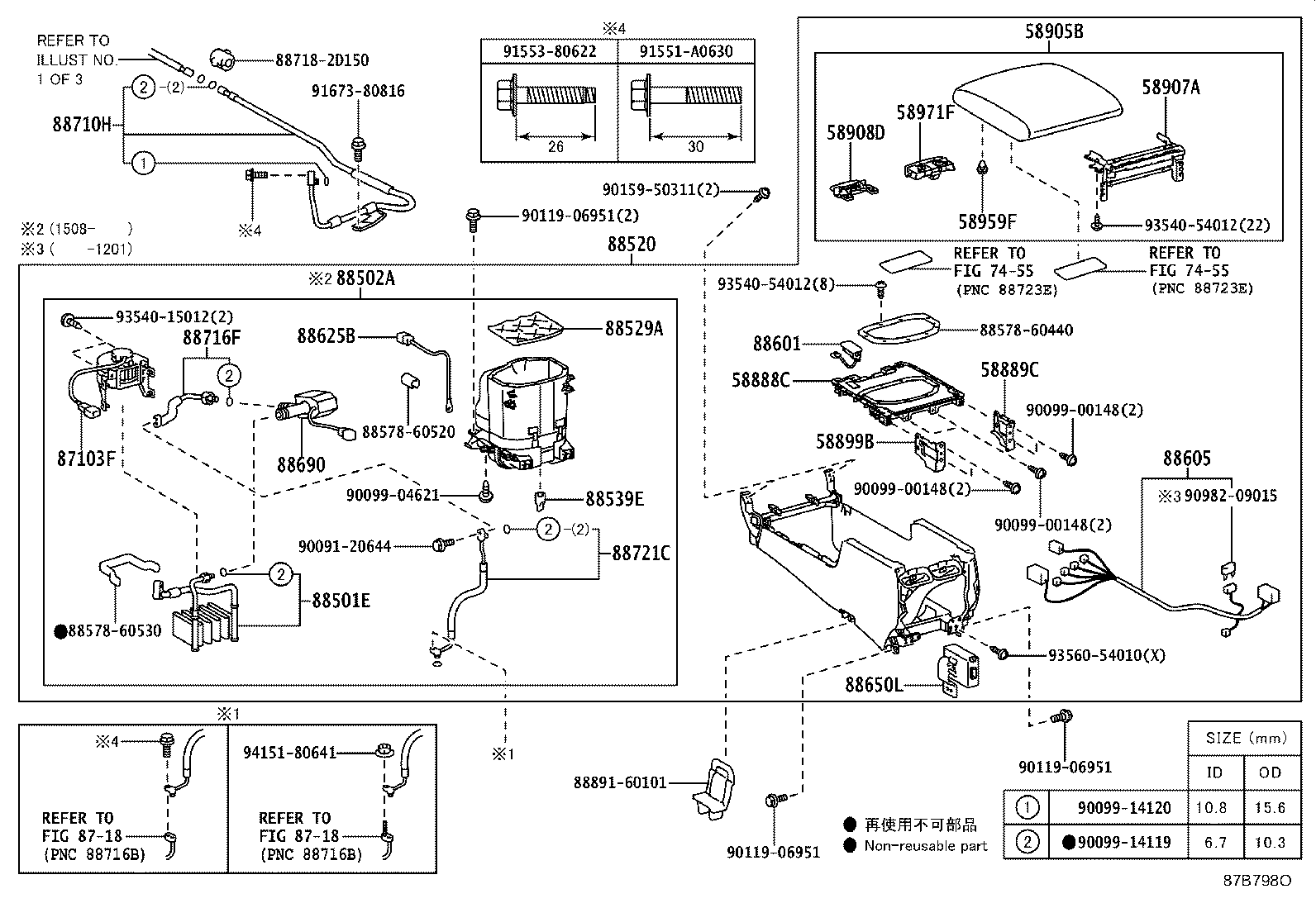

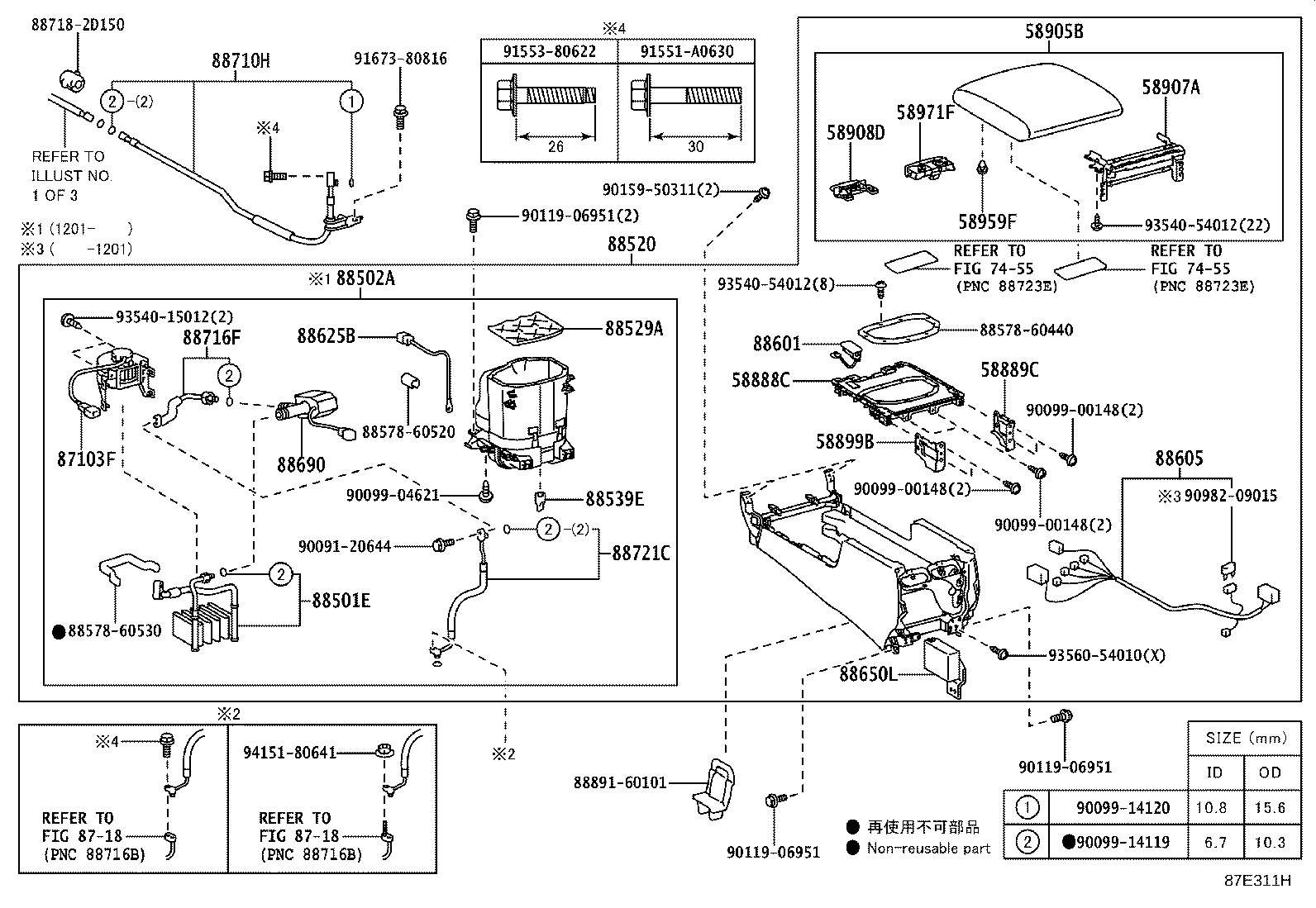

Figure 87J410 87J410 2007-09 → 2012-01 Figure 87J411 87J411 2007-09 → 2012-01 Figure 87F209B 87F209B 2007-09 → 2012-01 Figure 87C748I 87C748I 2012-01 → 2013-12 Figure 879596V 879596V 2012-01 → 2013-12 Figure 87C749H 87C749H 2012-01 → — Figure 87J415 87J415 2007-09 → 2012-01 Figure 87C750F 87C750F 2012-01 → 2013-12 Figure 87E458C 87E458C 2013-12 → — Figure 87E459D 87E459D 2013-12 → — Figure 87E466D 87E466D 2013-12 → — Figure 879609E 879609E 2007-09 → — Figure 87E311H 87E311H 2007-09 → — Figure 87B798O 87B798O 2007-09 → —

Part groups

PNCDescription
58888C Base, Cooling Box
58889C Bracket, Cooling Box
58899B Bracket, Cooling Box, NO.2
58905B Door Sub-assy, Console Compartment(FOR COOL BOX)
58907A Hinge Sub-assy, Cooling Box Door
58908D Lock Sub-assy, Cooling Box Door
58959F Cushion, Cooling Box Door
58971F Lock, Cooling Box Door
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87103F Motor Sub-assy, Blower W/Fan(FOR COOL BOX)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87106W Servo Sub-assy, Damper(FOR AIRMIX REAR)
87106X Servo Sub-assy, Damper(FOR MODE REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502A Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88520 Box Assy, Cooling
88529A Tray, Cooling Box
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88625B Thermistor, Cooler NO.3
88650L Amplifier Assy, Air Conditioner (FOR COOL BOX)
88650N Amplifier Assy, Air Conditioner
88690 Valve Assy, Cooler Magnet
88710H Tube & Accessory Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88716N Pipe, Cooler Refrigerant Liquid, N
88721C Hose, Liquid
88790E Tube & Accessory Assy, Airconditioner
88891S Cover, Cooler, NO.1
88899K Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
