Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

18 part groups · 7 illustrations

Illustrations

Figure 879675B

879675B 2007-09 → 2012-01

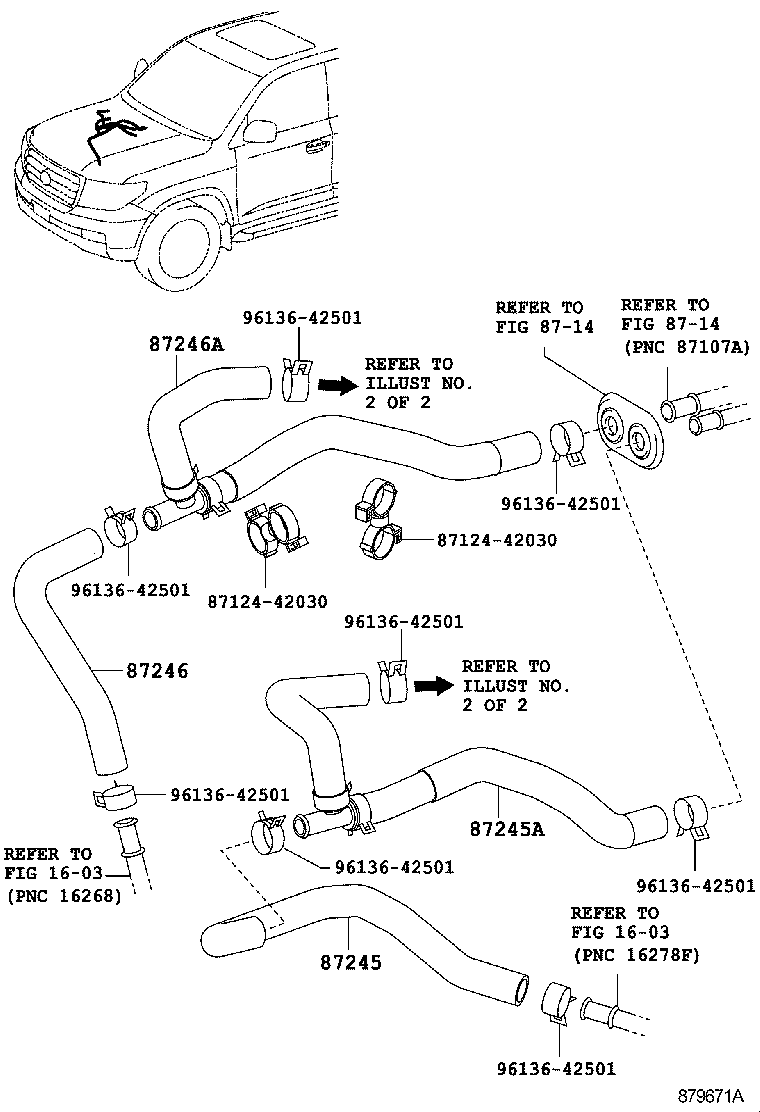

Figure 879671A

879671A 2007-09 → 2012-01

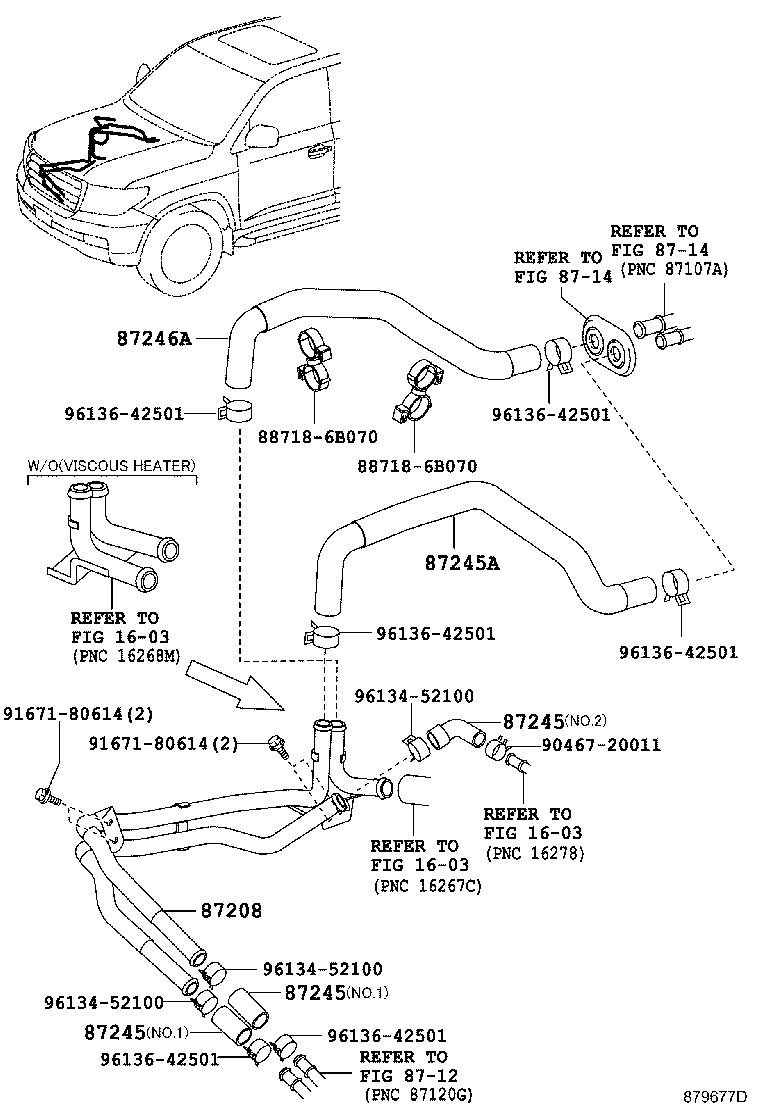

Figure 879677D

879677D 2007-09 → —

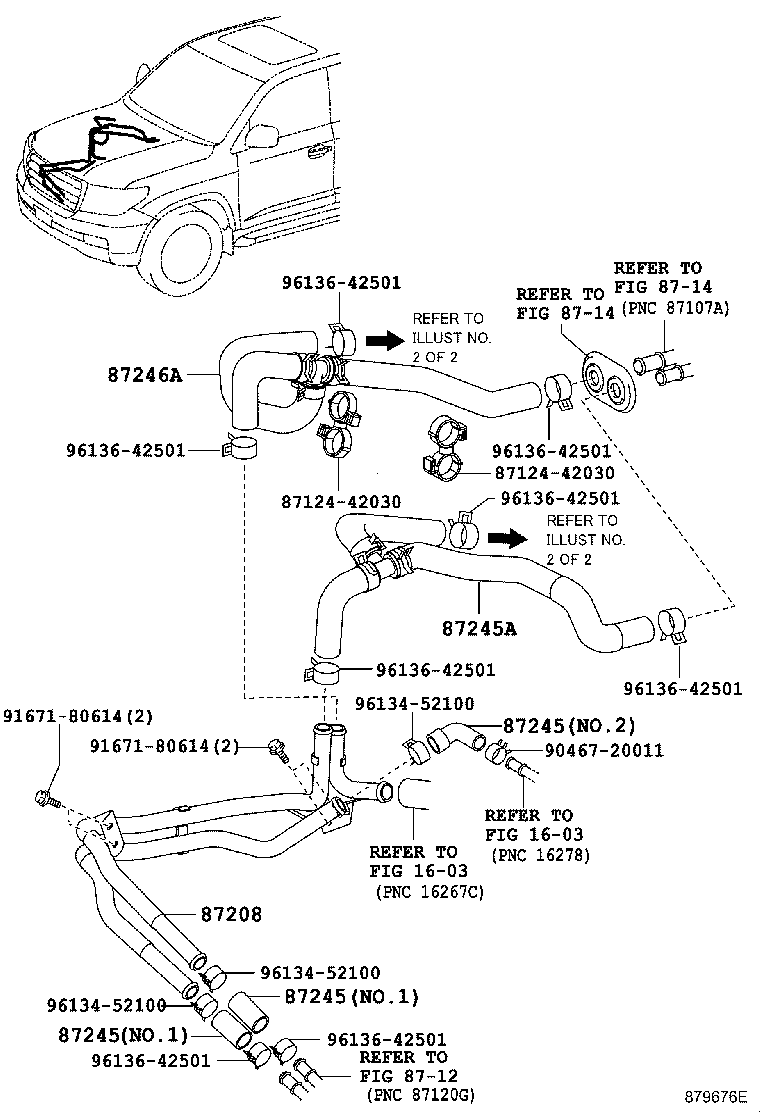

Figure 879676E

879676E 2007-09 → —

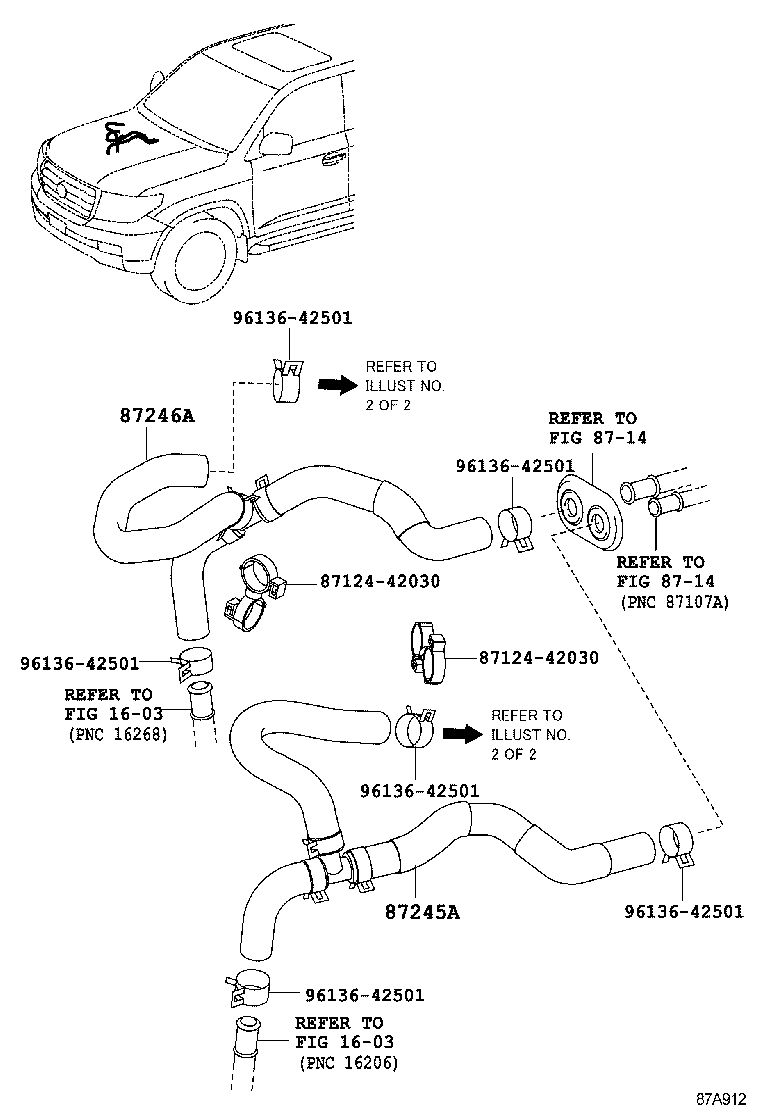

Figure 87A912

87A912 2012-01 → —

Figure 87B531

87B531 2012-01 → —

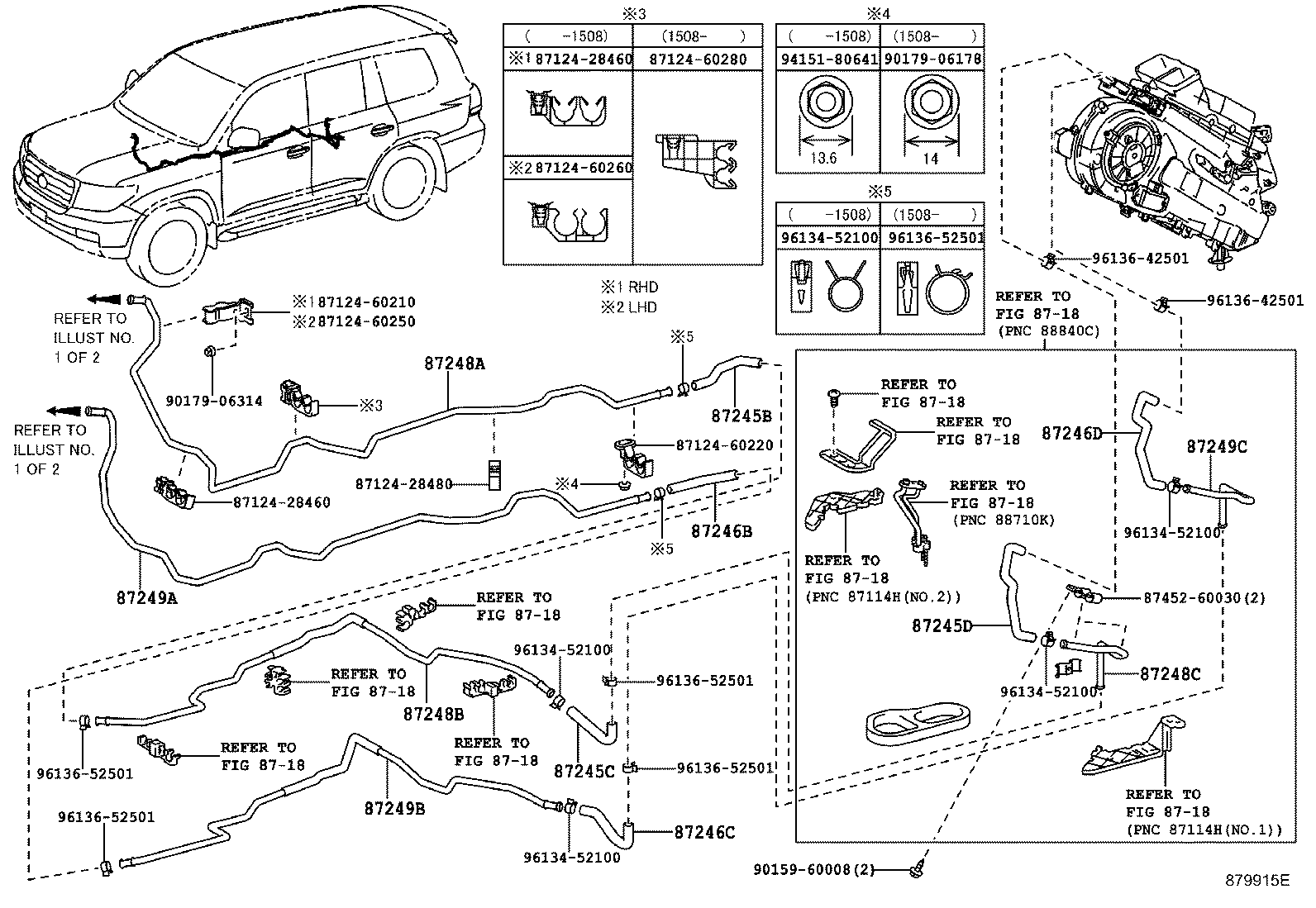

Figure 879915E

879915E 2007-09 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
