Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

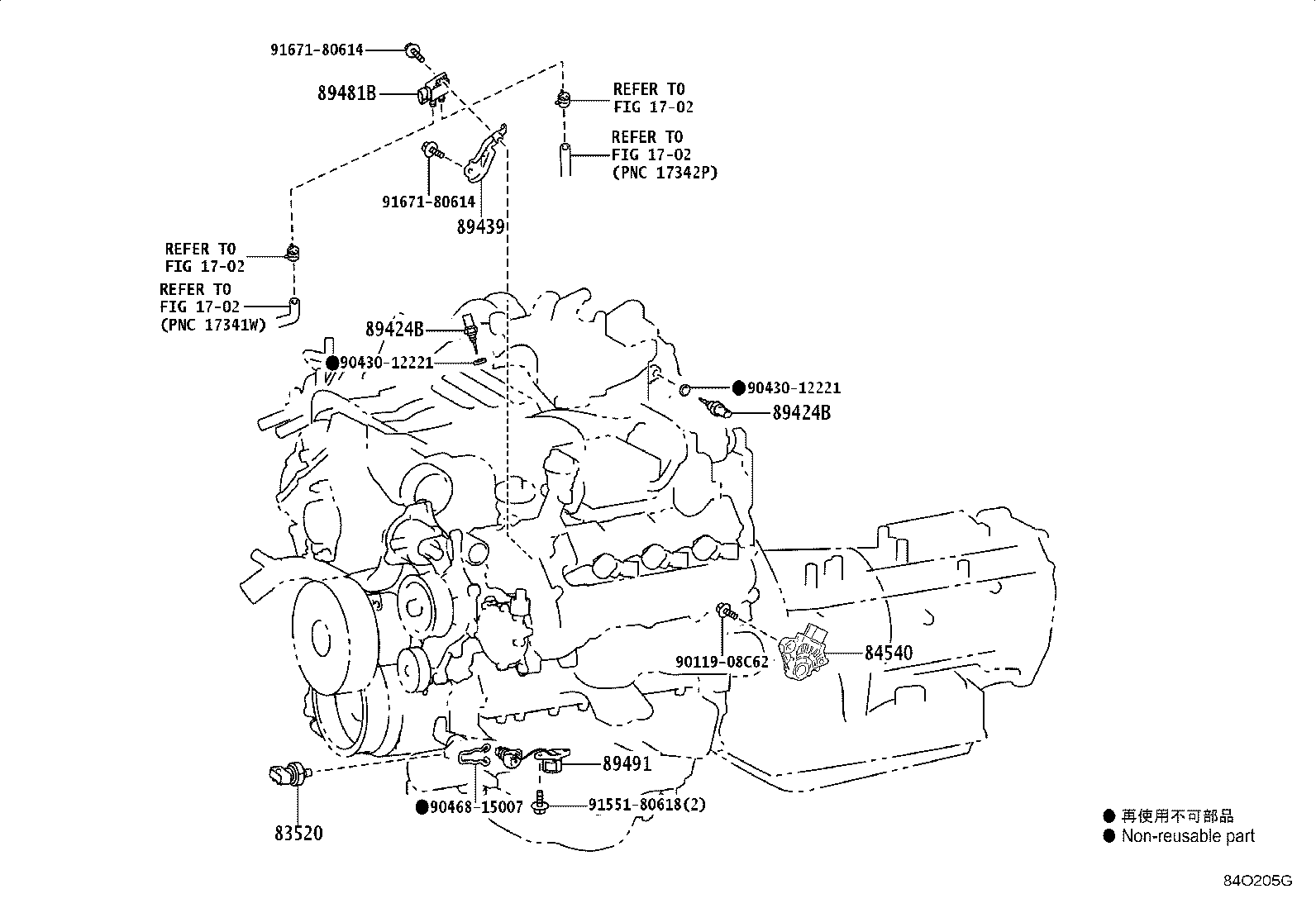

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2024-11 → —
|
FJA310 | — | |
| 83520-60070 |
Gage Assy,Oil Pressure Sender
2024-11 → —
|
VJA310,VJH310 | — | |
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2021-12 → 2024-11
ended
|
FJA310 | — | |
| 83520-60070 |
Gage Assy,Oil Pressure Sender
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-60070 |
Switch Assy, Neutral Start
2024-11 → —
|
FJA310,VJA310 | — | |
| 84540-60070 |
Switch Assy, Neutral Start
2021-12 → 2024-11
ended
|
FJA310,VJA310 | — | |
| 89424B — Switch, Inlet Air Temperature | ||||
| 89424-60020 |
Switch, Inlet Air Temperature
2024-11 → —
|
FJA310 | — | |
| 89424-60020 |
Switch, Inlet Air Temperature
2021-12 → 2024-11
ended
|
FJA310 | — | |
| 89439 — Bracket, Sensor | ||||
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2024-11 → —
|
FJA310 GCC | — | |
| 89439-60240 |
Bracket, Sensor
2024-11 → —
|
FJA310 ARL,EUR | — | |
| 89439-60240 note |
Bracket, Sensor
2022-10 → 2023-01
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 note |
Bracket, Sensor
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89439-60240 |
Bracket, Sensor
2021-12 → 2024-11
ended
|
FJA310 ARL,EUR | — | |
| 89481B — Sensor, Differential Pressure | ||||
| 89481-48010 |
Sensor, Differential Pressure
2024-11 → —
|
VJH310 CHI | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 ARL,EUR | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2024-11 → —
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2023-10 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 GCC | — | |
| 89481-71010 |
Sensor, Differential Pressure
2021-12 → 2024-11
ended
|
FJA310 ARL,EUR | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2022-11 → 2023-01
ended
|
FJA310 GCC | — | |
| 89481-71010 note |
Sensor, Differential Pressure
2022-11 → 2023-01
ended
|
FJA310 GCC | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-50082 |
Sensor, Engine Oil Level
2024-11 → —
|
FJA310,VJA310,VJH310 | — | |
| 89491-50081 |
Sensor, Engine Oil Level
2021-12 → 2022-04
ended
|
FJA310,VJA310 | — | |
| 89491-50082 |
Sensor, Engine Oil Level
2022-05 → 2024-11
ended
|
FJA310,VJA310 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
