Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

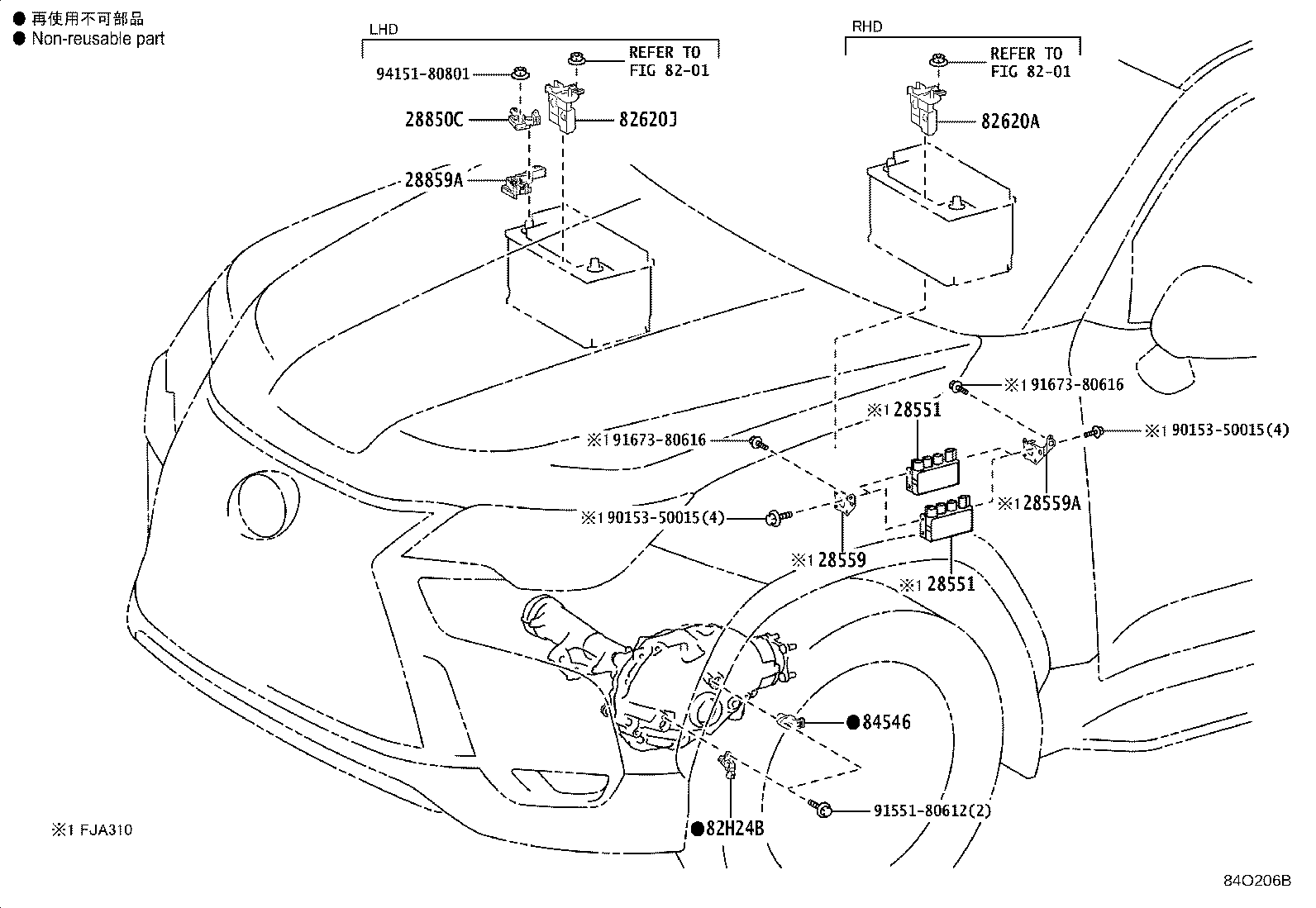

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28551 — Controller, Glow Plug | ||||
| 28551-30010 |
Controller, Glow Plug
2024-11 → —
|
F33AFTV FJA310 | — | |
| 28551-30010 |
Controller, Glow Plug
2021-12 → 2024-11
ended
|
F33AFTV FJA310 | — | |
| 28559 — Bracket, Glow Plug Controller, NO.1 | ||||
| 28559-52010 |
Bracket, Glow Plug Controller, NO.1
2024-11 → —
|
F33AFTV FJA310 | — | |
| 28559-52010 |
Bracket, Glow Plug Controller, NO.1
2021-12 → 2024-11
ended
|
F33AFTV FJA310 | — | |
| 28559A — Bracket, Glow Plug Controller, NO.2 | ||||
| 28559-52020 |
Bracket, Glow Plug Controller, NO.2
2024-11 → —
|
F33AFTV FJA310 | — | |
| 28559-52020 |
Bracket, Glow Plug Controller, NO.2
2021-12 → 2024-11
ended
|
F33AFTV FJA310 | — | |
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 note |
Sensor Assy, Battery State
2024-11 → —
|
V35AFTS VJA310 GCC | — | |
| 28850-K0010 note |
Sensor Assy, Battery State
2024-11 → —
|
F33AFTV FJA310 GCC | — | |
| 28850-K0010 |
Sensor Assy, Battery State
2024-11 → —
|
V35AFTS VJH310 | — | |
| 28850-52010 note |
Sensor Assy, Battery State
2021-12 → 2023-10
ended
|
F33AFTV,V35AFTS FJA310,VJA310 GCC | — | |
| 28850-52010 note |
Sensor Assy, Battery State
2023-10 → 2024-11
ended
|
V35AFTS VJA310 GCC | — | |
| 28850-52010 note |
Sensor Assy, Battery State
2023-10 → 2024-11
ended
|
F33AFTV FJA310 GCC | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-70040 note |
Holder, Battery Current Sensor
2024-11 → —
|
F33AFTV FJA310 GCC | — | |
| 28859-70040 note |
Holder, Battery Current Sensor
2024-11 → —
|
V35AFTS VJA310 GCC | — | |
| 28859-70050 |
Holder, Battery Current Sensor
2024-11 → —
|
V35AFTS VJH310 | — | |
| 28859-70040 note |
Holder, Battery Current Sensor
2021-12 → 2023-10
ended
|
F33AFTV,V35AFTS FJA310,VJA310 GCC | — | |
| 28859-70040 note |
Holder, Battery Current Sensor
2023-10 → 2024-11
ended
|
F33AFTV FJA310 GCC | — | |
| 28859-70040 note |
Holder, Battery Current Sensor
2023-10 → 2024-11
ended
|
V35AFTS VJA310 GCC | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-60310 |
Block Assy, Fusible Link
2024-11 → —
|
FJA310,VJA310 ARL | — | |
| 82620-60540 |
Block Assy, Fusible Link
2024-11 → —
|
VJH310 | — | |
| 82620-60310 |
Block Assy, Fusible Link
2021-12 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 82620J — Block Assy, Fusible Link | ||||
| 82620-60300 |
Block Assy, Fusible Link
2024-11 → —
|
FJA310,VJA310 LHD | — | |
| 82620-60490 |
Block Assy, Fusible Link
2024-11 → —
|
VJH310 | — | |
| 82620-60300 |
Block Assy, Fusible Link
2021-12 → 2024-11
ended
|
FJA310,VJA310 LHD | — | |
| 82H24B — Connector, Wiring Harness | ||||
| 82824-60C40 note |
Connector, Wiring Harness
2024-11 → —
|
FJA310,VJA310,VJH310 ARL,CHI,GCC | — | |
| 82824-60C40 note |
Connector, Wiring Harness
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 82824-60C40 note |
Connector, Wiring Harness
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84546 — Switch, 4 Wheel Drive Position, NO.1 | ||||
| 84546-60010 note |
Switch, 4 Wheel Drive Position, NO.1
2024-11 → —
|
FJA310,VJA310,VJH310 ARL,CHI,GCC | — | |
| 84546-60010 note |
Switch, 4 Wheel Drive Position, NO.1
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84546-60010 note |
Switch, 4 Wheel Drive Position, NO.1
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
