Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

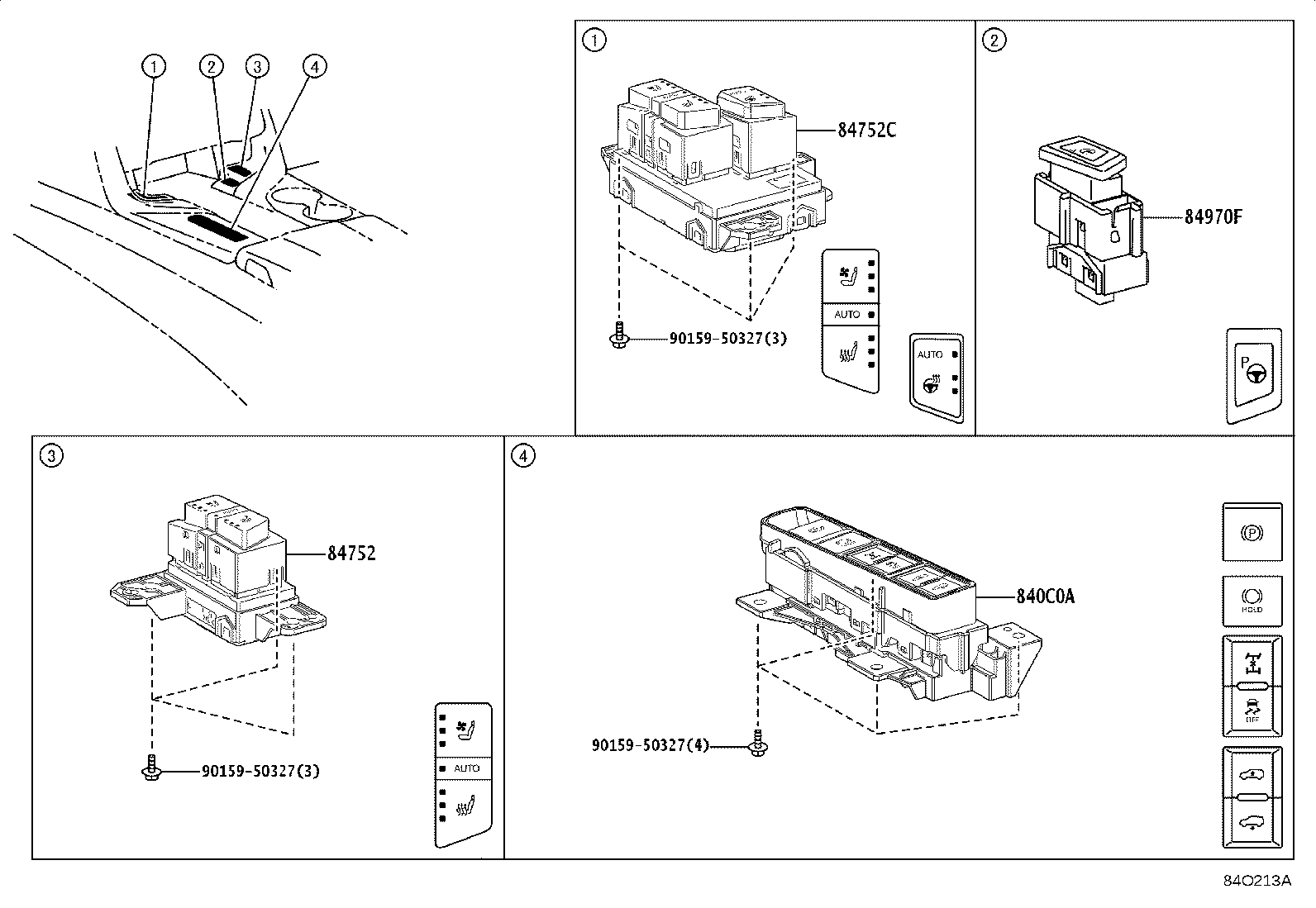

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 840C0A — Control Assy, Integration | ||||
| 840C0-60160 |
Control Assy, Integration
2024-11 → —
|
FJA310,VJA310,VJH310 ARL | — | |
| 840C0-60170 |
Control Assy, Integration
2024-11 → —
|
FJA310,VJA310,VJH310 LHD | — | |
| 840C0-60050 |
Control Assy, Integration
2021-12 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 840C0-60060 |
Control Assy, Integration
2021-12 → 2024-11
ended
|
FJA310,VJA310 LHD | — | |
| 84752 — Switch, Refreshing Seat | ||||
| 84752-60380 note |
Switch, Refreshing Seat
2024-11 → —
|
VJA310,VJH310 ARL | — | |
| 84752-60380 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 ARL | — | |
| 84752-60460 |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 ARL | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 GCC | — | |
| 84752-60510 |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60520 |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60520 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60520 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60520 note |
Switch, Refreshing Seat
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60380 note |
Switch, Refreshing Seat
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60380 note |
Switch, Refreshing Seat
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60380 note |
Switch, Refreshing Seat
2023-10 → 2024-11
ended
|
VJA310 ARL | — | |
| 84752-60380 note |
Switch, Refreshing Seat
2023-10 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60400 note |
Switch, Refreshing Seat
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60450 note |
Switch, Refreshing Seat
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60460 |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 LHD | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60510 note |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60520 |
Switch, Refreshing Seat
2021-12 → 2024-11
ended
|
FJA310,VJA310 LHD | — | |
| 84752C — Switch, Refreshing Seat, NO.2 | ||||
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60390 |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60440 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60440 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60440 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJH310 CHI | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 GCC | — | |
| 84752-60480 |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 CHI,GCC | — | |
| 84752-60480 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60480 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310 EUR | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
VJA310,VJH310 ARL | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 ARL | — | |
| 84752-60500 |
Switch, Refreshing Seat, NO.2
2024-11 → —
|
FJA310,VJA310,VJH310 ARL | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60390 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60440 |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2022-11 → 2024-11
ended
|
FJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
VJA310 EUR | — | |
| 84752-60470 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60480 |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 GCC | — | |
| 84752-60480 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60480 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 EUR | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2023-10 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2023-10 → 2024-11
ended
|
VJA310 ARL | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60490 note |
Switch, Refreshing Seat, NO.2
2021-12 → 2023-10
ended
|
FJA310,VJA310 ARL | — | |
| 84752-60500 |
Switch, Refreshing Seat, NO.2
2021-12 → 2024-11
ended
|
FJA310,VJA310 ARL | — | |
| 84970F — Switch Assy, Combination, NO.3 | ||||
| 84970-60F50 note |
Switch Assy, Combination, NO.3
2024-11 → —
|
VJH310 ARL | — | |
| 84970-60F60 note |
Switch Assy, Combination, NO.3
2024-11 → —
|
VJH310 GCC | — | |
| 84970-60F60 note |
Switch Assy, Combination, NO.3
2024-11 → —
|
VJH310 CHI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
