Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

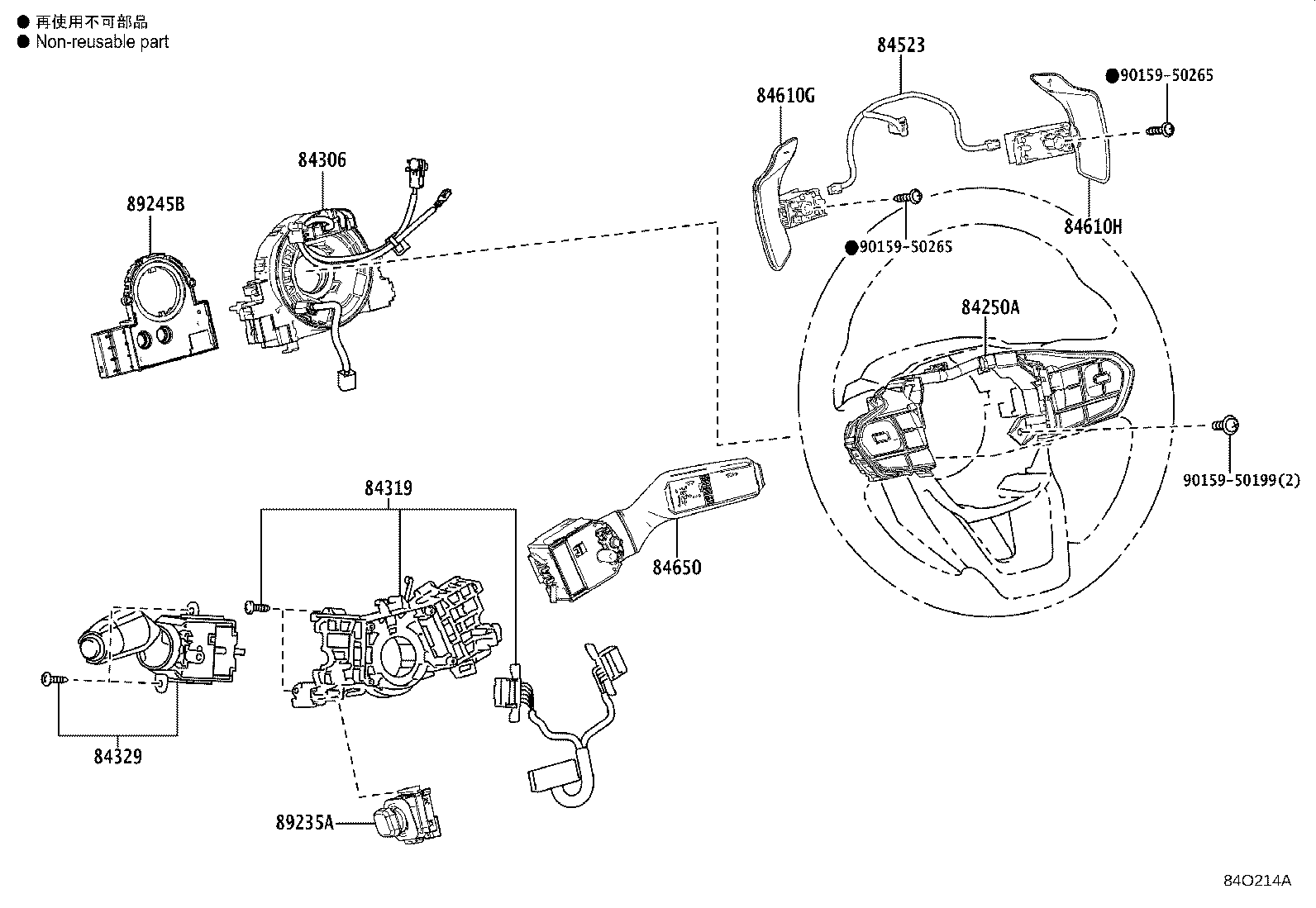

Exploded illustration 84O214A 84250A — SWITCH ASSY, STEERING PAD (10 parts) 9015950199 — not listed in this catalogue 9015950265 — not listed in this catalogue 9015950265 — not listed in this catalogue 84523 — WIRE, SWITCH NO.1 (2 parts) 84610G — SWITCH ASSY, TRANSMISSION SHIFT, NO.1 (2 parts) 84610H — SWITCH ASSY, TRANSMISSION SHIFT, NO.2 (2 parts) 84319 — HOUSING, STEERING WHEEL SWITCH (6 parts) 89235A — SWITCH, TILT & TELESCOPIC (2 parts) 84306 — CABLE SUB-ASSY, SPIRAL (21 parts) 89245B — SENSOR, STEERING (3 parts) 84650 — SWITCH ASSY, WINDSHIELD WIPER (9 parts) 84329 — SWITCH, TURN SIGNAL (47 parts)
84O214A · 10 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
84250A — Switch Assy, Steering Pad
84250-V2060 Switch Assy, Steering Pad
2024-11 → —
FJA310,VJA310,VJH310 —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
VJA310 GCC —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
FJA310,VJA310 EUR —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
FJA310,VJA310 EUR —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
FJA310,VJA310 GCC —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
VJA310 GCC —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
VJA310 EUR —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
VJA310 GCC —
84250-60560 note Switch Assy, Steering Pad
2021-12 → 2024-11 ended
FJA310 ARL —
84250-60570 Switch Assy, Steering Pad
2021-12 → 2024-11 ended
FJA310,VJA310 —
84306 — Cable Sub-assy, Spiral
84308-52010 Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310,VJH310 ARL,GCC —
84308-52010 note Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310 EUR —
84308-52010 note Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310 EUR —
84308-52010 note Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310 EUR —
84308-60040 note Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310,VJH310 ARL —
84308-60040 note Cable Sub-assy, Spiral
2024-11 → —
VJA310,VJH310 ARL —
84308-60040 Cable Sub-assy, Spiral
2024-11 → —
FJA310,VJA310 EUR —
84308-60060 note Cable Sub-assy, Spiral
2024-11 → —
VJH310 CHI —
84308-60060 note Cable Sub-assy, Spiral
2024-11 → —
VJH310 CHI —
84308-78010 Cable Sub-assy, Spiral
2024-11 → —
VJH310 CHI —
84308-52010 note Cable Sub-assy, Spiral
2021-12 → 2022-11 ended
FJA310 EUR —
84308-52010 Cable Sub-assy, Spiral
2021-12 → 2024-11 ended
FJA310,VJA310 ARL,GCC —
84308-52010 note Cable Sub-assy, Spiral
2021-12 → 2024-11 ended
VJA310 EUR —
84308-52010 note Cable Sub-assy, Spiral
2021-12 → 2024-11 ended
FJA310,VJA310 EUR —
84308-52010 note Cable Sub-assy, Spiral
2021-12 → 2024-11 ended
FJA310,VJA310 EUR —
84308-52010 note Cable Sub-assy, Spiral
2022-11 → 2024-11 ended
FJA310 EUR —
84308-60040 note Cable Sub-assy, Spiral
2023-10 → 2024-11 ended
FJA310,VJA310 ARL —
84308-60040 note Cable Sub-assy, Spiral
2023-10 → 2024-11 ended
VJA310 ARL —
84308-60040 note Cable Sub-assy, Spiral
2021-12 → 2023-10 ended
FJA310,VJA310 ARL —
84308-60040 note Cable Sub-assy, Spiral
2021-12 → 2023-10 ended
FJA310,VJA310 ARL —
84308-60040 Cable Sub-assy, Spiral
2021-12 → 2024-11 ended
FJA310,VJA310 EUR —
84319 — Housing, Steering Wheel Switch
84319-11010 Housing, Steering Wheel Switch
2024-11 → —
FJA310,VJA310,VJH310 LHD —
84319-11010 note Housing, Steering Wheel Switch
2024-11 → —
FJA310 ARL —
84319-33030 Housing, Steering Wheel Switch
2024-11 → —
FJA310,VJA310,VJH310 ARL —
84319-11010 Housing, Steering Wheel Switch
2021-12 → 2024-11 ended
FJA310,VJA310 LHD —
84319-11010 note Housing, Steering Wheel Switch
2021-12 → 2024-11 ended
FJA310 ARL —
84319-33030 Housing, Steering Wheel Switch
2021-12 → 2024-11 ended
FJA310,VJA310 ARL —
84329 — Switch, Turn Signal
84329-76240 Switch, Turn Signal
2024-11 → —
FJA310,VJA310,VJH310 GCC —
84329-76240 note Switch, Turn Signal
2024-11 → —
VJA310 EUR —
84329-76260 note Switch, Turn Signal
2024-11 → —
VJA310,VJH310 GCC —
84329-76260 note Switch, Turn Signal
2025-01 → —
VJA310 GCC —
84329-76260 note Switch, Turn Signal
2024-11 → —
FJA310 ARL —
84329-76260 Switch, Turn Signal
2024-11 → —
FJA310,VJA310,VJH310 CHI,EUR —
84329-76330 Switch, Turn Signal
2024-11 → —
FJA310,VJA310,VJH310 ARL —
84329-76010 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76020 Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76030 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76030 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 EUR —
84329-76030 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 GCC —
84329-76040 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76060 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76060 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310 ARL —
84329-76060 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 EUR —
84329-76060 note Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 EUR —
84329-76070 Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 EUR —
84329-76070 note Switch, Turn Signal
2021-12 → 2023-04 ended
VJA310 GCC —
84329-76120 Switch, Turn Signal
2021-12 → 2023-04 ended
FJA310,VJA310 ARL —
84329-76190 note Switch, Turn Signal
2023-04 → 2023-10 ended
VJA310 GCC —
84329-76200 Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76230 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 EUR —
84329-76230 note Switch, Turn Signal
2023-10 → 2024-11 ended
VJA310 GCC —
84329-76230 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76230 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76240 note Switch, Turn Signal
2023-10 → 2024-11 ended
FJA310,VJA310 GCC —
84329-76250 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 EUR —
84329-76250 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310 ARL —
84329-76250 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 GCC —
84329-76250 note Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 EUR —
84329-76260 Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 EUR —
84329-76260 note Switch, Turn Signal
2023-04 → 2024-11 ended
VJA310 GCC —
84329-76330 Switch, Turn Signal
2023-04 → 2024-11 ended
FJA310,VJA310 ARL —
84523 — Wire, Switch NO.1
84523-11010 Wire, Switch NO.1
2024-11 → —
FJA310,VJA310,VJH310 —
84523-11010 Wire, Switch NO.1
2021-12 → 2024-11 ended
FJA310,VJA310 —
84610G — Switch Assy, Transmission Shift, NO.1
84610-50050 Switch Assy, Transmission Shift, NO.1
2024-11 → —
FJA310,VJA310,VJH310 —
84610-50050 Switch Assy, Transmission Shift, NO.1
2021-12 → 2024-11 ended
FJA310,VJA310 —
84610H — Switch Assy, Transmission Shift, NO.2
84610-50060 Switch Assy, Transmission Shift, NO.2
2024-11 → —
FJA310,VJA310,VJH310 —
84610-50060 Switch Assy, Transmission Shift, NO.2
2021-12 → 2024-11 ended
FJA310,VJA310 —
84650 — Switch Assy, Windshield Wiper
84652-76110 note Switch Assy, Windshield Wiper
2024-11 → —
FJA310 ARL —
84652-76110 Switch Assy, Windshield Wiper
2024-11 → —
FJA310,VJA310,VJH310 LHD —
84652-76140 Switch Assy, Windshield Wiper
2024-11 → —
FJA310,VJA310,VJH310 ARL —
84652-76050 Switch Assy, Windshield Wiper
2021-12 → 2023-04 ended
FJA310,VJA310 LHD —
84652-76050 note Switch Assy, Windshield Wiper
2021-12 → 2023-04 ended
FJA310 ARL —
84652-76080 Switch Assy, Windshield Wiper
2021-12 → 2023-04 ended
FJA310,VJA310 ARL —
84652-76110 Switch Assy, Windshield Wiper
2023-04 → 2024-11 ended
FJA310,VJA310 LHD —
84652-76110 note Switch Assy, Windshield Wiper
2023-04 → 2024-11 ended
FJA310 ARL —
84652-76140 Switch Assy, Windshield Wiper
2023-04 → 2024-11 ended
FJA310,VJA310 ARL —
89235A — Switch, Tilt & Telescopic
89235-33010 Switch, Tilt & Telescopic
2024-11 → —
FJA310,VJA310,VJH310 —
89235-33010 Switch, Tilt & Telescopic
2021-12 → 2024-11 ended
FJA310,VJA310 —
89245B — Sensor, Steering
8924B-48020 note Sensor, Steering
2024-11 → —
FJA310,VJA310,VJH310 —
8924B-48020 note Sensor, Steering
2023-10 → 2024-11 ended
FJA310,VJA310 —
8924B-60020 note Sensor, Steering
2021-12 → 2023-10 ended
FJA310,VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
