Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

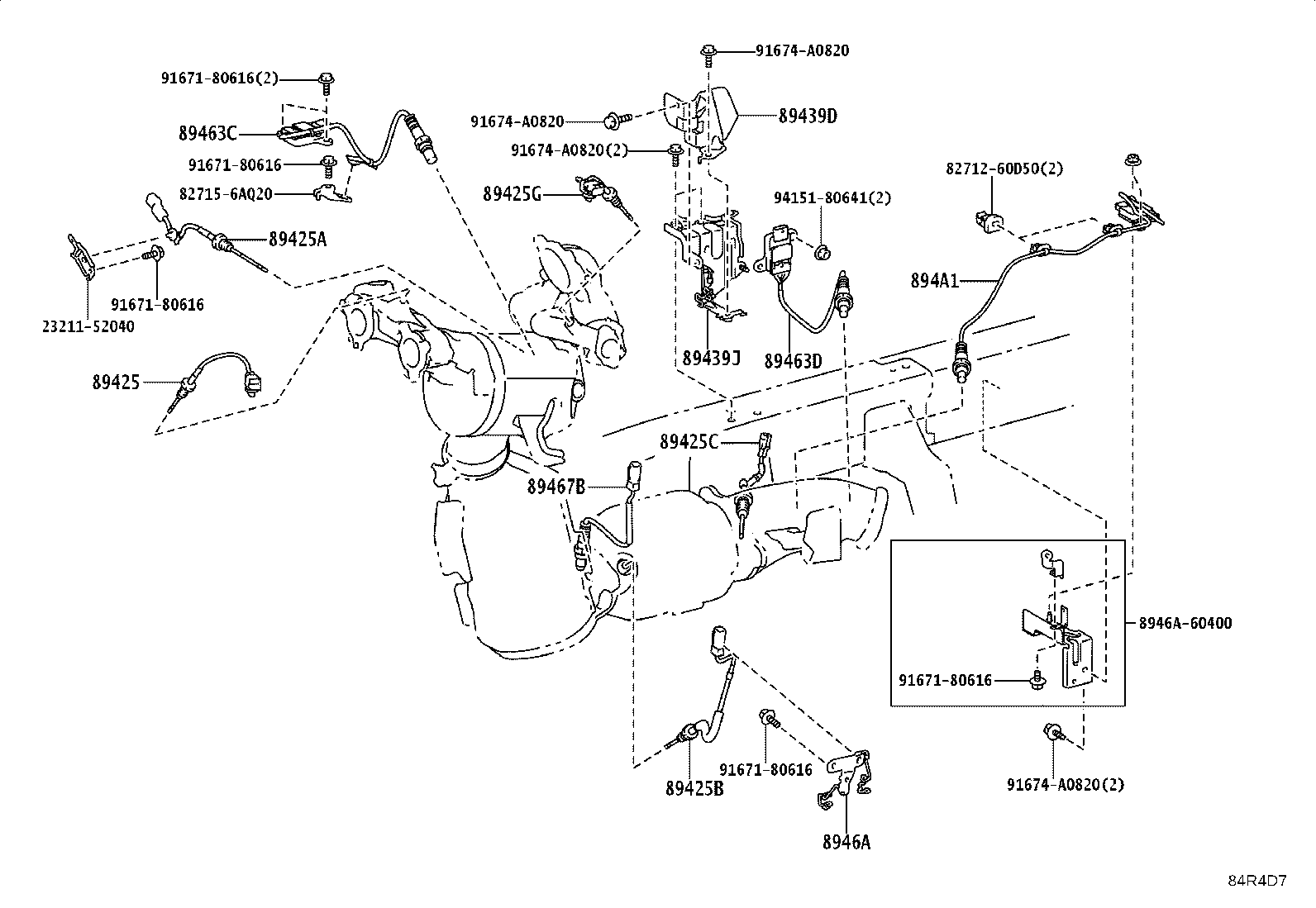

Exploded illustration 84R4D7 894A1 — SENSOR, PARTICULATE MATTER (1 parts) 8271260D50 — not listed in this catalogue 89425G — SENSOR, EGR GAS TEMPERATURE (9 parts) 89463C — SENSOR, NITROGEN OXIDES, NO.1 (10 parts) 89463D — SENSOR, NITROGEN OXIDES, NO.2 (13 parts) 89439D — BRACKET, SENSOR, NO.1 (13 parts) 89439J — BRACKET, SENSOR, NO.2 (13 parts) 89425 — SENSOR, EXHAUST GAS TEMPERATURE (9 parts) 89425A — SENSOR, EXHAUST GAS TEMPERATURE, NO.2 (9 parts) 2321152040 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 827156AQ20 — not listed in this catalogue 91674A0820 — not listed in this catalogue 91674A0820 — not listed in this catalogue 91674A0820 — not listed in this catalogue 9415180641 — not listed in this catalogue 89425C — SENSOR, EXHAUST GAS TEMPERATURE, NO.4 (13 parts) 89467B — SENSOR, AIR FUEL RATIO (19 parts) 8946A60400 — not listed in this catalogue 9167180616 — not listed in this catalogue 91674A0820 — not listed in this catalogue 89425B — SENSOR, EXHAUST GAS TEMPERATURE, NO.3 (16 parts) 8946A — BRACKET, EXHAUST SENSOR CLAMP (27 parts) 9167180616 — not listed in this catalogue
84R4D7 · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
152 parts on this figure
Part number Description Fitment Price
89425 — Sensor, Exhaust Gas Temperature
89425-60270 note Sensor, Exhaust Gas Temperature
2024-11 → —
FJA310 GCC —
89425-60270 note Sensor, Exhaust Gas Temperature
2024-11 → —
FJA310 GCC —
89425-60270 note Sensor, Exhaust Gas Temperature
2024-11 → —
FJA310 GCC —
89425-60270 Sensor, Exhaust Gas Temperature
2024-11 → —
FJA310 ARL,EUR —
89425-60350 note Sensor, Exhaust Gas Temperature
2024-11 → —
VJH310 CHI —
89425-60370 note Sensor, Exhaust Gas Temperature
2024-11 → —
VJH310 CHI —
89425-60270 note Sensor, Exhaust Gas Temperature
2022-10 → 2023-01 ended
FJA310 GCC —
89425-60270 Sensor, Exhaust Gas Temperature
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
89425-60270 note Sensor, Exhaust Gas Temperature
2021-12 → 2024-11 ended
FJA310 GCC —
89425A — Sensor, Exhaust Gas Temperature, NO.2
89425-60280 note Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
FJA310 GCC —
89425-60280 note Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
FJA310 GCC —
89425-60280 note Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
FJA310 GCC —
89425-60280 Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
FJA310 ARL,EUR —
89425-60360 note Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
VJH310 CHI —
89425-60380 note Sensor, Exhaust Gas Temperature, NO.2
2024-11 → —
VJH310 CHI —
89425-60280 note Sensor, Exhaust Gas Temperature, NO.2
2022-10 → 2023-01 ended
FJA310 GCC —
89425-60280 Sensor, Exhaust Gas Temperature, NO.2
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
89425-60280 note Sensor, Exhaust Gas Temperature, NO.2
2021-12 → 2024-11 ended
FJA310 GCC —
89425B — Sensor, Exhaust Gas Temperature, NO.3
89425-60290 Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 ARL,EUR —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2024-11 → —
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2022-10 → 2023-01 ended
FJA310 GCC —
89425-60290 Sensor, Exhaust Gas Temperature, NO.3
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2021-12 → 2024-11 ended
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2021-12 → 2024-11 ended
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2021-12 → 2024-11 ended
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2021-12 → 2024-11 ended
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2023-10 → 2024-11 ended
FJA310 GCC —
89425-60290 note Sensor, Exhaust Gas Temperature, NO.3
2023-10 → 2024-11 ended
FJA310 GCC —
89425C — Sensor, Exhaust Gas Temperature, NO.4
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 ARL —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 ARL —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 EUR —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 GCC —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 EUR —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 ARL —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2024-11 → —
FJA310 EUR —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2022-10 → 2023-01 ended
FJA310 GCC —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2021-12 → 2023-10 ended
FJA310 ARL —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2022-10 → 2023-10 ended
FJA310 EUR —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2023-10 → 2024-11 ended
FJA310 EUR —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2023-10 → 2024-11 ended
FJA310 ARL —
89425-60300 note Sensor, Exhaust Gas Temperature, NO.4
2023-10 → 2024-11 ended
FJA310 ARL —
89425G — Sensor, Egr Gas Temperature
89425-26220 note Sensor, Egr Gas Temperature
2024-11 → —
FJA310 GCC —
89425-26220 note Sensor, Egr Gas Temperature
2024-11 → —
FJA310 GCC —
89425-26220 note Sensor, Egr Gas Temperature
2024-11 → —
FJA310 GCC —
89425-26220 note Sensor, Egr Gas Temperature
2024-11 → —
FJA310 GCC —
89425-26220 Sensor, Egr Gas Temperature
2024-11 → —
FJA310 ARL,EUR —
89425-26220 note Sensor, Egr Gas Temperature
2022-10 → 2023-01 ended
FJA310 GCC —
89425-26220 Sensor, Egr Gas Temperature
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
89425-26220 note Sensor, Egr Gas Temperature
2021-12 → 2024-11 ended
FJA310 GCC —
89425-26220 note Sensor, Egr Gas Temperature
2021-12 → 2024-11 ended
FJA310 GCC —
89439D — Bracket, Sensor, NO.1
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 ARL —
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 EUR —
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 GCC —
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 ARL —
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 EUR —
8946A-60070 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 EUR —
8946A-60510 note Bracket, Sensor, NO.1
2024-11 → —
FJA310 ARL —
8946A-60070 note Bracket, Sensor, NO.1
2022-10 → 2023-01 ended
FJA310 GCC —
8946A-60070 note Bracket, Sensor, NO.1
2021-12 → 2023-10 ended
FJA310 ARL —
8946A-60070 note Bracket, Sensor, NO.1
2022-10 → 2023-10 ended
FJA310 EUR —
8946A-60070 note Bracket, Sensor, NO.1
2023-10 → 2024-11 ended
FJA310 EUR —
8946A-60070 note Bracket, Sensor, NO.1
2023-10 → 2024-11 ended
FJA310 ARL —
8946A-60070 note Bracket, Sensor, NO.1
2023-10 → 2024-11 ended
FJA310 ARL —
89439J — Bracket, Sensor, NO.2
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 EUR —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 EUR —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 EUR —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 GCC —
8946A-60050 note Bracket, Sensor, NO.2
2024-11 → —
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2022-10 → 2023-01 ended
FJA310 GCC —
8946A-60050 note Bracket, Sensor, NO.2
2023-10 → 2024-11 ended
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2023-10 → 2024-11 ended
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2022-10 → 2023-10 ended
FJA310 EUR —
8946A-60050 note Bracket, Sensor, NO.2
2021-12 → 2023-10 ended
FJA310 ARL —
8946A-60050 note Bracket, Sensor, NO.2
2023-10 → 2024-11 ended
FJA310 EUR —
89463C — Sensor, Nitrogen Oxides, NO.1
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2024-11 → —
FJA310 EUR —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2024-11 → —
FJA310 ARL —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2024-11 → —
FJA310 ARL,EUR —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2024-11 → —
FJA310 LHD —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2021-12 → 2023-04 ended
FJA310 ARL —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2023-10 → 2024-11 ended
FJA310 ARL —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2023-10 → 2024-11 ended
FJA310 ARL —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2023-10 → 2024-11 ended
FJA310 EUR —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2022-10 → 2023-10 ended
FJA310 EUR —
89463-60080 note Sensor, Nitrogen Oxides, NO.1
2022-10 → 2023-01 ended
FJA310 GCC —
89463D — Sensor, Nitrogen Oxides, NO.2
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 EUR —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 ARL —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 ARL —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 EUR —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 GCC —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 ARL —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2024-11 → —
FJA310 EUR —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2022-10 → 2023-01 ended
FJA310 GCC —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2021-12 → 2023-10 ended
FJA310 ARL —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2022-10 → 2023-10 ended
FJA310 EUR —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2023-10 → 2024-11 ended
FJA310 EUR —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2023-10 → 2024-11 ended
FJA310 ARL —
89463-60070 note Sensor, Nitrogen Oxides, NO.2
2023-10 → 2024-11 ended
FJA310 ARL —
89467B — Sensor, Air Fuel Ratio
89467-60180 Sensor, Air Fuel Ratio
2024-11 → —
VJA310 —
89467-60180 note Sensor, Air Fuel Ratio
2024-11 → —
VJH310 ARL,GCC —
89467-60190 Sensor, Air Fuel Ratio
2024-11 → —
VJH310 CHI —
89467-60190 note Sensor, Air Fuel Ratio
2024-11 → —
VJH310 ARL,GCC —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60220 Sensor, Air Fuel Ratio
2024-11 → —
FJA310 ARL,EUR —
89467-60220 note Sensor, Air Fuel Ratio
2024-11 → —
FJA310 GCC —
89467-60180 Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
VJA310 —
89467-60220 note Sensor, Air Fuel Ratio
2023-10 → 2024-11 ended
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2023-10 → 2024-11 ended
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
FJA310 GCC —
89467-60220 note Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
FJA310 GCC —
89467-60220 Sensor, Air Fuel Ratio
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
8946A — Bracket, Exhaust Sensor Clamp
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 EUR —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 ARL —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 EUR —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 EUR —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 ARL —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 ARL —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60220 Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 ARL,EUR —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2024-11 → —
FJA310 GCC —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2022-10 → 2023-01 ended
FJA310 GCC —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2021-12 → 2023-10 ended
FJA310 ARL —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2022-10 → 2023-10 ended
FJA310 EUR —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2023-10 → 2024-11 ended
FJA310 ARL —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2023-10 → 2024-11 ended
FJA310 ARL —
8946A-60210 note Bracket, Exhaust Sensor Clamp
2023-10 → 2024-11 ended
FJA310 EUR —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2021-12 → 2024-11 ended
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2023-10 → 2024-11 ended
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2023-10 → 2024-11 ended
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2021-12 → 2024-11 ended
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2021-12 → 2024-11 ended
FJA310 GCC —
8946A-60220 note Bracket, Exhaust Sensor Clamp
2021-12 → 2024-11 ended
FJA310 GCC —
8946A-60220 Bracket, Exhaust Sensor Clamp
2021-12 → 2024-11 ended
FJA310 ARL,EUR —
894A1 — Sensor, Particulate Matter
894A1-60050 note Sensor, Particulate Matter
2024-11 → —
FJA310 ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
