Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

29 part groups · 3 illustrations

Illustrations

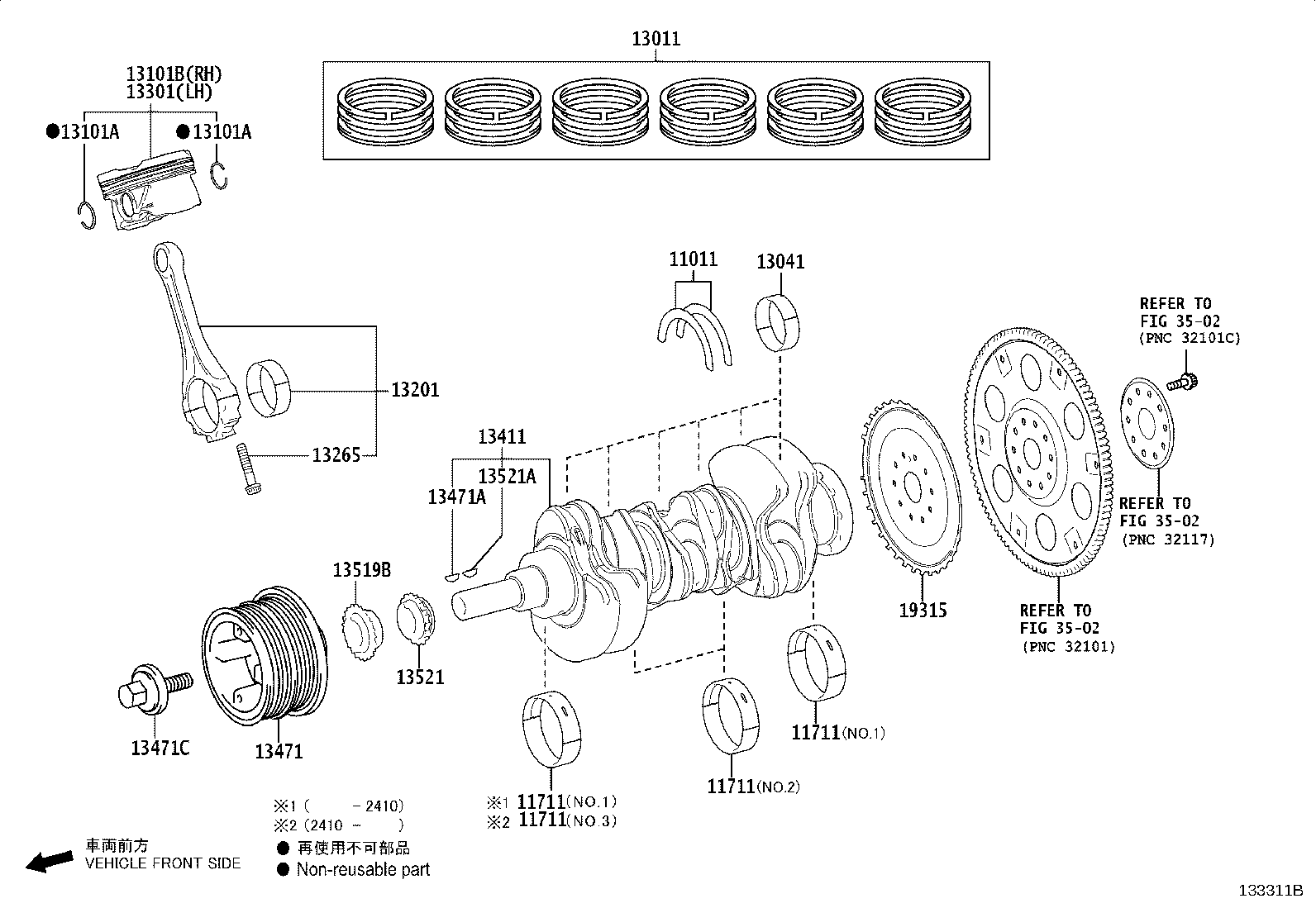

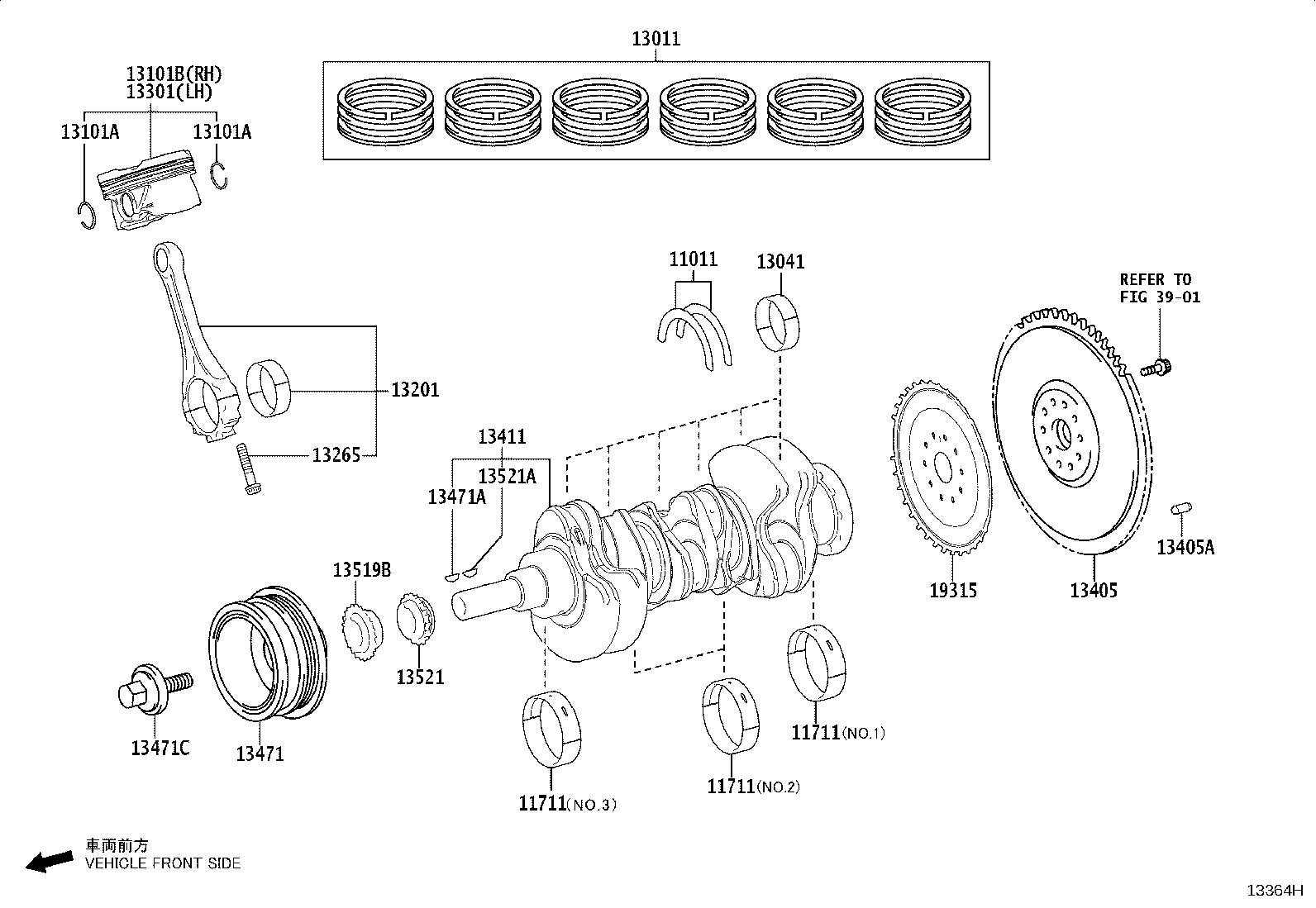

Figure 133293C 133293C 2021-12 → — Figure 133311B 133311B 2021-12 → — Figure 13364H 13364H 2024-11 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11711 Bearing, Crankshaft
11721 Bearing, Crankshaft, NO.2
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101A Ring, Hole Snap(FOR PISTON PIN)
13101B Piston Sub-assy, W/Pin, RH
13201 Rod Sub-assy, Connecting
13265 Bolt, Connecting Rod
13301 Piston Sub-assy, W/Pin, LH
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13408 Pulley Sub-assy, Crankshaft
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13414A Weight, Crankshaft Balancer, Rear
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13519B Sprocket, Oil Pump Drive
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13601A Balanceshaft Sub-assy, NO.1
13622 Balanceshaft, NO.2
13624 Weight, Balanceshaft, Rear
13632 Gear, Balanceshaft Driven, NO.1
13635 Spacer, Balanceshaft Thrust
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
