Engine Oil Pump

11 part groups · 3 illustrations

Illustrations

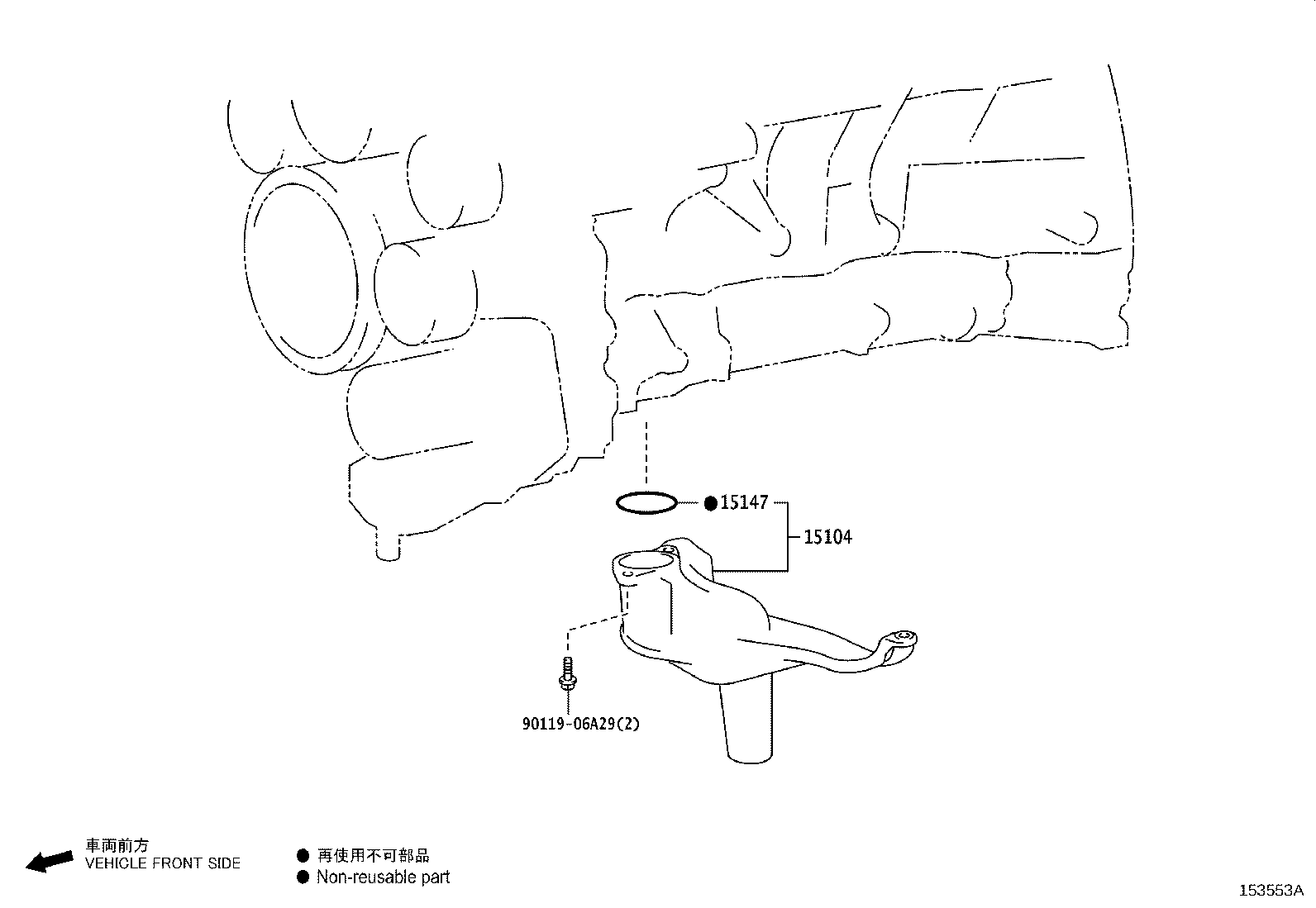

Figure 153535D 153535D 2021-12 → — Figure 153553A 153553A 2021-12 → — Figure 153553A 153553A 2024-11 → —

Part groups

PNCDescription
13549A Plate, Chain Tensioner
13565A Spring, Chain Damper
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100K Chain, Oil Pump
15104 Strainer Sub-assy, Oil
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15413 Pipe, Oil Pump Outlet
15413M Ring, O(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
