Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

6 part groups · 3 illustrations

Illustrations

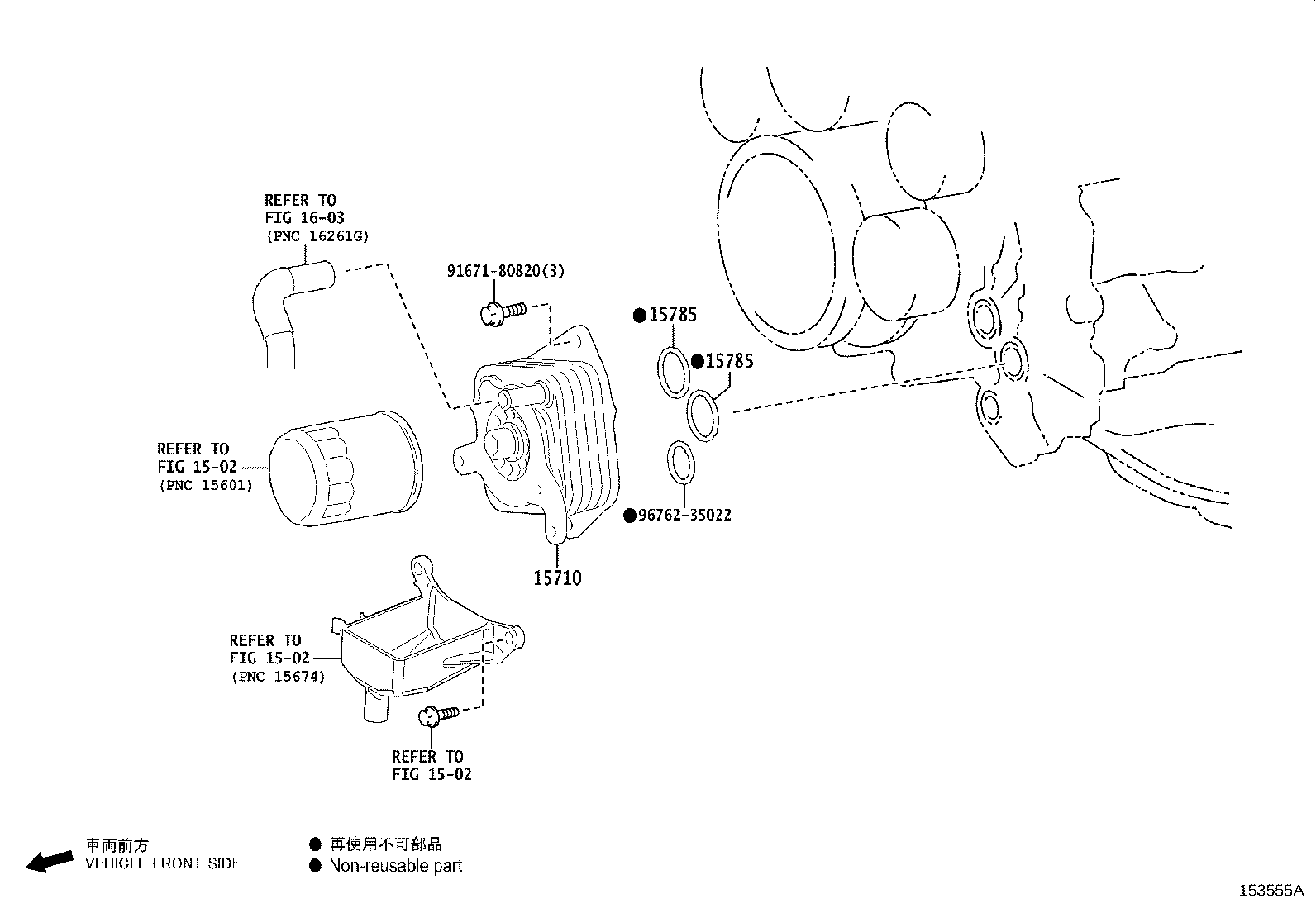

Figure 153537C 153537C 2021-12 → — Figure 153555A 153555A 2021-12 → — Figure 153555A 153555A 2024-11 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15723 Ring, O
15781 Bracket, Oil Cooler, NO.1
15781B Ring,O(FOR OIL COOLER BRACKET NO.1)
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
