Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 3 illustrations

Illustrations

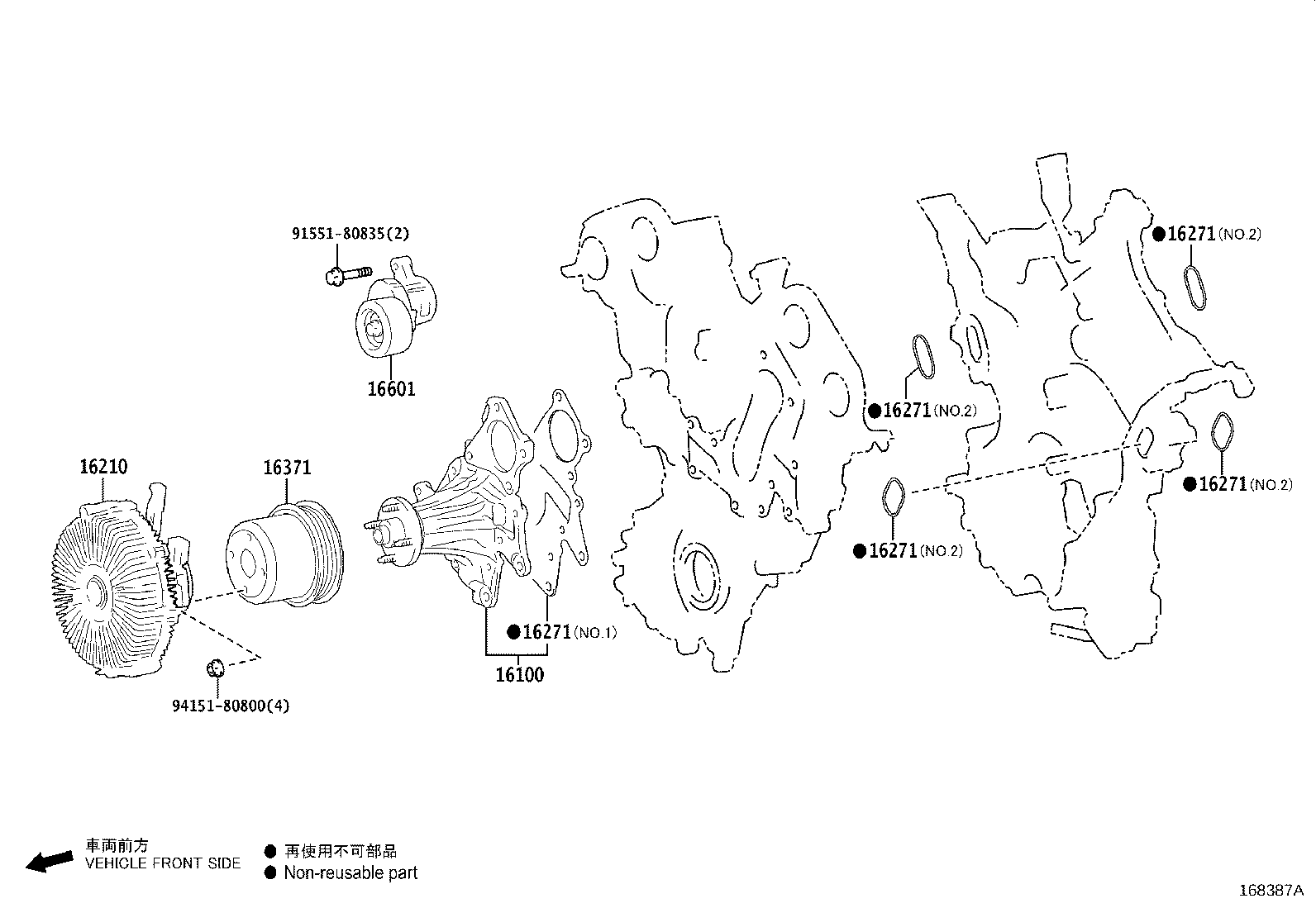

Figure 168338C 168338C 2021-12 → — Figure 168387A 168387A 2021-12 → — Figure 168387A 168387A 2024-11 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16371 Pulley, Fan
16601 Tensioner Sub-assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
