Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

15 part groups · 4 illustrations

Illustrations

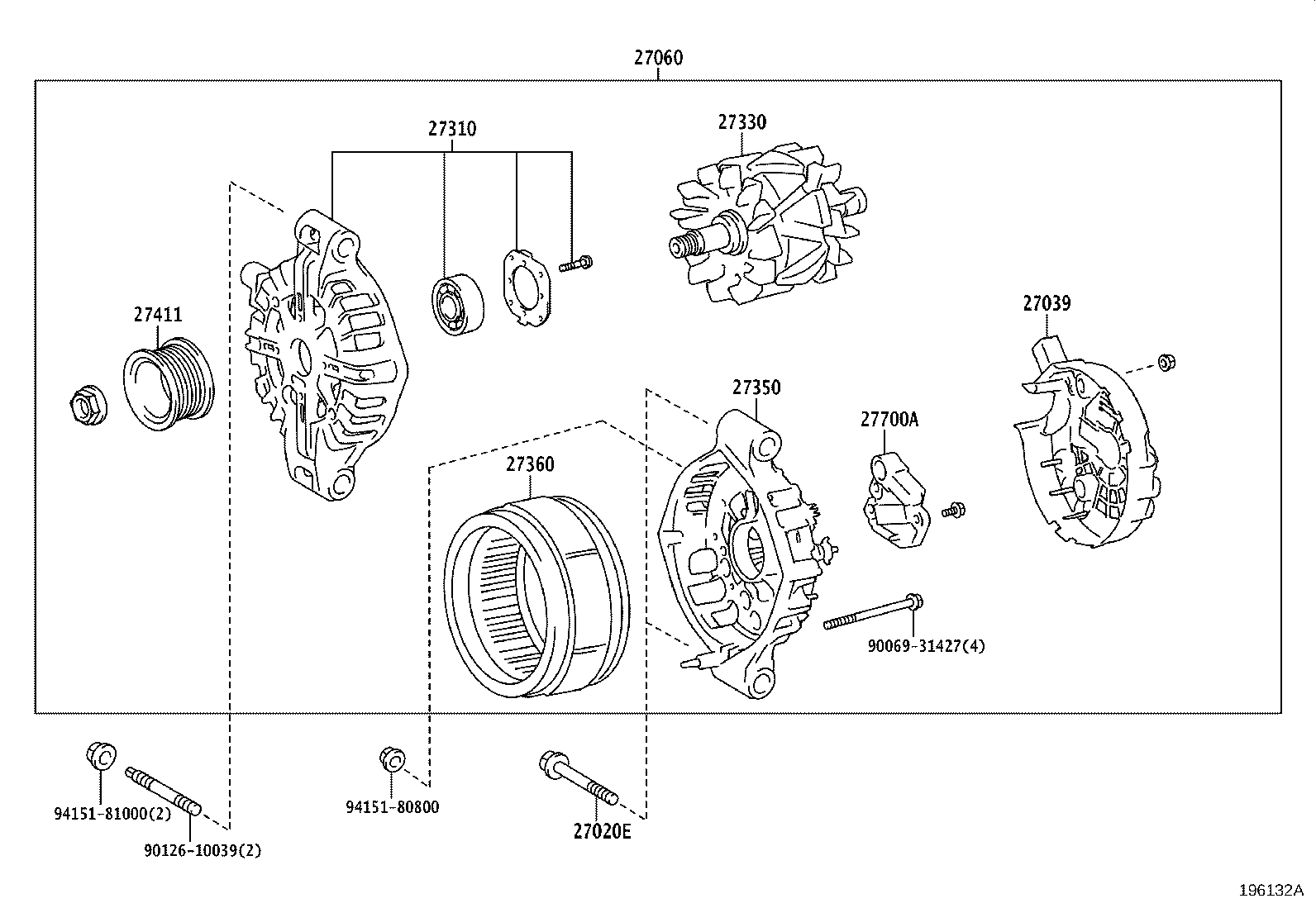

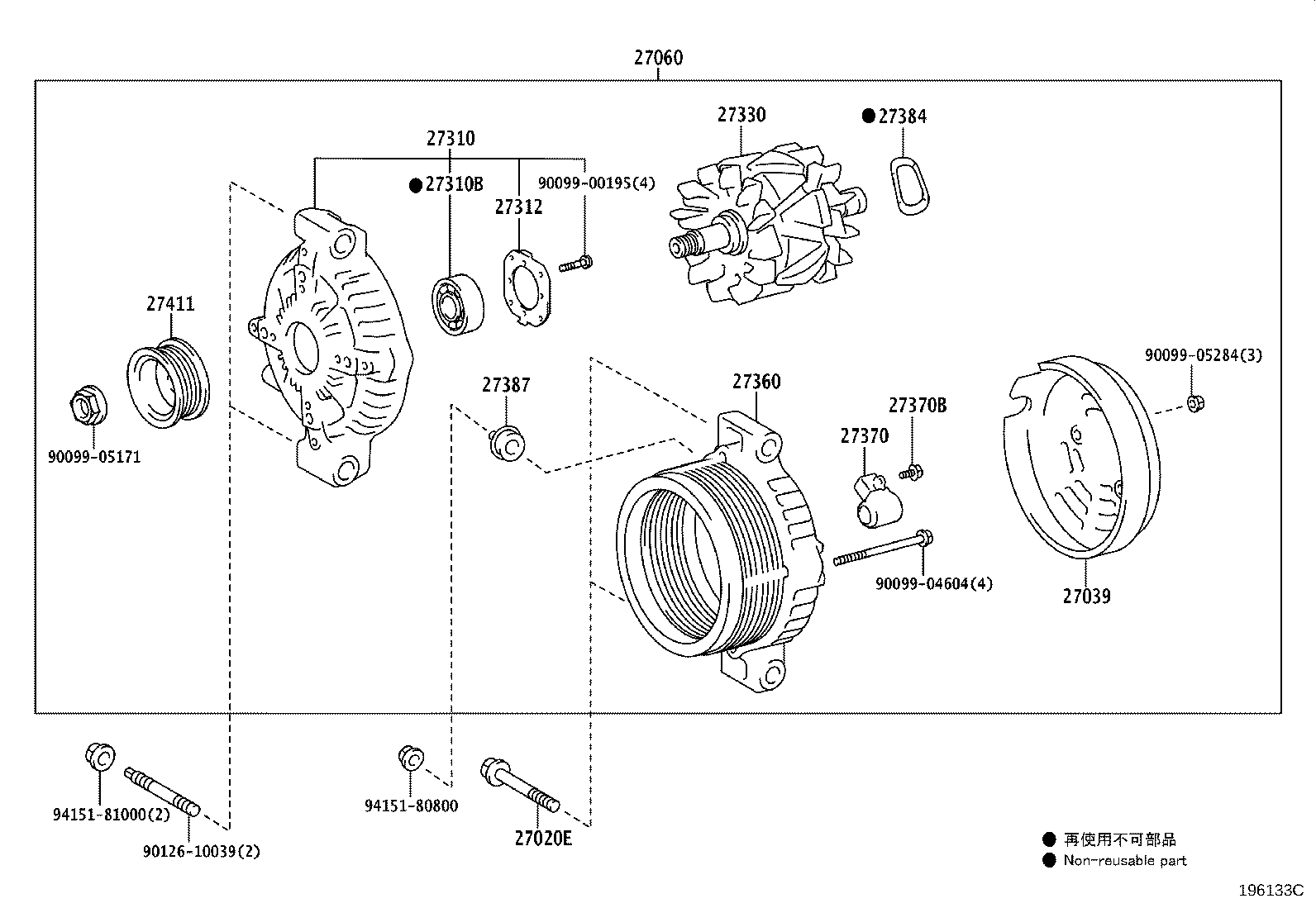

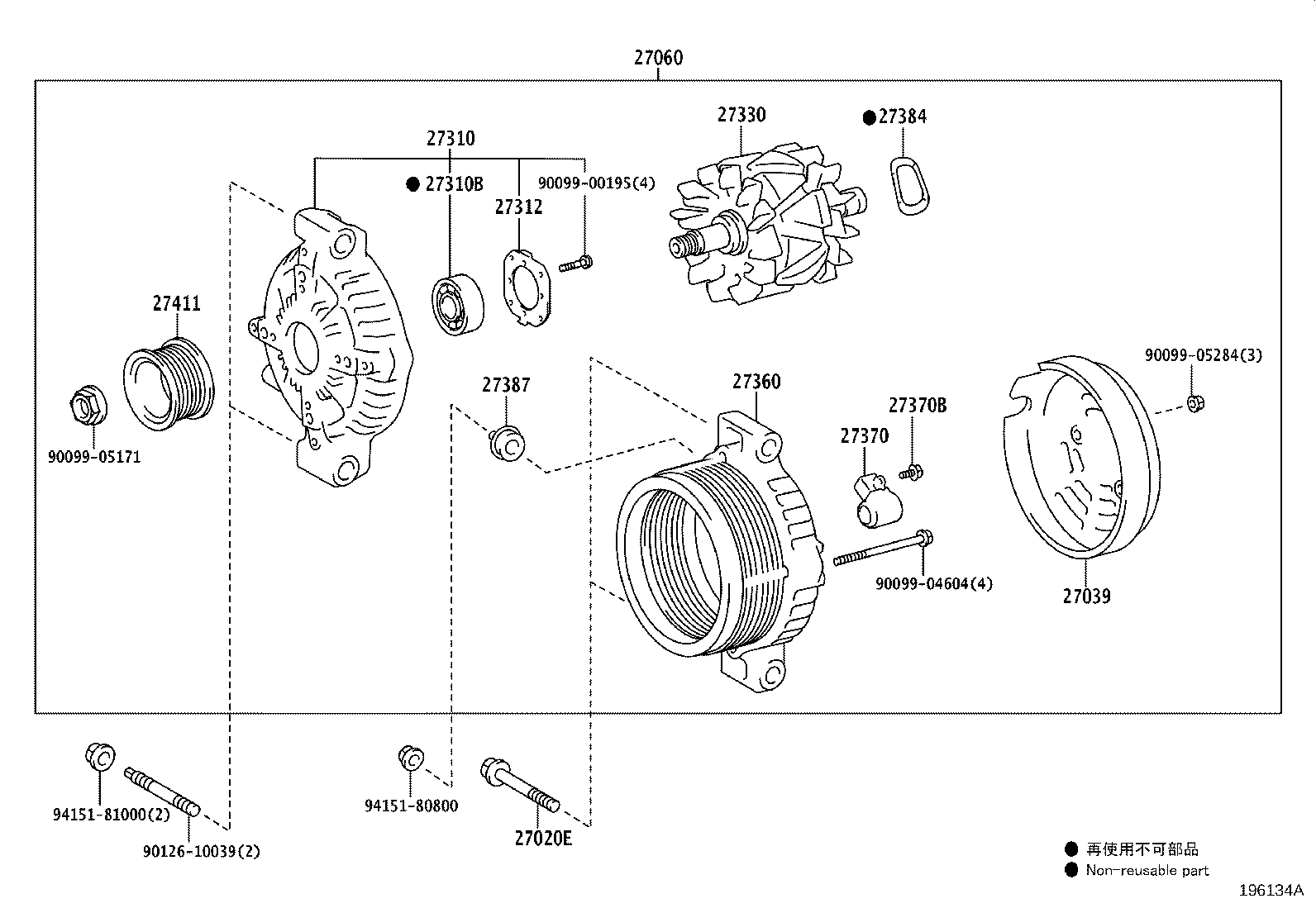

Figure 196131A 196131A 2021-12 → — Figure 196132A 196132A 2021-12 → — Figure 196133C 196133C 2021-12 → — Figure 196134A 196134A 2021-12 → —

Part groups

PNCDescription
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27060 Alternator Assy, W/Regulator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27350 Frame Assy, Rectifier End
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27370B Screw(FOR ALTERNATOR BRUSH HOLDER)
27384 Washer
27387 Insulator, Terminal
27411 Pulley, Alternator
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
