Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 4 illustrations

Illustrations

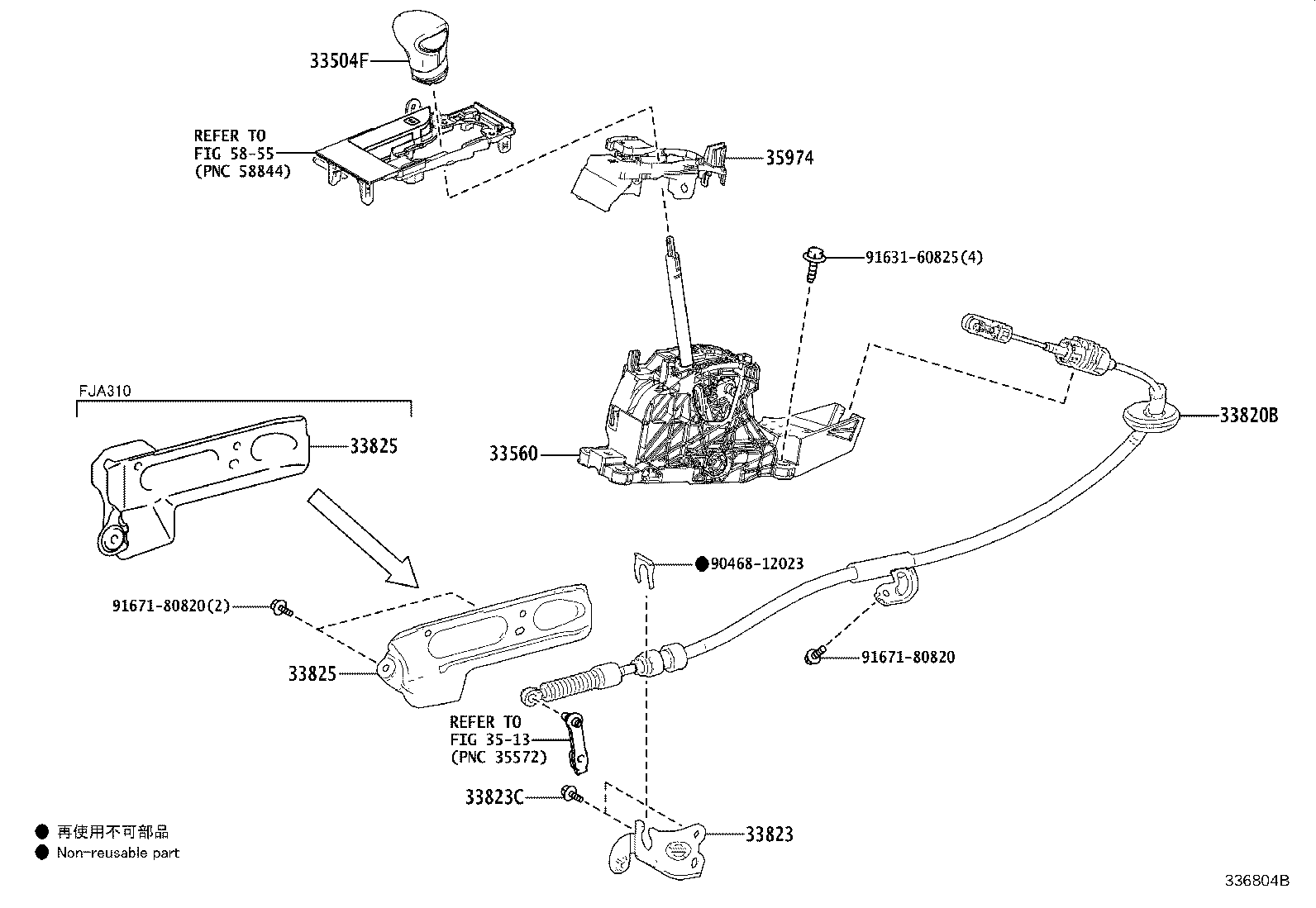

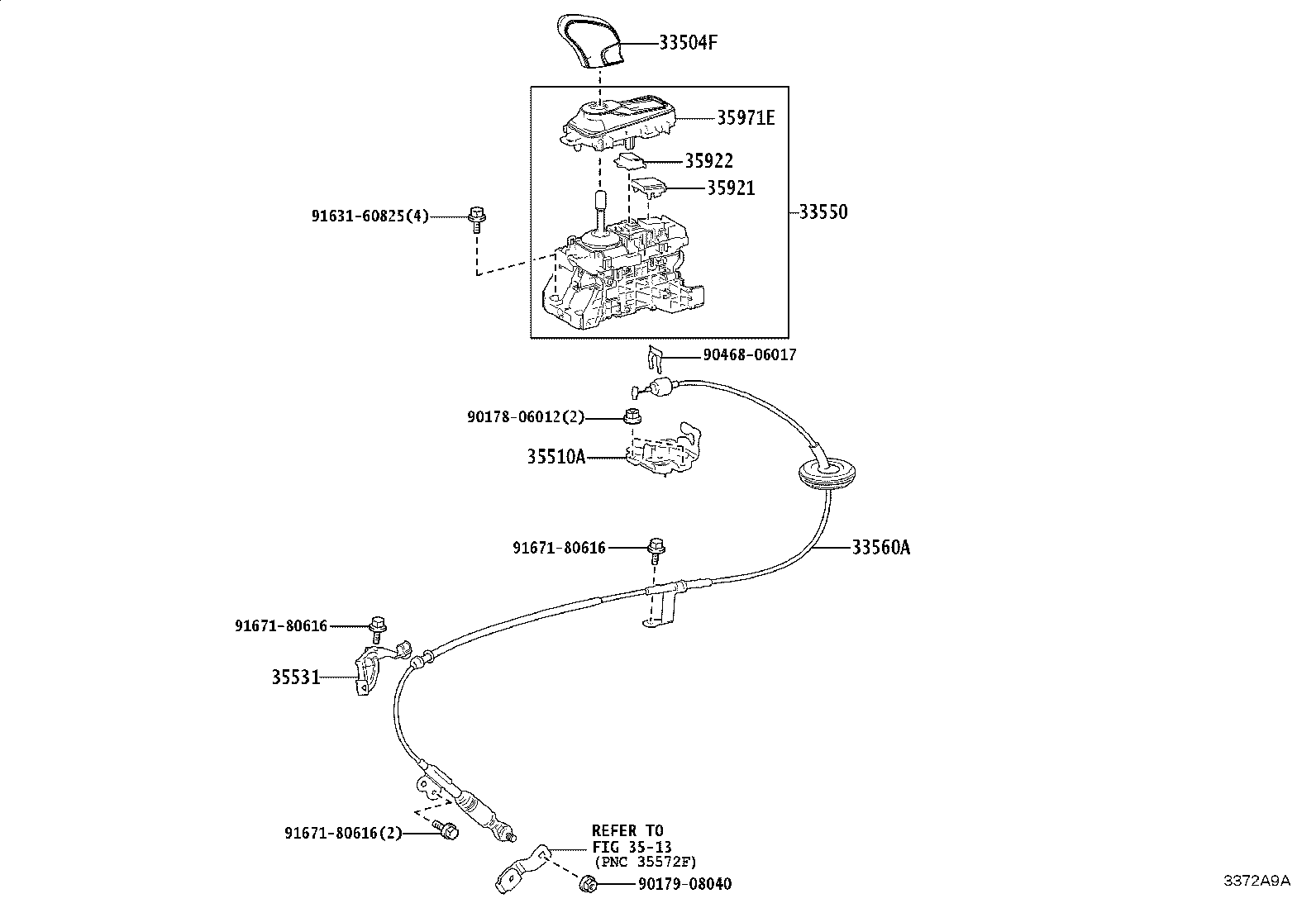

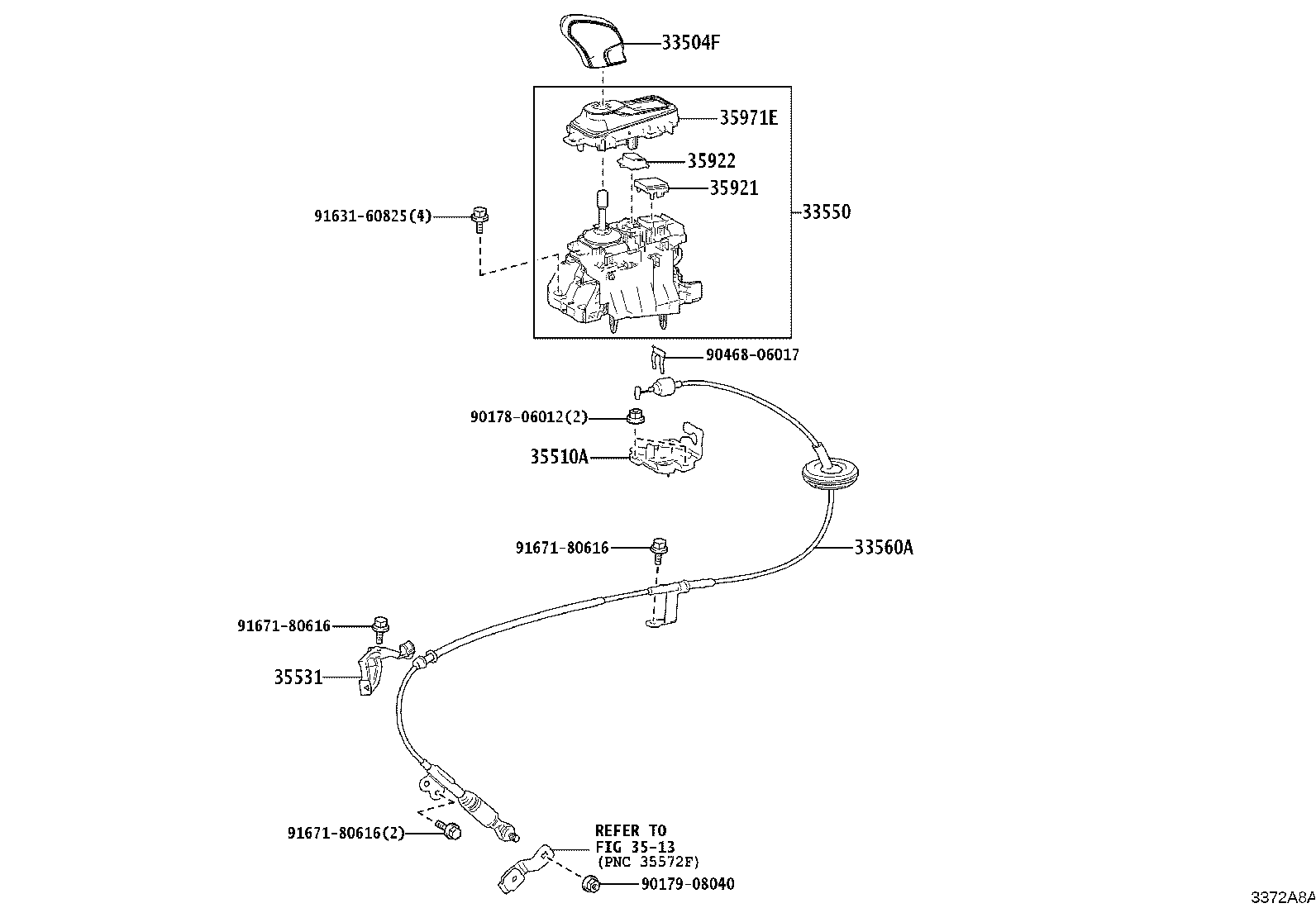

Figure 336803B 336803B 2021-12 → — Figure 336804B 336804B 2021-12 → — Figure 3372A9A 3372A9A 2024-11 → — Figure 3372A8A 3372A8A 2024-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33560 Unit Assy, Shift Lock Control
33560A Cable Assy, Shift Lock Release
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33825 Insulator, Transmission Control Cable
35510A Lever Assy, Parking Lock Release
35531 Bracket, Parking Lock Release Cable Clamp, NO.1
35921 Plate, Control Position Indicator
35922 Knob, Transmission Parking Switch
35971E Housing, Position Indicator
35974 Housing, Position Indicator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
