Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

24 part groups · 2 illustrations

Illustrations

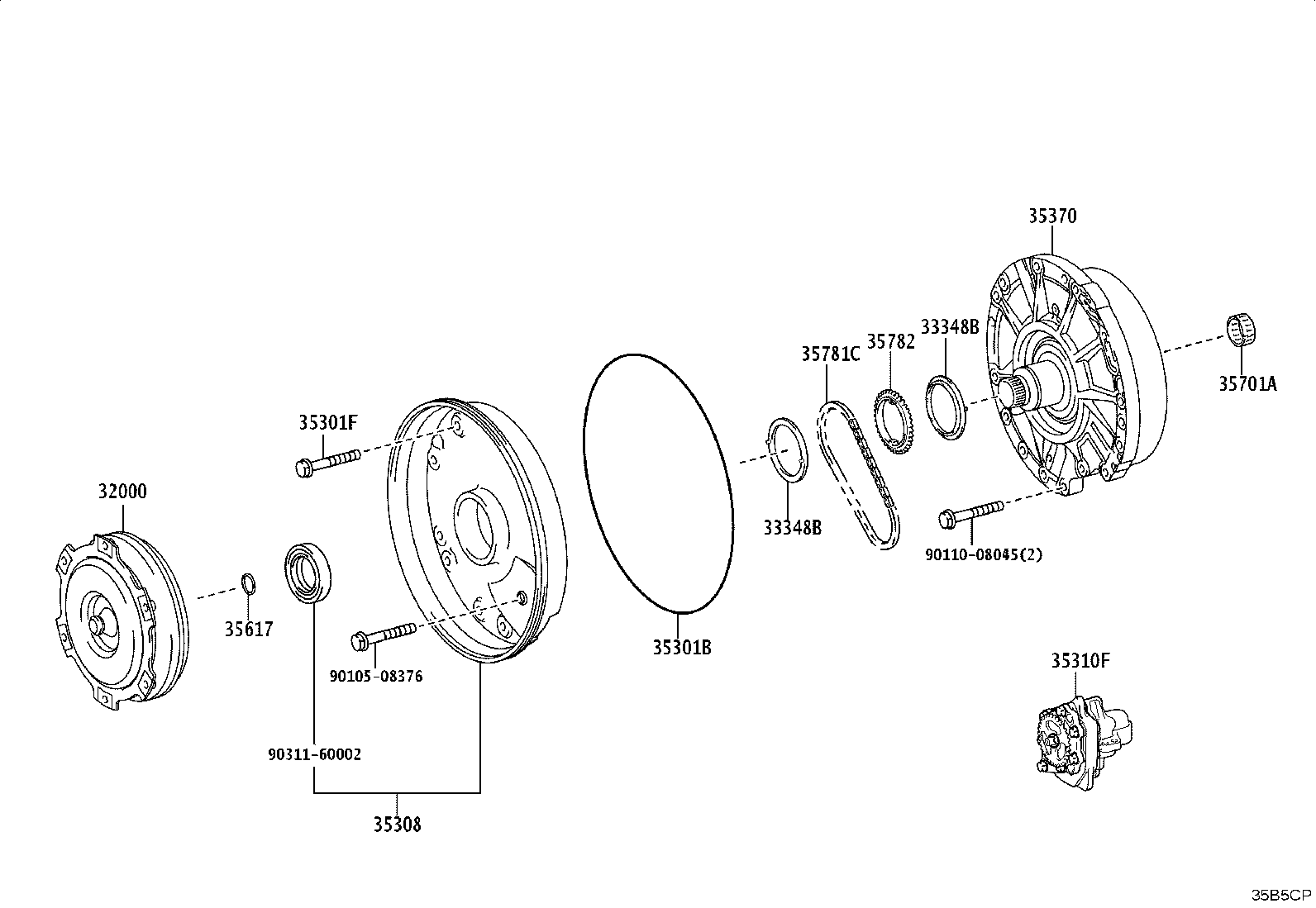

Figure 35B046C 35B046C 2021-12 → — Figure 35B5CP 35B5CP 2024-11 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32117 Spacer, Drive Plate, Rear
33348B Washer, Gear Thrust
33405B Shaft Sub-assy, Oil Pump Drive
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35305C Cover Sub-assy, Rear Oil Pump
35308 Cover Sub-assy, Front Oil Pump
35308A Seal, Oil (FOR FRONT OIL PUMP COVER)
35308K Cover Sub-assy, Front Oil Pump, NO.2
35310F Pump Assy, Front Oil
35311 Body, Front Oil Pump
35311A Pin, Ring
35321 Gear, Front Oil Pump Drive
35322 Gear, Front Oil Pump Driven
35370 Shaft Assy, Stator
35617 Ring, Clutch Drum Oil Seal
35701A Bearing, Thrust (FOR INPUT SHAFT FRONT)
35781C Chain, Transmission Drive
35782 Sprocket, Drive
35783 Sprocket, Driven
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
