Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

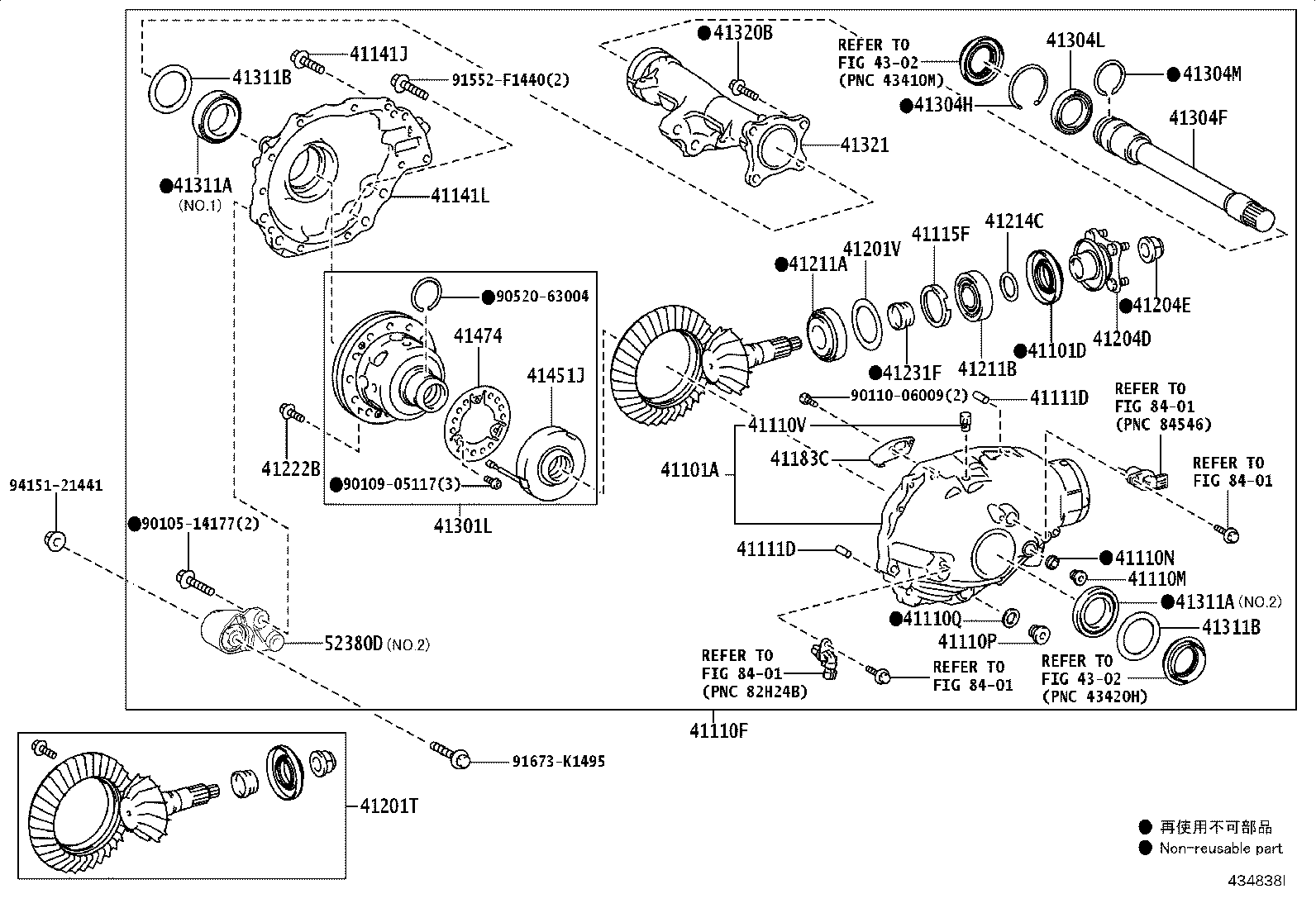

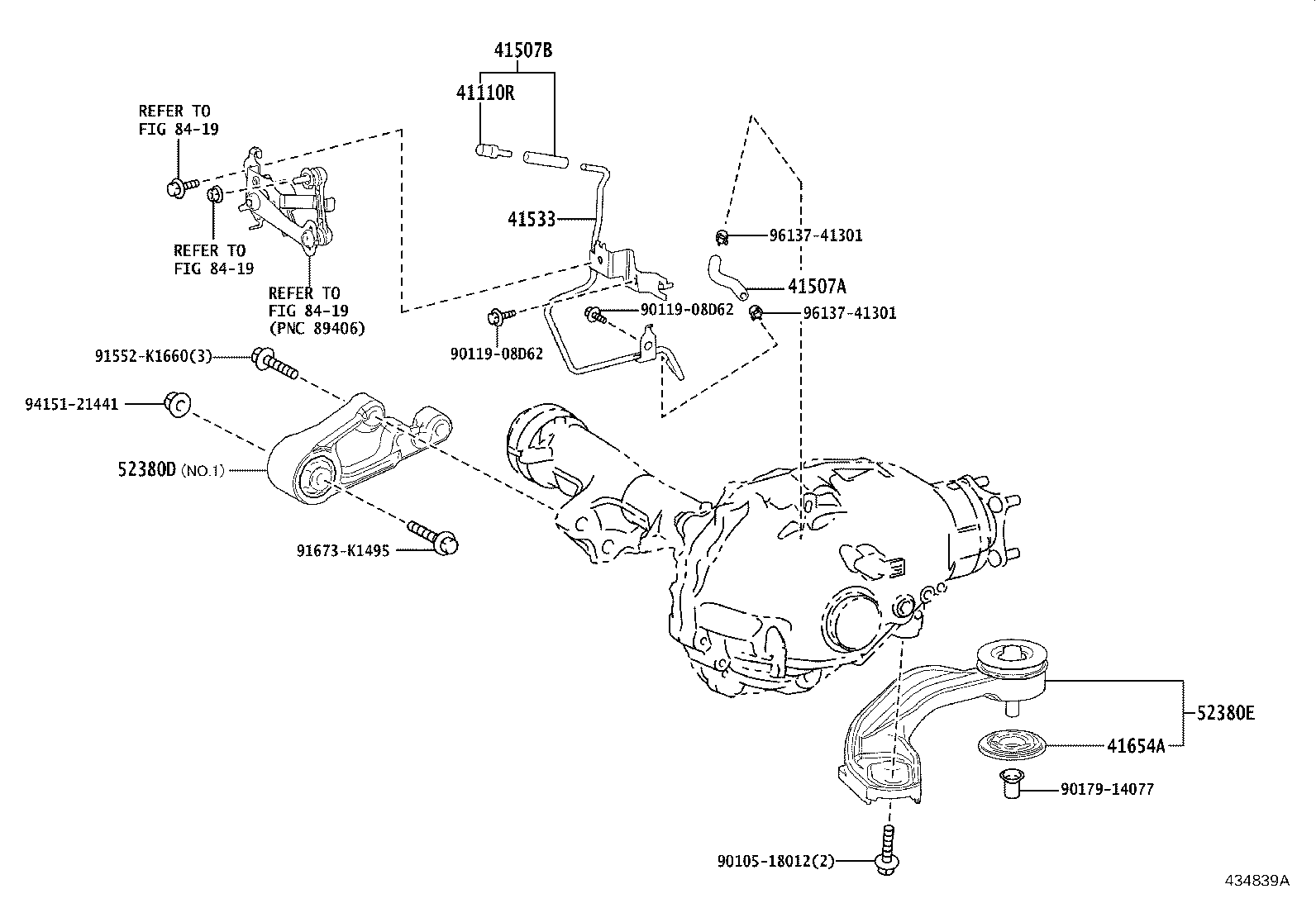

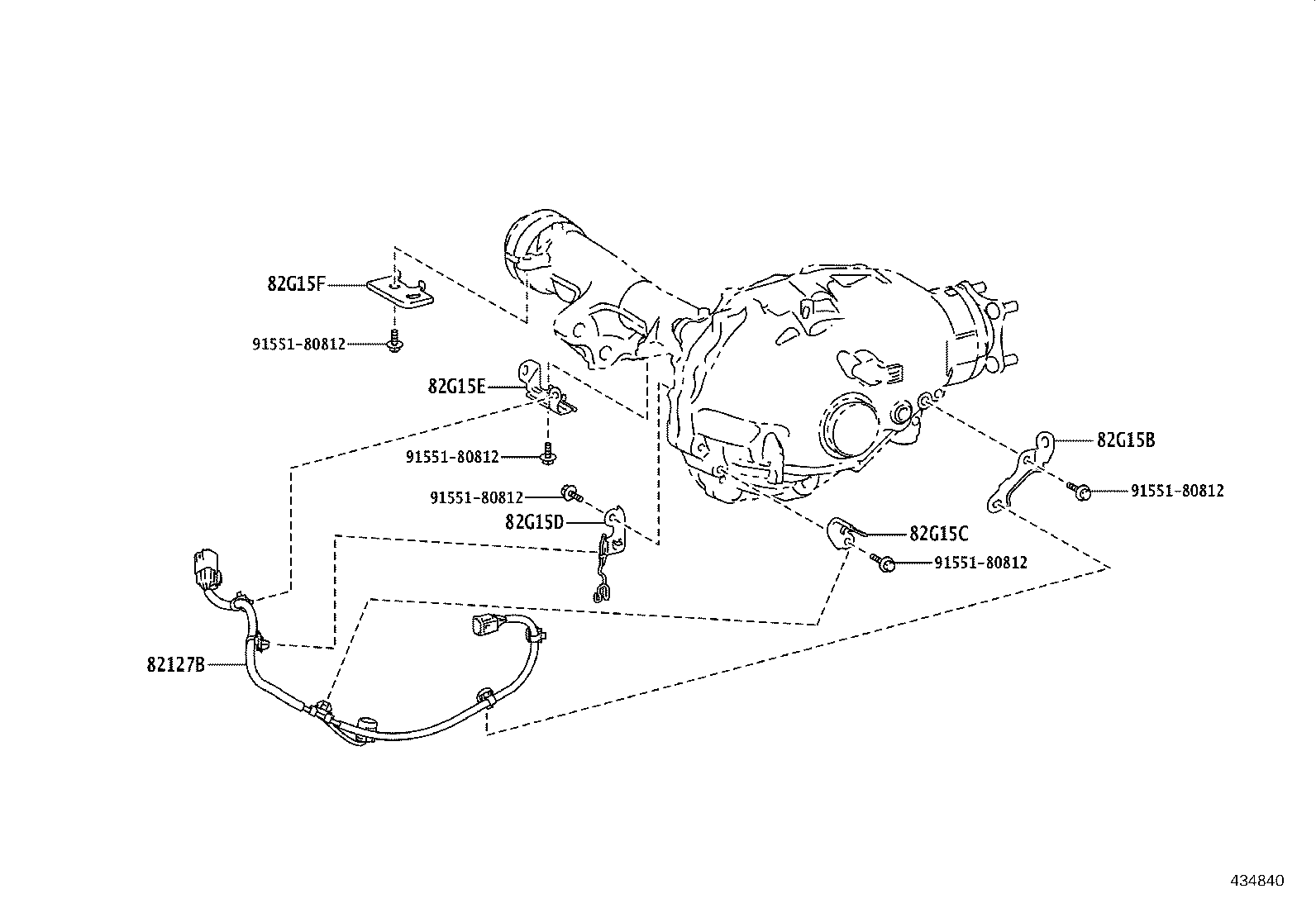

Front Axle Housing & Differential
52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 41039A | Gear Kit, Differential |
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |
| 41110R | Plug, Breather (FOR FRONT DIFFERENTIAL) |
| 41110V | Union (FOR FRONT DIFFERENTIAL) |
| 41111D | Pin, Straight (FOR FRONT DIFFERENTIAL CARRIER) |
| 41115F | Ring, Front Differential Oil Storage |
| 41141J | Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141L | Retainer, Front Differential Cross Shaft Bearing |
| 41183C | Deflector, Front Differential Breather Plug Oil |
| 41201T | Final Gear Kit, Differential, Front |
| 41201V | Shim (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41304H | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304L | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304M | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41320B | Bolt (FOR FRONT DIFFERENTIAL TUBE) |
| 41321 | Tube, Differential Extension Flange |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41362F | Washer, Front Differential Side Gear Thrust, NO.2 |
| 41451J | Coil, Differential Lock |
| 41474 | Plate, Differential Lock Clutch |
| 41507A | Tube, Front Differential Lock Actuator Breather, NO.2 |
| 41507B | Tube, Front Differential Lock Actuator Breather |
| 41533 | Tube, Front Differential Breather |
| 41654A | Stopper, Differential Mount, Lower |
| 52380D | Support Assy, Front Differential |
| 52380E | Support Assy, Differential |
| 82127B | Wire, Differential |
| 82G15B | Bracket, Differential Wire, NO.1 |
| 82G15C | Bracket, Differential Wire, NO.2 |
| 82G15D | Bracket, Differential Wire, NO.3 |
| 82G15E | Bracket, Differential Wire, NO.4 |
| 82G15F | Bracket, Differential Wire, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
