Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 4 illustrations

Illustrations

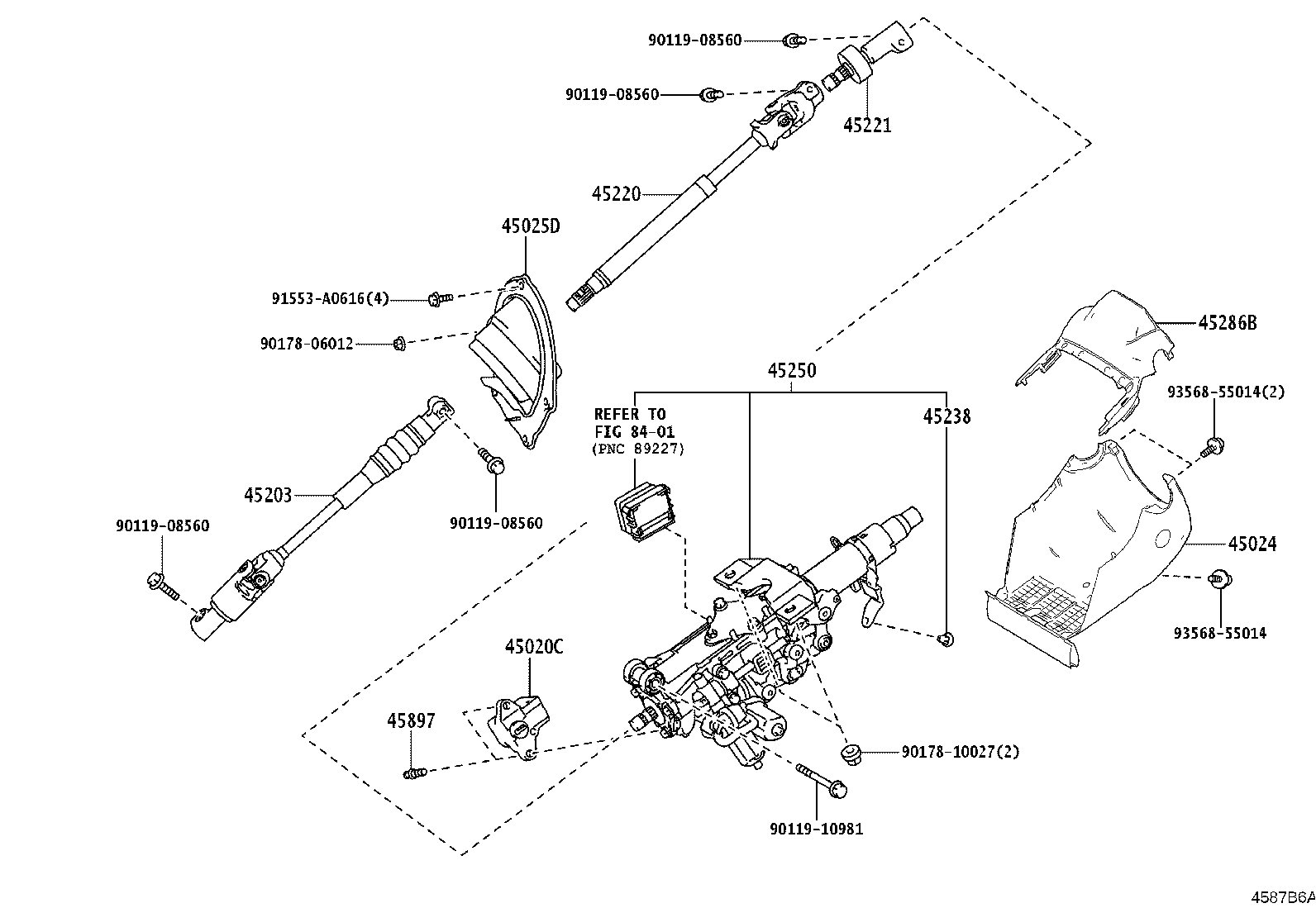

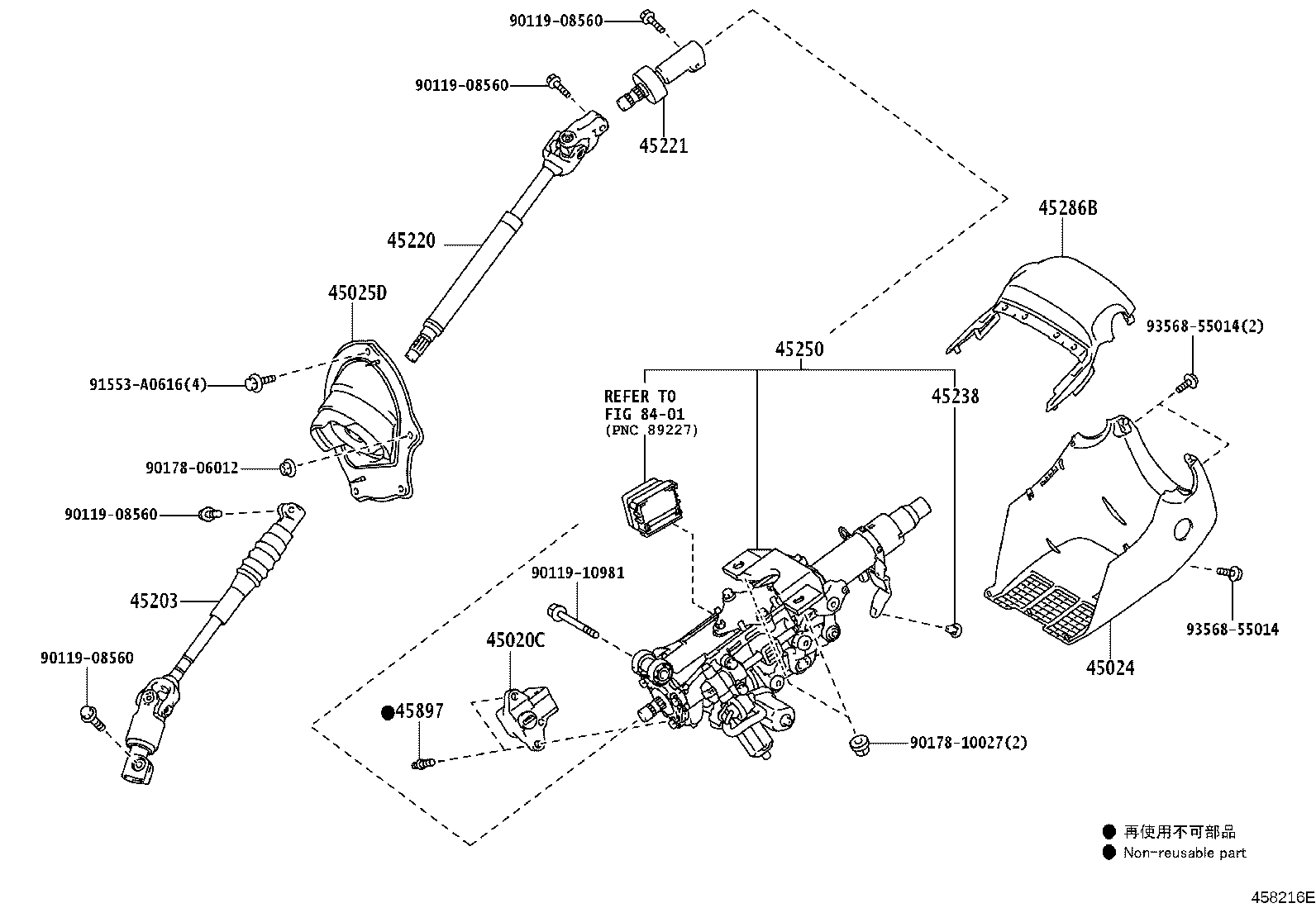

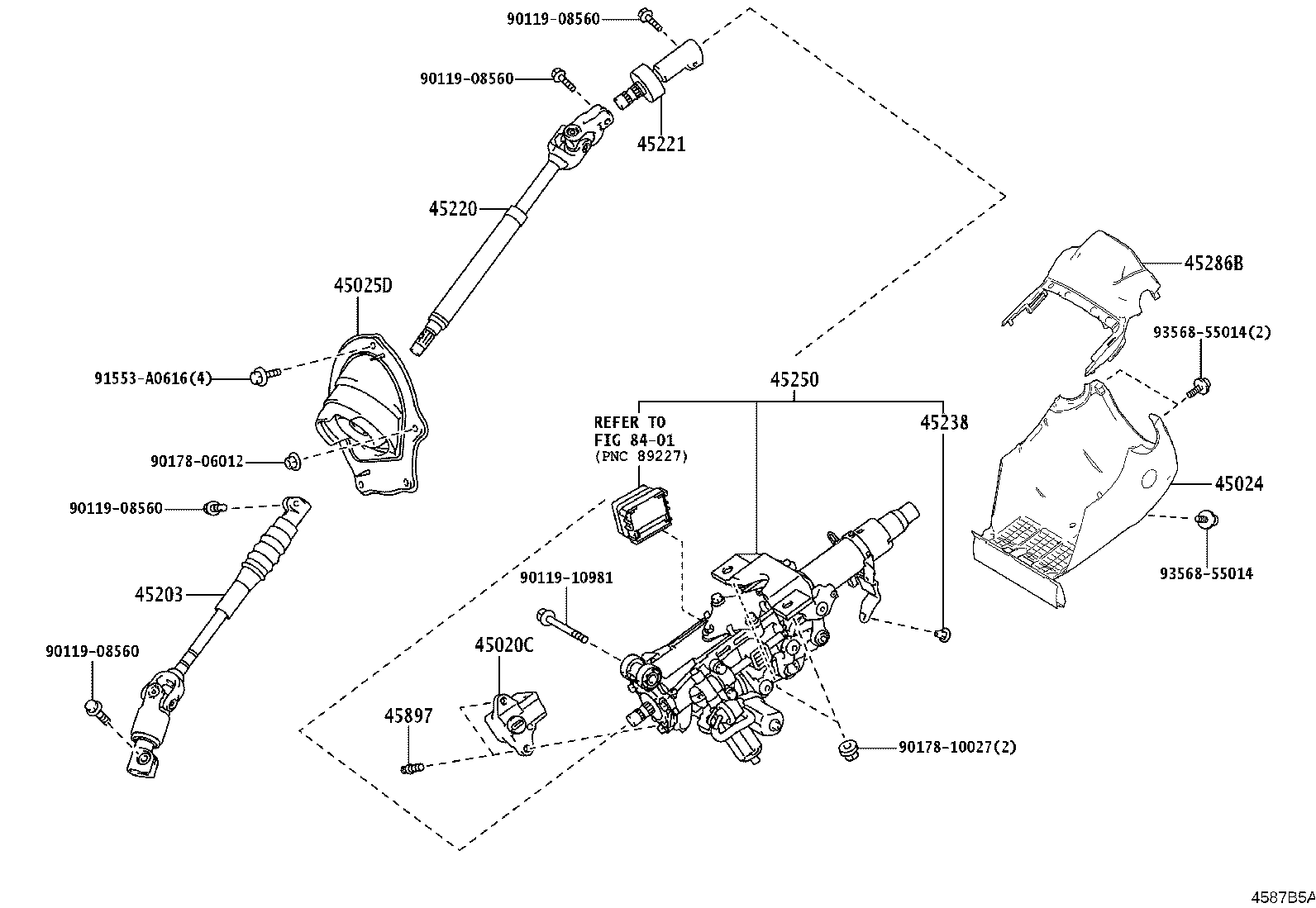

Figure 4587B7A 4587B7A 2021-12 → — Figure 4587B6A 4587B6A 2024-11 → — Figure 458216E 458216E 2021-12 → — Figure 4587B5A 4587B5A 2024-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45221 Shaft, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45286B Cover, Steering Column, Upr
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
