Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

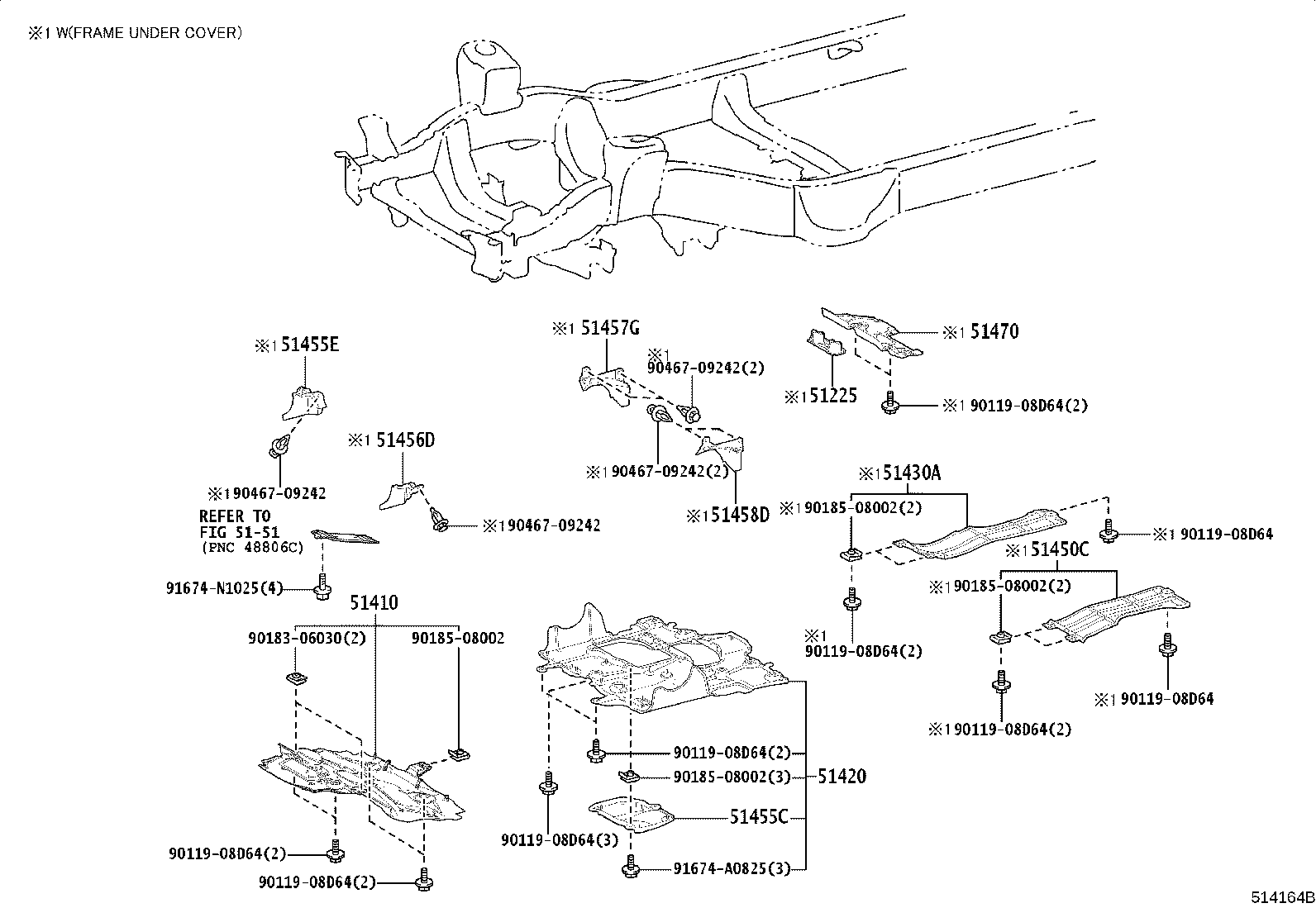

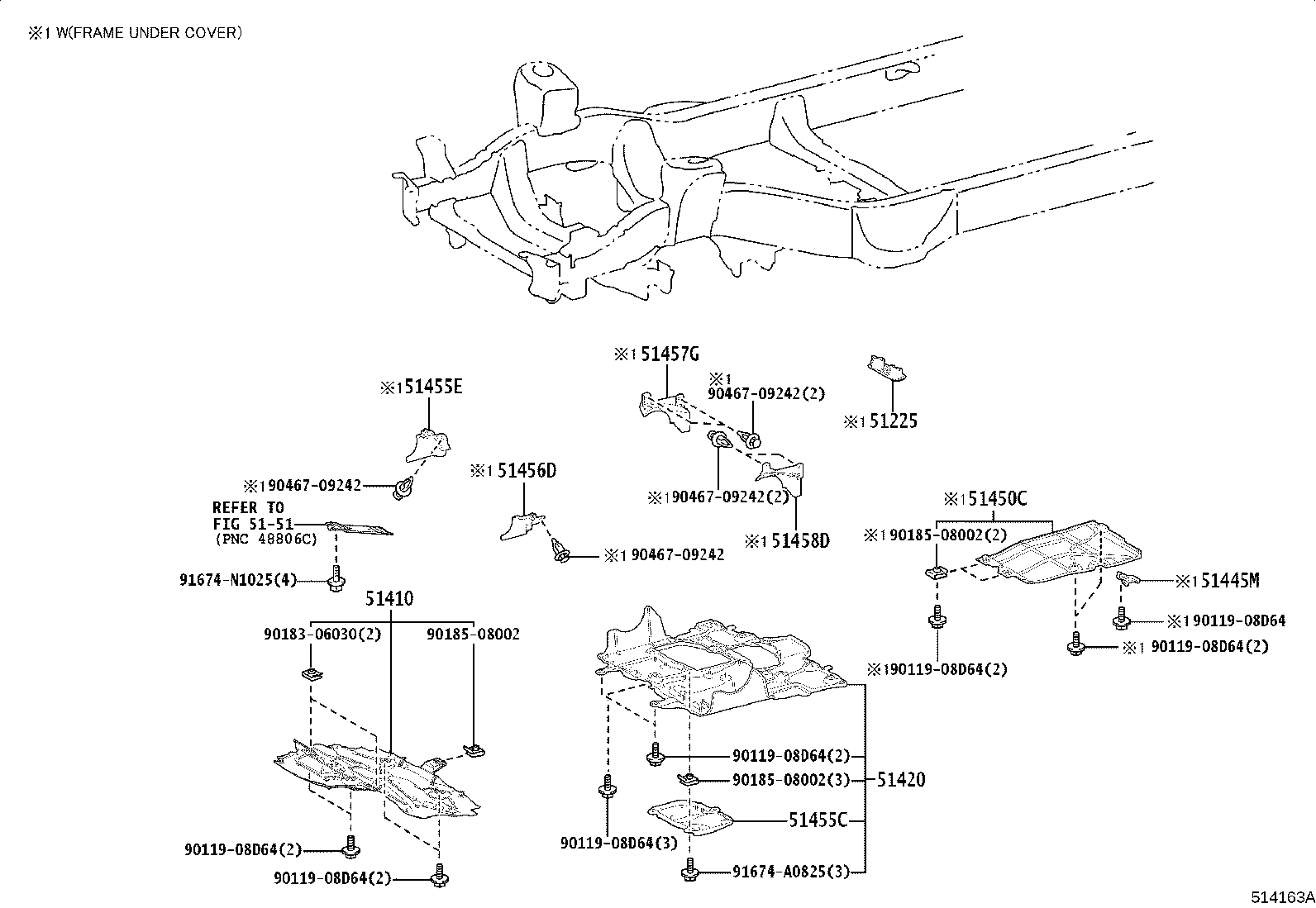

Figure 514162A 514162A 2021-12 → — Figure 514163A 514163A 2021-12 → — Figure 514164B 514164B 2021-12 → —

Part groups

PNCDescription
51225 Cover, Engine Mounting Hole, NO.3
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51430A Cover Assy, Frame Under, RH
51445M Bracket, Engine Rear Cover
51450C Cover Assy, Frame Under, LH
51455C Seal, Engine Under Cover, NO.2
51455E Seal, Frame Under, NO.1 RH
51456D Seal, Frame Under, NO.1 LH
51457G Seal, Frame Under, NO.2 RH
51458D Seal, Frame Under, NO.2 LH
51470 Cover Assy, Transmission Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
