Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

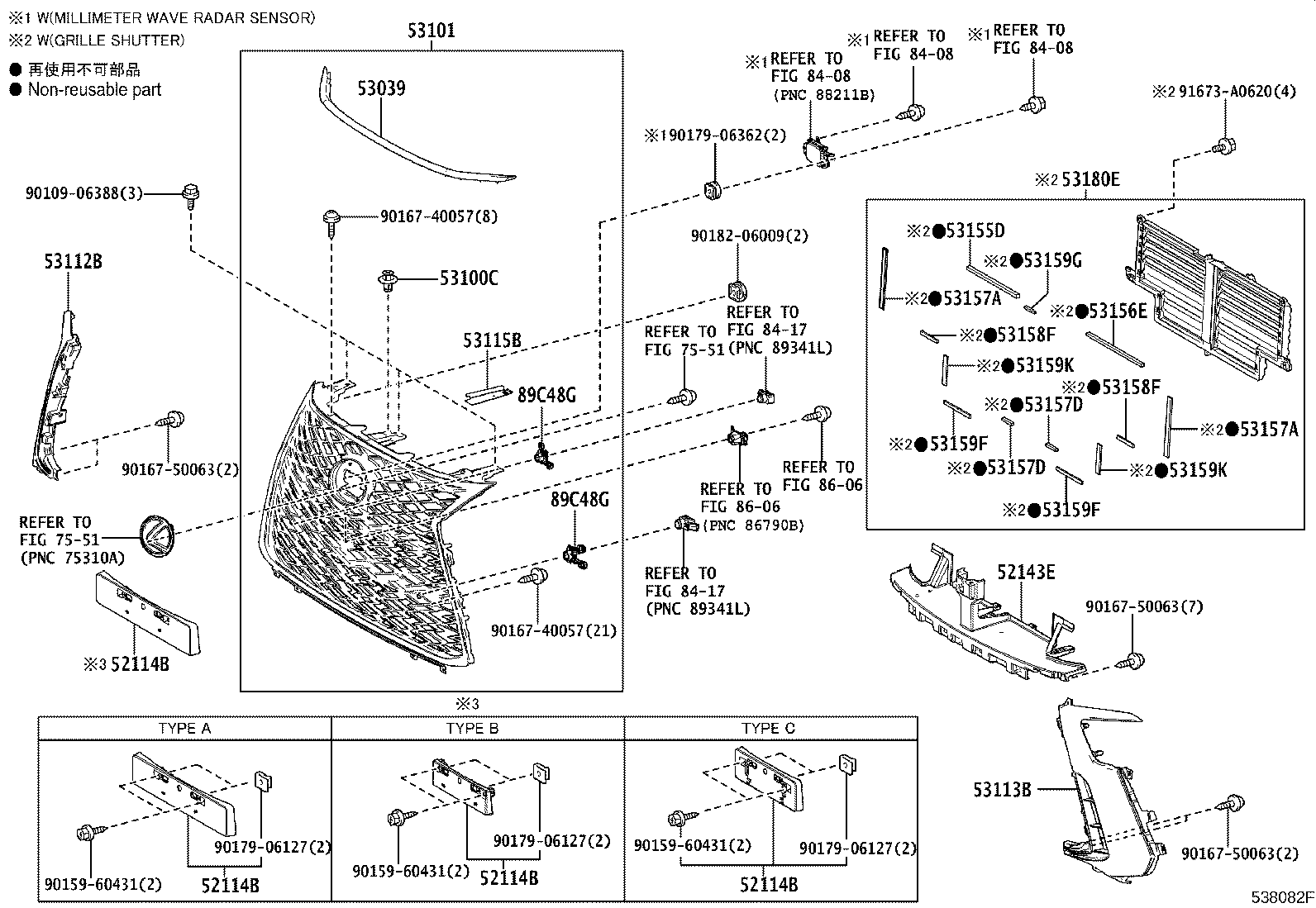

Radiator Grille
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52143E | Plate, Front Energy Absorber Mounting |
| 53039 | Seal, Radiator, Upper |
| 53100C | Clip, Radiator Grille |
| 53101 | Grille Sub-assy, Radiator |
| 53112B | Grille, Radiator Side, RH |
| 53113B | Grille, Radiator Side, LH |
| 53115B | Bracket, Radiator Grille |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53156E | Seal, Radiator Grille, NO.2 |
| 53157A | Seal, Radiator Grille, NO.3 |
| 53157D | Seal, Radiator Grille, NO.8 |
| 53158F | Seal, Radiator Grille, NO.4 |
| 53159F | Seal, Radiator Grille, NO.6 |
| 53159G | Seal, Radiator Grille, NO.7 |
| 53159K | Seal, Radiator Grille, NO.5 |
| 53180E | Shutter Assy, Radiator |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
