Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

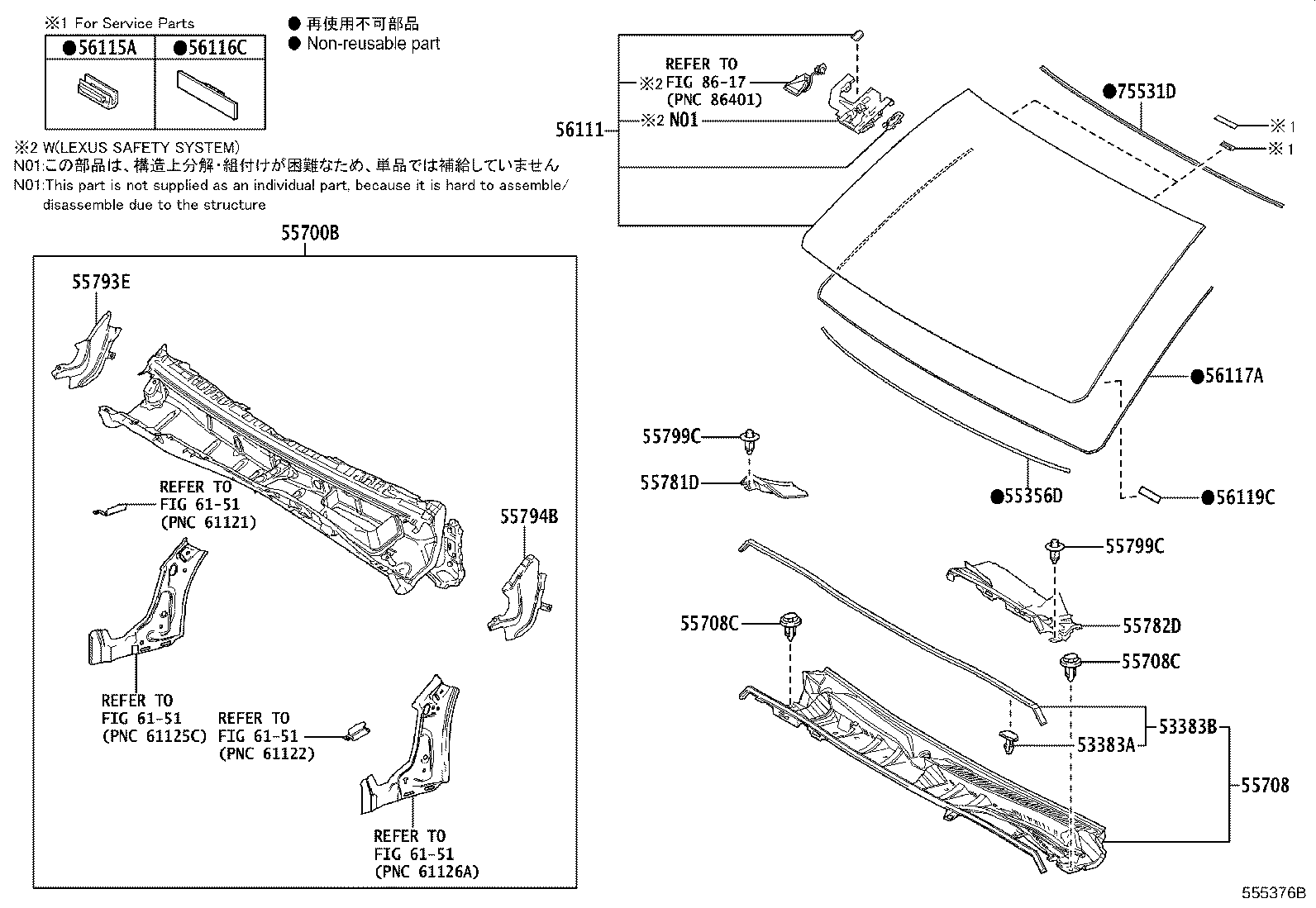

Cowl Panel & Windshield Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383A | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53383B | Seal, Hood TO Cowl Top |
| 55356D | Cushion, Instrument Panel, NO.2 |
| 55700B | Cowl Assy |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55708C | Clip, Cowl Top Ventilator Louver |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55793E | Cover, Cowl Reinforcement, Upper NO.2 RH |
| 55794B | Cover, Cowl Reinforcement, Upper NO.2 LH |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56119C | Seal, Windshield Glass |
| 75531D | Moulding, Windshield, Outside Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
