Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11

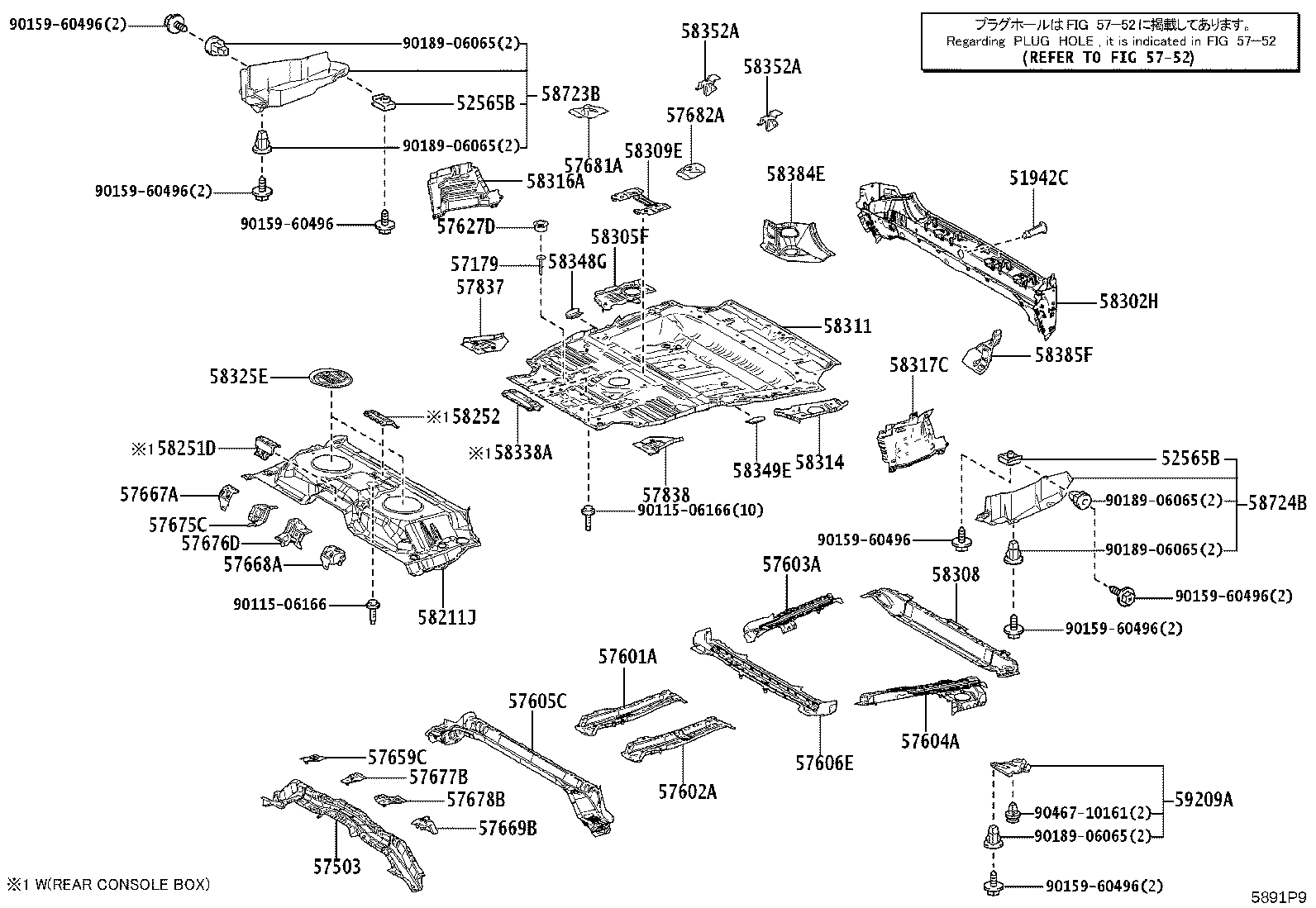

Rear Floor Panel & Rear Floor Member
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51942C | Guide, Spare Wheel Crank Handle |
| 52565B | Retainer, Rear Bumper, Lower |
| 57179 | Bolt, Floor Crossmember |
| 57503 | Brace Sub-assy, Center Floor Crossmember |
| 57601A | Member Sub-assy, Rear Floor Side, RH |
| 57602A | Member Sub-assy, Rear Floor Side, LH |
| 57603A | Member Sub-assy, Rear Floor Side, Rear RH |
| 57604A | Member Sub-assy, Rear Floor Side, Rear LH |
| 57605C | Member Sub-assy, Rear Floor Cross |
| 57606E | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57627D | Cover, Rear Floor Side Member |
| 57659C | Member, Rear Floor Cross, NO.8 |
| 57667A | Reinforcement, Rear Floor Crossmember, NO.4 |
| 57668A | Reinforcement, Rear Floor Crossmember, NO.5 |
| 57669B | Member, Rear Floor Cross, NO.9 |
| 57675C | Reinforcement, Rear Floor Crossmember, NO.1 RH |
| 57676D | Reinforcement, Rear Floor Crossmember, NO.1 LH |
| 57677B | Reinforcement, Rear Floor Crossmember, NO.6 RH |
| 57678B | Reinforcement, Rear Floor Crossmember, NO.6 LH |
| 57681A | Brace, Rear Floor NO.2 Crossmember, Outer |
| 57682A | Brace, Rear Floor NO.2 Crossmember, Outer LH |
| 57837 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.3 |
| 57838 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.4 |
| 58211J | Pan, Center Floor |
| 58251D | Brace, Floor Panel, Front |
| 58252 | Brace, Floor Panel, Rear |
| 58302H | Panel Sub-assy, Lower Back |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58309E | Plate Sub-assy, Rear Floor |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58316A | Extension, Rear Floor Side Panel, Rear RH |
| 58317C | Extension, Rear Floor Side Panel, Rear LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58348G | Plate, Rear Floor Side, RH |
| 58349E | Plate, Rear Floor Side, LH |
| 58351D | Reinforcement, Rear Floor Panel |
| 58352A | Bracket, Rear Floor Stay |
| 58384E | Gusset, Lower Back Panel, NO.1 RH |
| 58385F | Gusset, Lower Back Panel, NO.1 LH |
| 58723B | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724B | Protector, Luggage Compartment Side Cover, NO.2 |
| 59209A | Cover Sub-assy, Inspection Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
