Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 8 illustrations

Illustrations

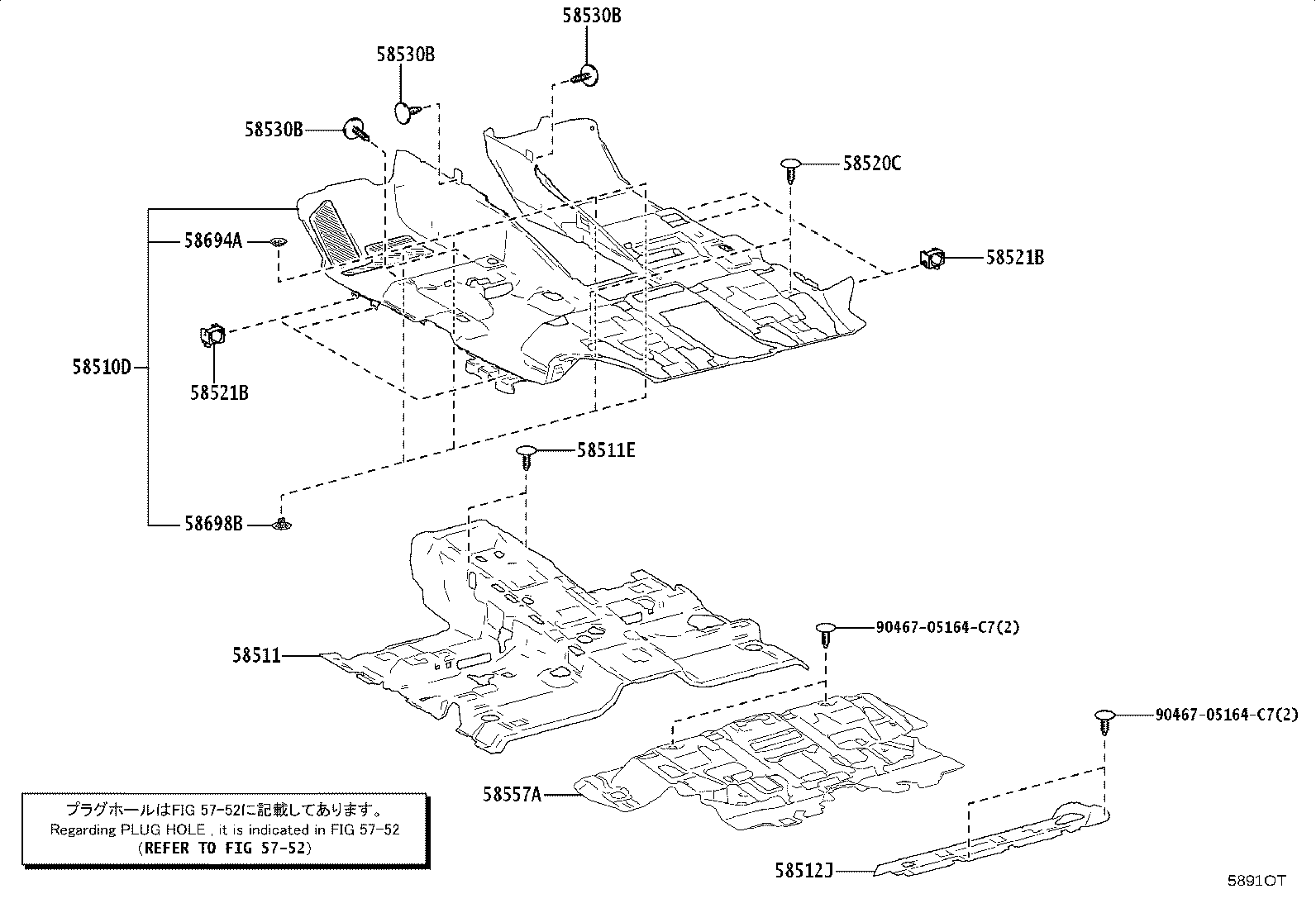

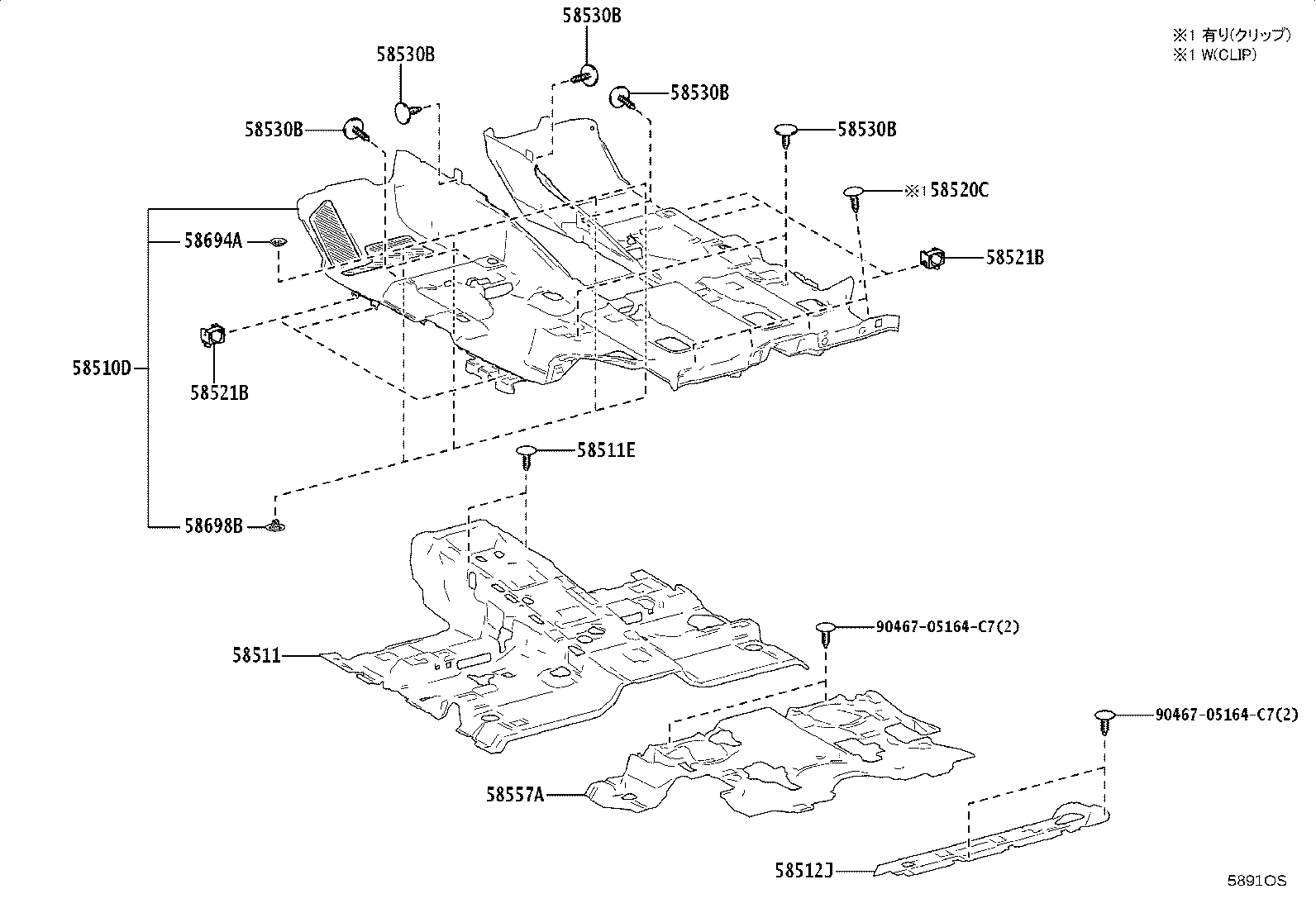

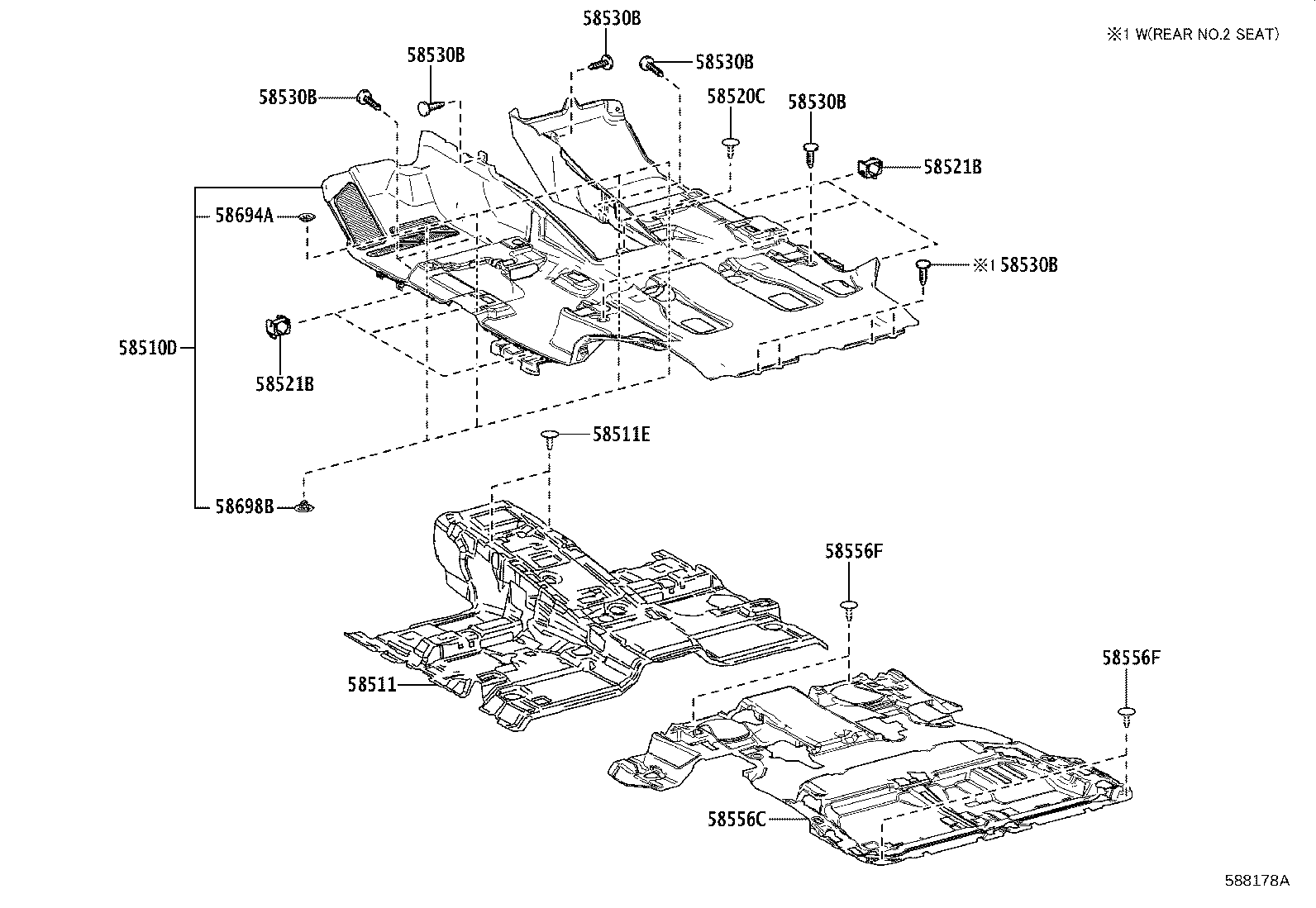

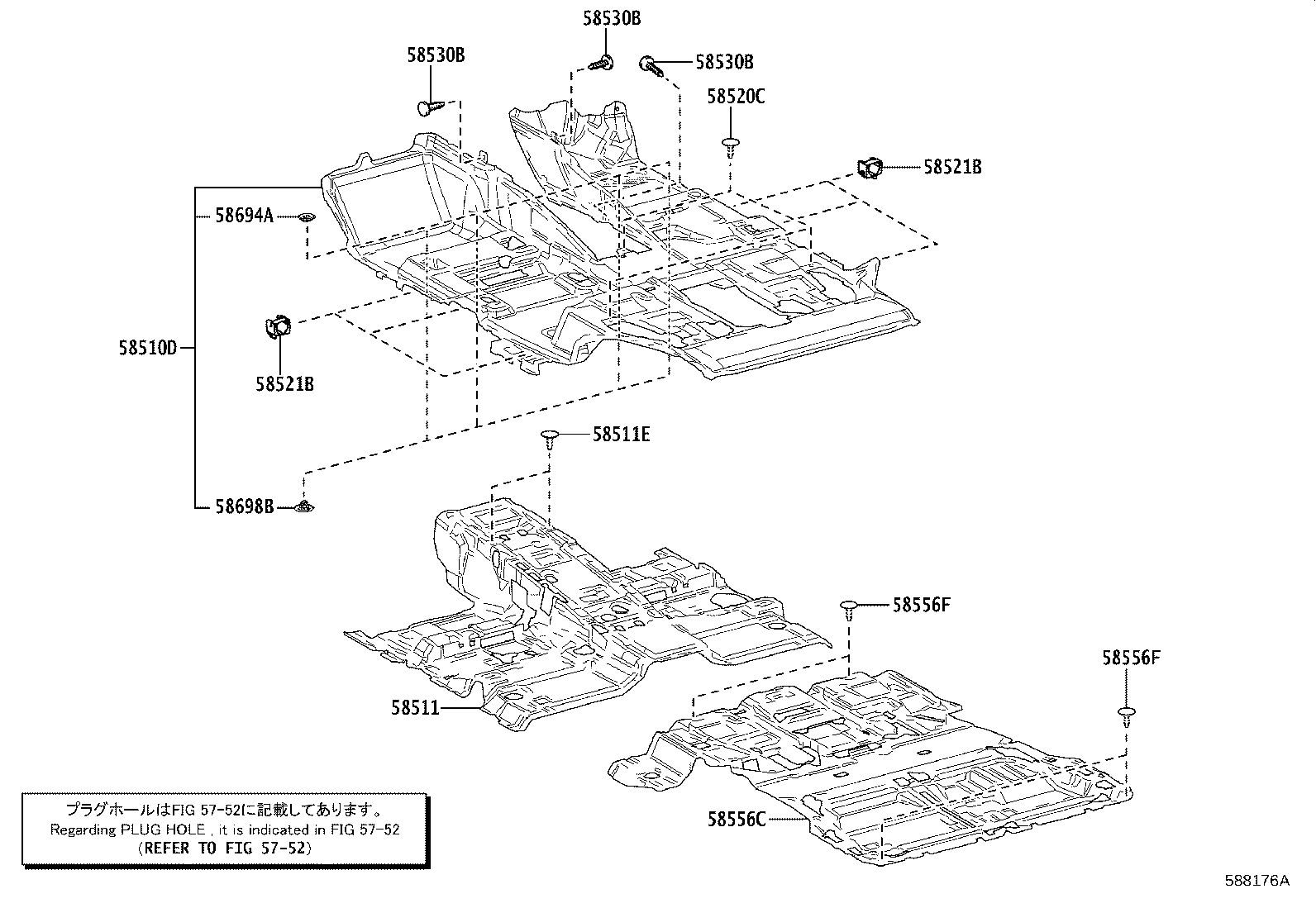

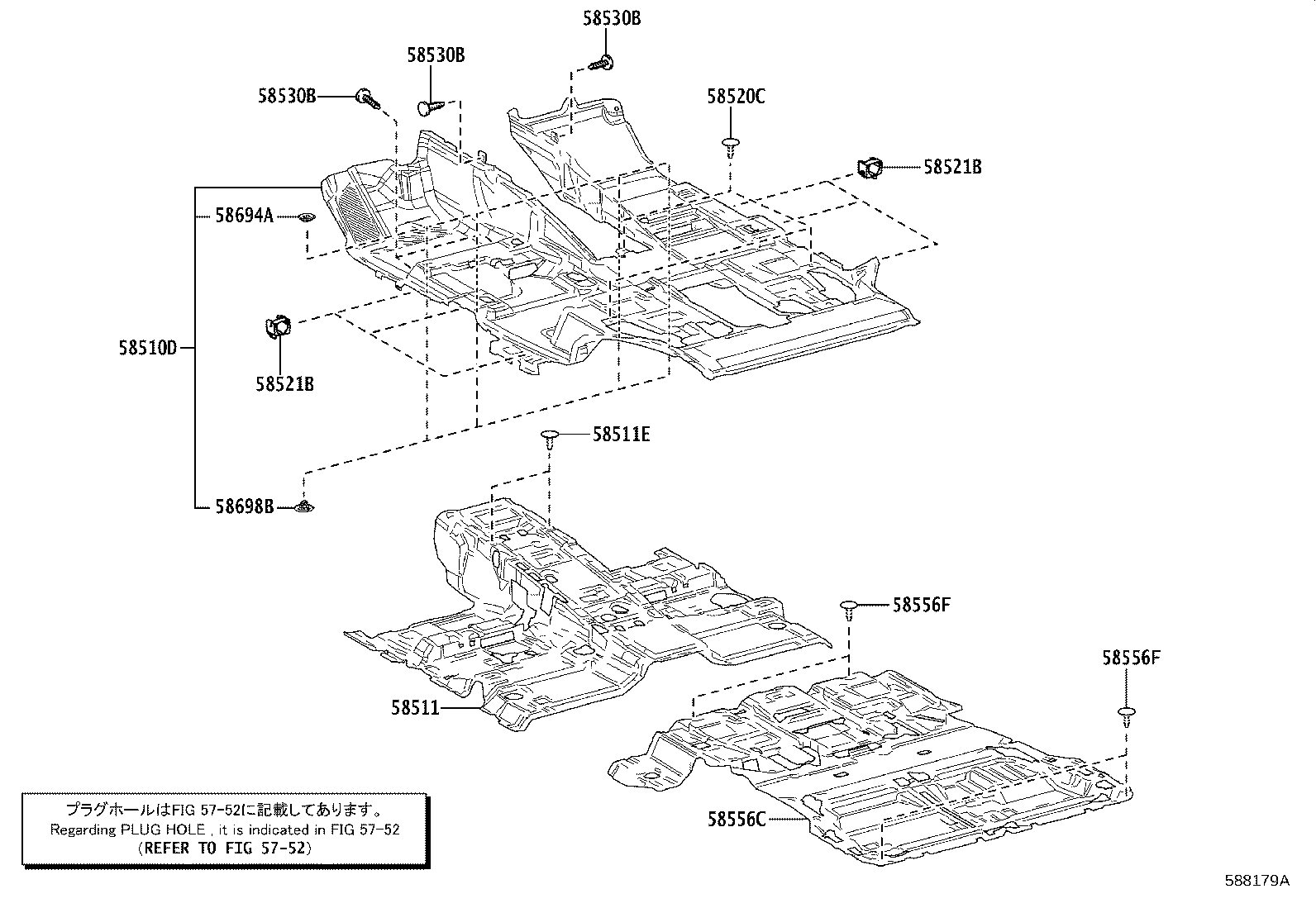

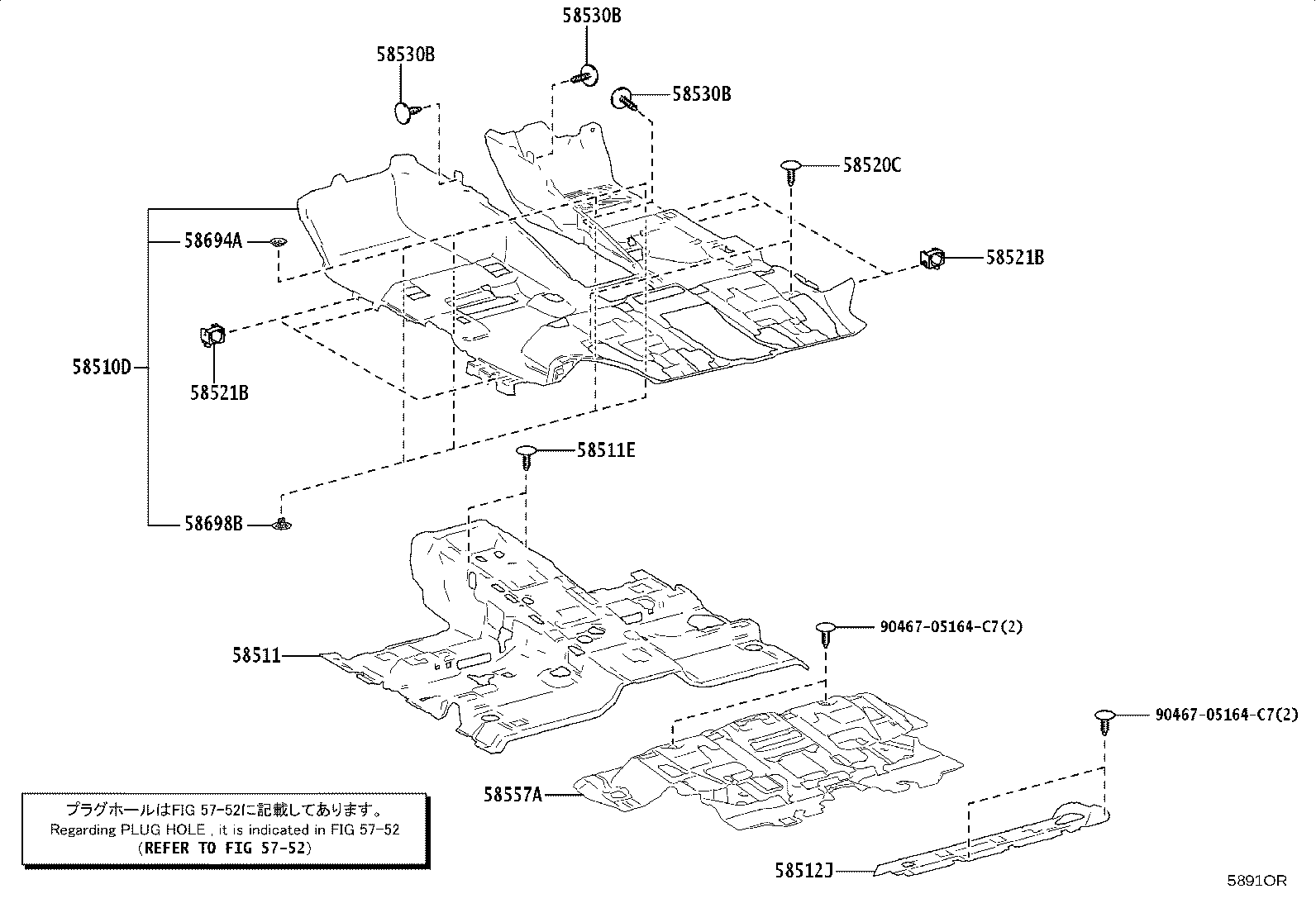

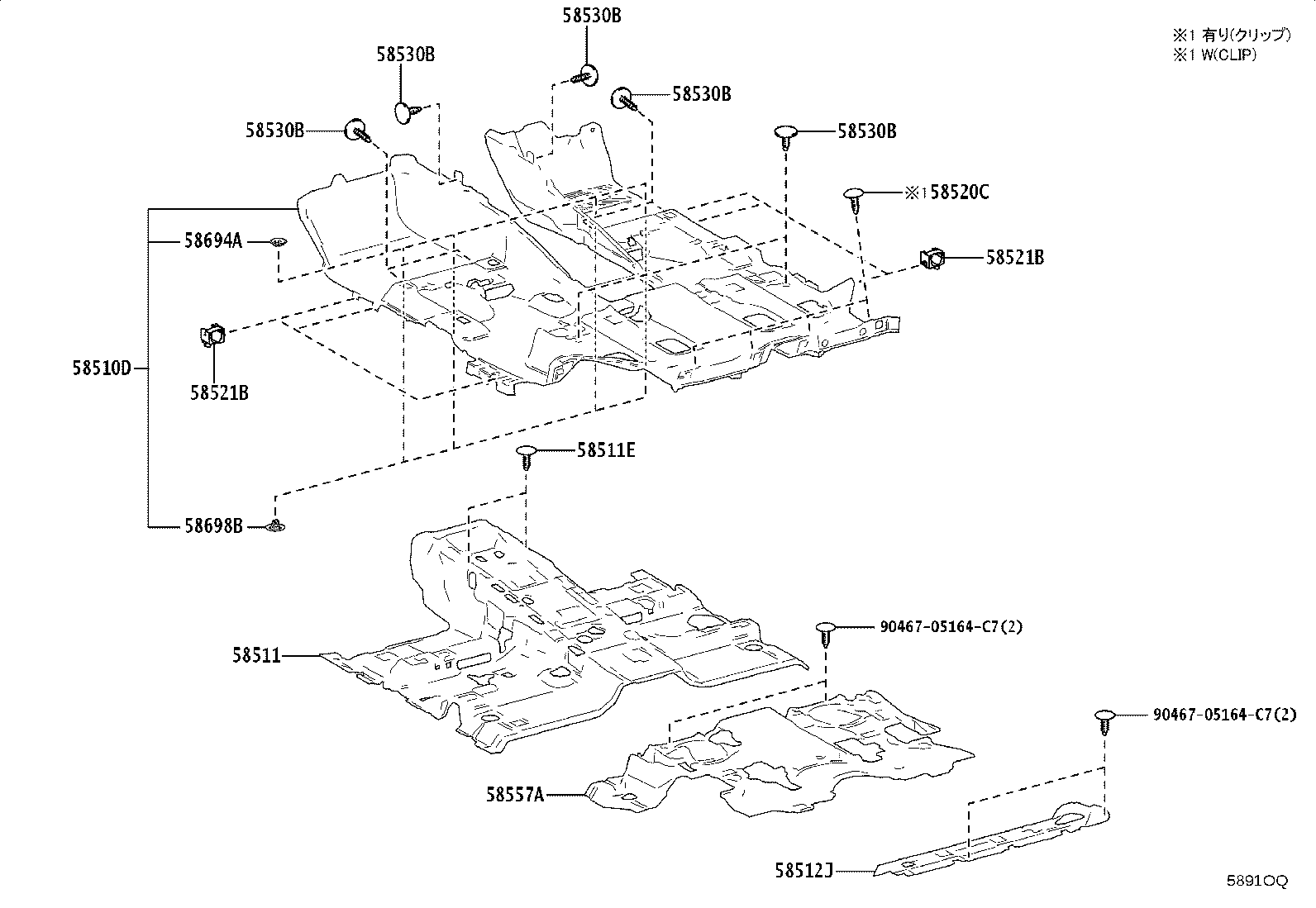

Figure 588177A 588177A 2021-12 → — Figure 588176A 588176A 2021-12 → — Figure 588178A 588178A 2021-12 → — Figure 588179A 588179A 2021-12 → — Figure 5891OQ 5891OQ 2024-11 → — Figure 5891OR 5891OR 2024-11 → — Figure 5891OS 5891OS 2024-11 → — Figure 5891OT 5891OT 2024-11 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58556F Clip, Rear Floor Silencer
58557A Mat, Rear
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
