Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 3 illustrations

Illustrations

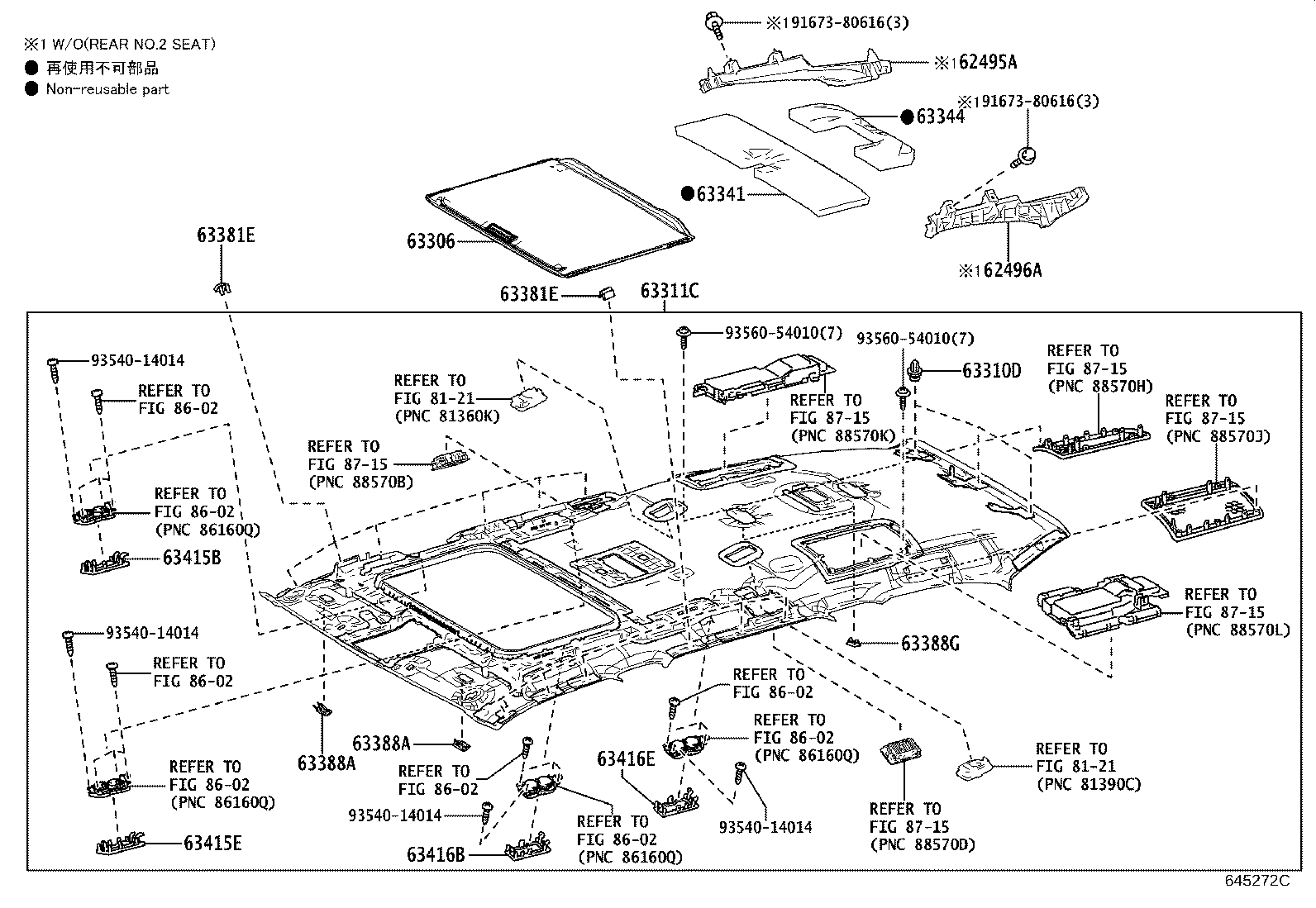

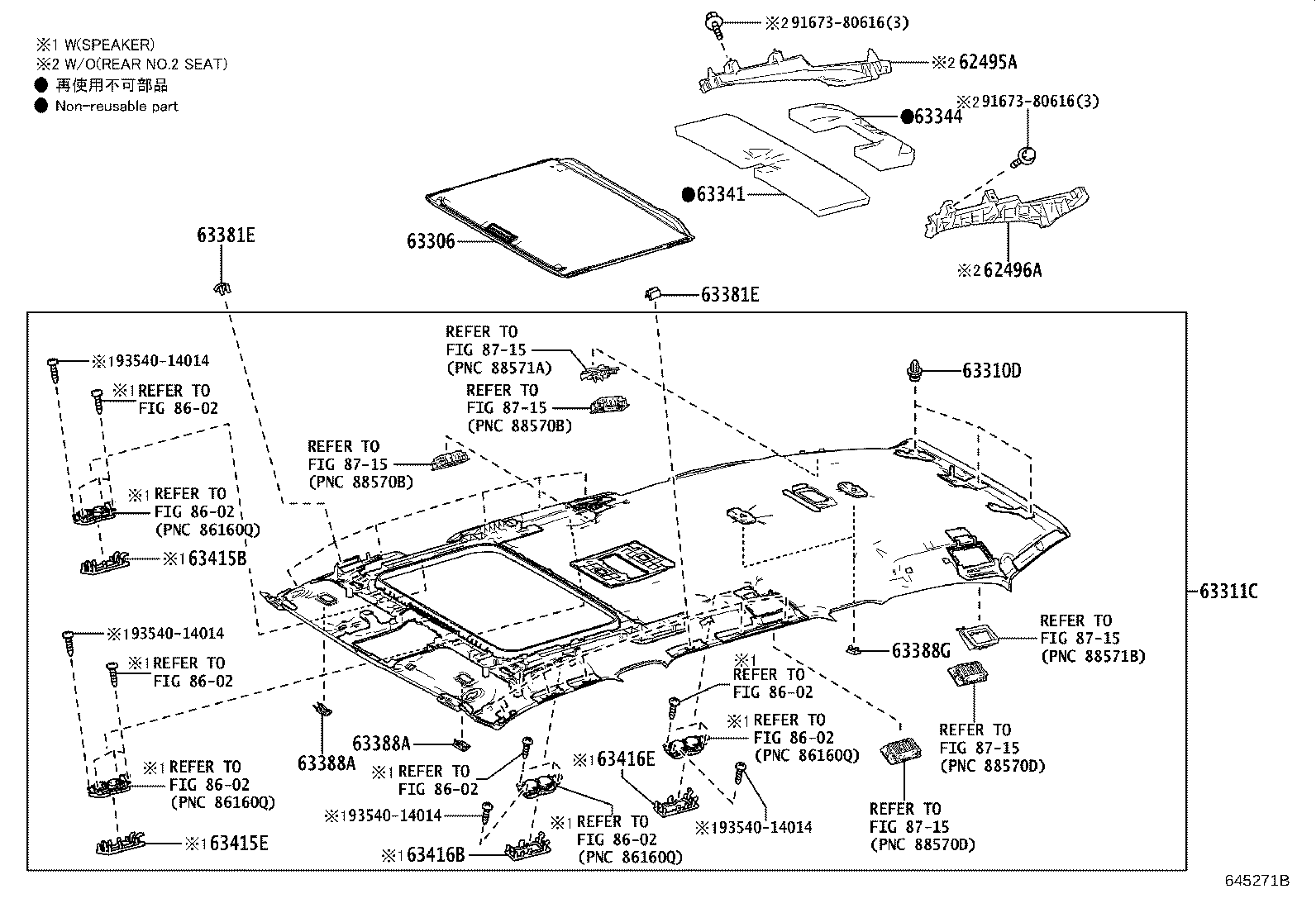

Figure 645270B 645270B 2021-12 → — Figure 645271B 645271B 2021-12 → — Figure 645272C 645272C 2021-12 → —

Part groups

PNCDescription
62495A Spacer, Roof Side Inner Garnish, RH NO.1
62496A Spacer, Roof Side Inner Garnish, LH NO.1
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63344 Pad, Roof Silencer, NO.4
63381E Retainer, Roof Headlining Trim, Front
63388A Cover, Roof Headlining Holder
63388G Cover, Roof Headlining Holder, NO.2
63415B Grille, Roof Speaker, RH
63415E Grille, Roof Speaker, RH NO.2
63416B Grille, Roof Speaker, LH
63416E Grille, Roof Speaker, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
