Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11
Front Seat & Seat Track
119 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 71013A | Frame Sub-assy, Front Seatback, RH |
| 71014 | Frame Sub-assy, Front Seatback, LH |
| 71051B | Spring Sub-assy, Front Seat Cushion, RH |
| 71051C | Spring Sub-assy, Front Seat Cushion, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71139M | Cover, Front Seat Leg, RH Outer |
| 71139N | Cover, Front Seat Leg, RH Inner |
| 71139P | Cover, Front Seat Leg, LH Outer |
| 71139Q | Cover, Front Seat Leg, LH Inner |
| 71305D | Frame Sub-assy, Center Seatback, RH |
| 71305F | Frame Sub-assy, Center Seatback, LH |
| 71355A | Clip |

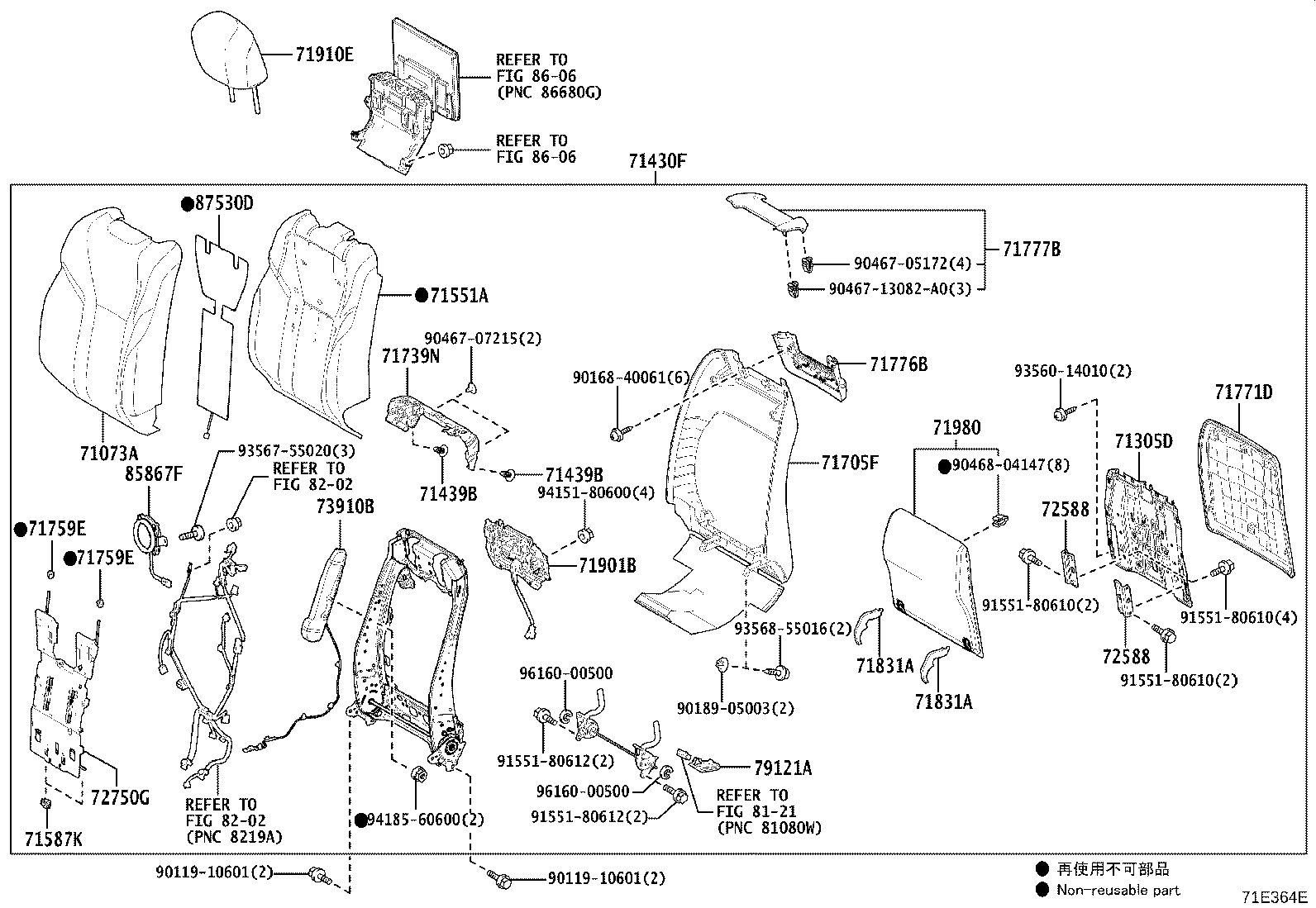

| 71430F | Back Assy, Front Seat, RH |
| 71439B | Clip |
| 71440 | Back Assy, Front Seat, LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71587K | Protector, Front Seatback Edge, RH |
| 71587L | Protector, Front Seatback Edge, LH |
| 71705F | Board Sub-assy, Front Seatback, RH |
| 71705G | Board Sub-assy, Front Seatback, LH |
| 71739N | Bezel, Front Seatback, RH |
| 71739P | Bezel, Front Seatback, LH |
| 71759E | Hook, Front Seatback, RH |
| 71759F | Hook, Front Seatback, LH |
| 71771D | Board, Front Seatback, RH |
| 71771E | Board, Front Seatback, LH |
| 71776B | Cover, Front Seatback Board, NO.1 |
| 71777B | Cover, Front Seatback Board, NO.2 |
| 71811T | Shield, Front Seat Cushion, RH |
| 71812T | Shield, Front Seat Cushion, LH |
| 7181AA | Holder, Front Seat Cushion Wire Harness, RH |
| 7181BA | Holder, Front Seat Cushion Wire Harness, LH |
| 71831A | Cover, Front Seat Hinge |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71867W | Shield, Front Seat Cushion, Front RH |
| 71867X | Shield, Front Seat Cushion, Front LH |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71873W | Shield, Front Seat Cushion, Lower RH, Outer |
| 71873X | Shield, Front Seat Cushion, Lower RH, Inner |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71874V | Shield, Front Seat Cushion, Lower LH, Outer |
| 71874W | Shield, Front Seat Cushion, Lower LH, Inner |
| 71877F | Cover, Reclining Adjuster Inside, RH(FOR RH SEAT) |
| 71877G | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71877H | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71877J | Cover, Reclining Adjuster Inside, LH(FOR LH SEAT) |
| 71901B | Insert Sub-assy, Front Seat Headrest |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71980 | Footrest Assy, Front Seat, NO.1 |

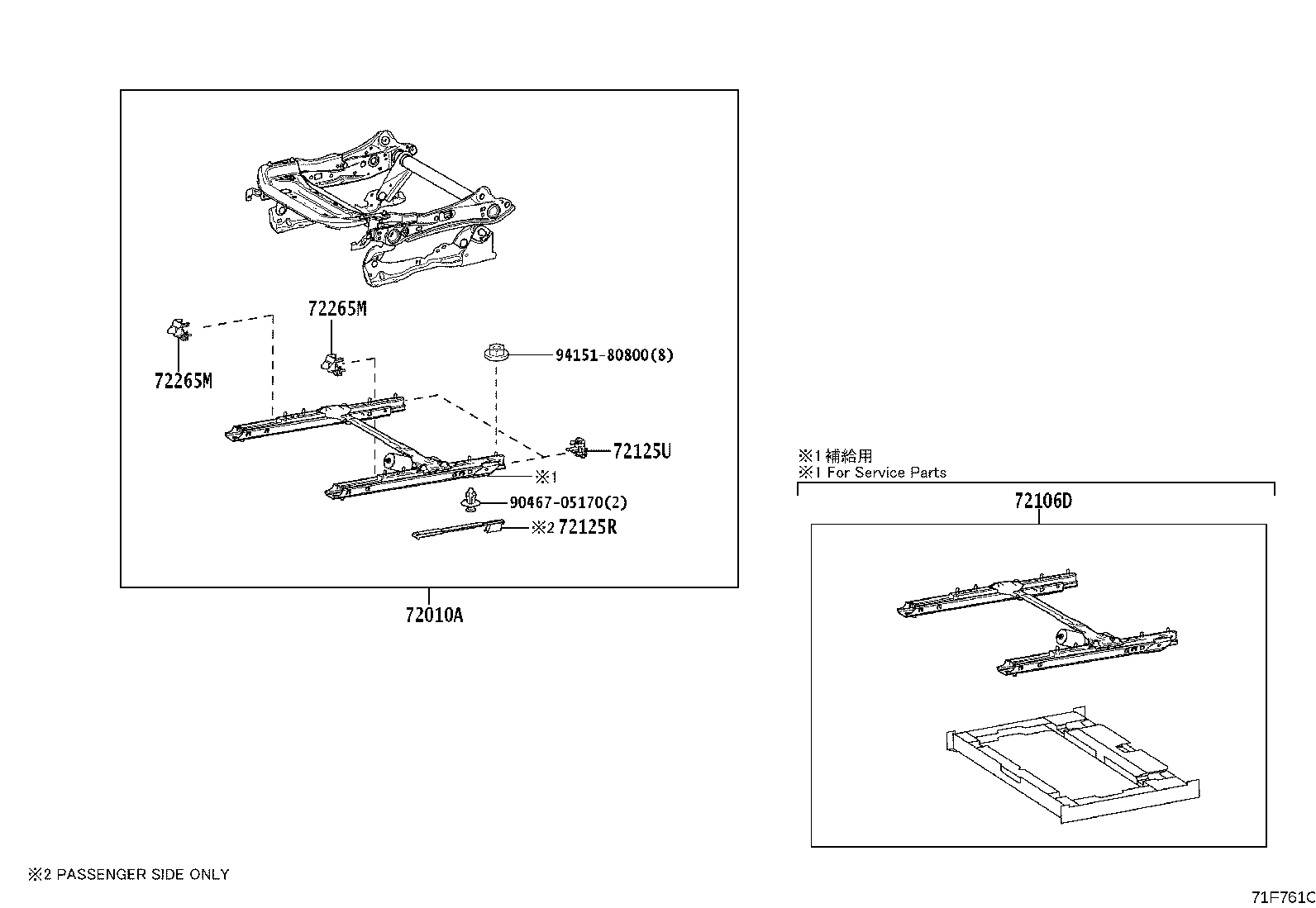

| 72010A | Adjuster Assy, Front Seat, RH |

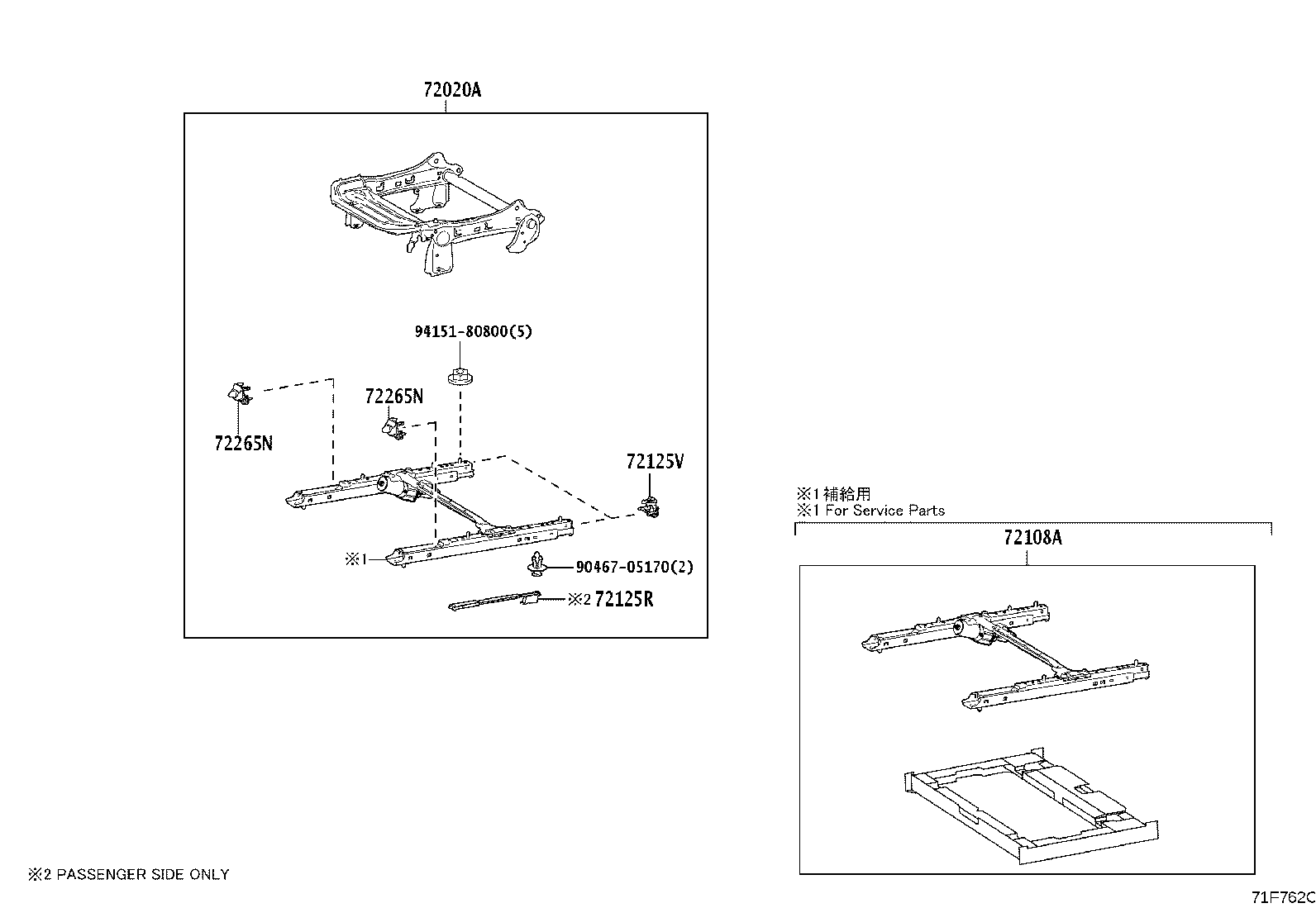

| 72020A | Adjuster Assy, Front Seat, LH |
| 72071 | Pump Sub-assy, Lumber Support |
| 72072A | Pump Sub-assy, Lumber Support, LH |
| 72106D | Rail Sub-assy, Seat Track, Upper RH |
| 72108A | Rail Sub-assy, Seat Track, Upper LH |
| 72123J | Cover, Seat Track Bracket, Outer Front RH |
| 72123K | Cover, Seat Track Bracket, Inner Front RH |
| 72123L | Cover, Seat Track Bracket, Inner Front LH |
| 72123M | Cover, Seat Track Bracket, Outer Front LH |
| 72125R | Cover, Seat Track, Upper Rear NO.1 |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72137S | Cover, Seat Track Bracket, Outer Rear RH |
| 72137V | Cover, Front Seat Track, LH |
| 72137X | Cover, Seat Track Bracket, Outer Rear RH |
| 72137Y | Cover, Seat Track Bracket, Outer Rear LH |
| 72138M | Cover, Seat Track Bracket, Outer Rear LH |
| 72138P | Cover, Seat Track Bracket, Inner Rear LH |
| 72157G | Cover, Seat Track Bracket, Inner Rear RH |
| 72158F | Cover, Seat Track Bracket, Inner Rear LH |
| 72265M | Cover, Seat Track Upper Rail, RH |
| 72265N | Cover, Seat Track Upper Rail, LH |
| 72553L | Protector, Reclining Cover, RH |
| 72554L | Protector, Reclining Cover, LH |
| 72588 | Bracket, Front Seatback Board |
| 72713A | Bracket, Seat Adjuster Shield Clamp, RH |
| 72714A | Bracket, Seat Adjuster Shield Clamp, LH |
| 72750G | Adjuster Assy, Lumbar Support, RH |
| 72760G | Adjuster Assy, Lumbar Support, LH |
| 73178K | Cap, Seat Belt Anchor Cover, RH |
| 73179B | Cap, Seat Belt Anchor Cover, LH |
| 73217D | Tube, Adjuster, RH |
| 73218 | Tube, Adjuster, LH |
| 73910B | Airbag Assy, Front Seat, RH |
| 73920B | Airbag Assy, Front Seat, LH |
| 74920A | Cushion Assy, Main Stretcher, RH NO.1(FOR SEATBACK) |
| 74920B | Cushion Assy, Main Stretcher, RH NO.2(FOR SEATBACK) |
| 74920C | Cushion Assy, Main Stretcher, LH NO.1(FOR SEATBACK) |
| 74920D | Cushion Assy, Main Stretcher, LH NO.2(FOR SEATBACK) |
| 74920E | Cushion Assy, Main Stretcher, RH NO.1(FOR SEAT CUSHION) |
| 74920F | Cushion Assy, Main Stretcher, RH NO.2(FOR SEAT CUSHION) |
| 74920G | Cushion Assy, Main Stretcher, LH NO.1(FOR SEAT CUSHION) |
| 74920H | Cushion Assy, Main Stretcher, LH NO.2(FOR SEAT CUSHION) |
| 76519F | Clip, Front Seat Cushion Cover |
| 79121A | Bracket, Front Seat Cushion, RH |
| 79122 | Bracket, Front Seat Cushion, LH |
| 82667C | Holder, Connector |
| 82712L | Support, Wiring Harness |
| 82F66 | Holder, Connector |
| 85860G | Blower Assy, Seat Cushion Climate Control, RH |
| 85860H | Blower Assy, Seat Cushion Climate Control, LH |
| 85867F | Blower, Seatback Climate Control, RH |
| 85867G | Blower, Seatback Climate Control, LH |
| 87501G | Control Sub-assy, Seat Heater, RH |
| 87501H | Control Sub-assy, Seat Heater, LH |
| 87511C | Heater Assy, Front Seat Cushion, RH |
| 87511D | Heater Assy, Front Seat Cushion, LH |
| 87530D | Heater Assy, Front Seatback, RH |
| 87530E | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
