Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

30 part groups · 3 illustrations

Illustrations

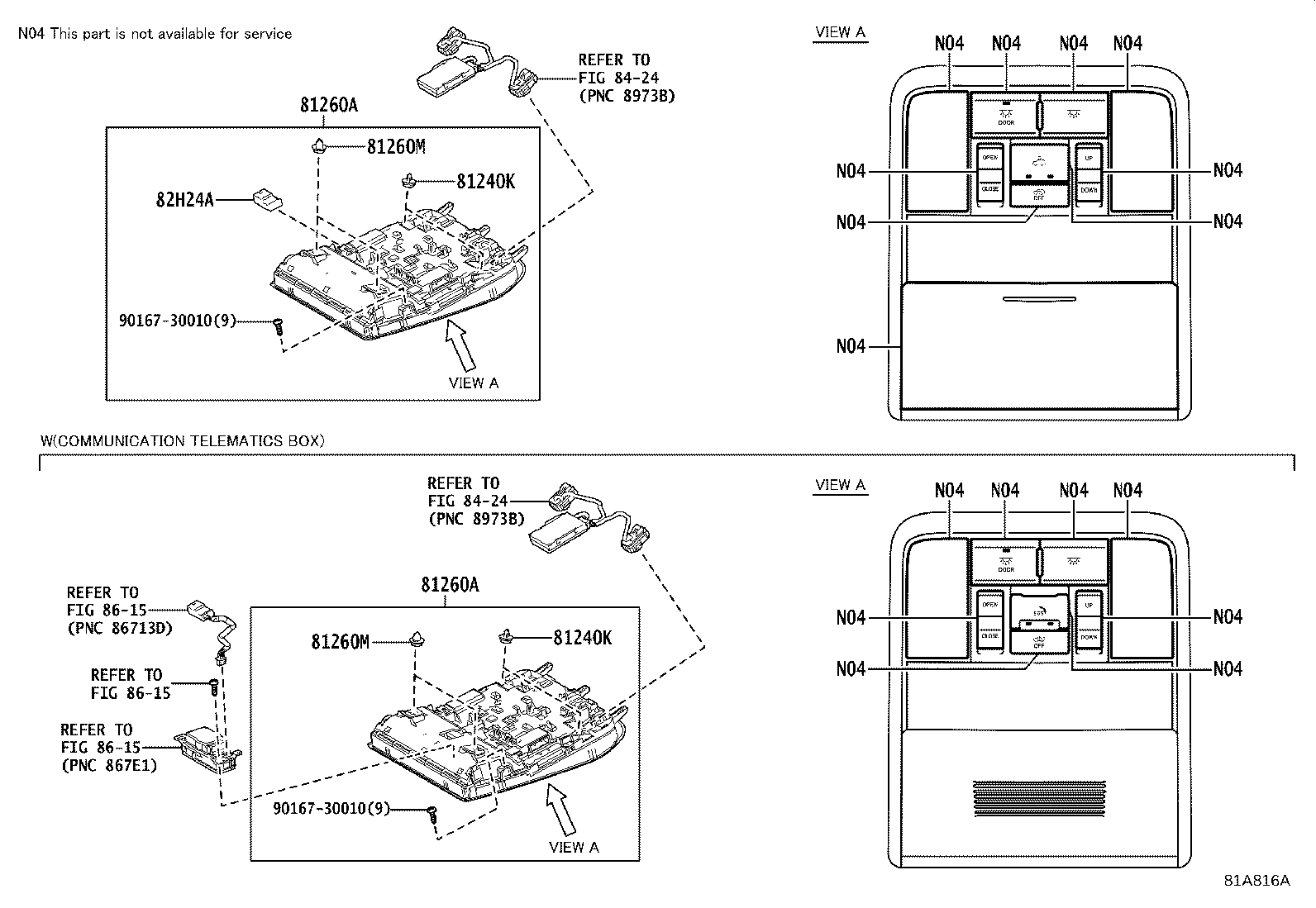

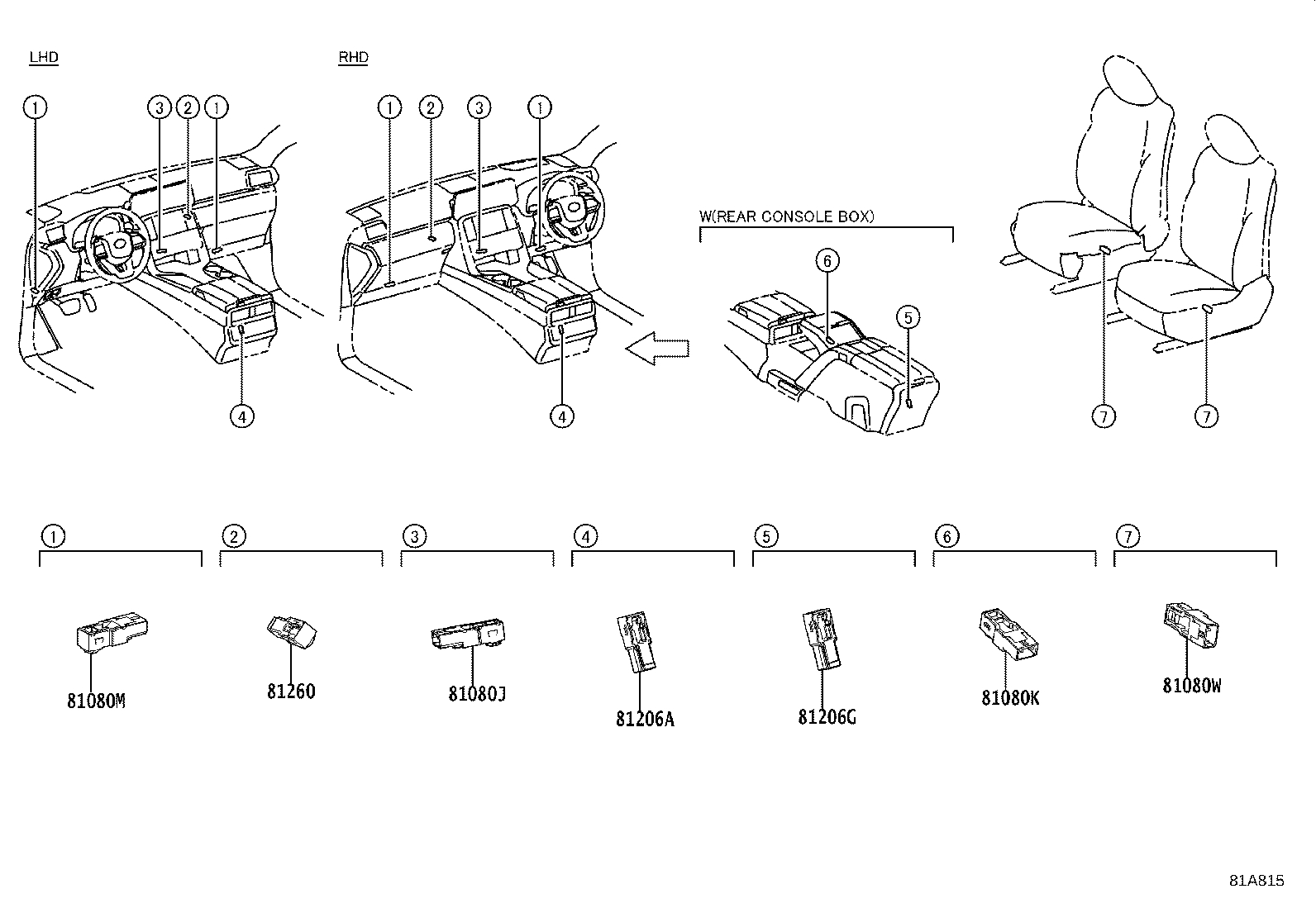

Figure 81A814A 81A814A 2021-12 → — Figure 81A815 81A815 2021-12 → — Figure 81A816A 81A816A 2021-12 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81206A Lamp Sub-assy, Console Box
81206G Lamp Sub-assy, Console Box
81230 Lamp Assy, Courtesy
81240D Lamp Assy, Room, NO.2
81240K Clip, Room Lamp
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260M Clip, Room Lamp
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360K Lamp Assy, Spot, RH
81360T Lamp Assy, Spot
81380D Lamp Assy, Step
81380H Lamp Assy, Step
81390C Lamp Assy, Spot, LH
82H24A Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
