Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

193 part groups · 34 illustrations

Illustrations

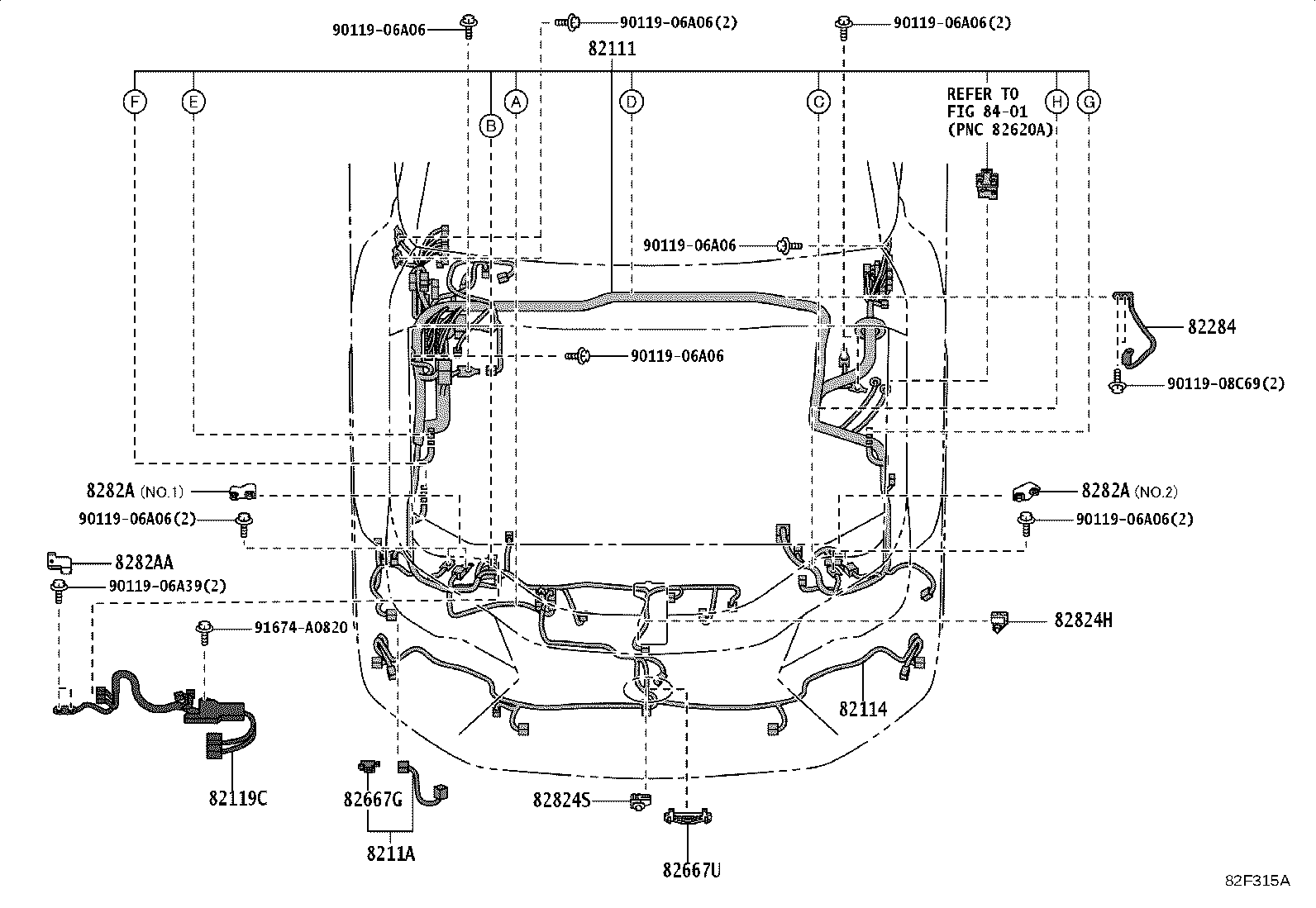

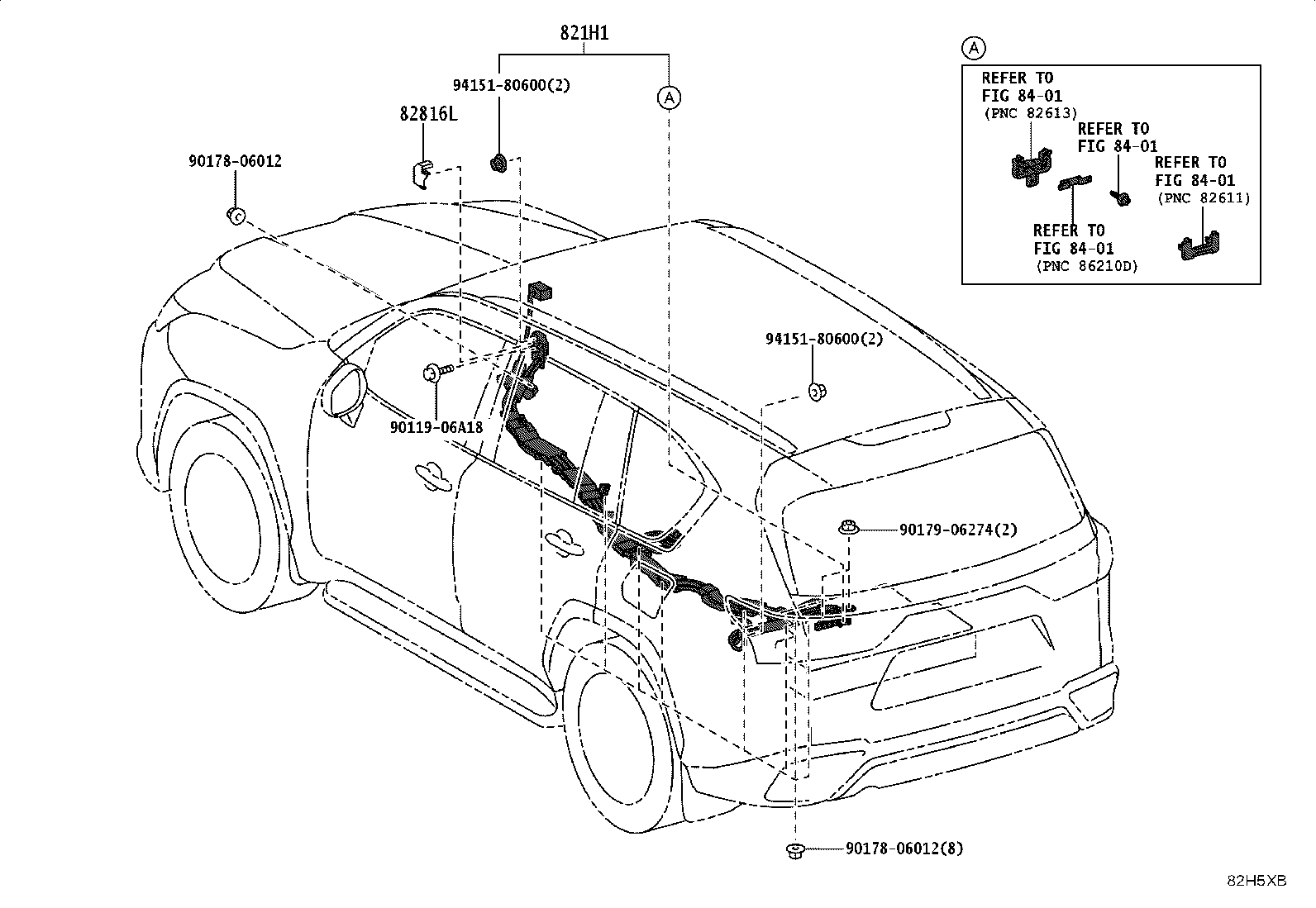

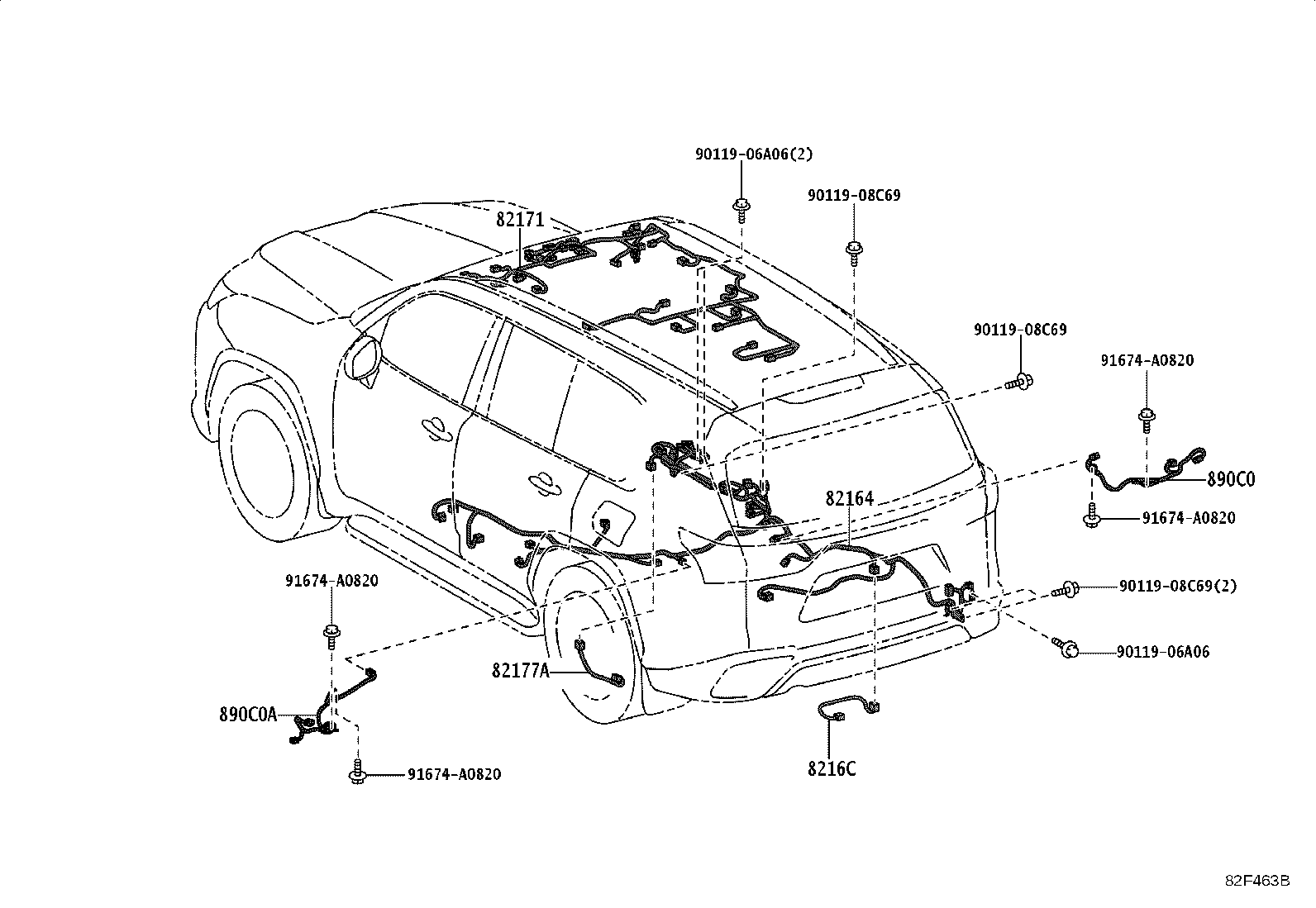

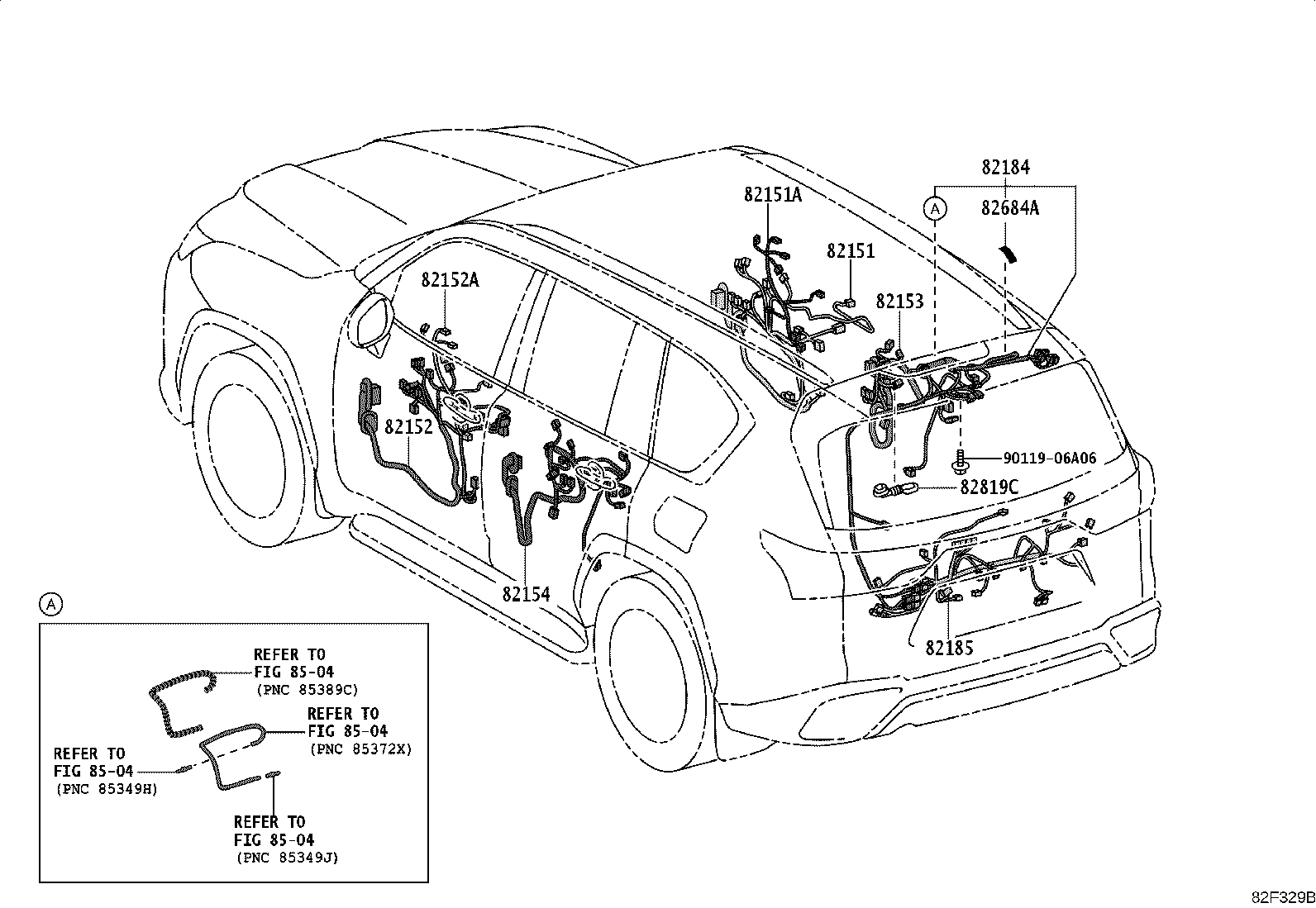

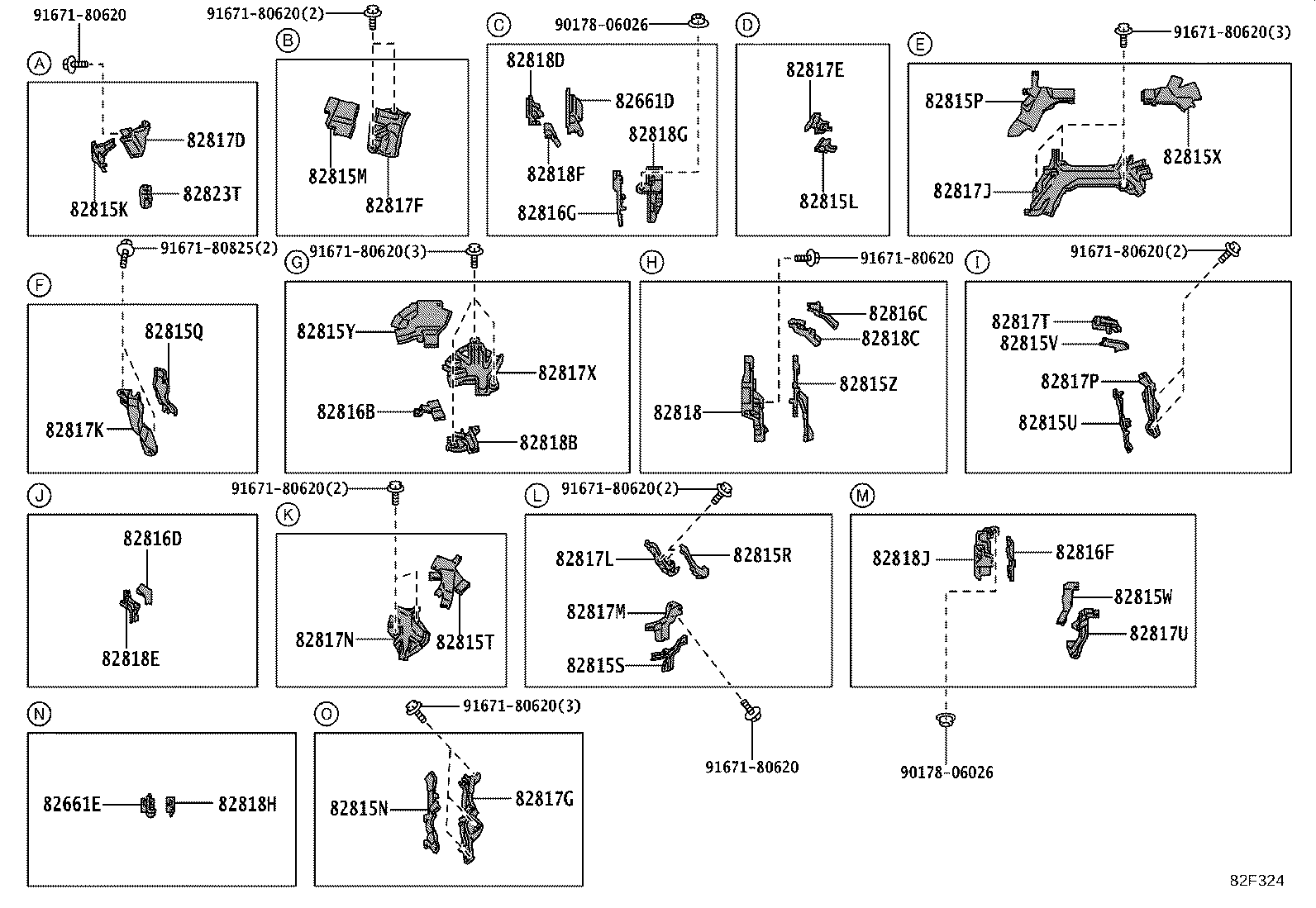

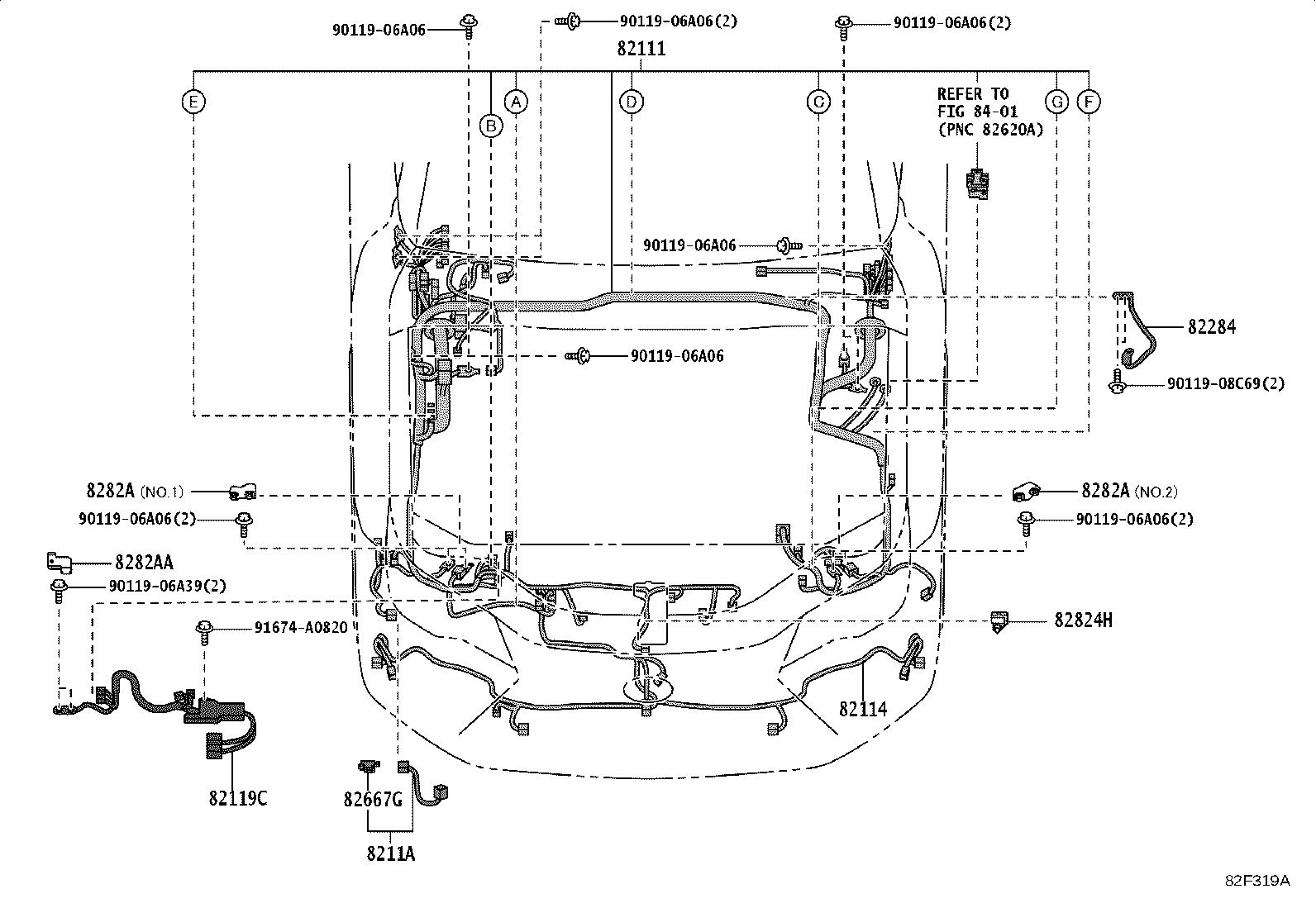

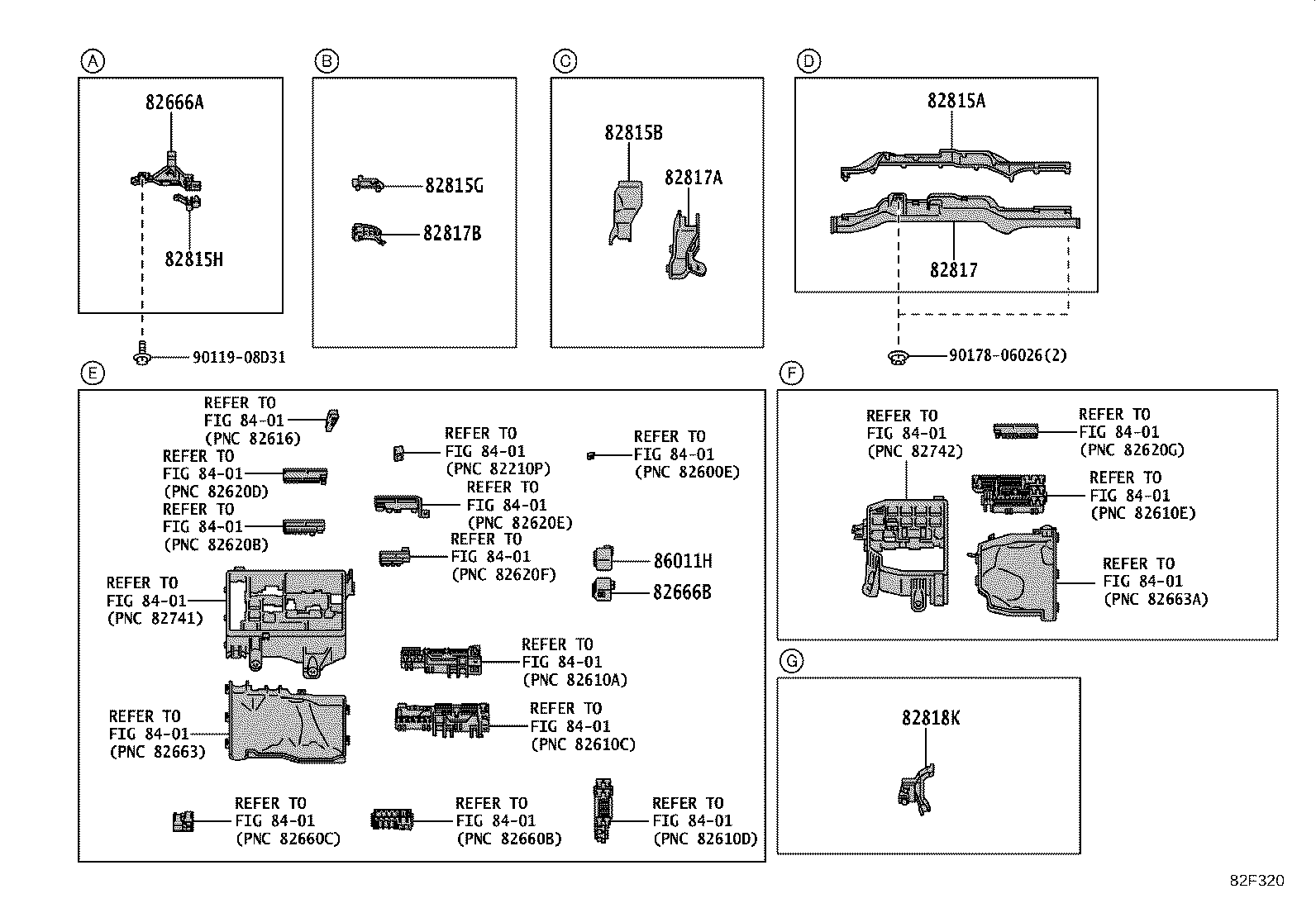

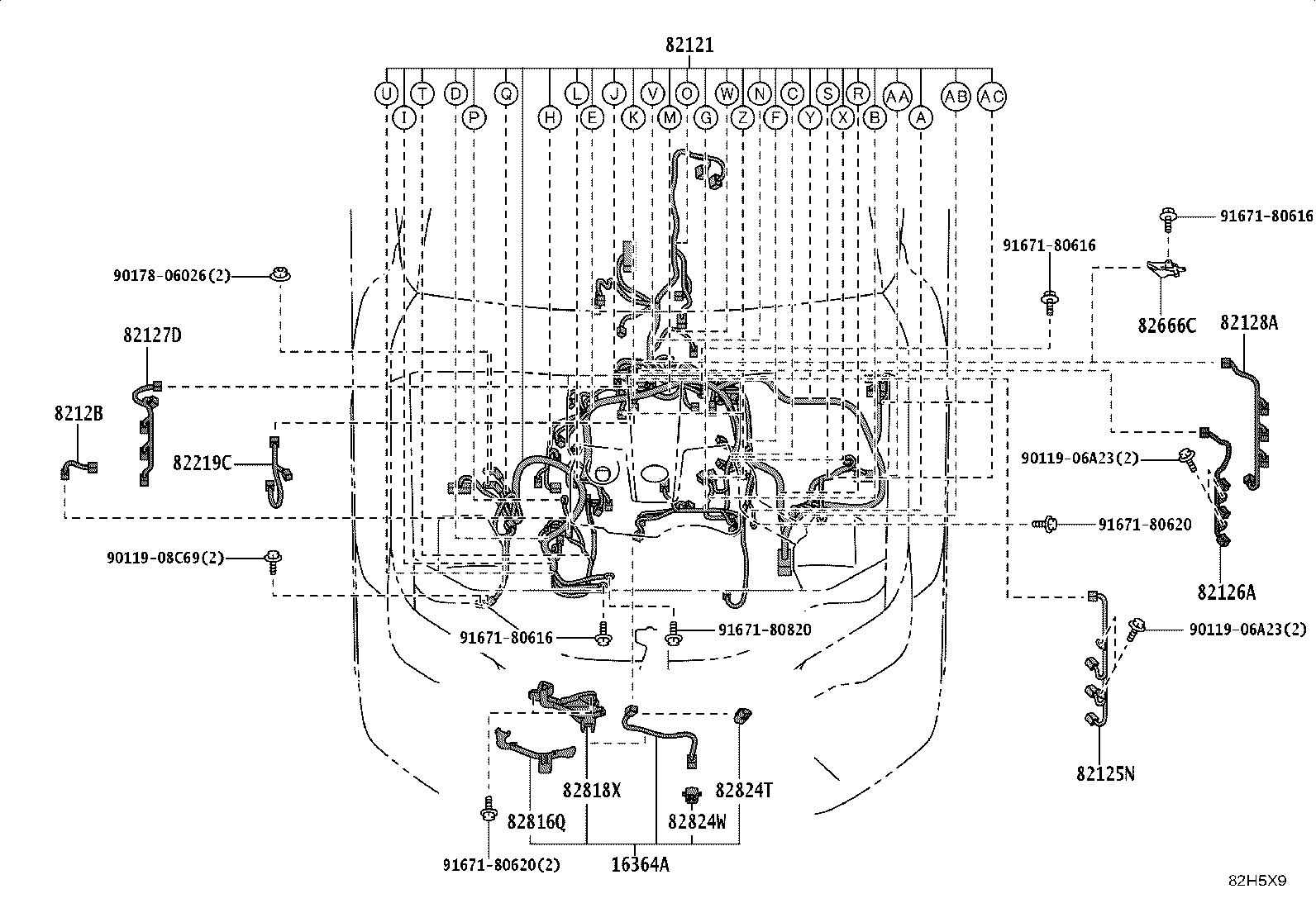

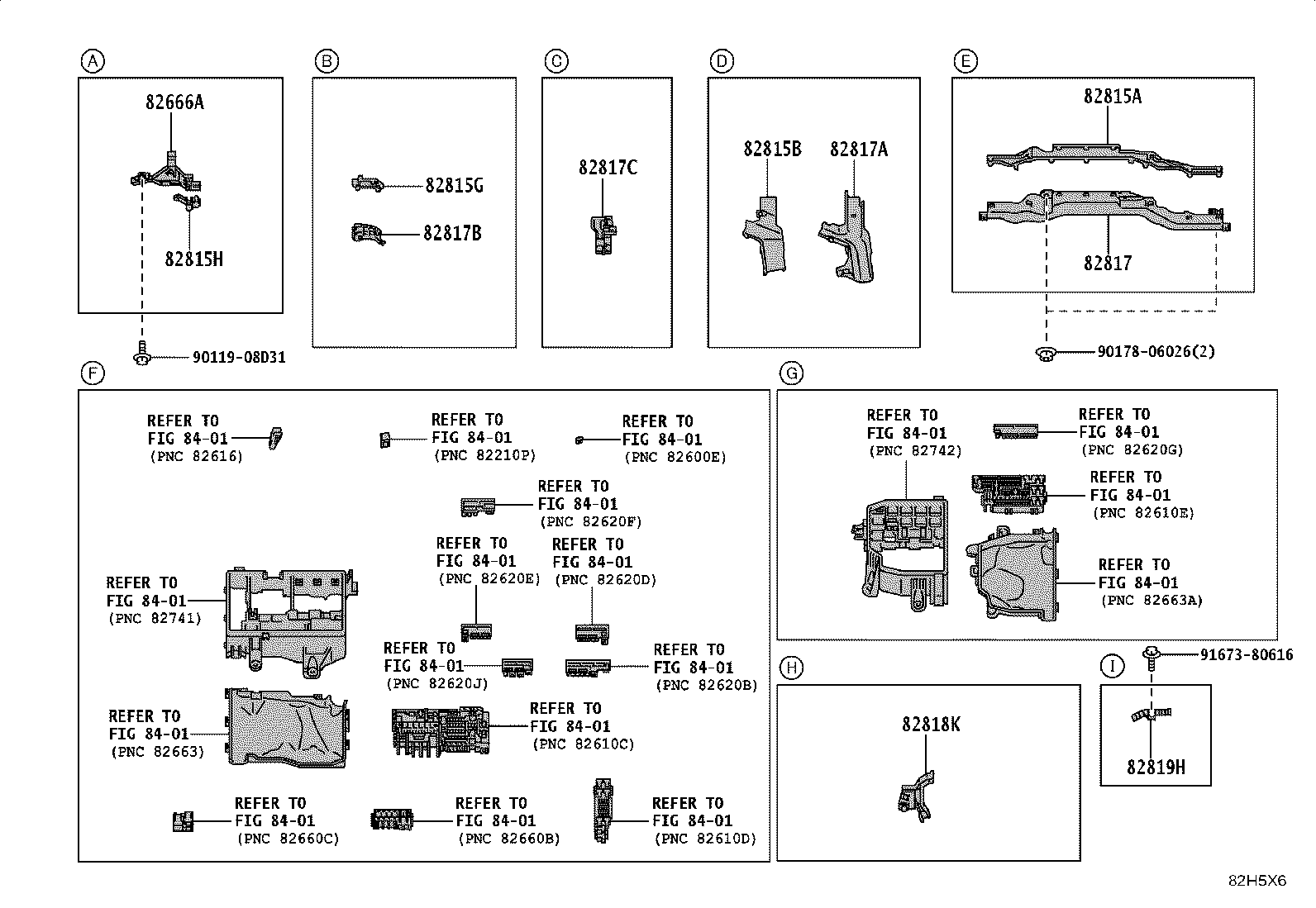

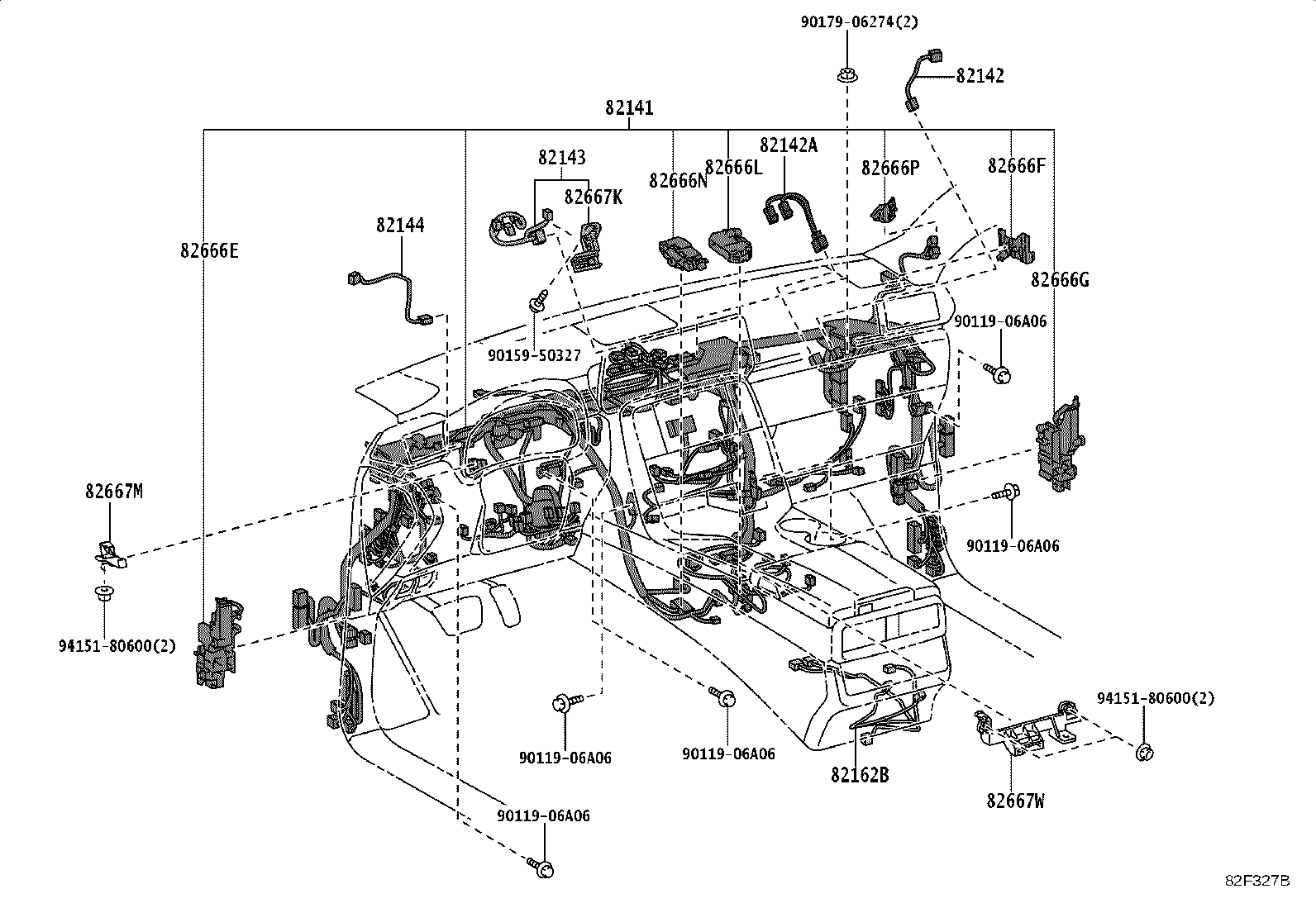

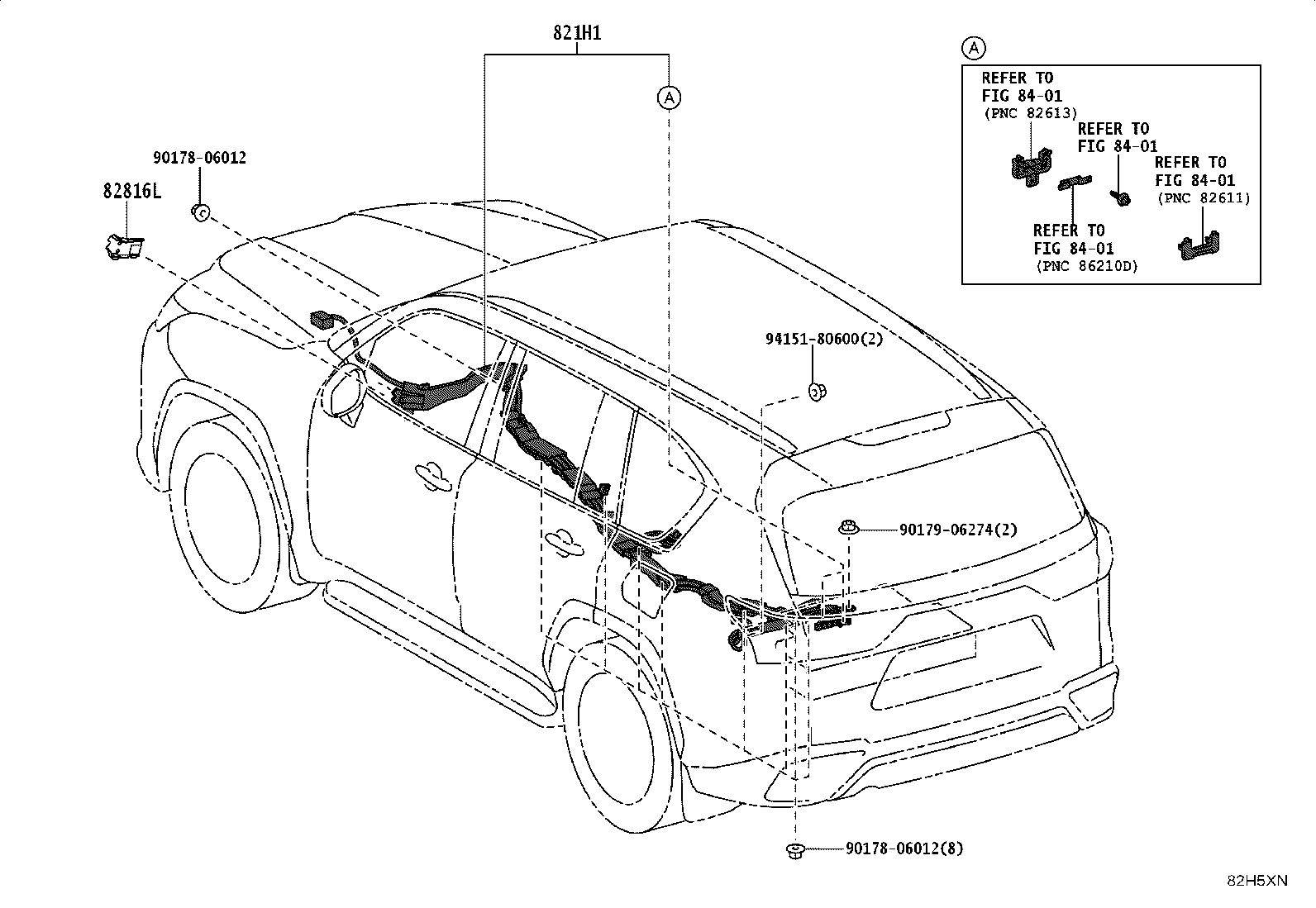

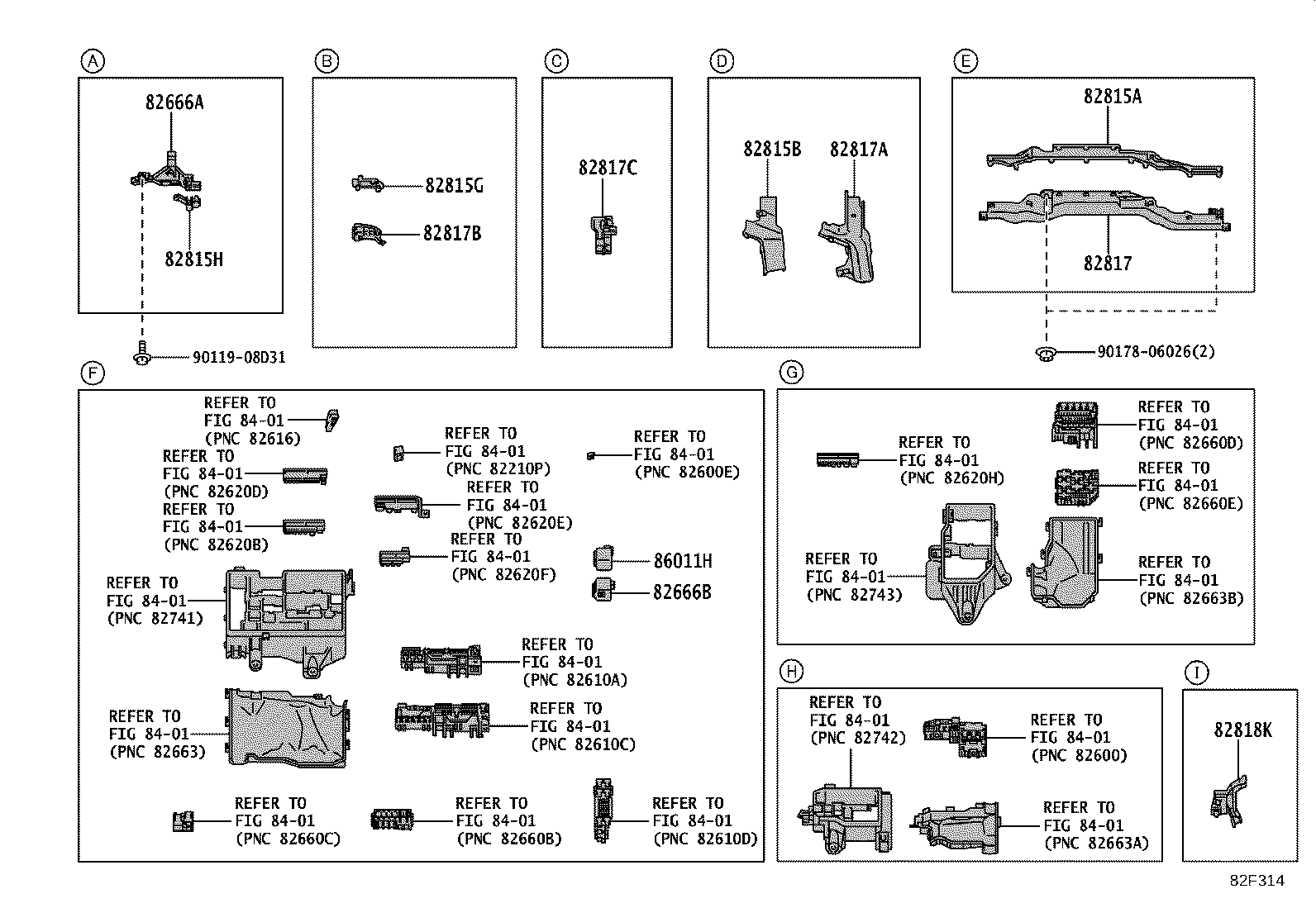

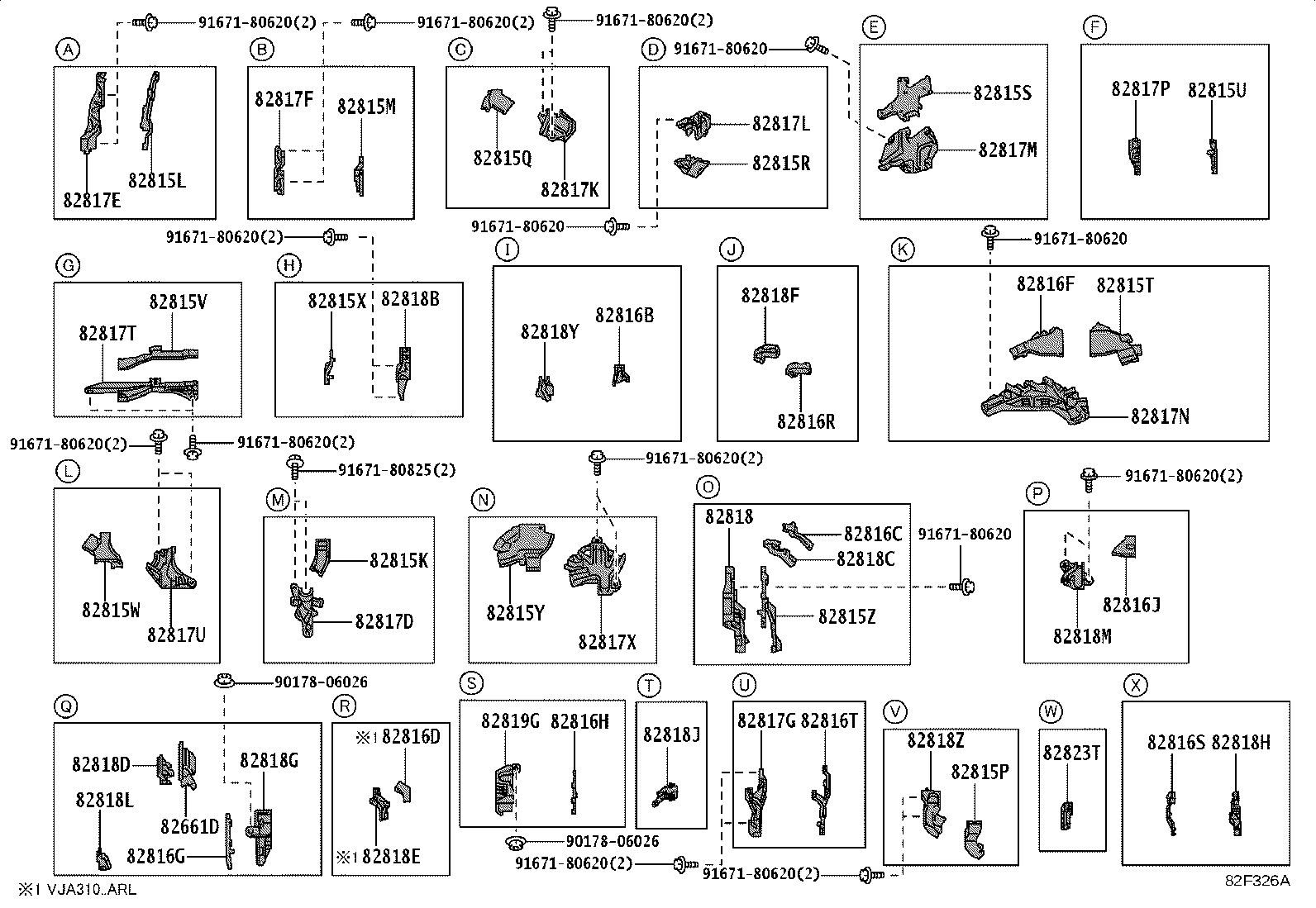

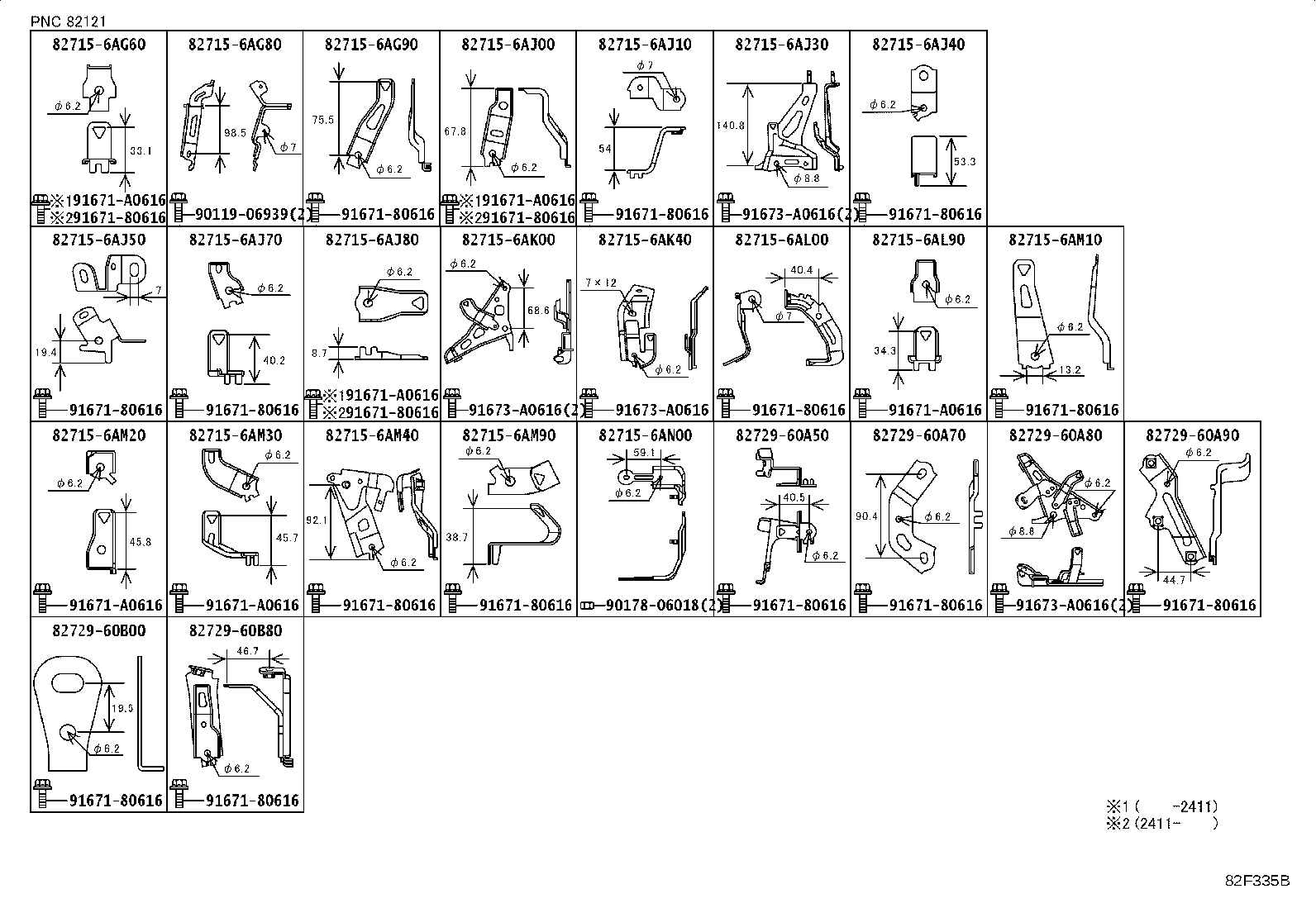

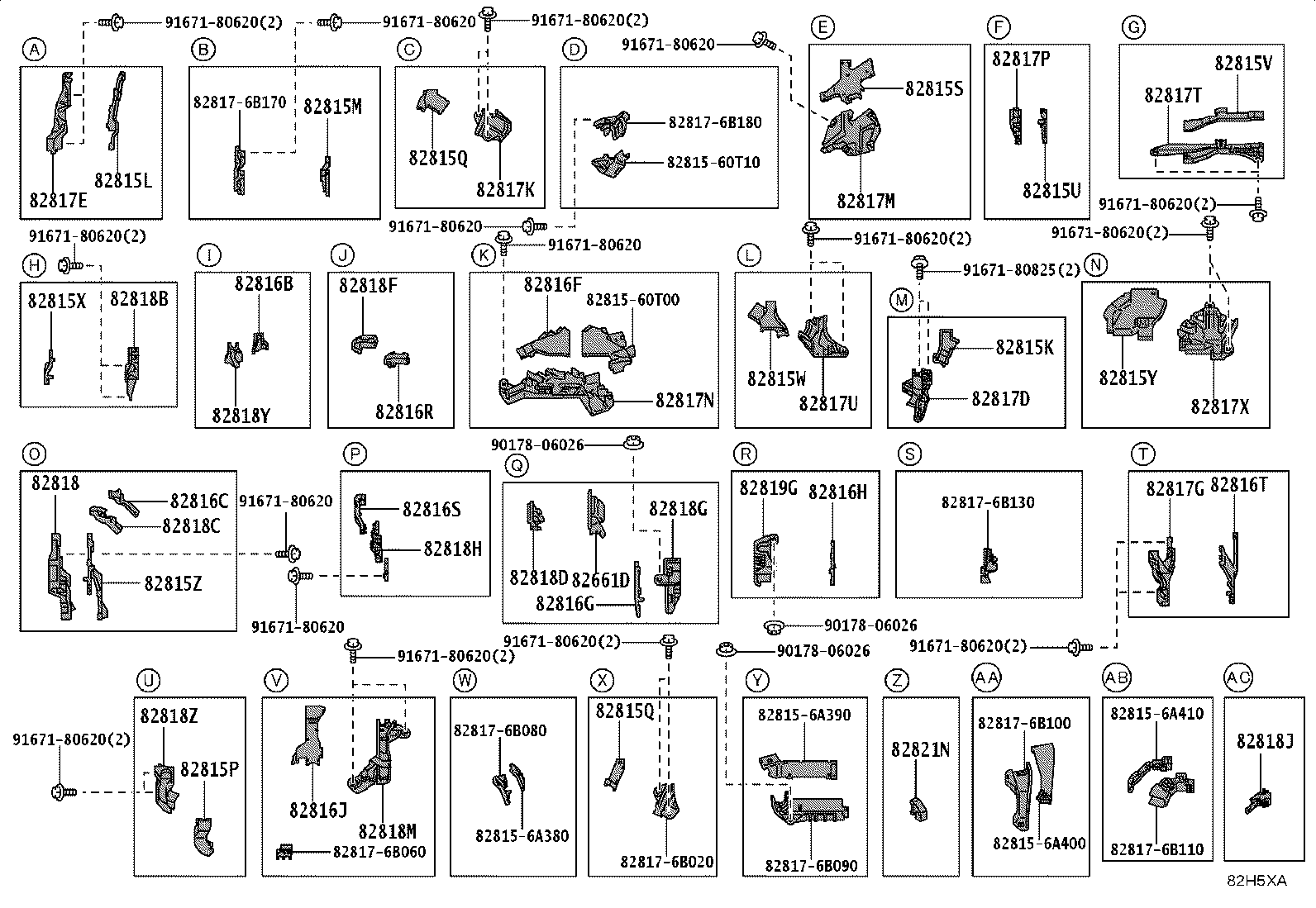

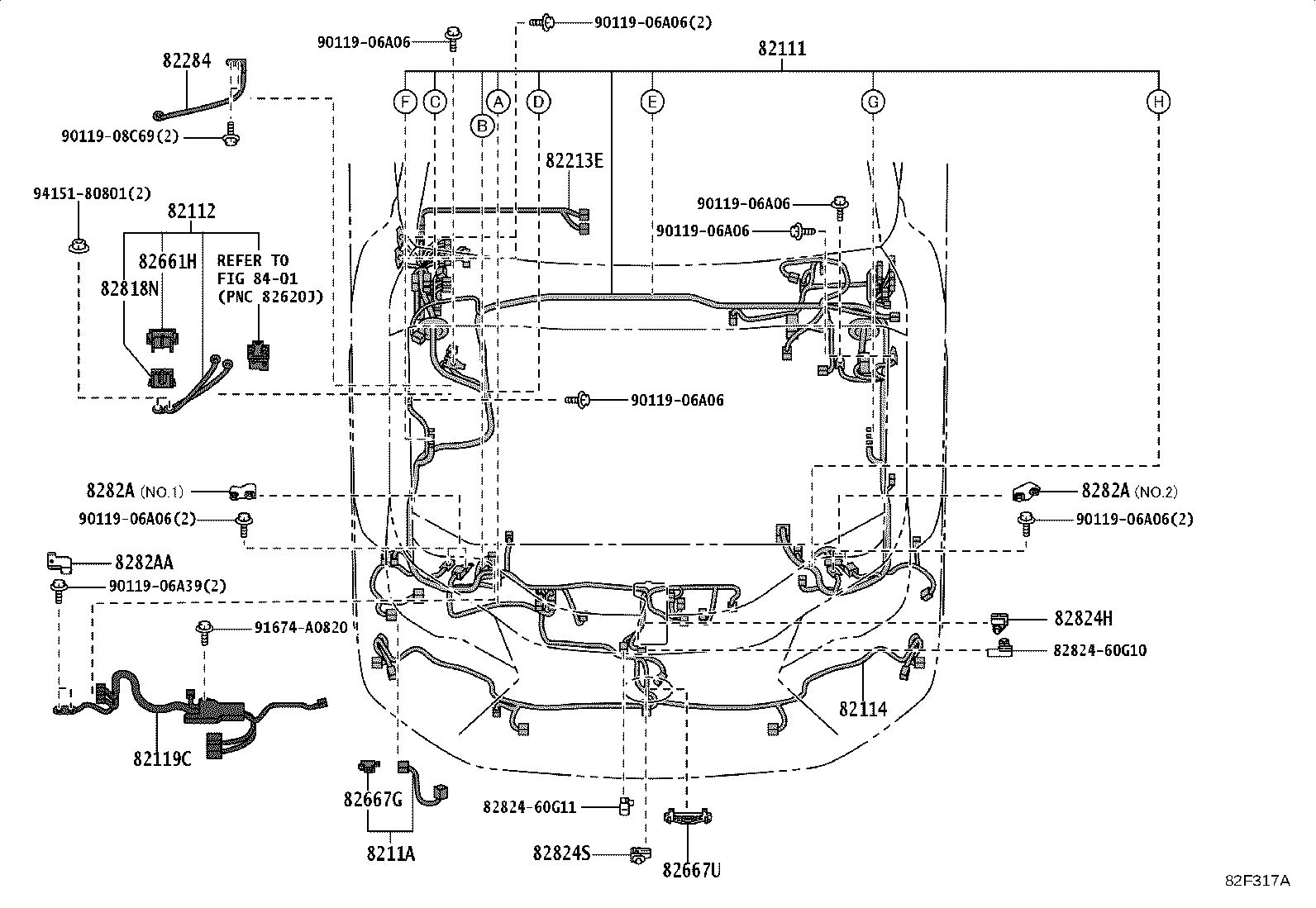

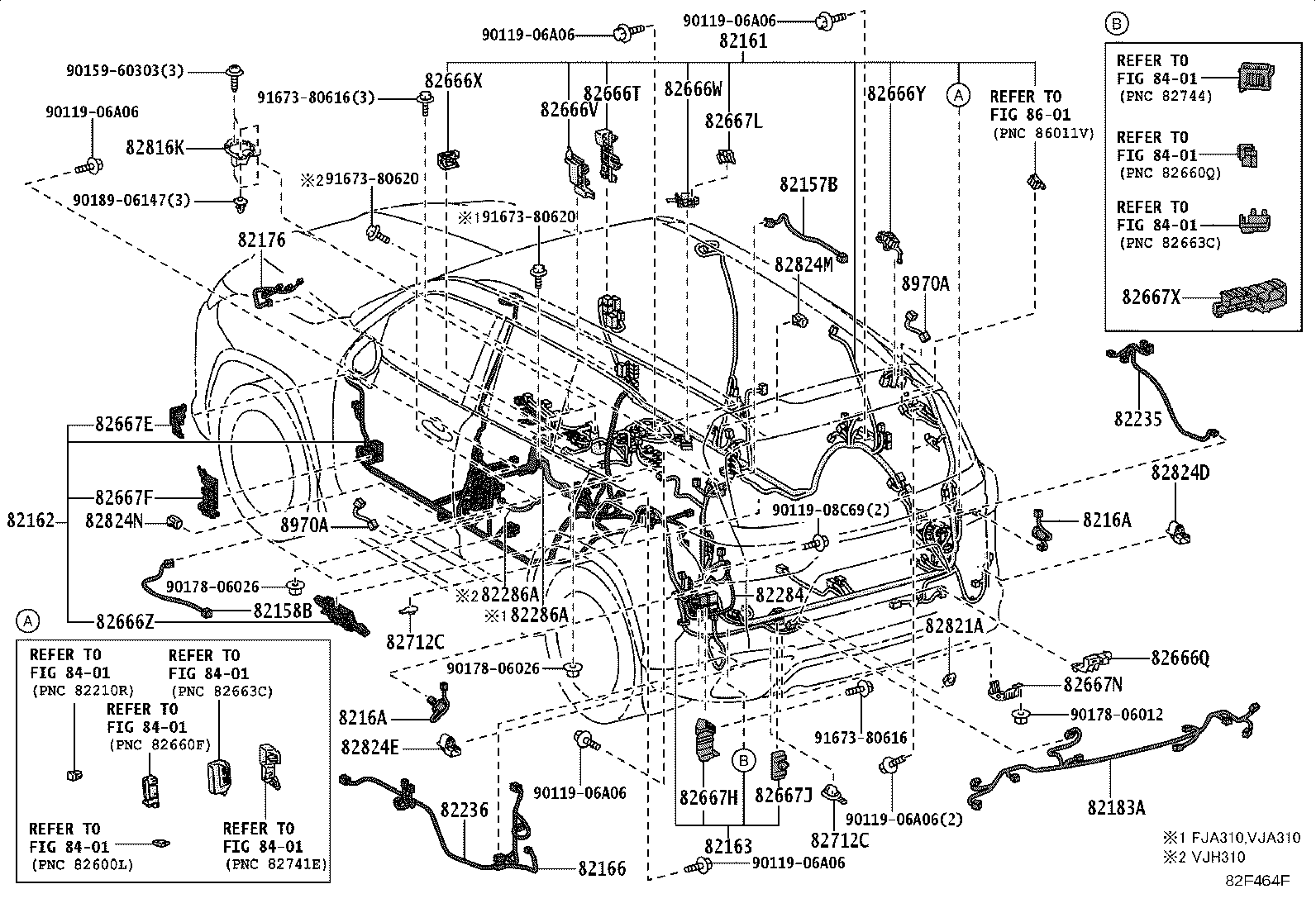

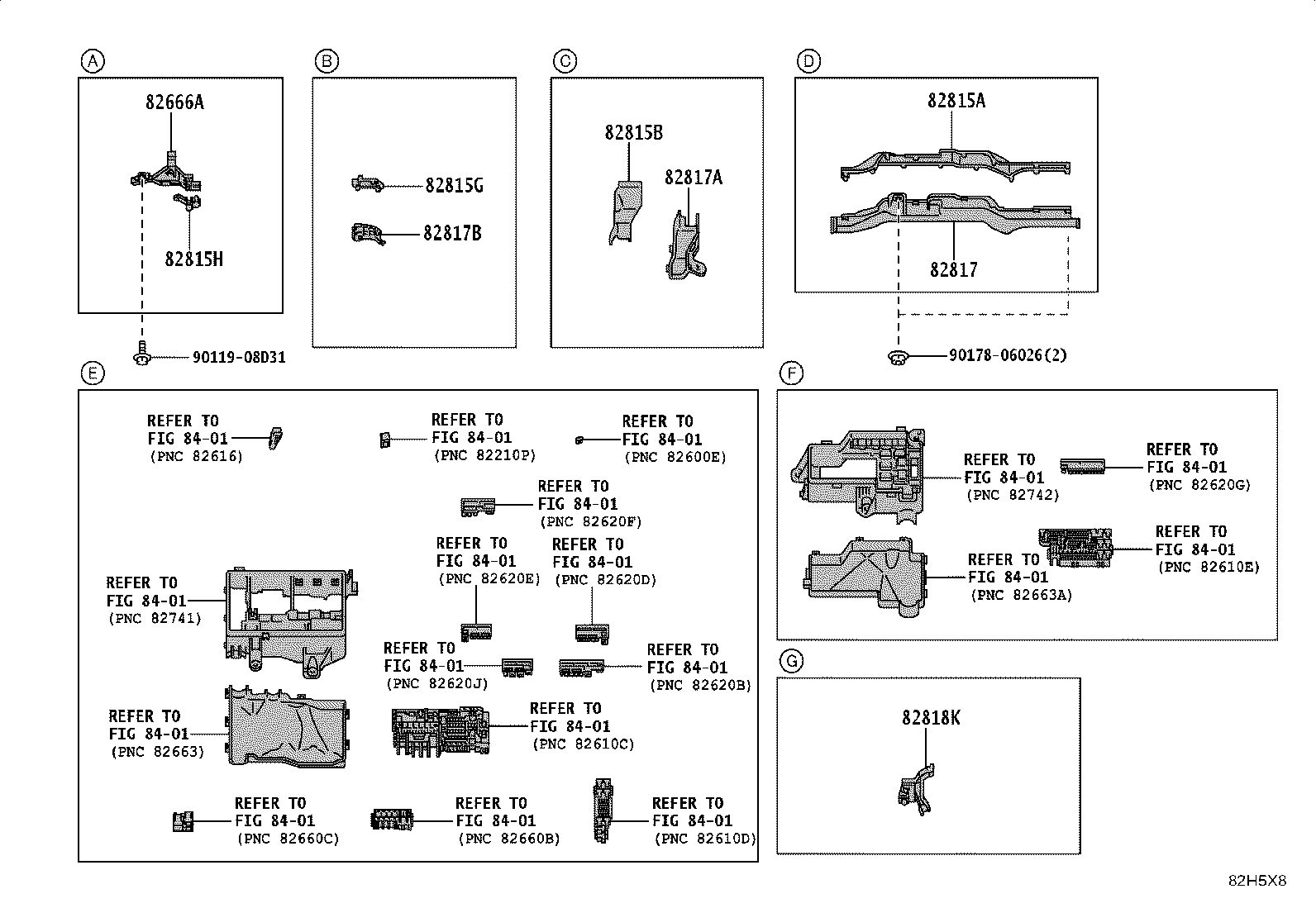

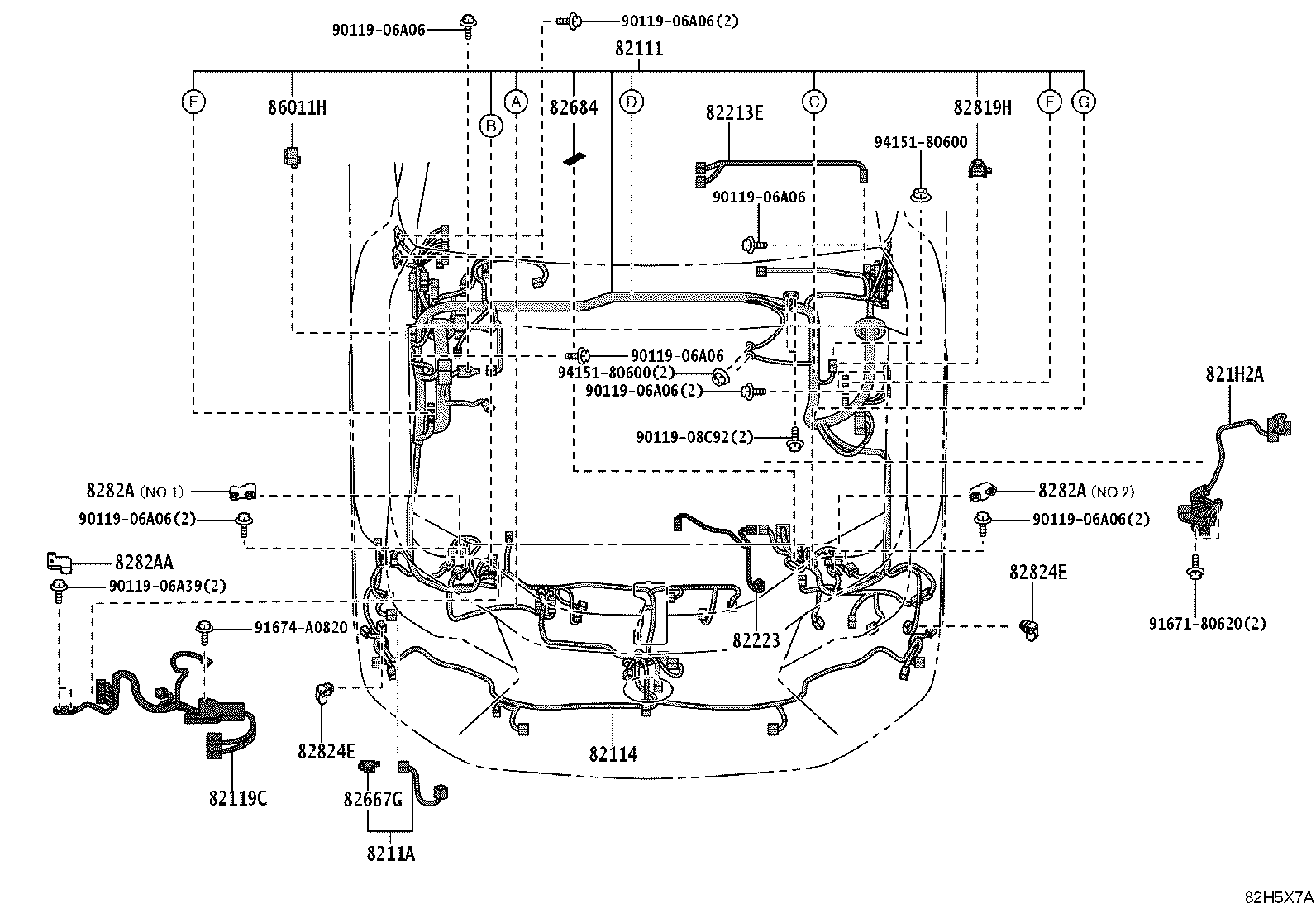

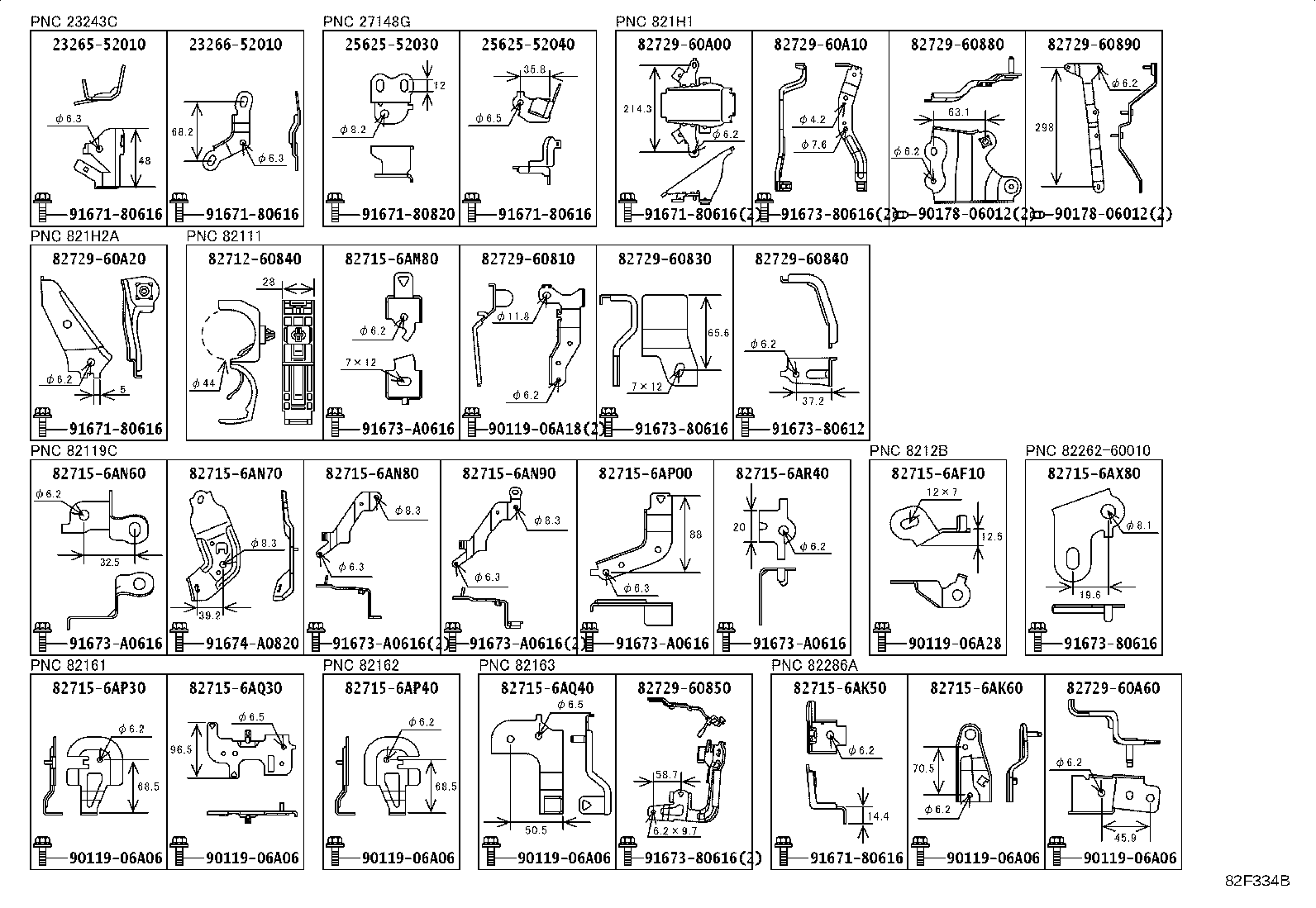

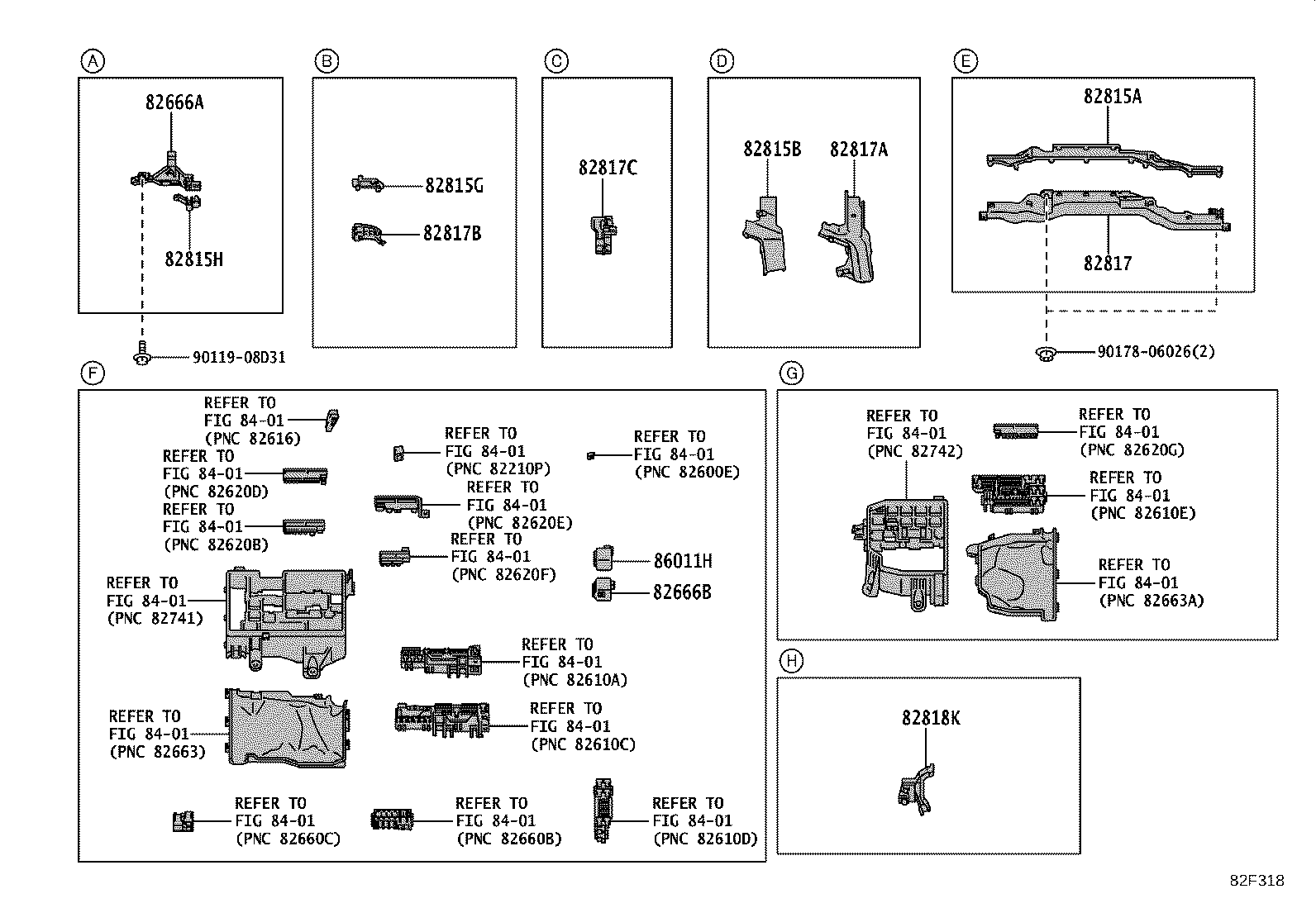

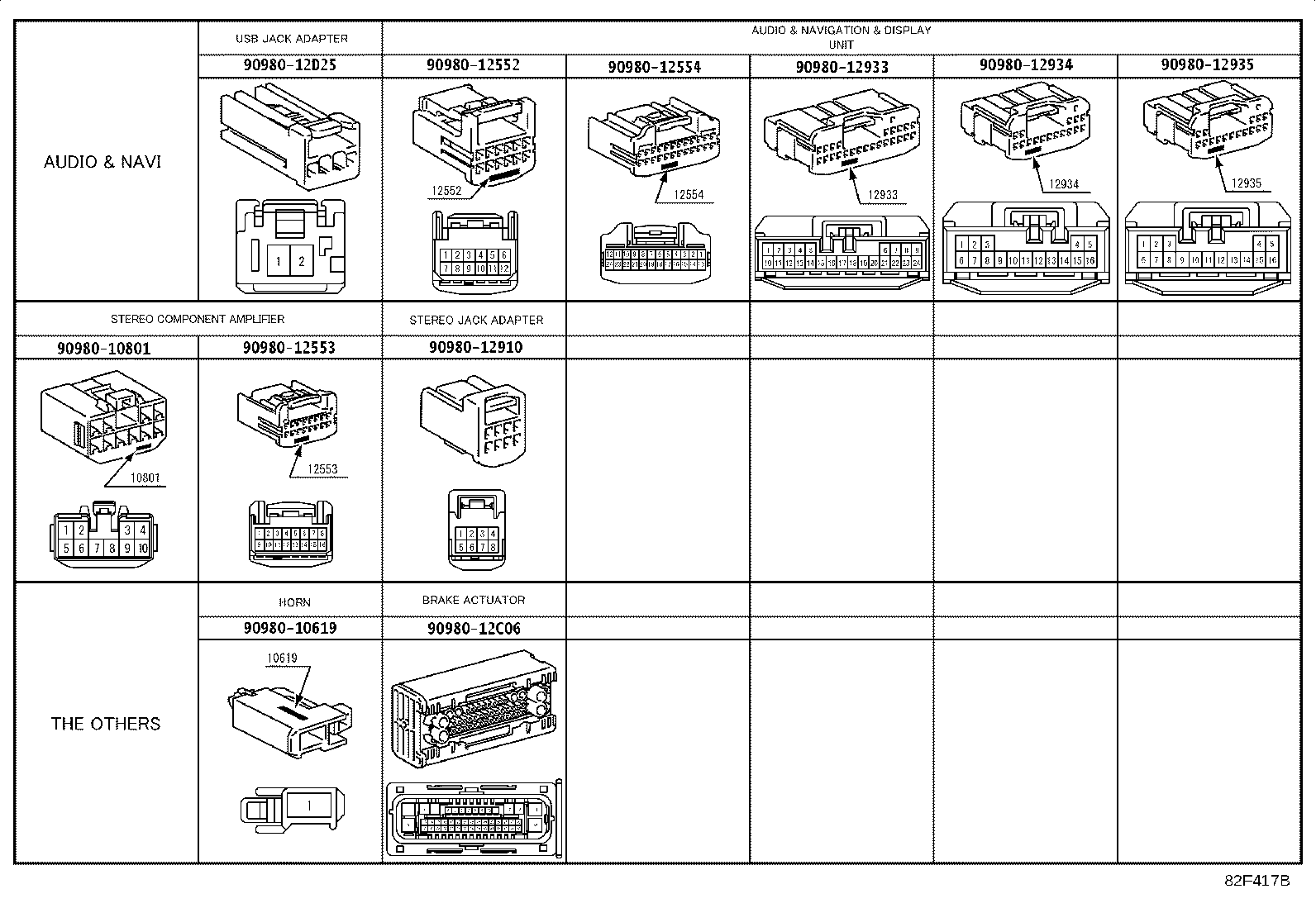

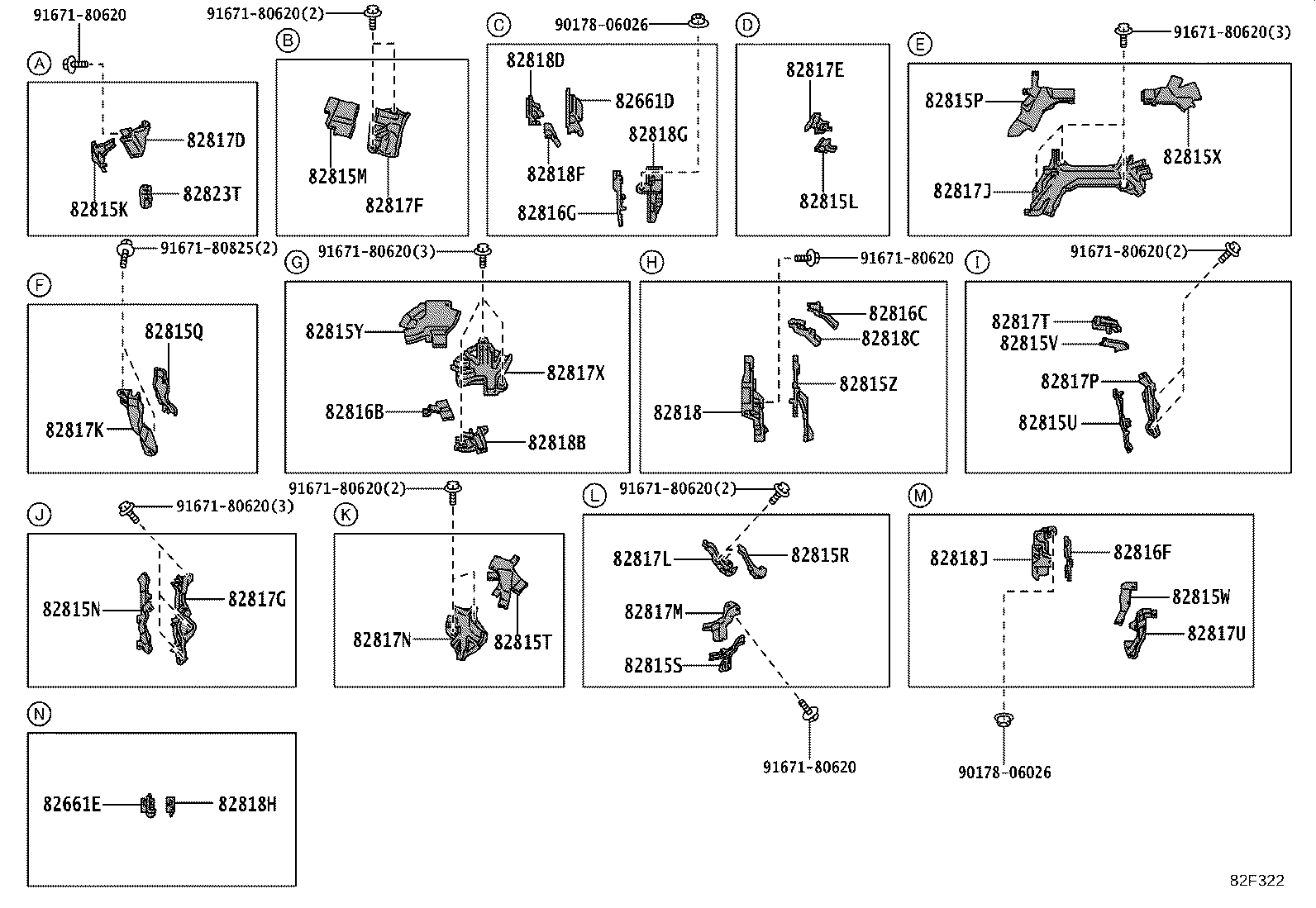

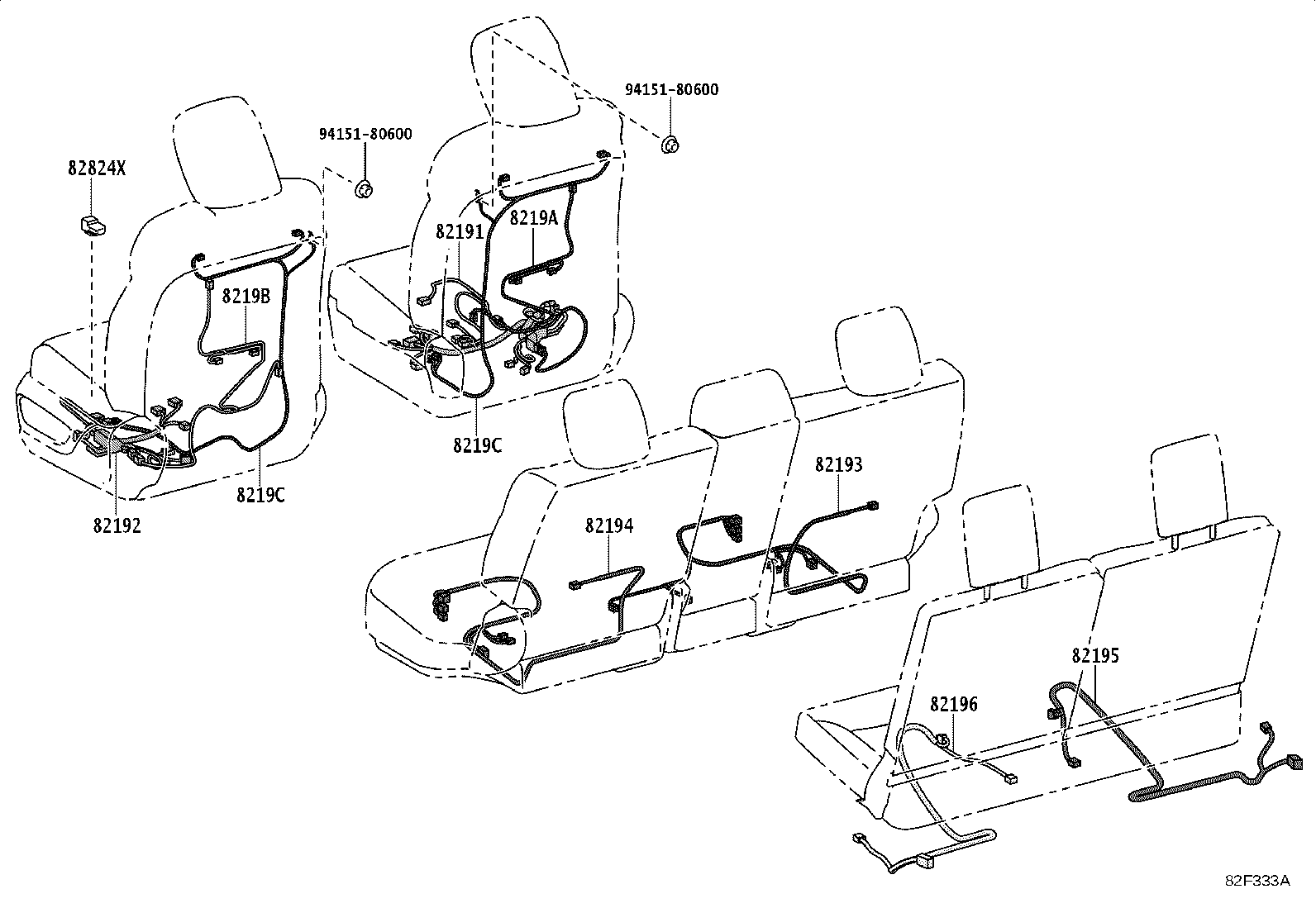

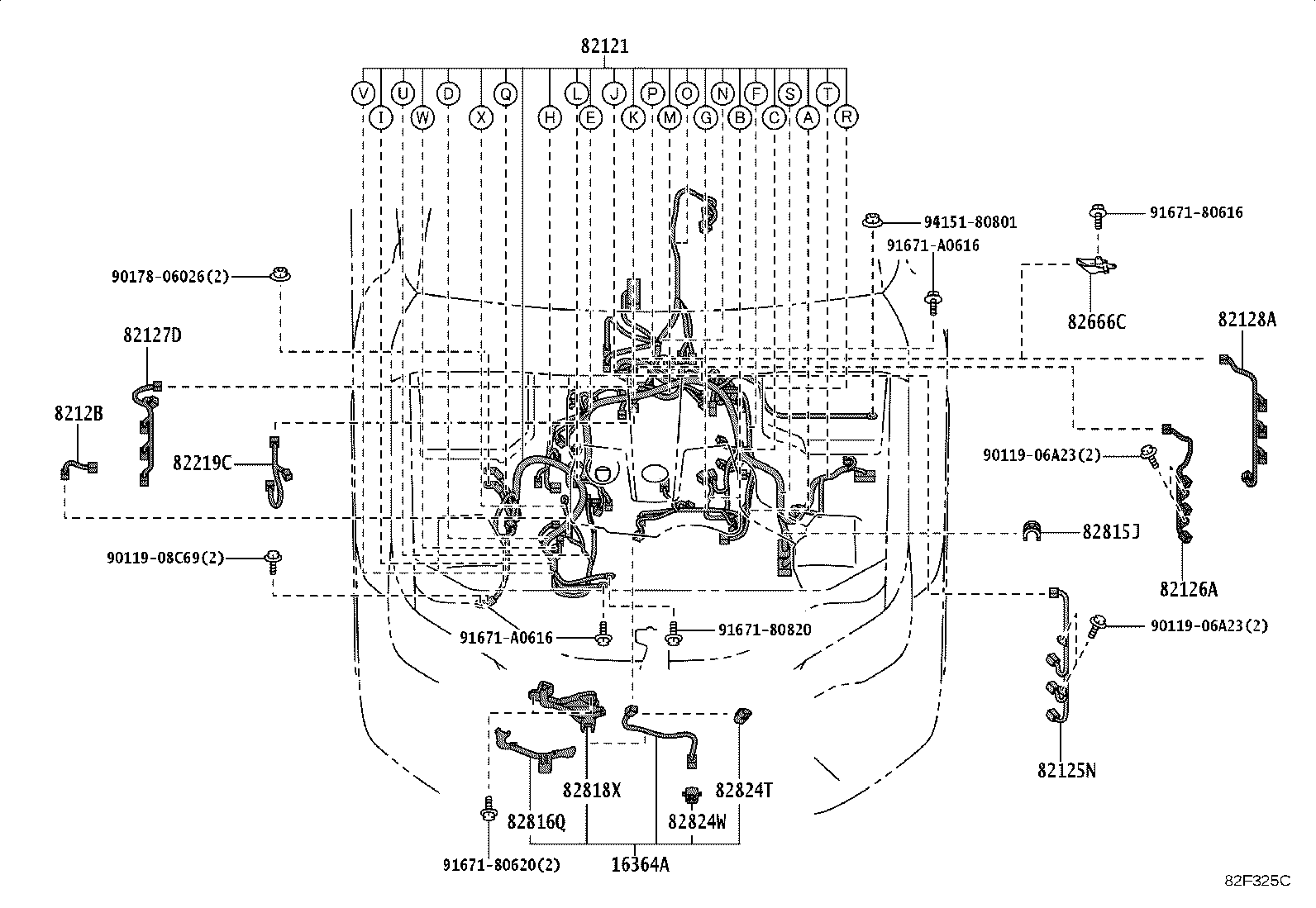

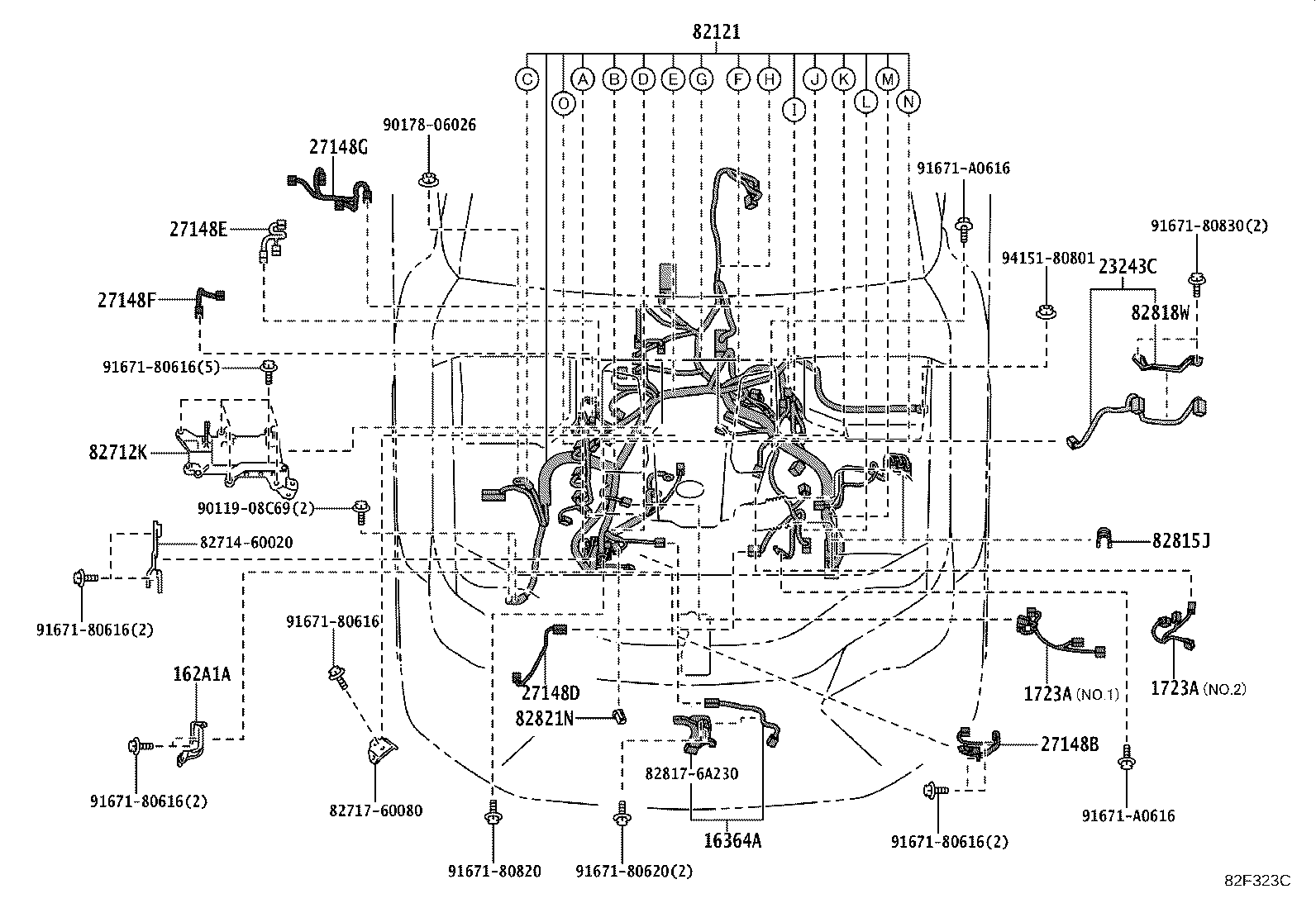

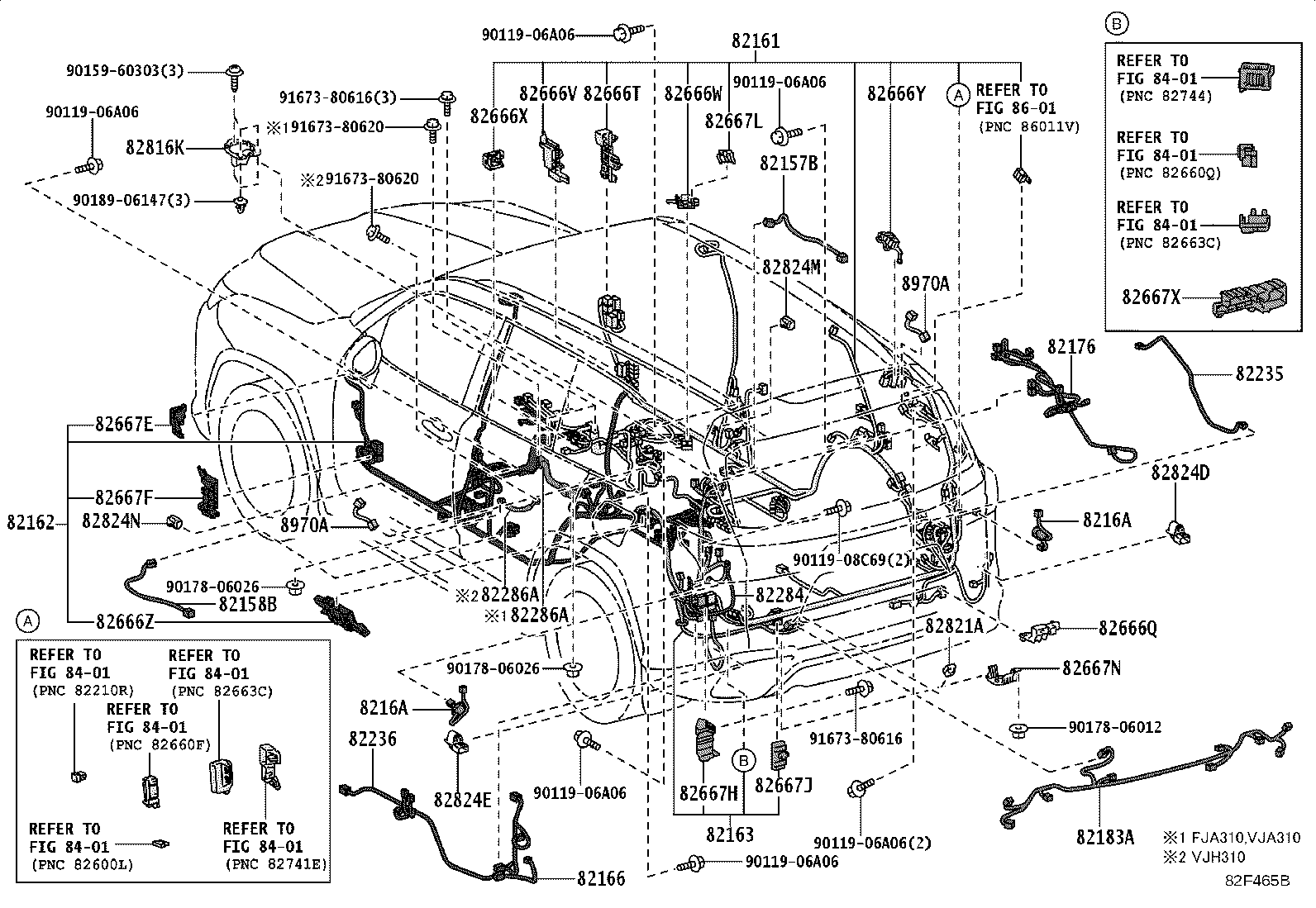

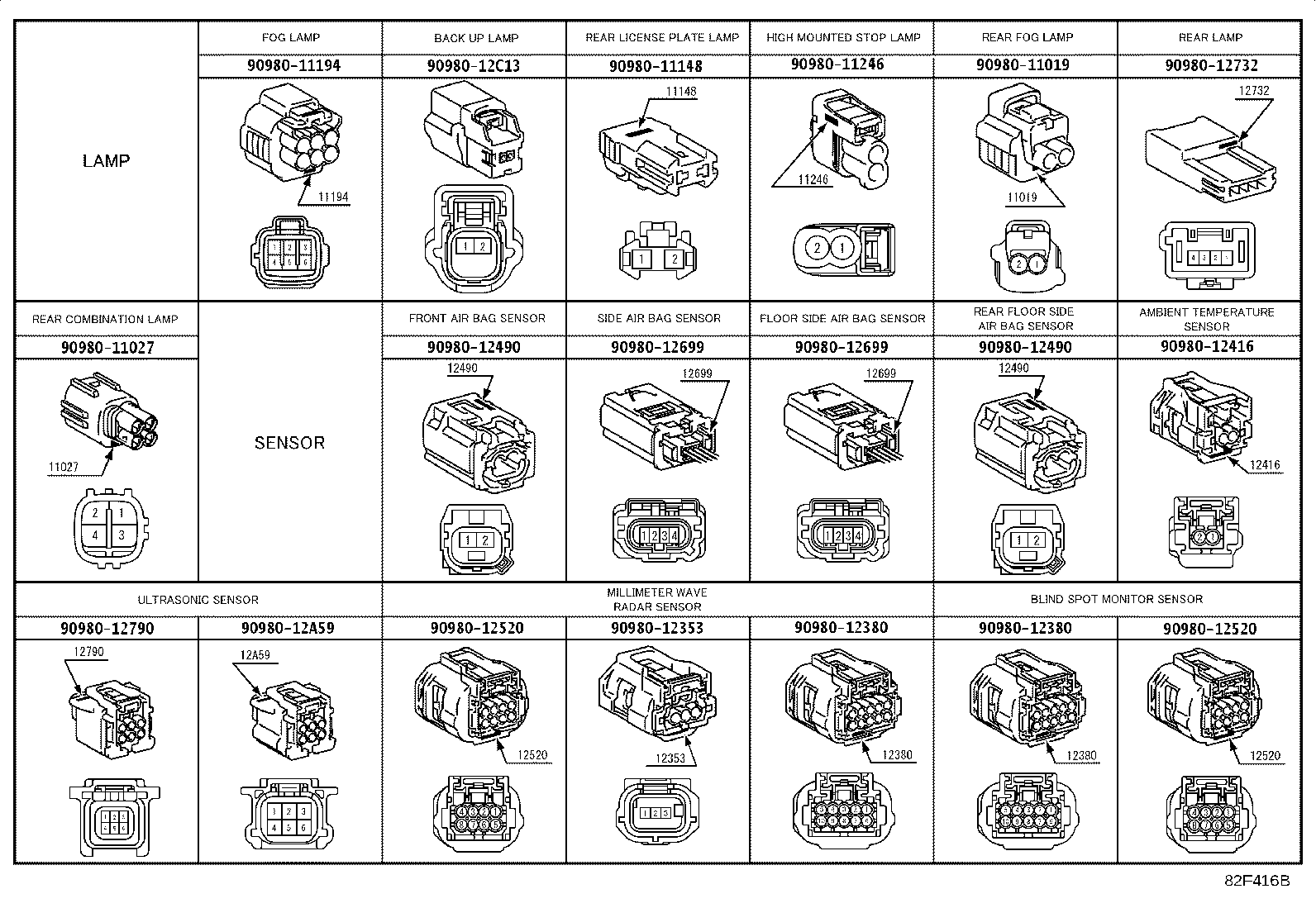

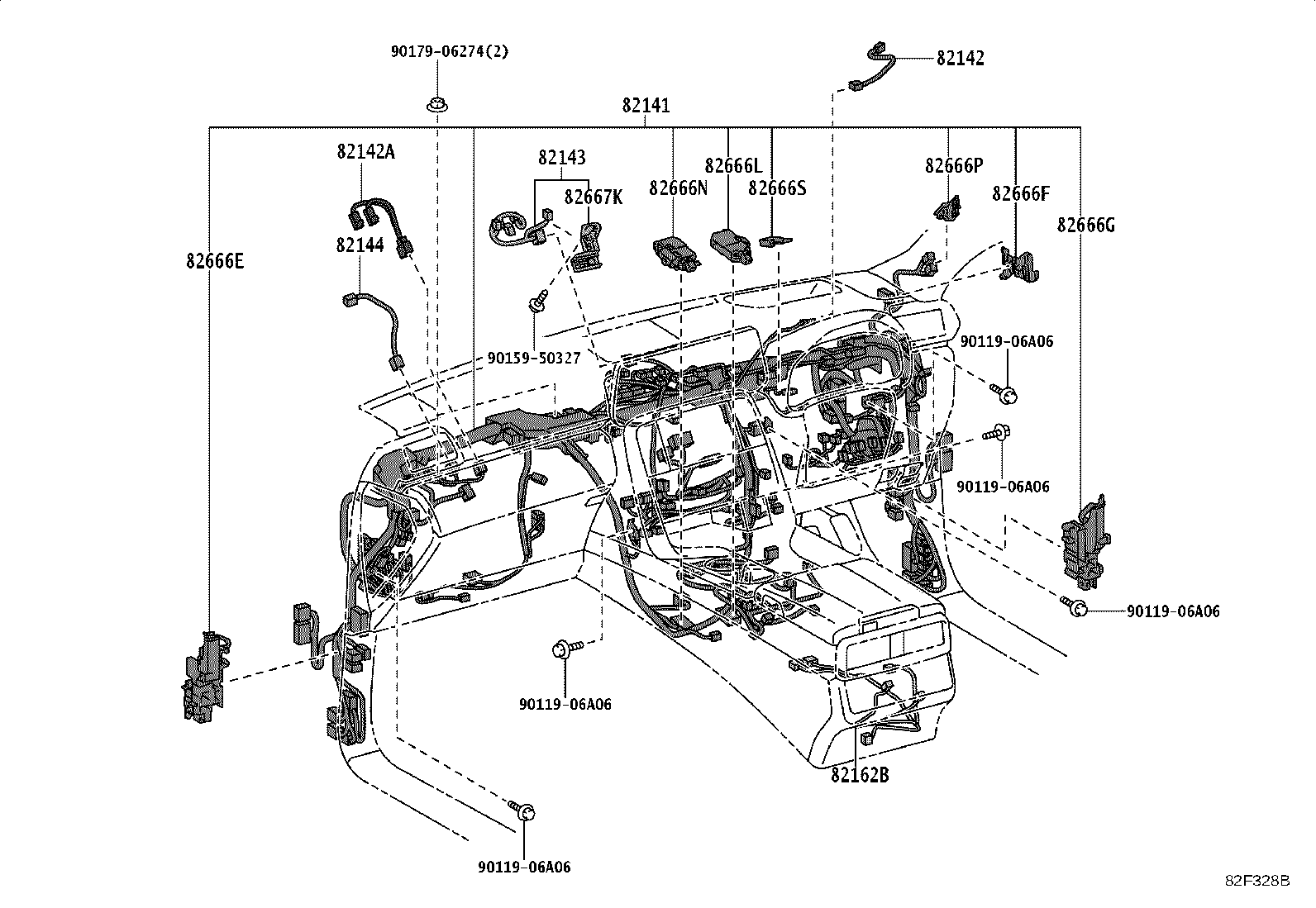

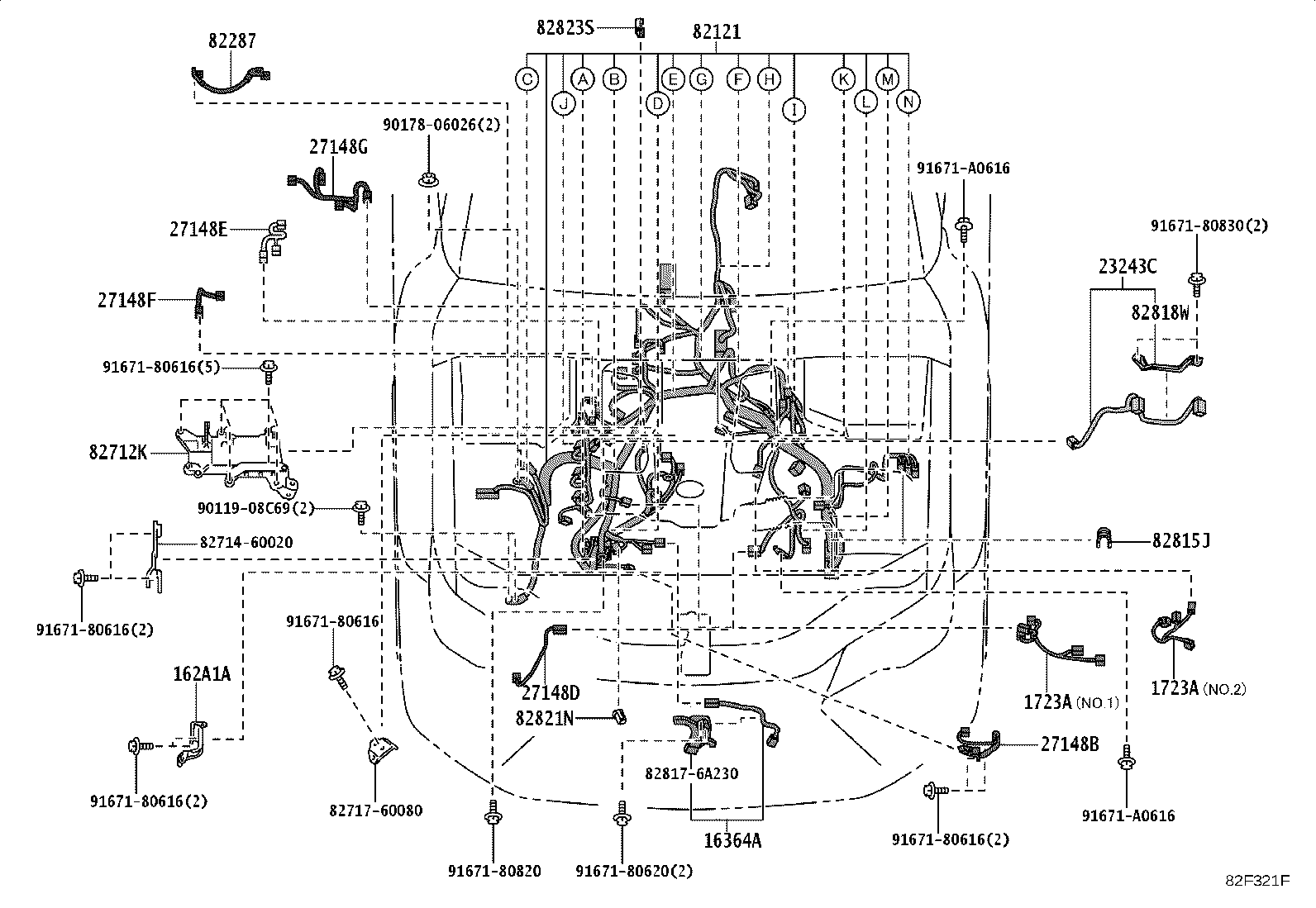

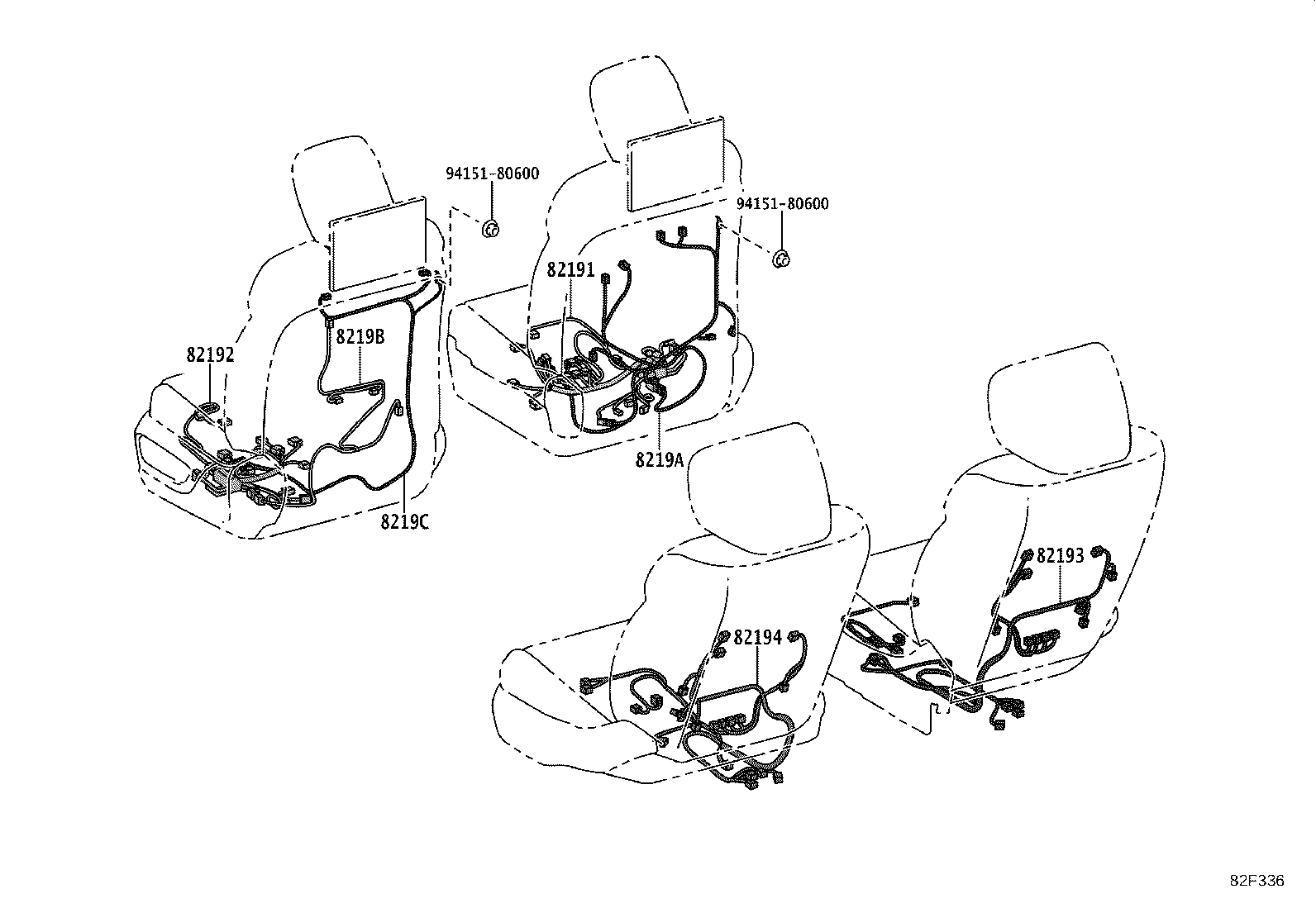

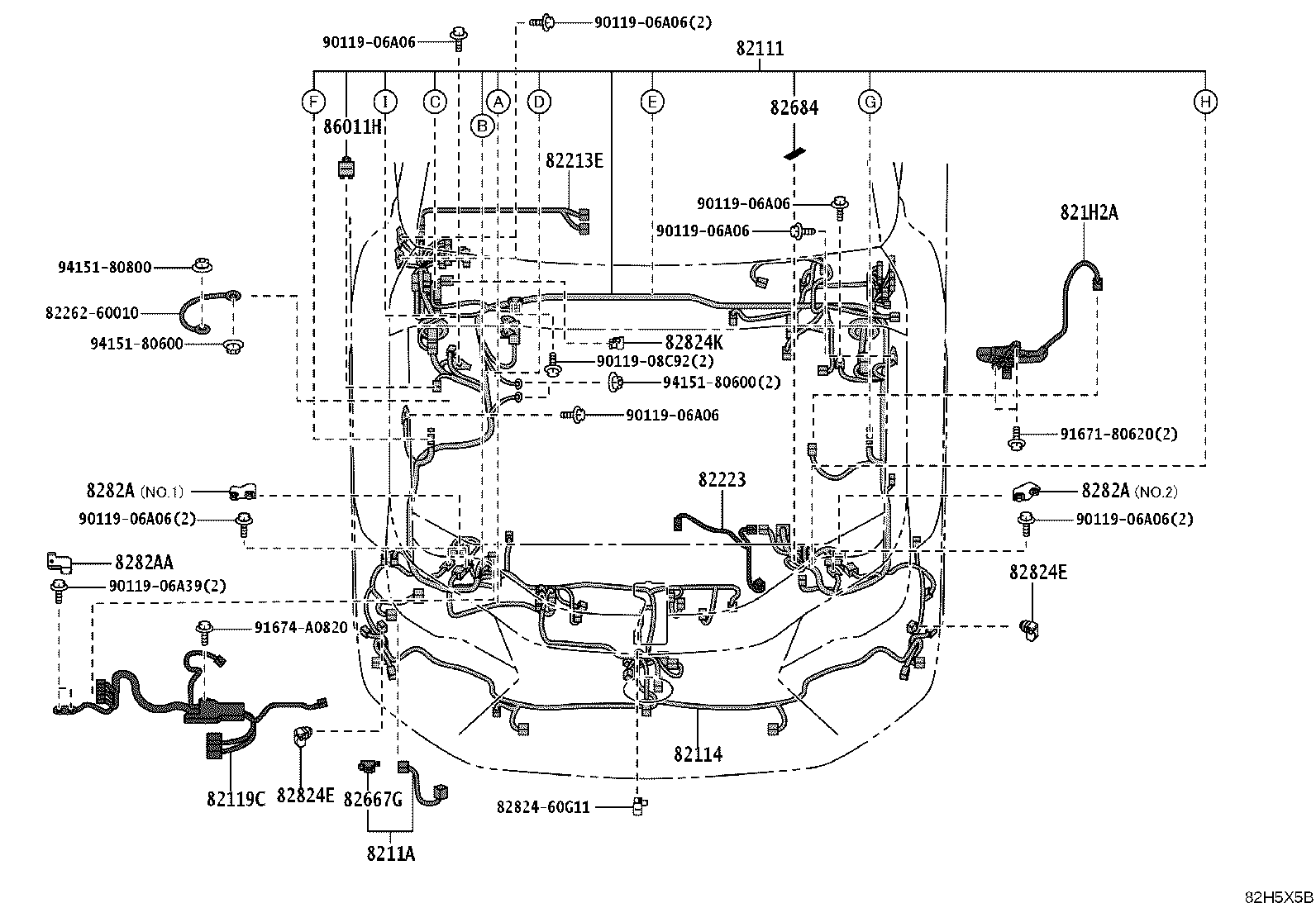

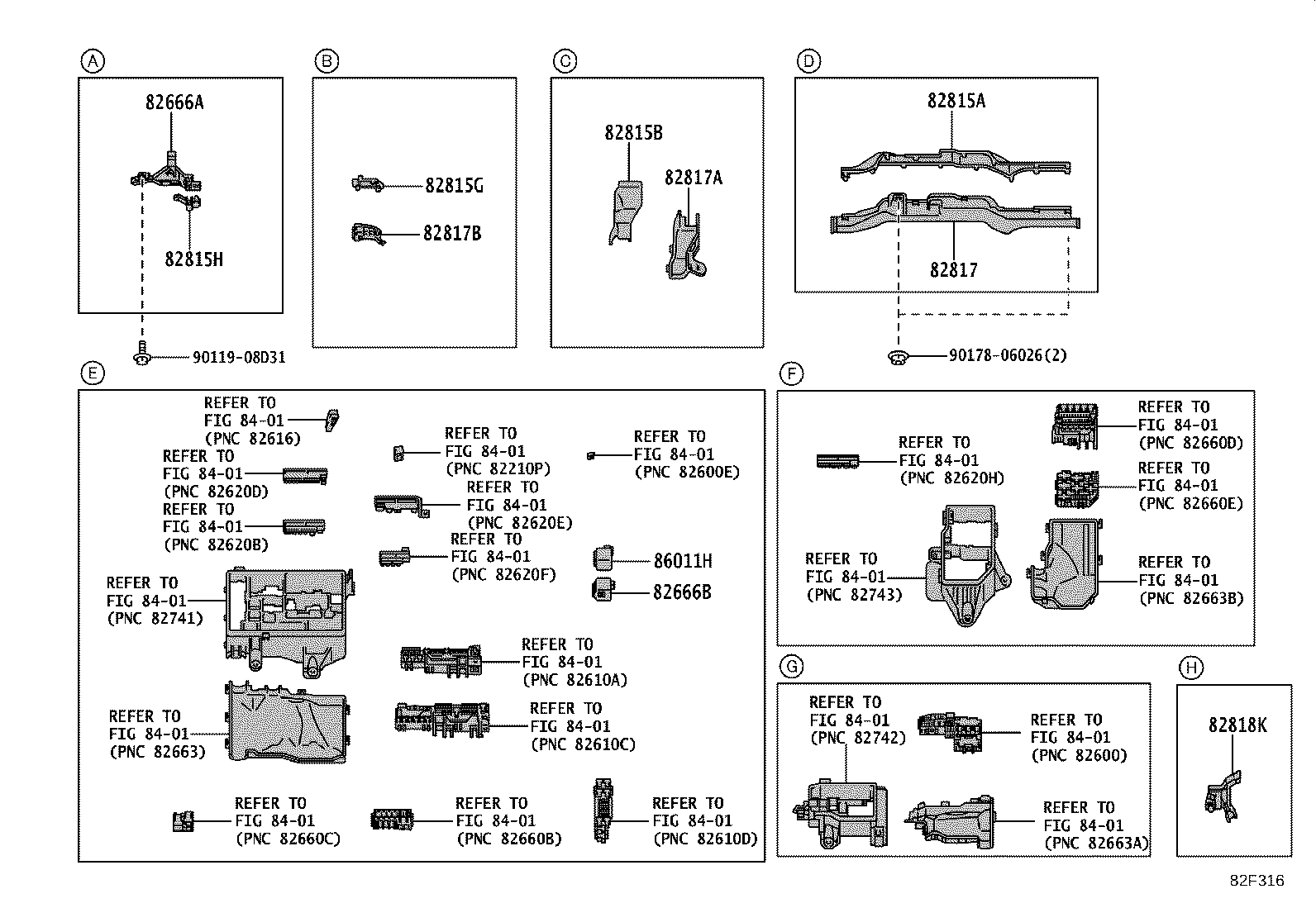

Figure 82F313B 82F313B 2021-12 → — Figure 82F314 82F314 2021-12 → — Figure 82F315A 82F315A 2021-12 → — Figure 82F316 82F316 2021-12 → — Figure 82F317A 82F317A 2021-12 → — Figure 82F318 82F318 2021-12 → — Figure 82F319A 82F319A 2021-12 → — Figure 82F320 82F320 2021-12 → — Figure 82H5X5B 82H5X5B 2024-11 → — Figure 82H5X6 82H5X6 2024-11 → — Figure 82H5X7A 82H5X7A 2024-11 → — Figure 82H5X8 82H5X8 2024-11 → — Figure 82F321F 82F321F 2021-12 → — Figure 82F322 82F322 2021-12 → — Figure 82F323C 82F323C 2021-12 → — Figure 82F324 82F324 2021-12 → — Figure 82F325C 82F325C 2021-12 → — Figure 82F326A 82F326A 2021-12 → — Figure 82H5X9 82H5X9 2024-11 → — Figure 82H5XA 82H5XA 2024-11 → — Figure 82F327B 82F327B 2021-12 → — Figure 82F328B 82F328B 2021-12 → — Figure 82F329B 82F329B 2021-12 → — Figure 82F464F 82F464F 2021-12 → — Figure 82F465B 82F465B 2021-12 → — Figure 82F463B 82F463B 2021-12 → — Figure 82H5XB 82H5XB 2024-11 → — Figure 82H5XN 82H5XN 2024-11 → — Figure 82F333A 82F333A 2021-12 → — Figure 82F336 82F336 2021-12 → — Figure 82F334B 82F334B 2021-12 → — Figure 82F335B 82F335B 2021-12 → — Figure 82F416B 82F416B 2021-12 → — Figure 82F417B 82F417B 2021-12 → —

Part groups

PNCDescription
162A1A Stay, Turbo Water Pipe
16364A Wire, Cooling Fan
1723A Wire, Turbocharger
23243C Wire, Fuel Pump Motor
27148B Wire, Connecting
27148D Wire, Connecting, NO.1
27148E Wire, Connecting, NO.2
27148F Wire, Connecting, NO.3
27148G Wire, Connecting, NO.4
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212B Wire, Engine, NO.10
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82157B Wire, Step Rear Floor, RH
82158B Wire, Step Rear Floor, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82162B Wire, Floor, NO.3
82163 Wire, Floor, NO.3
82164 Wire, Frame
82166 Wire, Console Box
8216A Wire, Floor NO.7
8216C Wire, Floor, NO.9
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82177A Wire, Frame, NO.4
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
8219C Wire, Seat Audio
821H1 Wire, Floor Under
821H2A Wire, High Voltage Air Conditioner
82213E Wire, Heater Blower
82219C Wire, Sensor
82223 Wire, Switch
82235 Wire, Room
82236 Wire, Room, NO.2
82284 Wire, Earth
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82667H Holder, Connector, NO.23
82667J Holder, Connector, NO.24
82667K Holder, Connector, NO.25
82667L Holder, Connector, NO.26
82667M Holder, Connector, NO.27
82667N Holder, Connector, NO.28
82667U Holder, Connector, NO.32
82667W Holder, Connector, NO.34
82667X Holder, Connector, NO.35
82684 Label, Cut High Voltage Electricity
82684A Label, Cut High Voltage Electricity, NO.2
82712C Support, Wiring Harness, NO.1
82712K Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15
82816T Cover, Wiring Harness Protector, NO.16
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819C Grommet, Wiring Harness
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82821A Cover, Connector
82821N Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824H Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
86011H Filter, Noise
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
8970A Cord Sub-assy, Theft Warning Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
