Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe
Supported model
Data version 2024-11
Hev Inverter
10 part groups · 2 illustrations

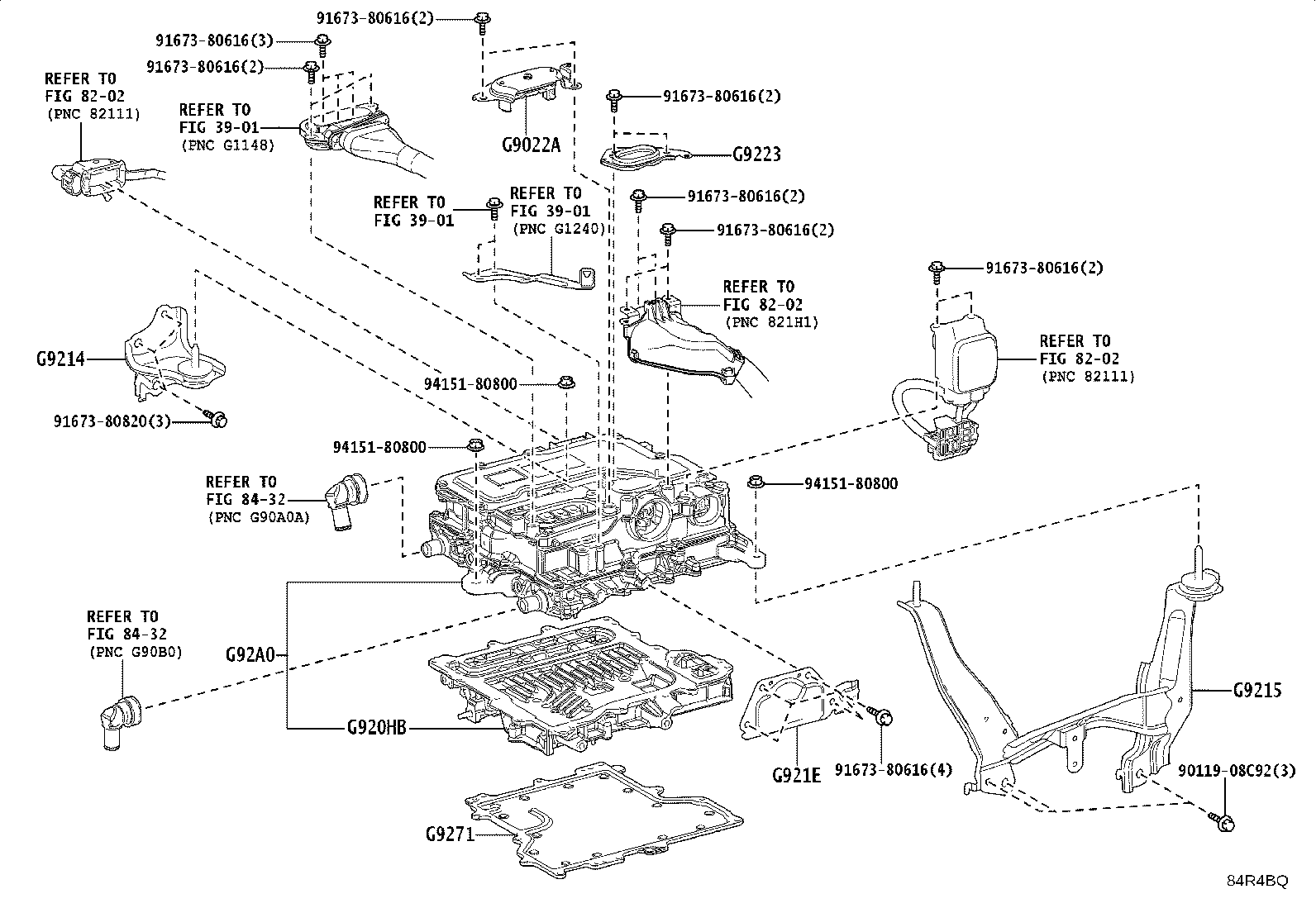

Part groups
| PNC | Description |
|---|---|
| G9022A | Cover Sub-assy, Inverter, Upper |
| G9205 | Plate Sub-assy, Inverter Bus-bar |
| G920HB | Converter Set, Hybrid Vehicle |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G921E | Protector, Inverter |
| G9223 | Cover, Inverter Terminal |
| G9271 | Cover, Converter |
| G92A0 | Inverter Assy, Hybrid Motor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
