Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

12 part groups · 2 illustrations

Illustrations

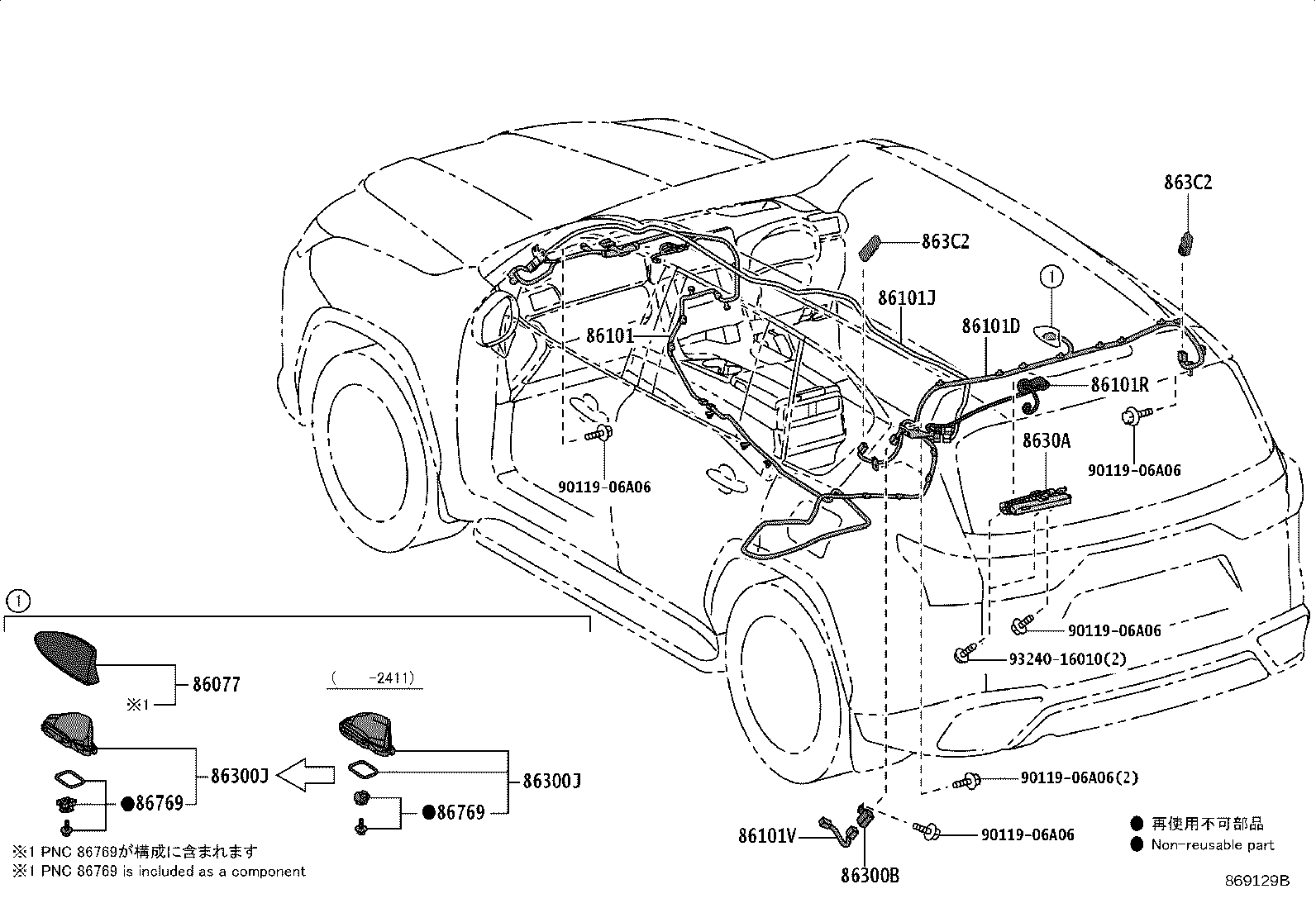

Figure 869128B 869128B 2021-12 → — Figure 869129B 869129B 2021-12 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86300B Antenna Assy, Amplifier, NO.1
86300J Antenna Assy, Roof
8630A Antenna Sub-assy, Radio
863C2 Base, Digital Audio Broadcasting Antenna
86681C Divider, Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
