Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

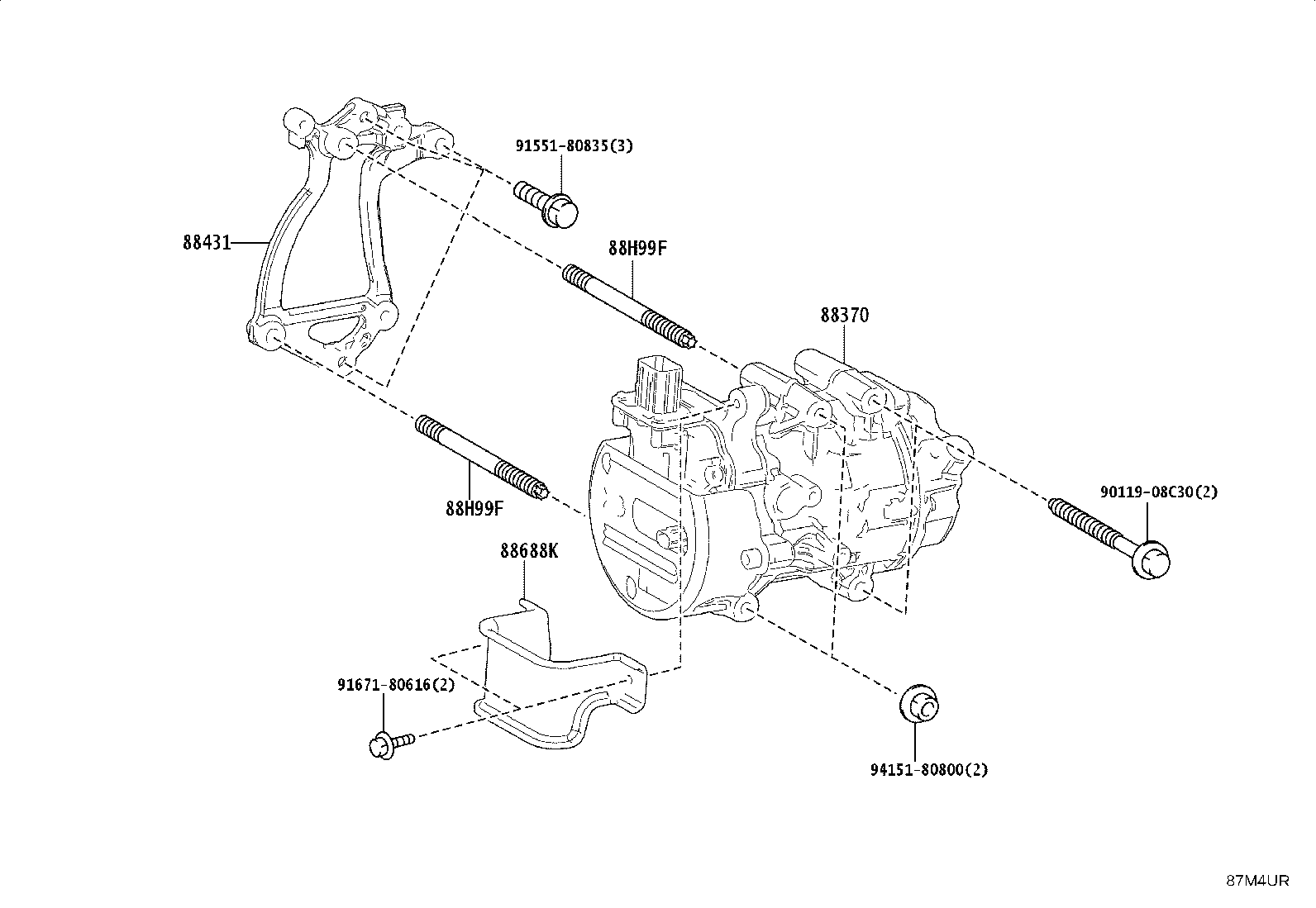

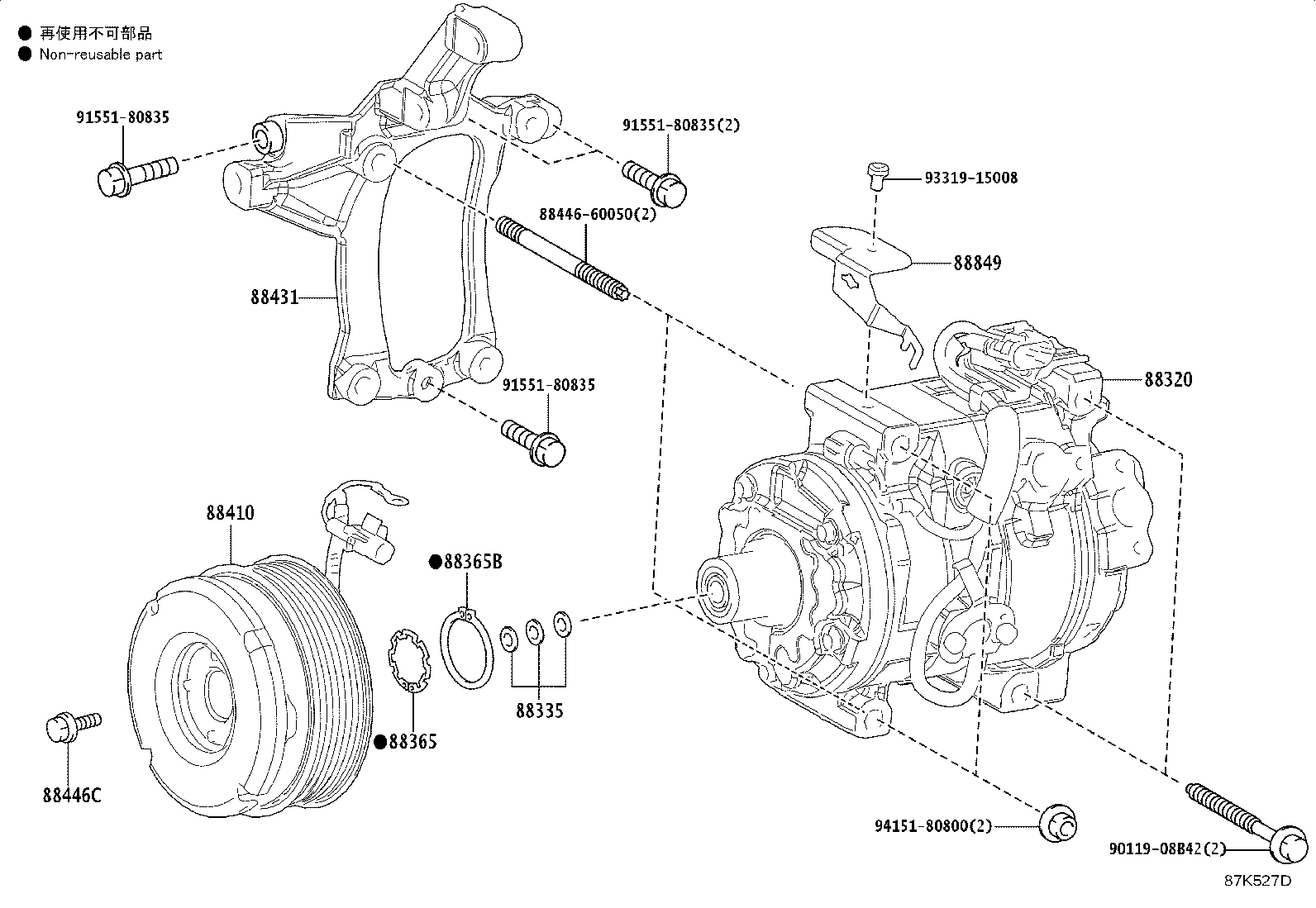

Figure 87K528A 87K528A 2021-12 → — Figure 87K527D 87K527D 2021-12 → — Figure 87M4UR 87M4UR 2024-11 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365B Ring, Snap, NO.2
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88446C Bolt, Magnet Clutch Setting
88688K Bracket, Cooler Compressor
88849 Bracket, Cooler Compressor, NO.2
88H99F Bolt, Stud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
