Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

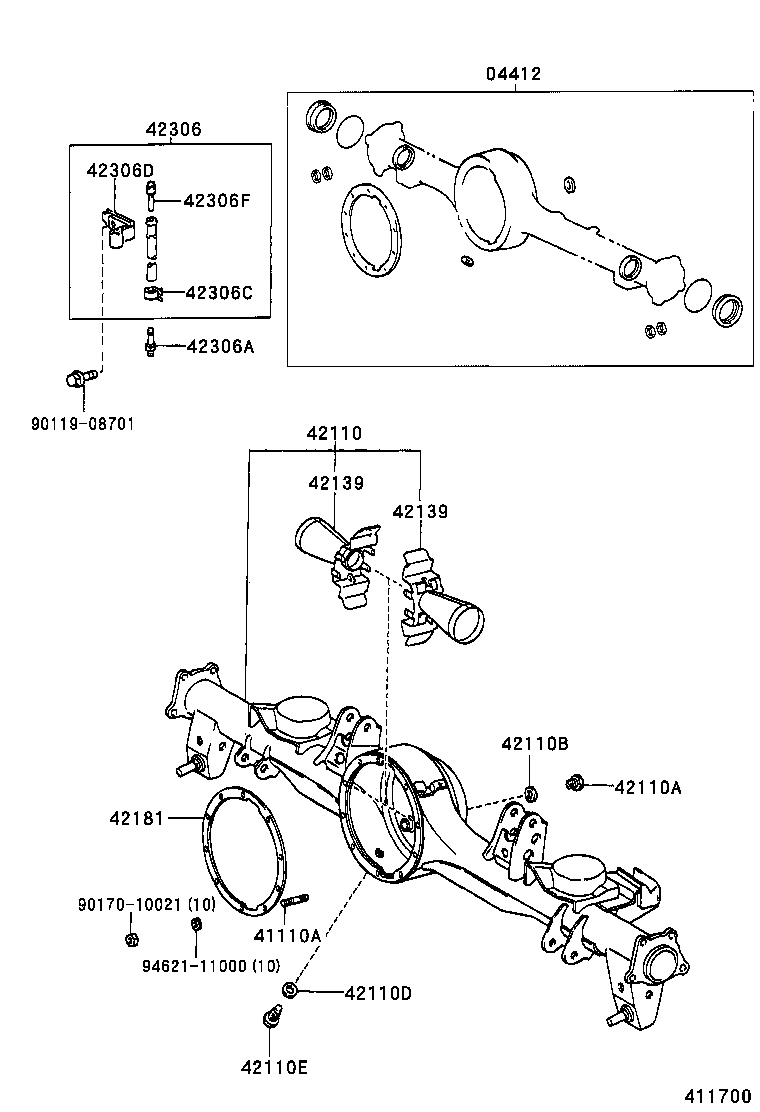

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-60310 |
Gasket Kit, Rear Differential Carrier
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 04412-60480 |
Gasket Kit, Rear Differential Carrier
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90116-10075 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 90116-10075 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-60731 |
Housing Assy, Rear Axle
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 42110-60731 |
Housing Assy, Rear Axle
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90341-18040 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42139 — Deflector, Rear Axle Housing Oil | ||||
| 42108-60030 |
Deflector, Rear Axle Housing Oil
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 42108-60030 |
Deflector, Rear Axle Housing Oil
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-60060 |
Gasket, Rear Differential Carrier
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 42181-60060 |
Gasket, Rear Differential Carrier
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 42306 — Hose Sub-assy, Rear Axle Breather | ||||
| 42306-60140 |
Hose Sub-assy, Rear Axle Breather
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 42306-60140 |
Hose Sub-assy, Rear Axle Breather
2005-05 → —
|
UZJ100 | — | |
| 42306A — Union (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51052 |
Union (FOR REAR AXLE BREATHER HOUSE)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90404-51052 |
Union (FOR REAR AXLE BREATHER HOUSE)
2005-05 → —
|
UZJ100 | — | |
| 42306C — Clip, Hose (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-51100 |
Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 96132-51100 |
Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2005-05 → —
|
UZJ100 | — | |
| 42306D — Clamp (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01C09 |
Clamp (FOR REAR AXLE BRATHER HOSE)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90949-01C09 |
Clamp (FOR REAR AXLE BRATHER HOSE)
2005-05 → —
|
UZJ100 | — | |
| 42306F — Plug, Breather (FOR REAR AXLE) | ||||
| 90930-03097 |
Plug, Breather (FOR REAR AXLE)
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 90930-03097 |
Plug, Breather (FOR REAR AXLE)
2005-05 → —
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
