Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

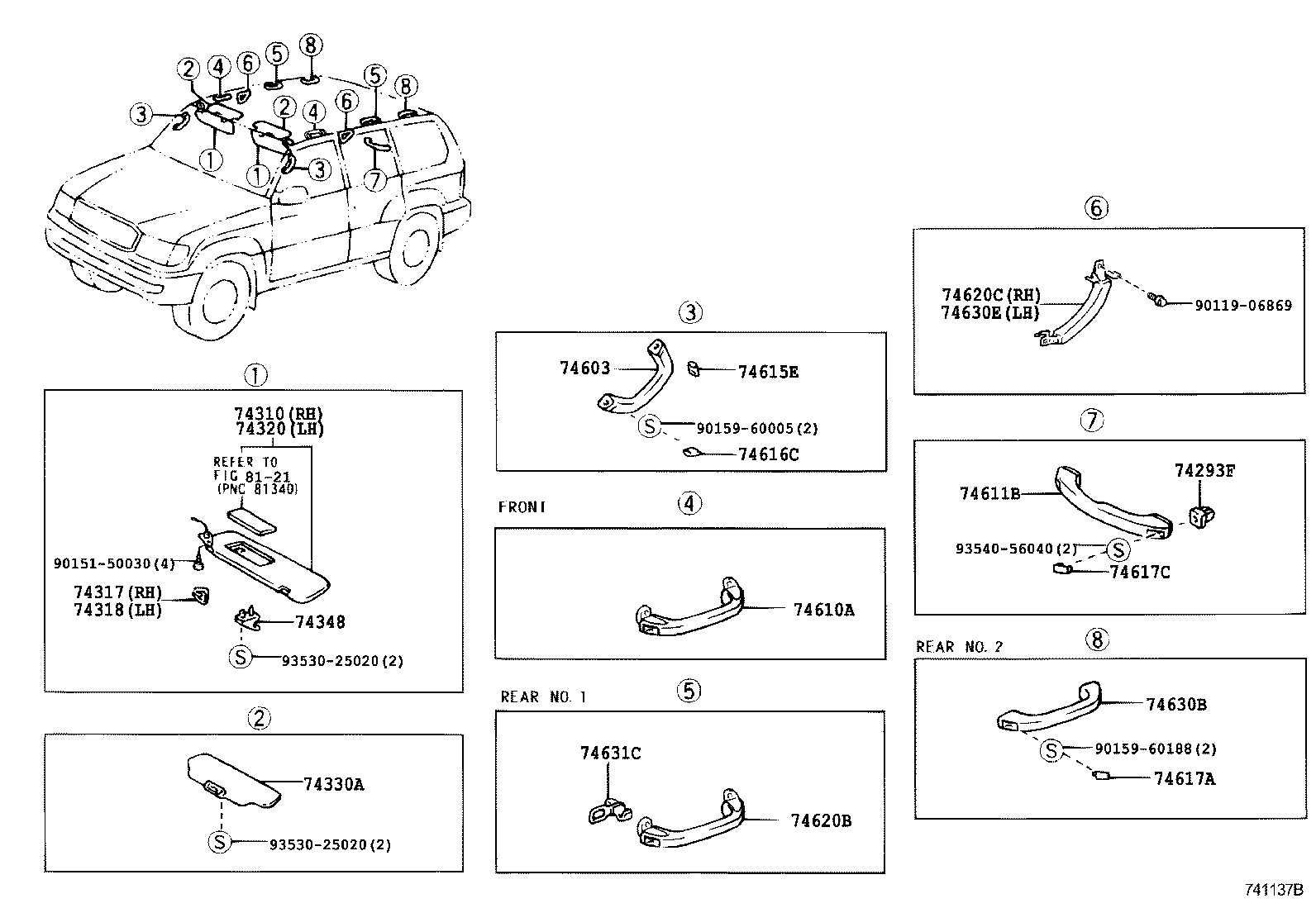

Exploded illustration 741137B 74310 — VISOR ASSY, RH (4 parts) 74320 — VISOR ASSY, LH (6 parts) 8121 — not listed in this catalogue 9015150030 — not listed in this catalogue 74317 — COVER, VISOR BRACKET, RH (4 parts) 74318 — COVER, VISOR BRACKET, LH (4 parts) 74348 — HOLDER, VISOR (4 parts) 9353025020 — not listed in this catalogue 74330A — VISOR ASSY, CENTER (8 parts) 9353025020 — not listed in this catalogue 74603 — GRIP SUB-ASSY, ASSIST, FRONT (4 parts) 74615E — PLUG, FRONT ASSIST GRIP, NO.1 RH (4 parts) 9015960005 — not listed in this catalogue 74616C — PLUG, FRONT ASSIST GRIP, NO.1 LH (4 parts) 9015960188 — not listed in this catalogue 74620C — GRIP ASSY, ASSIST, REAR RH (4 parts) 74610A — GRIP SUB-ASSY, ASSIST (4 parts) 9011906869 — not listed in this catalogue 74631C — HOOK, COAT (4 parts) 74620B — GRIP ASSY, ASSIST, REAR (4 parts) 74630E — GRIP ASSY, ASSIST, REAR LH (4 parts) 74617A — PLUG, ASSIST GRIP (4 parts) 74630B — GRIP ASSY, ASSIST (FOR 3RD SEAT) (4 parts) 74617C — PLUG, ASSIST GRIP (4 parts) 74293F — PLATE, ASSIST GRIP (2 parts) 74611B — GRIP, ASSIST (4 parts) 9354056040 — not listed in this catalogue
741137B · 19 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
74293F — Plate, Assist Grip
74293-32010 Plate, Assist Grip
2002-08 → 2005-05 ended
UZJ100 —
74293-32010 Plate, Assist Grip
2005-05 → —
UZJ100 —
74310 — Visor Assy, RH
74310-6A080-A0 note Visor Assy, RH
2002-08 → 2005-05 ended
UZJ100 —
74310-6A080-B0 note Visor Assy, RH
2002-08 → 2005-05 ended
UZJ100 —
74310-6A080-A0 note Visor Assy, RH
2005-05 → 2007-08 ended
UZJ100 —
74310-6A080-B0 note Visor Assy, RH
2005-05 → 2007-08 ended
UZJ100 —
74317 — Cover, Visor Bracket, RH
74317-60010-A1 note Cover, Visor Bracket, RH
2002-08 → 2005-05 ended
UZJ100 —
74317-60010-B1 note Cover, Visor Bracket, RH
2002-08 → 2005-05 ended
UZJ100 —
74317-60010-A1 note Cover, Visor Bracket, RH
2005-05 → 2007-08 ended
UZJ100 —
74317-60010-B1 note Cover, Visor Bracket, RH
2005-05 → 2007-08 ended
UZJ100 —
74318 — Cover, Visor Bracket, LH
74317-60010-A1 note Cover, Visor Bracket, LH
2002-08 → 2005-05 ended
UZJ100 —
74317-60010-B1 note Cover, Visor Bracket, LH
2002-08 → 2005-05 ended
UZJ100 —
74317-60010-A1 note Cover, Visor Bracket, LH
2005-05 → 2007-08 ended
UZJ100 —
74317-60010-B1 note Cover, Visor Bracket, LH
2005-05 → 2007-08 ended
UZJ100 —
74320 — Visor Assy, LH
74320-6A070-A0 note Visor Assy, LH
2002-08 → 2005-05 ended
UZJ100 —
74320-6A070-B0 note Visor Assy, LH
2002-08 → 2005-05 ended
UZJ100 —
74320-6A070-A0 note Visor Assy, LH
2005-05 → 2007-08 ended
UZJ100 —
74320-6A070-B0 note Visor Assy, LH
2005-05 → 2007-08 ended
UZJ100 —
74320-6A081-A0 note Visor Assy, LH
2005-05 → 2007-08 ended
UZJ100 —
74320-6A081-B0 note Visor Assy, LH
2005-05 → 2007-08 ended
UZJ100 —
74330A — Visor Assy, Center
74330-60011-A3 note Visor Assy, Center
2002-08 → 2005-05 ended
UZJ100 —
74330-60011-B3 note Visor Assy, Center
2002-08 → 2005-05 ended
UZJ100 —
74330-60021-A3 note Visor Assy, Center
2002-08 → 2005-05 ended
UZJ100 —
74330-60021-B3 note Visor Assy, Center
2002-08 → 2005-05 ended
UZJ100 —
74330-60011-A3 note Visor Assy, Center
2005-05 → 2007-08 ended
UZJ100 —
74330-60011-B3 note Visor Assy, Center
2005-05 → 2007-08 ended
UZJ100 —
74330-60021-A3 note Visor Assy, Center
2005-05 → 2007-08 ended
UZJ100 —
74330-60021-B3 note Visor Assy, Center
2005-05 → 2007-08 ended
UZJ100 —
74348 — Holder, Visor
74348-50020-A1 note Holder, Visor
2002-08 → 2005-05 ended
UZJ100 —
74348-50020-B4 note Holder, Visor
2002-08 → 2005-05 ended
UZJ100 —
74348-50020-A1 note Holder, Visor
2005-05 → 2007-08 ended
UZJ100 —
74348-50020-B4 note Holder, Visor
2005-05 → 2007-08 ended
UZJ100 —
74603 — Grip Sub-assy, Assist, Front
74610-60070-A1 note Grip Sub-assy, Assist, Front
2002-08 → 2005-05 ended
UZJ100 —
74610-60070-B2 note Grip Sub-assy, Assist, Front
2002-08 → 2005-05 ended
UZJ100 —
74610-60070-A1 note Grip Sub-assy, Assist, Front
2005-05 → 2007-08 ended
UZJ100 —
74610-60070-B2 note Grip Sub-assy, Assist, Front
2005-05 → 2007-08 ended
UZJ100 —
74610A — Grip Sub-assy, Assist
74610-60100-A0 note Grip Sub-assy, Assist
2002-08 → 2005-05 ended
UZJ100 —
74610-60100-B0 note Grip Sub-assy, Assist
2002-08 → 2005-05 ended
UZJ100 —
74610-60100-A0 note Grip Sub-assy, Assist
2005-05 → 2007-08 ended
UZJ100 —
74610-60100-B0 note Grip Sub-assy, Assist
2005-05 → 2007-08 ended
UZJ100 —
74611B — Grip, Assist
74611-60010-A1 note Grip, Assist
2002-08 → 2005-05 ended
UZJ100 —
74611-60010-B1 note Grip, Assist
2002-08 → 2005-05 ended
UZJ100 —
74611-60010-A1 note Grip, Assist
2005-05 → 2007-08 ended
UZJ100 —
74611-60010-B1 note Grip, Assist
2005-05 → 2007-08 ended
UZJ100 —
74615E — Plug, Front Assist Grip, NO.1 RH
74615-60030-A1 note Plug, Front Assist Grip, NO.1 RH
2002-08 → 2005-05 ended
UZJ100 —
74615-60030-B2 note Plug, Front Assist Grip, NO.1 RH
2002-08 → 2005-05 ended
UZJ100 —
74615-60030-A1 note Plug, Front Assist Grip, NO.1 RH
2005-05 → 2007-08 ended
UZJ100 —
74615-60030-B2 note Plug, Front Assist Grip, NO.1 RH
2005-05 → 2007-08 ended
UZJ100 —
74616C — Plug, Front Assist Grip, NO.1 LH
74616-60030-A1 note Plug, Front Assist Grip, NO.1 LH
2002-08 → 2005-05 ended
UZJ100 —
74616-60030-B2 note Plug, Front Assist Grip, NO.1 LH
2002-08 → 2005-05 ended
UZJ100 —
74616-60030-A1 note Plug, Front Assist Grip, NO.1 LH
2005-05 → 2007-08 ended
UZJ100 —
74616-60030-B2 note Plug, Front Assist Grip, NO.1 LH
2005-05 → 2007-08 ended
UZJ100 —
74617A — Plug, Assist Grip
74617-60030-A1 note Plug, Assist Grip
2002-08 → 2005-05 ended
UZJ100 —
74617-60030-B2 note Plug, Assist Grip
2002-08 → 2005-05 ended
UZJ100 —
74617-60030-A1 note Plug, Assist Grip
2005-05 → 2007-08 ended
UZJ100 —
74617-60030-B2 note Plug, Assist Grip
2005-05 → 2007-08 ended
UZJ100 —
74617C — Plug, Assist Grip
74617-60020-A1 note Plug, Assist Grip
2002-08 → 2005-05 ended
UZJ100 —
74617-60020-B1 note Plug, Assist Grip
2002-08 → 2005-05 ended
UZJ100 —
74617-60020-A1 note Plug, Assist Grip
2005-05 → 2007-08 ended
UZJ100 —
74617-60020-B1 note Plug, Assist Grip
2005-05 → 2007-08 ended
UZJ100 —
74620B — Grip Assy, Assist, Rear
74610-60100-A0 note Grip Assy, Assist, Rear
2002-08 → 2005-05 ended
UZJ100 —
74610-60100-B0 note Grip Assy, Assist, Rear
2002-08 → 2005-05 ended
UZJ100 —
74610-60100-A0 note Grip Assy, Assist, Rear
2005-05 → 2007-08 ended
UZJ100 —
74610-60100-B0 note Grip Assy, Assist, Rear
2005-05 → 2007-08 ended
UZJ100 —
74620C — Grip Assy, Assist, Rear RH
74620-60060-A0 note Grip Assy, Assist, Rear RH
2002-08 → 2005-05 ended
UZJ100 —
74620-60060-B0 note Grip Assy, Assist, Rear RH
2002-08 → 2005-05 ended
UZJ100 —
74620-60060-A0 note Grip Assy, Assist, Rear RH
2005-05 → 2007-08 ended
UZJ100 —
74620-60060-B0 note Grip Assy, Assist, Rear RH
2005-05 → 2007-08 ended
UZJ100 —
74630B — Grip Assy, Assist (FOR 3RD SEAT)
74610-60080-A1 note Grip Assy, Assist (FOR 3RD SEAT)
2002-08 → 2005-05 ended
UZJ100 —
74610-60080-B2 note Grip Assy, Assist (FOR 3RD SEAT)
2002-08 → 2005-05 ended
UZJ100 —
74610-60080-A1 note Grip Assy, Assist (FOR 3RD SEAT)
2005-05 → 2007-08 ended
UZJ100 —
74610-60080-B2 note Grip Assy, Assist (FOR 3RD SEAT)
2005-05 → 2007-08 ended
UZJ100 —
74630E — Grip Assy, Assist, Rear LH
74630-60060-A0 note Grip Assy, Assist, Rear LH
2002-08 → 2005-05 ended
UZJ100 —
74630-60060-B0 note Grip Assy, Assist, Rear LH
2002-08 → 2005-05 ended
UZJ100 —
74630-60060-A0 note Grip Assy, Assist, Rear LH
2005-05 → 2007-08 ended
UZJ100 —
74630-60060-B0 note Grip Assy, Assist, Rear LH
2005-05 → 2007-08 ended
UZJ100 —
74631C — Hook, Coat
74631-60031-A0 note Hook, Coat
2002-08 → 2005-05 ended
UZJ100 —
74631-60031-B0 note Hook, Coat
2002-08 → 2005-05 ended
UZJ100 —
74631-60031-A0 note Hook, Coat
2005-05 → 2007-08 ended
UZJ100 —
74631-60031-B0 note Hook, Coat
2005-05 → 2007-08 ended
UZJ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
