Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

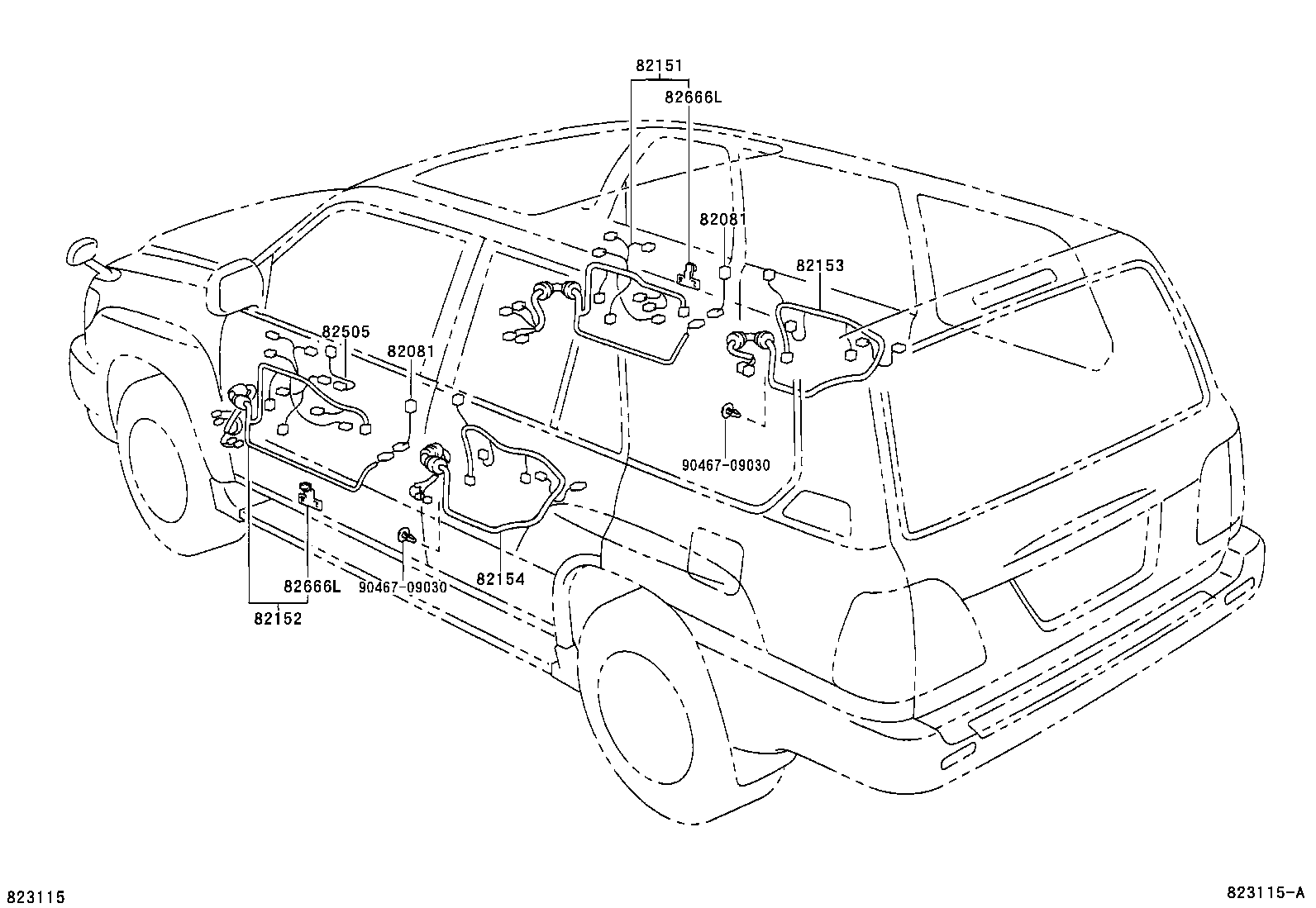

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82081 — Wiring Assy, Door Lock | ||||
| 82081-60010 note |
Wiring Assy, Door Lock
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82081-60020 note |
Wiring Assy, Door Lock
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82081-60010 note |
Wiring Assy, Door Lock
2005-05 → —
|
UZJ100 | — | |
| 82081-60020 note |
Wiring Assy, Door Lock
2005-05 → —
|
UZJ100 | — | |
| 82151 — Wire, Front Door, RH | ||||
| 82151-60343 |
Wire, Front Door, RH
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82151-60441 |
Wire, Front Door, RH
2005-05 → —
|
UZJ100 | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-60323 |
Wire, Front Door, LH
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82152-60371 |
Wire, Front Door, LH
2005-05 → 2006-09
ended
|
UZJ100 | — | |
| 82152-60372 |
Wire, Front Door, LH
2006-09 → —
|
UZJ100 | — | |
| 82153 — Wire, Rear Door, NO.1 | ||||
| 82153-60143 |
Wire, Rear Door, NO.1
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82153-60143 |
Wire, Rear Door, NO.1
2005-05 → —
|
UZJ100 | — | |
| 82154 — Wire, Rear Door, NO.2 | ||||
| 82153-60143 |
Wire, Rear Door, NO.2
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82153-60143 |
Wire, Rear Door, NO.2
2005-05 → —
|
UZJ100 | — | |
| 82505 — Wiring Sub-assy, Front Door, RH | ||||
| 82505-60050 |
Wiring Sub-assy, Front Door, RH
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82505-60050 |
Wiring Sub-assy, Front Door, RH
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-60300 |
Holder, Connector NO.9
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60300 |
Holder, Connector NO.9
2005-05 → —
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
