Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

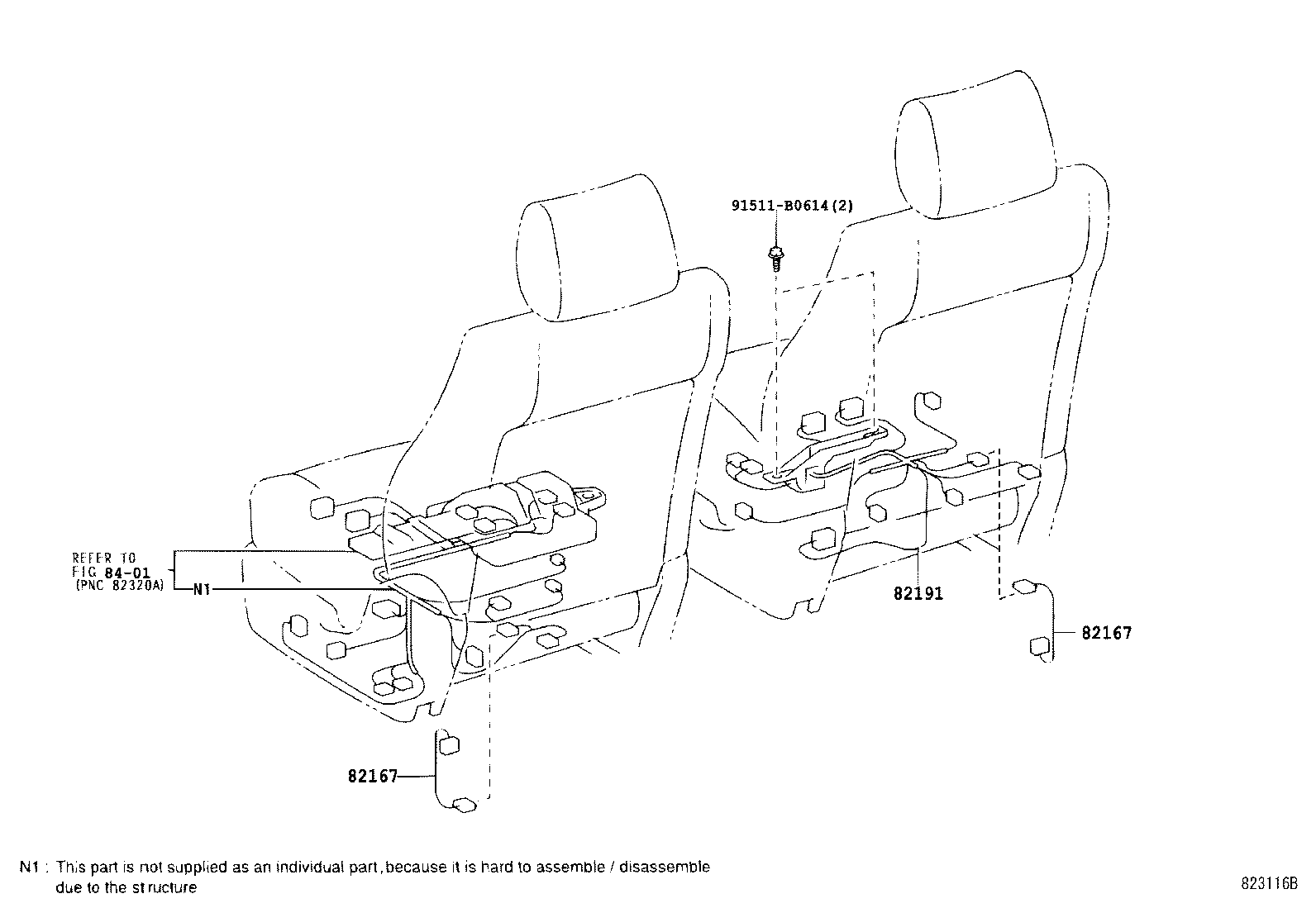

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82167 — Wire, Seat, NO.1 | ||||
| 82167-60121 |
Wire, Seat, NO.1
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82167-60121 note |
Wire, Seat, NO.1
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 82167-60121 |
Wire, Seat, NO.1
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 82191 — Wire, Front Seat, RH | ||||
| 82191-60011 |
Wire, Front Seat, RH
2002-08 → 2003-07
ended
|
UZJ100 | — | |
| 82191-60080 |
Wire, Front Seat, RH
2003-07 → 2005-05
ended
|
UZJ100 | — | |
| 82191-60011 note |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 82191-60080 |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
