Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

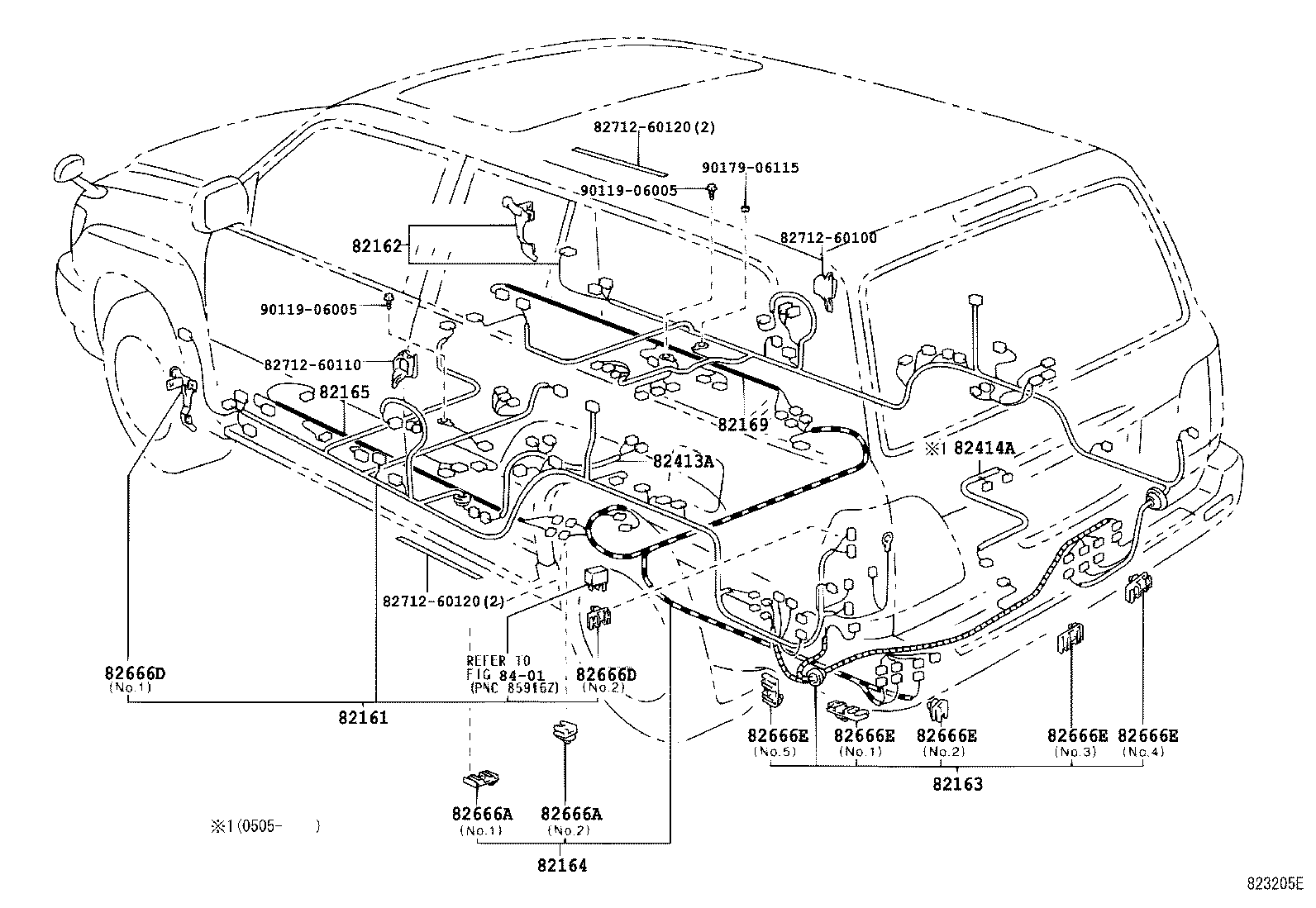

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-60594 |
Wire, Floor
2002-08 → 2002-12
ended
|
UZJ100 | — | |
| 82161-60595 |
Wire, Floor
2002-12 → 2003-03
ended
|
UZJ100 | — | |
| 82161-60596 |
Wire, Floor
2003-03 → 2003-11
ended
|
UZJ100 | — | |
| 82161-60597 |
Wire, Floor
2003-11 → 2005-05
ended
|
UZJ100 | — | |
| 82161-60598 |
Wire, Floor
2005-05 → —
|
UZJ100 | — | |
| 82161-6A431 note |
Wire, Floor
2005-05 → 2006-09
ended
|
UZJ100 | — | |
| 82161-6A432 note |
Wire, Floor
2006-09 → —
|
UZJ100 | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-60643 |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100 | — | |
| 82162-60644 |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
UZJ100 | — | |
| 82162-60646 |
Wire, Floor, NO.2
2005-05 → —
|
UZJ100 | — | |
| 82162-60A31 note |
Wire, Floor, NO.2
2005-05 → —
|
UZJ100 | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-60324 |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
UZJ100 | — | |
| 82163-60325 |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
UZJ100 | — | |
| 82163-60326 |
Wire, Floor, NO.3
2005-05 → —
|
UZJ100 | — | |
| 82164 — Wire, Frame | ||||
| 82164-60191 |
Wire, Frame
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82164-60191 |
Wire, Frame
2005-05 → 2006-06
ended
|
UZJ100 | — | |
| 82164-60192 |
Wire, Frame
2006-07 → —
|
UZJ100 | — | |
| 82165 — Wire, Frame, NO.2 | ||||
| 82165-60131 |
Wire, Frame, NO.2
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82165-60131 |
Wire, Frame, NO.2
2005-05 → —
|
UZJ100 | — | |
| 82169 — Wire Frame, NO.3 | ||||
| 82169-60040 |
Wire Frame, NO.3
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82169-60040 |
Wire Frame, NO.3
2005-05 → —
|
UZJ100 | — | |
| 82413A — Wire, Fuel Tank | ||||
| 82413-60011 |
Wire, Fuel Tank
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82413-60011 |
Wire, Fuel Tank
2005-05 → —
|
UZJ100 | — | |
| 82413-60031 note |
Wire, Fuel Tank
2005-05 → —
|
UZJ100 | — | |
| 82414A — Wire, Fuel Tank, NO.2 | ||||
| 82414-60012 |
Wire, Fuel Tank, NO.2
2005-05 → —
|
UZJ100 | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-60060 note |
Holder, Connector NO.2
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.2
2005-05 → 2006-06
ended
|
UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.2
2006-07 → —
|
UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
2005-05 → 2006-06
ended
|
UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
2006-07 → —
|
UZJ100 | — | |
| 82666D — Holder, Connector NO.5 | ||||
| 82666-60030 note |
Holder, Connector NO.5
2003-03 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60270 note |
Holder, Connector NO.5
2003-03 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60030 note |
Holder, Connector NO.5
2005-05 → —
|
UZJ100 | — | |
| 82666-60270 note |
Holder, Connector NO.5
2005-05 → —
|
UZJ100 | — | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-60060 note |
Holder, Connector NO.6
2002-08 → 2003-08
ended
|
UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60070 note |
Holder, Connector NO.6
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60310 note |
Holder, Connector NO.6
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.6
2005-05 → —
|
UZJ100 | — | |
| 82666-60070 note |
Holder, Connector NO.6
2005-05 → —
|
UZJ100 | — | |
| 82666-60310 note |
Holder, Connector NO.6
2005-05 → —
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
