Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

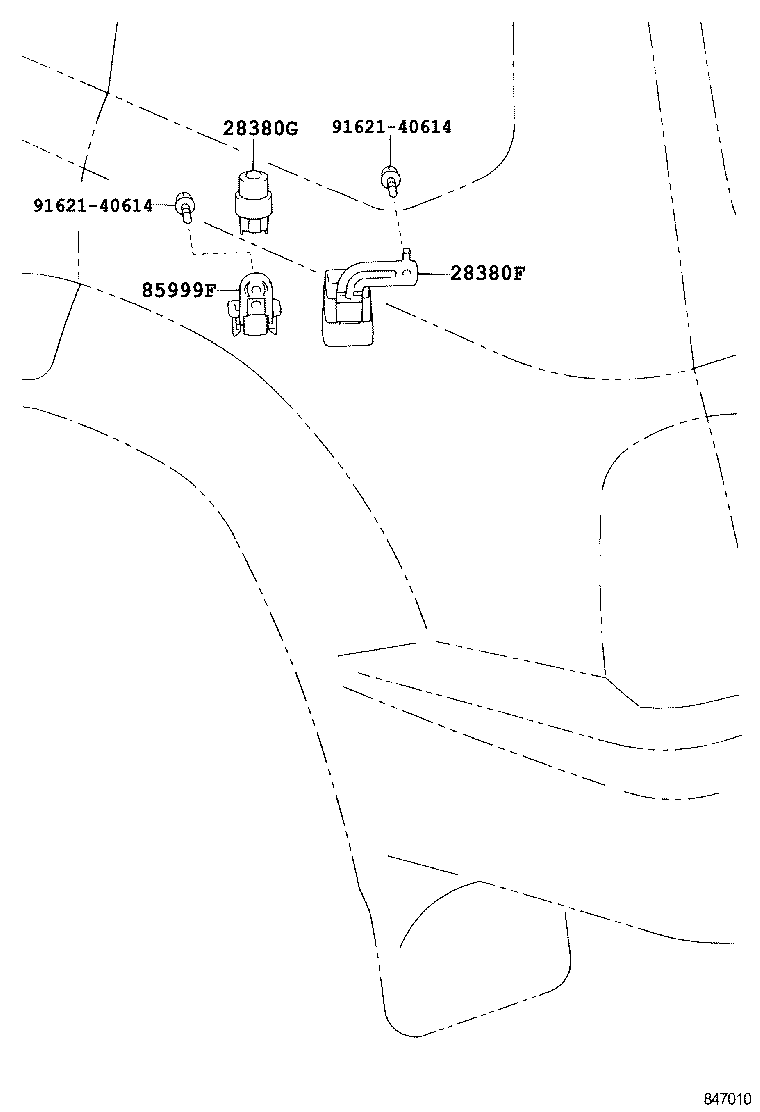

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380F — Relay Assy, Fuel Pump Select | ||||
| 28380-50020 |
Relay Assy, Fuel Pump Select
2005-05 → —
|
2UZFE UZJ100 | — | |
| 28380G — Relay, Sub Fuel Pump Drive | ||||
| 90987-02004 |
Relay, Sub Fuel Pump Drive
2005-05 → —
|
2UZFE UZJ100 | — | |
| 85999F — Bracket, Relay | ||||
| 85999-12050 |
Bracket, Relay
2005-05 → —
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
