Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01

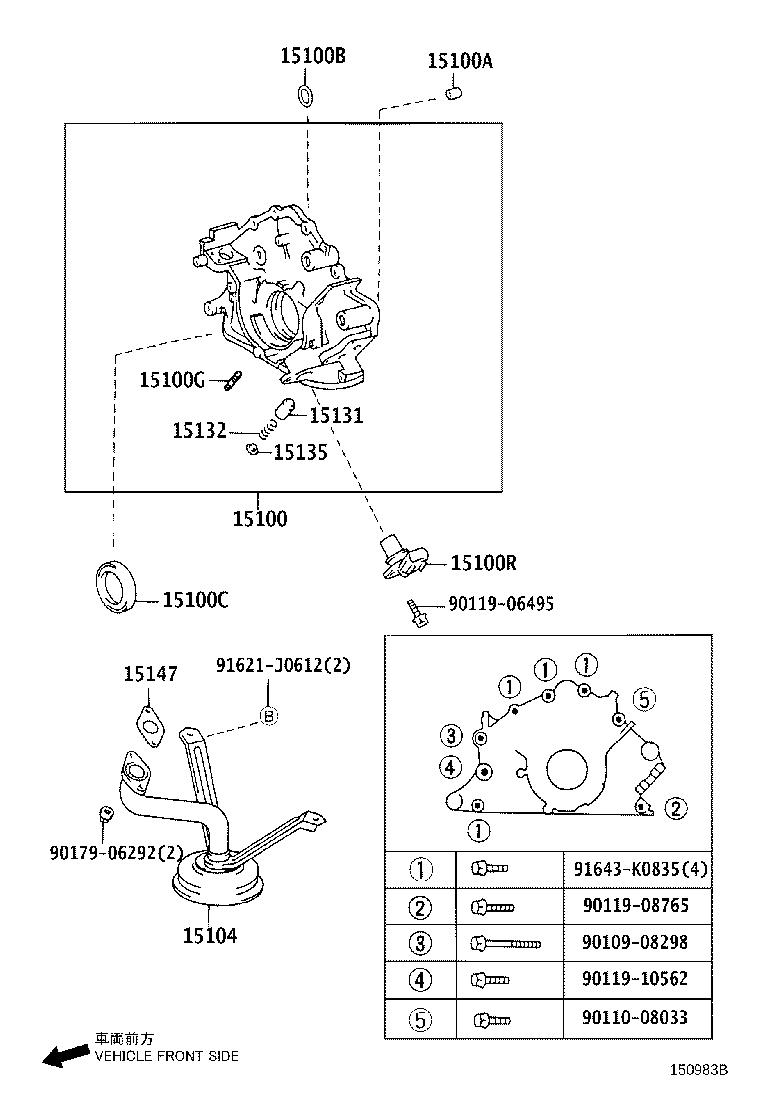

Engine Oil Pump
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100C | Seal(FOR OIL PUMP) |
| 15100G | Bolt,Stud(FOR OIL PUMP) |
| 15100R | Sensor, Crank Position |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
