Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 2 illustrations

Illustrations

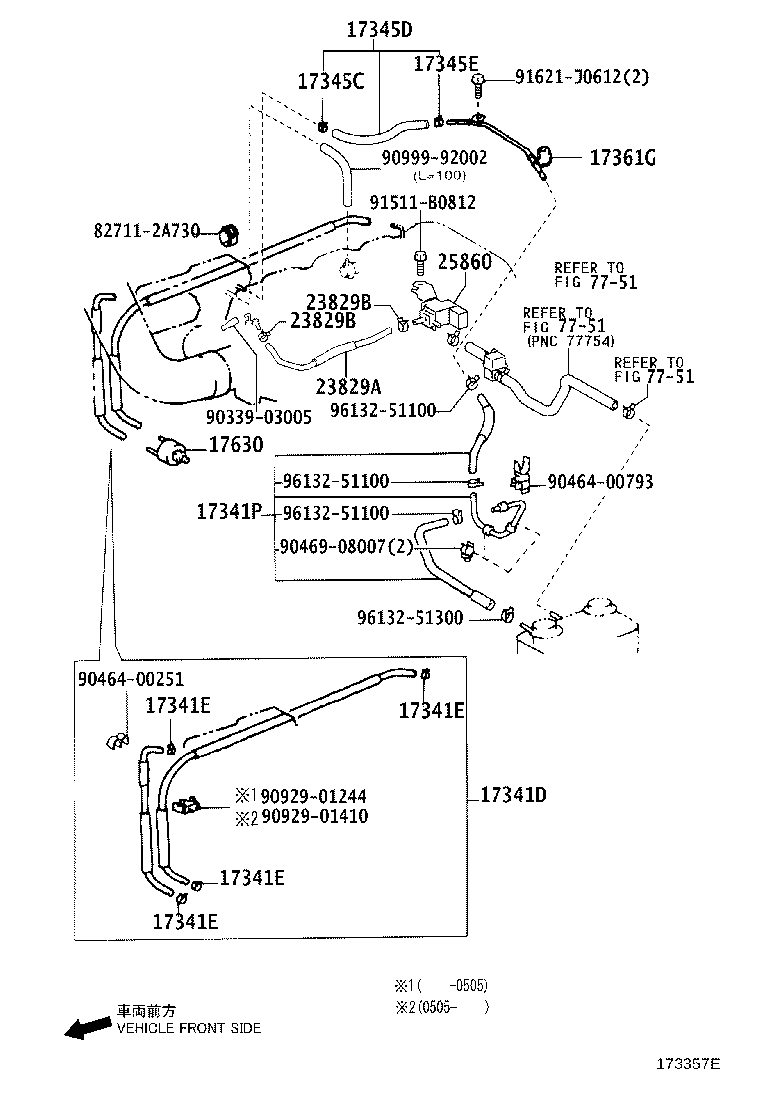

Figure 170021 170021 2002-08 → — Figure 173357E 173357E 2002-08 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17341P Hose, Air
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
