Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

25 part groups · 2 illustrations

Illustrations

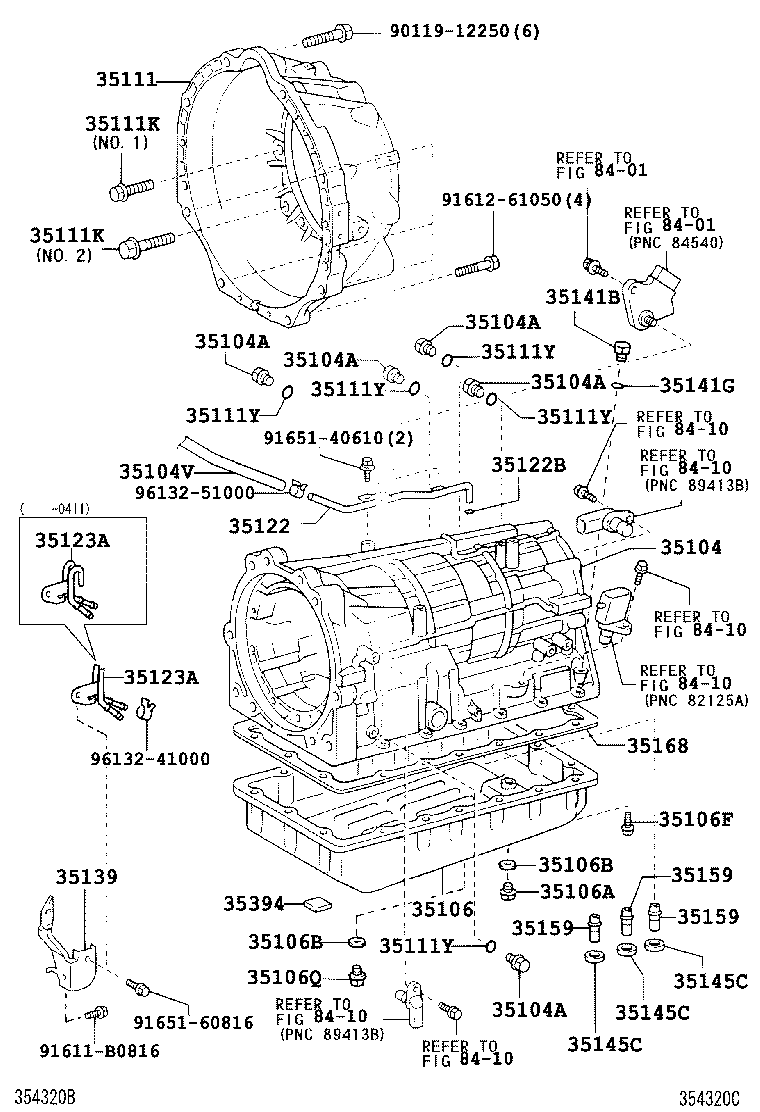

Figure 353930E 353930E 2002-08 → 2003-08 Figure 354320C 354320C 2003-08 → —

Part groups

PNCDescription
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35122 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
35122B Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35123A Skirt, Transmission Breather
35139 Bracket, Oil Filler Tube
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35145C Gasket, Transaxle Case
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
