Toyota Lexus LX470
2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe
Discontinued model
Data version 2008-01
Front Axle Housing & Differential
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41039A | Gear Kit, Differential |
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |

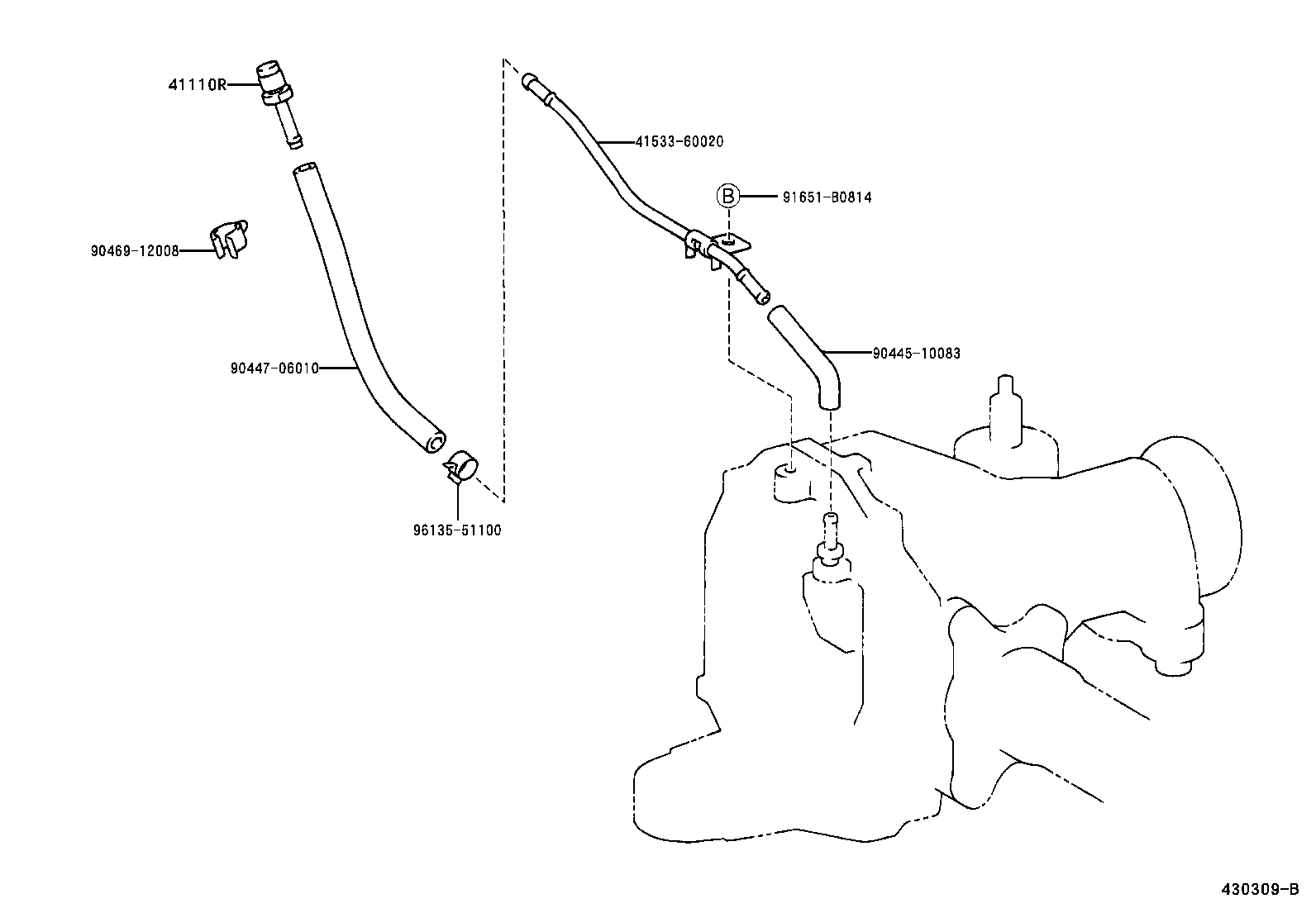

| 41110R | Plug, Breather (FOR FRONT DIFFERENTIAL) |
| 41110V | Union (FOR FRONT DIFFERENTIAL) |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41115F | Ring, Front Differential Oil Storage |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41183B | Deflector, Front Differential Side Bearing Retainer |
| 41201T | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41302F | Case Sub-assy, Front Differential |
| 41302H | Bolt(FOR FRONT DIFFERENTIAL CASE) |
| 41304T | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41304U | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41304V | Shaft Sub-assy, Differential Side Gear, LH |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41320 | Tube Assy, Front Differential |
| 41320B | Bolt (FOR FRONT DIFFERENTIAL TUBE) |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41371F | Spider, Front Differential |
| 41651B | Cushion, Front Differential Mount, NO.1 |
| 41653B | Stopper, Differential Mount, Upper |
| 41653C | Stopper, Front Differential Mount, Upper |
| 41654A | Stopper, Differential Mount, Lower |
| 52380D | Support Assy, Front Differential |
| 52380E | Support Assy, Differential |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
