Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

24 part groups · 3 illustrations

Illustrations

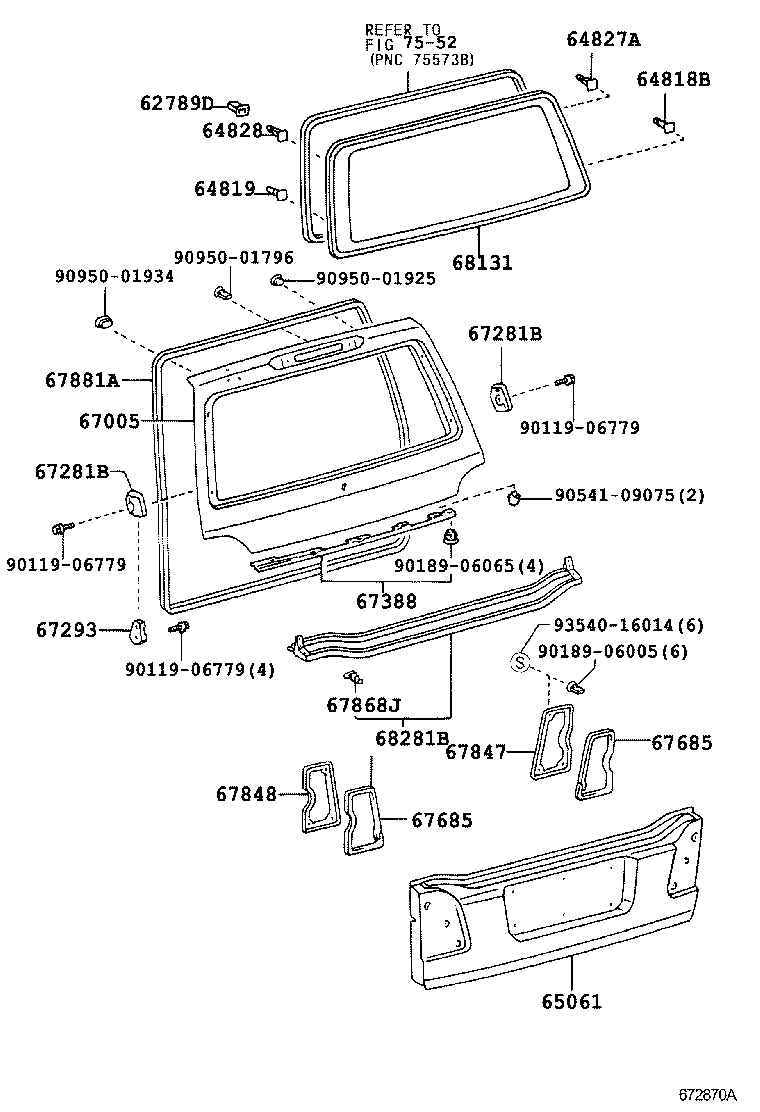

Figure 671237E 671237E 2002-08 → — Figure 672870A 672870A 2002-08 → — Figure 672871 672871 2002-08 → —

Part groups

PNCDescription
62789D Clip, Back Door Window Weatherstrip
64780A Panel Assy, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
65061 Panel Sub-assy, Tail Gate
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67388 Protector, Back Door Edge
67685 Packing, Back Door Service Hole, NO.1
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67868J Retainer, Door Weatherstrip
67881A Weatherstrip, Back Door
67935B Garnish, Back Door
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68281B Weatherstrip, Lift Gate
76801 Garnish Sub-assy, Back Door, Outside
76811A Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
