Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

208 part groups · 10 illustrations

Illustrations

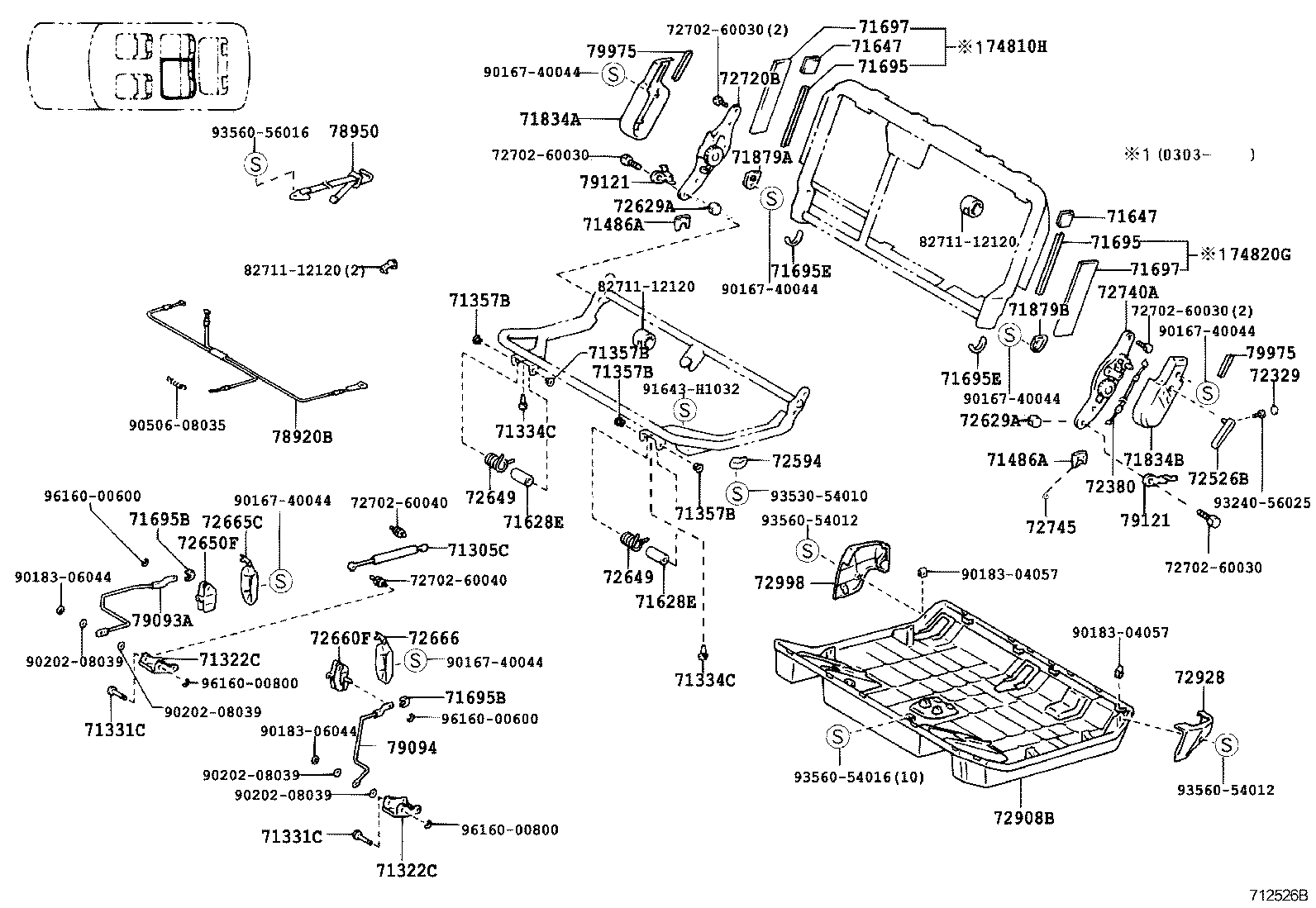

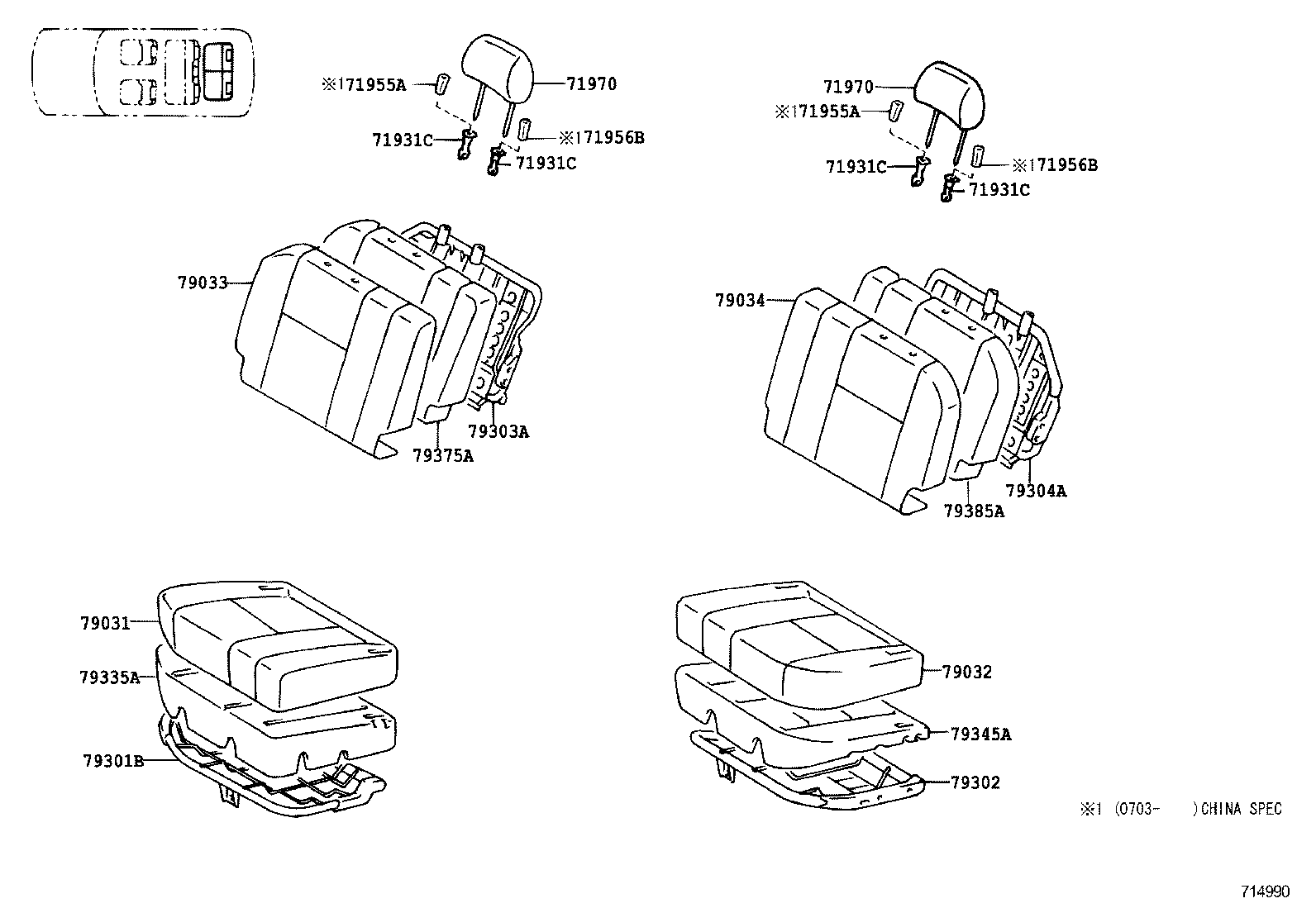

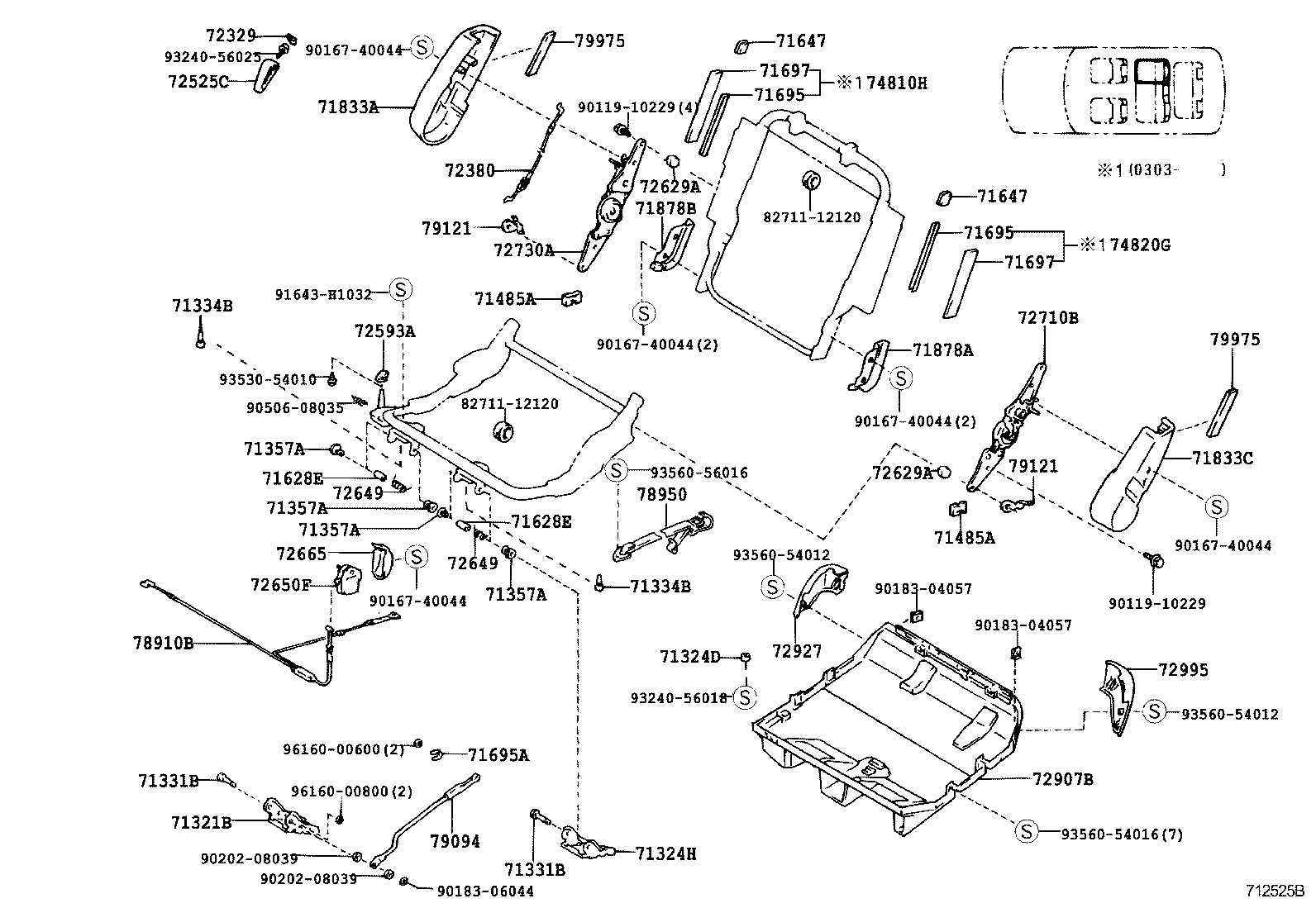

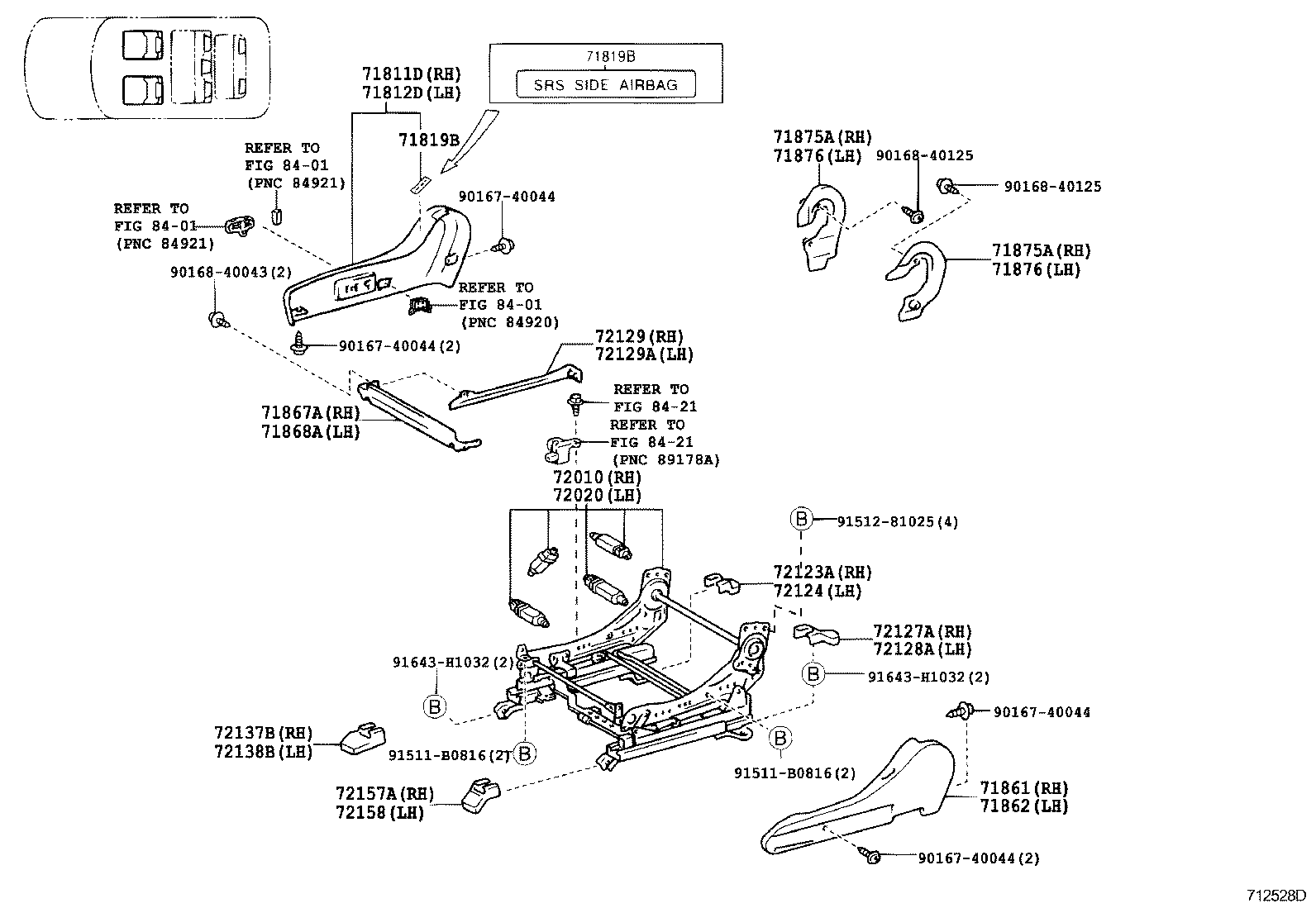

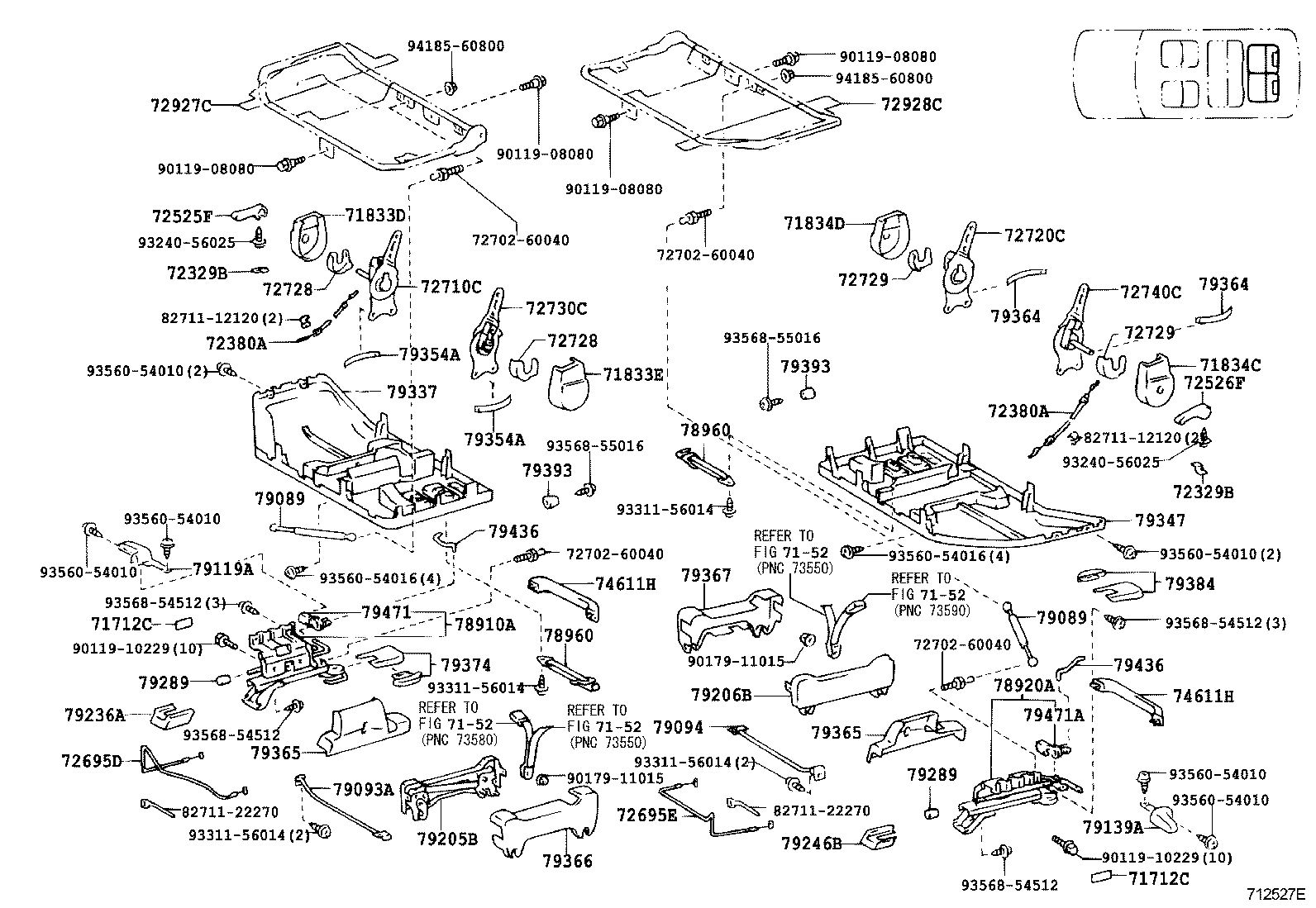

Figure 712469C 712469C 2002-08 → — Figure 712528D 712528D 2002-08 → — Figure 712461 712461 2002-08 → — Figure 712462 712462 2002-08 → — Figure 712525B 712525B 2002-08 → — Figure 712526B 712526B 2002-08 → — Figure 711007C 711007C 2002-08 → — Figure 714990 714990 2002-08 → — Figure 712527E 712527E 2002-08 → — Figure 712378A 712378A 2002-08 → —

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147 Silencer, Seat Spring
71281A Hinge, Rear Seat Center Armrest
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71305C Stay Sub-assy, Rear Seat
71321B Hinge, Rear Seat Cushion, RH
71322C Hinge, Rear Seat Cushion, LH
71324D Cushion, Rear Seat, RH
71324H Hinge, Rear Seat Cushion Leg, Front Lower
71331B Pin, Rear Seat Hinge, RH
71331C Pin, Rear Seat Hinge, LH
71334B Stopper, Rear Seat Leg, RH
71334C Stopper, Rear Seat Leg, LH
71349C Cover, Rear Seatback Hinge
71357A Plate, Rear Seat Hinge Set, RH
71357B Plate, Rear Seat Hinge Set, LH
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71485A Cover, Rear Seat Hinge, NO.2 RH
71486A Cover, Rear Seat Hinge, NO.2 LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71628E Spacer, Rear Seat Cushion
71647 Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71692D Cover, Rear Seat Cushion Hinge, Upper LH
71695 Protector, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71695C Protector, Rear Seat, NO.1
71695E Protector, Rear Seat, NO.2
71696 Protector, Rear Seat, NO.2
71697 Protector, Rear Seatback Edge
71697A Protector, Rear Seat, NO.3 RH
71697B Protector, Rear Seat, NO.3 LH
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71706B Clip, Front Seatback Board
71712C Cover, Rear NO.2 Side Seat Cushion, Rear
71789B Pocket, Front Seatback Board
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71819B Label, Side Airbag Name
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71833D Cover Rear Seat Reclining, RH
71833E Cover, Rear Seat Reclining, NO.3 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71834D Cover, Rear Seat Reclining, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71955A Support, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72329 Cover, Seat Adjuster Bolt
72329B Cover, Seat Adjuster Bolt, NO.1
72380 Cable Assy, Seat Adjuster Control, NO.2
72380A Cable Assy, Seat Adjuster Control, NO.2
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525F Handle, Reclining Adjuster Release, NO.4 RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526F Handle, Reclining Adjuster Release, NO.4 LH
72593A Knob, Remote Control Lever, RH
72594 Knob, Remote Control Lever, LH
72607 Striker Sub-assy, Rear Seat Cushion Lock
72607B Striker Sub-assy, Rear Seat Cushion Lock, RH
72608A Striker Sub-assy, Rear Seat Cushion Lock, LH
72615C Cover, Rear Seatback Lock Striker
72629A Silencer, Rear Seatback Lock
72649 Spring, Rear Seat Cushion Support
72650F Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72665 Cover, Rear Seatback Lock, RH
72665C Cover, Rear Seat Lock, RH
72666 Cover, Rear Seatback Lock, LH
72695D Cable, Rear NO.2 Seat Lock Control, RH
72695E Cable, Rear NO.2 Seat Lock Control, LH
72710B Adjuster Assy, Rear Seatback, Inner RH
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720B Adjuster Assy, Rear Seatback, Inner LH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72728 Protector, Rear Seat Reclining, Inner RH
72729 Protector, Rear Seat Reclining, Inner LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72745 Pin, Rear Seat Reclining Hinge
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72797 Spacer, Lumbar Support
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72848A Cap, Seat Armrest, NO.1
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72907B Cover Sub-assy, Rear Seat Cushion Under, RH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72918 Cover, 3RD Seat Cushion Lock
72927 Cover, Rear Seat Cushion Under, RH
72927C Cover, Rear Seat Cushion Under RH
72928 Cover, Rear Seat Cushion Under, LH
72928C Cover, Rear Seat Cushion Under, LH
72995 Cover, Rear Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
74611H Grip, Assist
74810H Protector Assy, FR RH
74820G Protector Assy, Front LH
78903 Striker Sub-assy, Fold Seat Leg Lock
78904 Striker Sub-assy, Fold Seat Lock, NO.2
78910A Lock Assy, Fold Seat, RH
78910B Cable Assy, Fold Seat Lock Control, NO.1 RH
78920A Lock Assy, Fold Seat, LH
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
78976 Bracket, Fold Seat Striker
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79089 Stay Sub-assy, Seat Leg, NO.1
79093A Stay Sub-assy, Seat Leg, NO.1
79094 Stay Sub-assy, Seat Leg, NO.2
79119A Bracket, Rear NO.2 Seat Leg, Rear RH
79121 Bracket, NO.1 Seat Cushion
79136B Pad, NO.1 Seat Cushion, LH
79139A Bracket, Rear NO.2 Seat Leg, Rear LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79216 Plate, NO.2 Seat Leg
79219 Plate, NO.2 Seat Leg, LH
79236A Cover, NO.2 Seat Leg
79246B Cover, NO.2 Seat Leg, B
79289 Protector, NO.2 Seatback
79301B Frame Sub-assy, NO.3 Seat Cushion, RH
79302 Frame Sub-assy, NO.3 Seat Cushion, LH
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79335A Pad, NO.3 Seat Cushion, RH
79337 Carpet, NO.2 Seat Cushion Under, RH
79345A Pad, NO.3 Seat Cushion, LH
79347 Carpet, NO.2 Seat Cushion Under, LH
79354A Cover, NO.3 Seatback Hinge, RH
79364 Cover, NO.3 Seatback Hinge, LH
79365 Cover, NO.3 Seat Leg Bracket
79366 Cover, NO.3 Seat Leg, NO.1
79367 Cover, NO.3 Seat Leg, NO.2
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79382 Cover, NO.3 Seat Front Bracket, LH
79383 Cover, NO.3 Seat Bracket Support
79384 Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79393 Cushion, Rear NO.2 Seatback
79436 Link, NO.4 Seat Leg
79471 Plate, Rear Seat Cushion Turn Striker, Front RH
79471A Plate, Rear Seat Cushion Turn Striker, Front LH
79975 Pad, Seatback Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
