Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

26 part groups · 2 illustrations

Illustrations

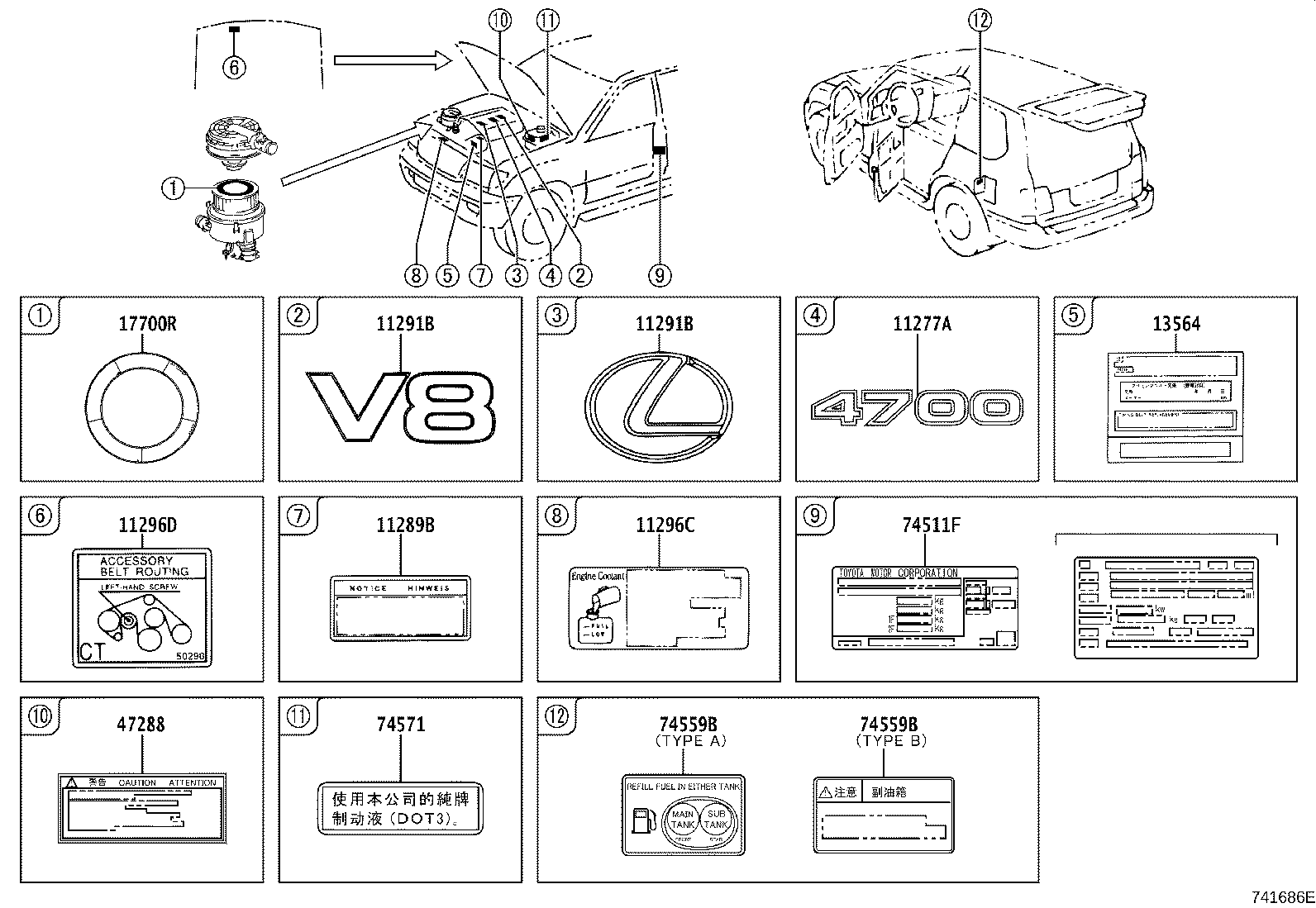

Figure 741124D 741124D 2002-08 → — Figure 741686E 741686E 2002-08 → —

Part groups

PNCDescription
11277A Plate, Engine Specification, NO.2
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11296C Label, Engine Service Information
11296D Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
17700R Label, Air Cleaner Information
35519 Plate, Automatic Transmission Caution
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
45249A Label, Steering Actuator Information
47288 Label, Brake Fluid Notice
48969 Label, Jack UP Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74543C Label, Rear Seat Information
74544E Label, Rear NO.2 Seat Information
74552 Plate, Safety Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74571 Plate, Brake Fluid Caution
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
