Toyota Lexus LX470

2002-08 → 2007-08 · chassis UZJ100 · catalogue 792550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 5 illustrations

Illustrations

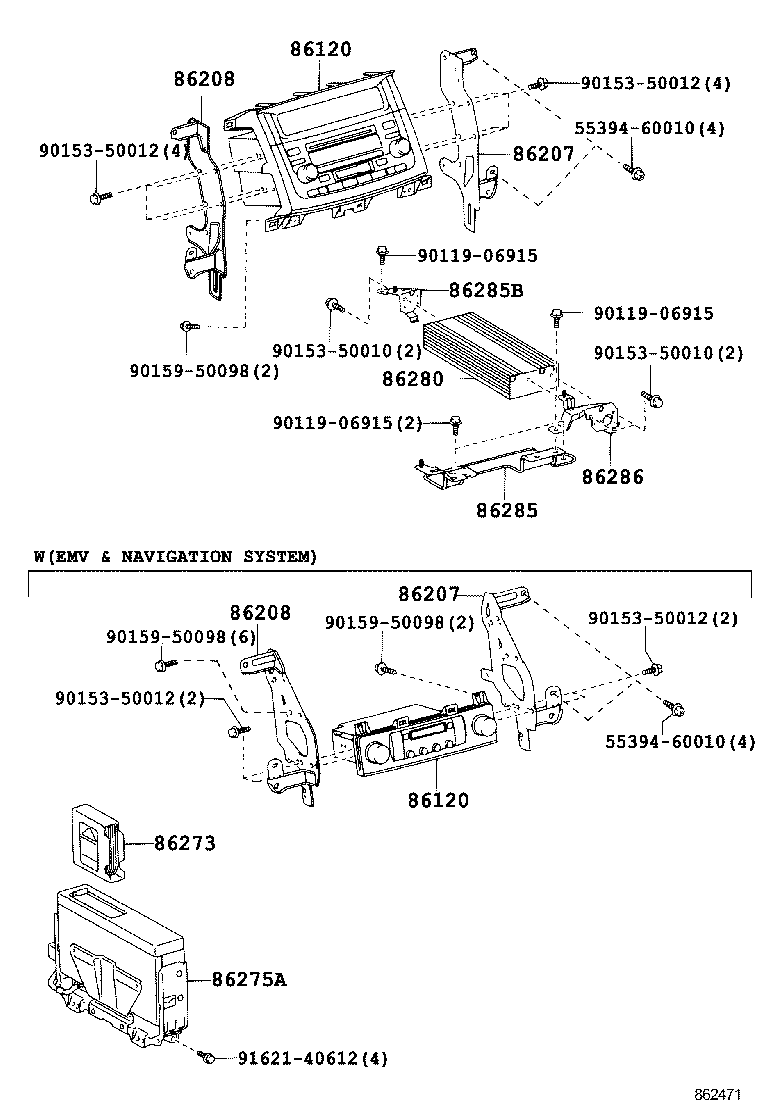

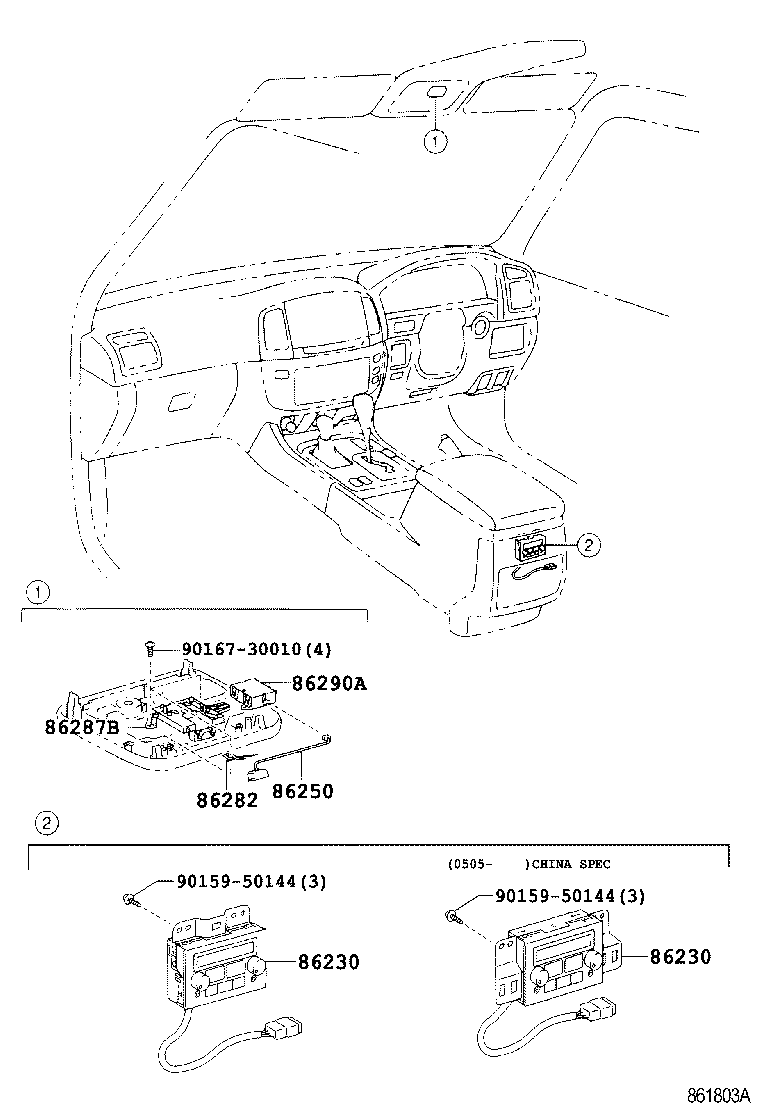

Figure 861738B 861738B 2002-08 → 2005-05 Figure 862471 862471 2005-05 → — Figure 861739B 861739B 2002-08 → — Figure 861803A 861803A 2002-08 → — Figure 861209 861209 2002-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86207 Bracket Sub-assy, Radio Receiver, RH
86208 Bracket Sub-assy, Radio Receiver, LH
86230 Controller Assy, Stereo Component
86250 Microphone Assy, Amplifier
86273 Magazine, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86282 Bracket, Microphone
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
