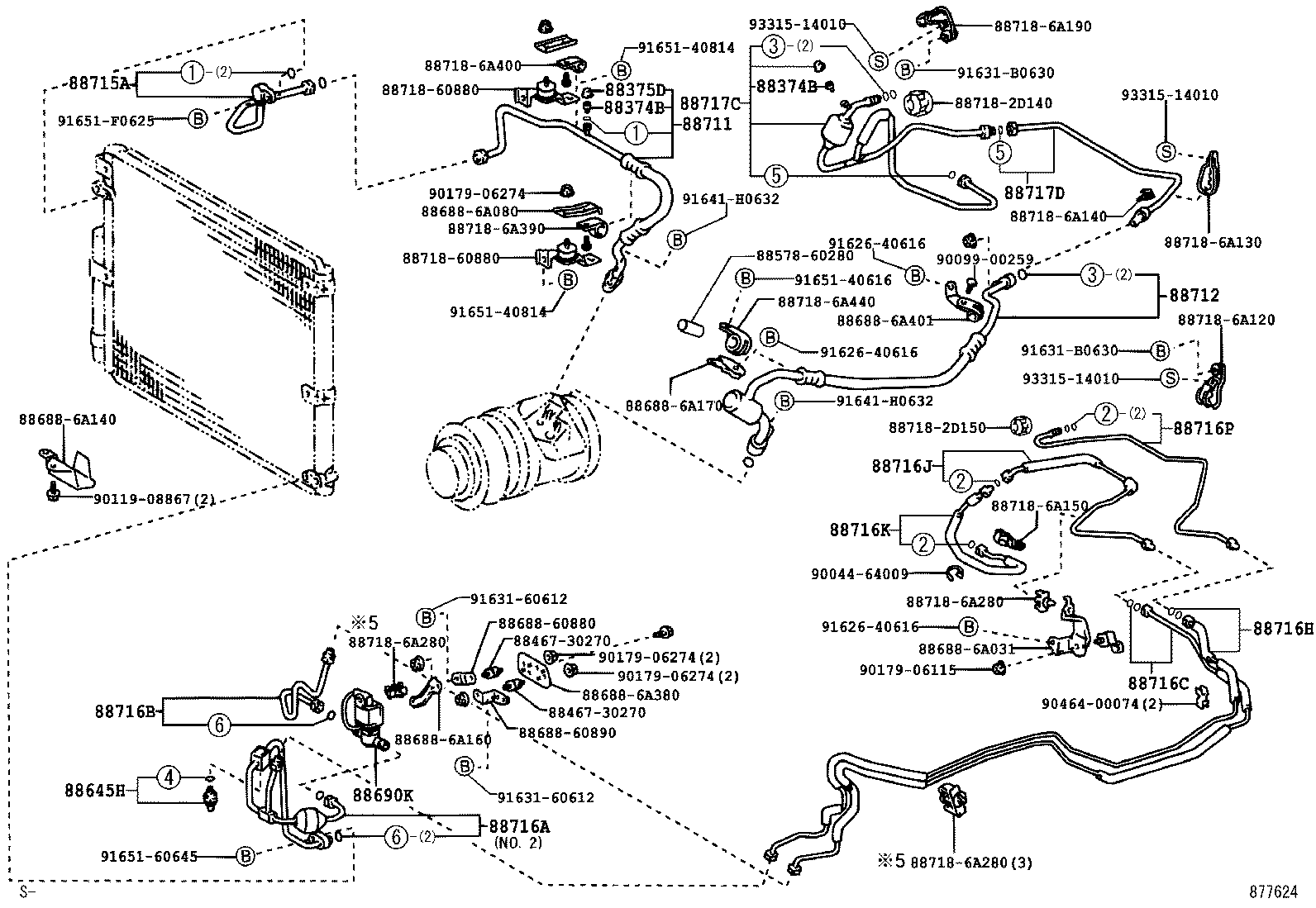

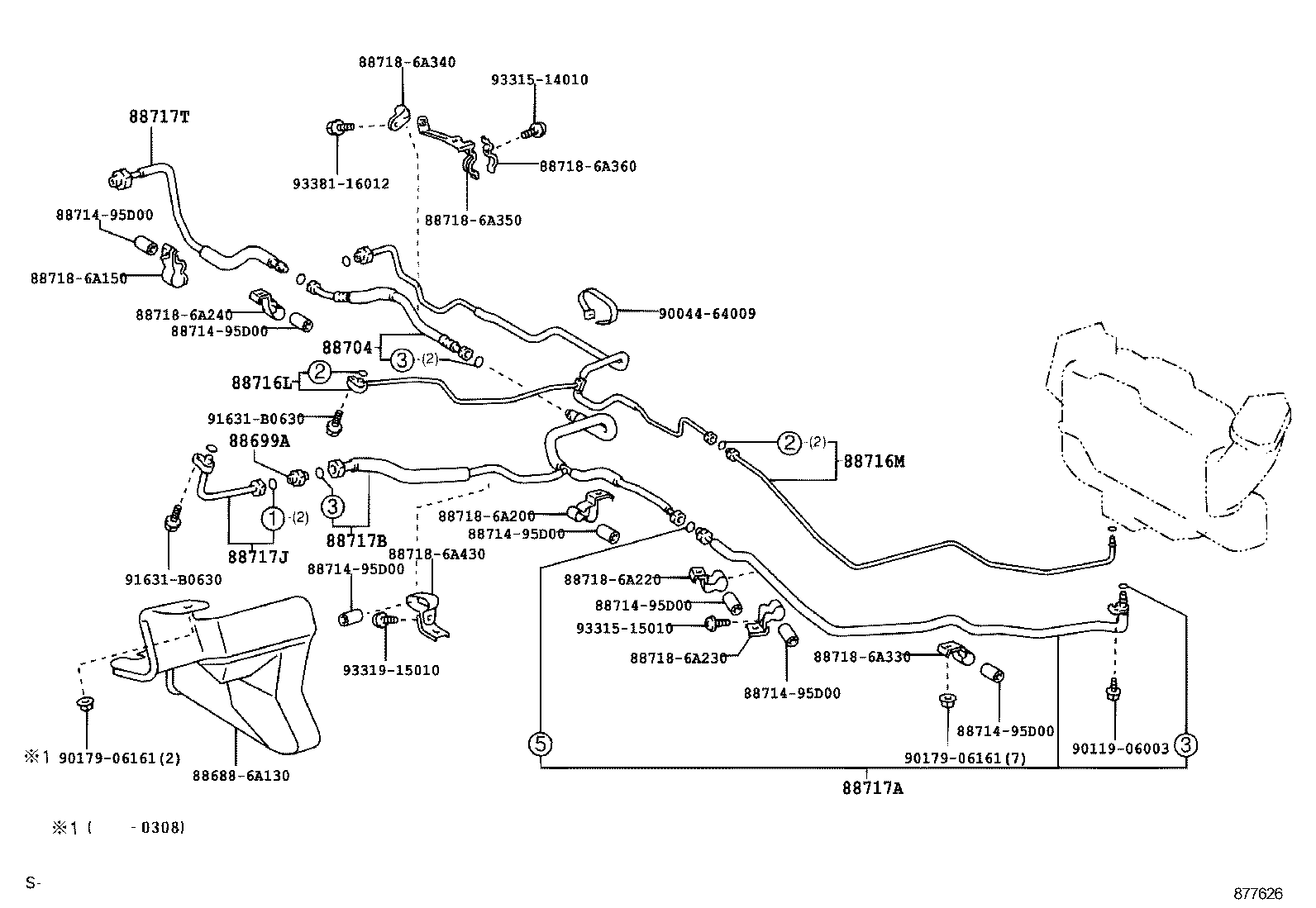

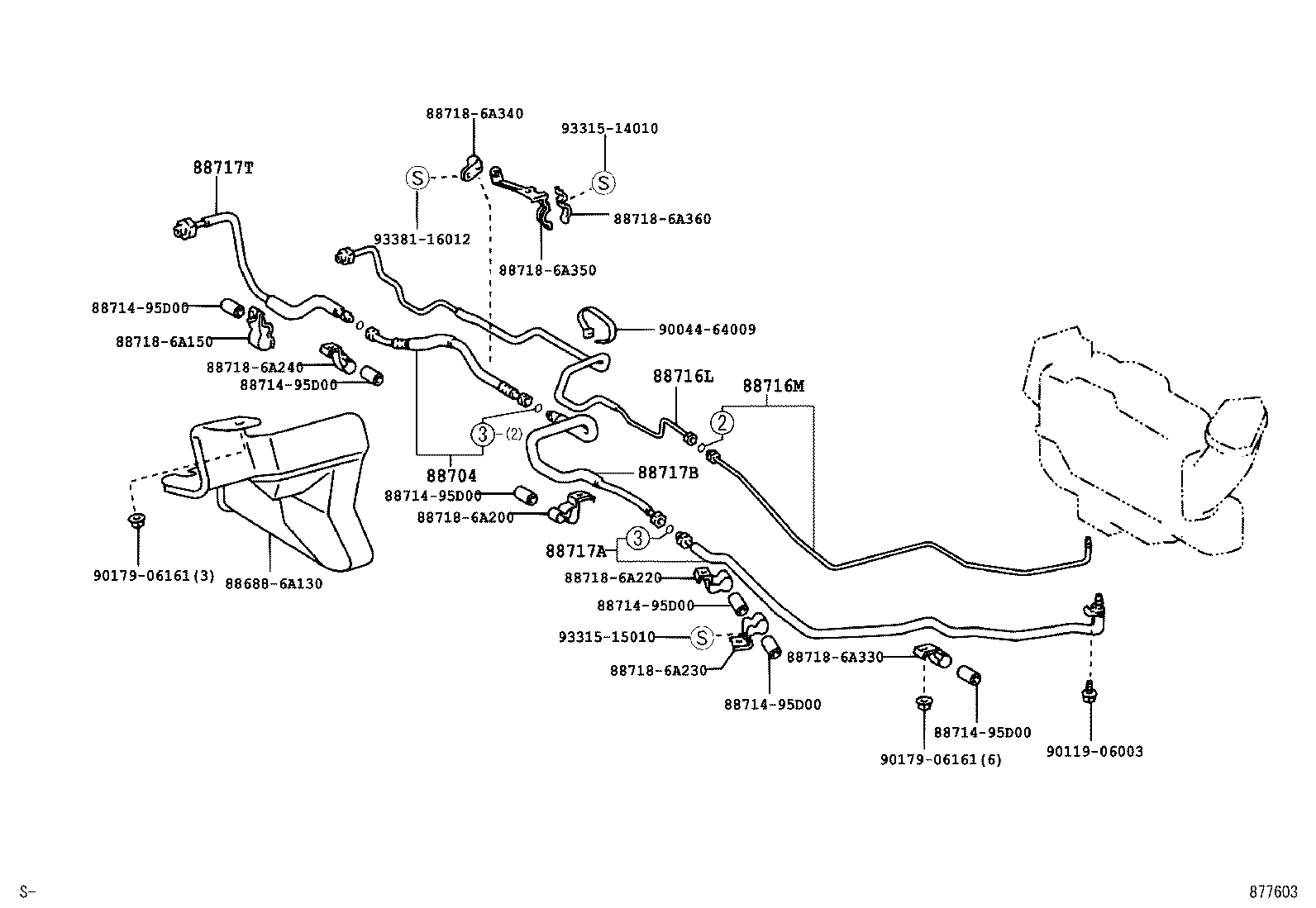

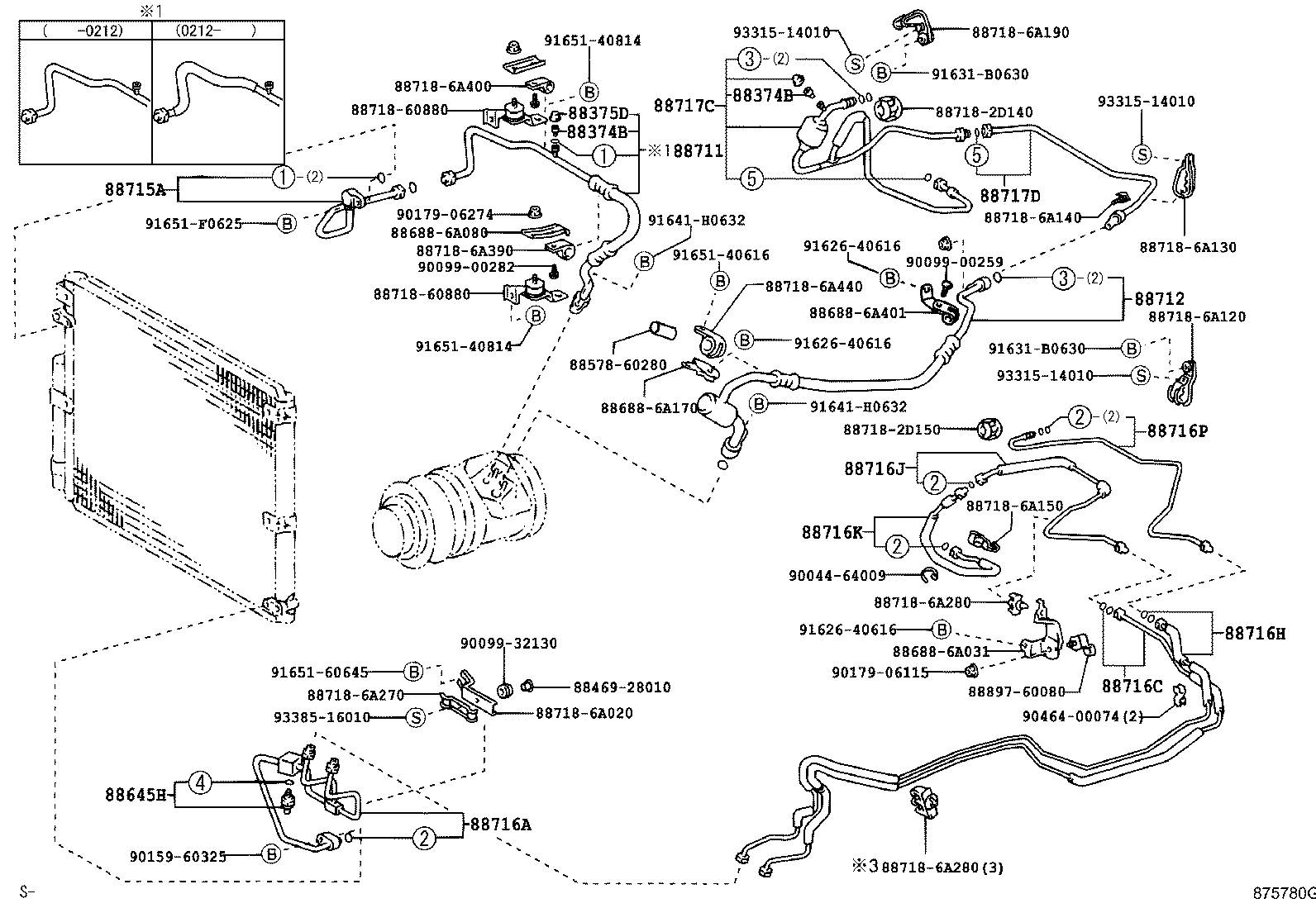

Heating & Air Conditioning - Cooler Piping
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88460D | Bracket, Cooler Condenser, NO.3 |
| 88460F | Bracket, Cooler Condenser, NO.4 |
| 88460G | Bracket, Cooler Condenser, NO.5 |
| 88460H | Bracket, Cooler Condenser, NO.6 |
| 88461A | Core, Cooler Condenser |
| 88474 | Dryer, Cooler |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88645H | Switch, Pressure NO.1 |
| 88690K | Valve Assy, Magnet |
| 88699A | Valve, Air |
| 88704 | Hose Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88716J | Pipe, Cooler Refrigerant Liquid, J |
| 88716K | Pipe, Cooler Refrigerant Liquid, K |
| 88716L | Pipe, Cooler Refrigerant Liquid, L |
| 88716M | Pipe, Cooler Refrigerant Liquid, M |
| 88716P | Pipe, Cooler Refrigerant Liquid, P |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88717D | Pipe, Cooler Refrigerant Suction, D |
| 88717J | Pipe, Cooler Refrigerant Suction, J |
| 88717T | Pipe, Cooler Refrigerant Suction, T |
| 88891A | Packing A (FOR COOLER) |
