Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

28 part groups · 3 illustrations

Illustrations

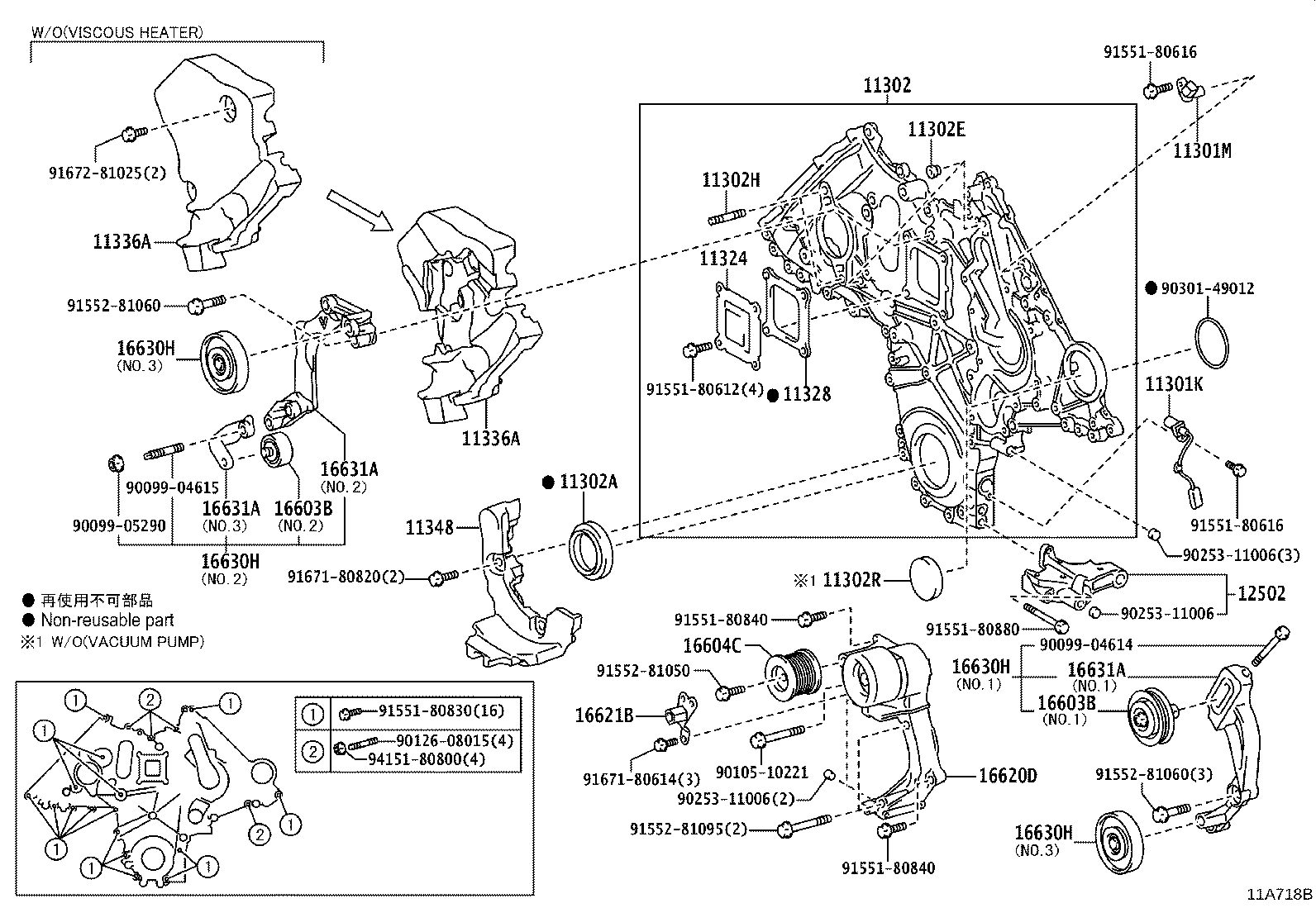

Figure 115052H 115052H 2007-11 → — Figure 11A718B 11A718B 2015-09 → — Figure 115037E 115037E 2015-09 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302U Pin, Ring
11302V Pin, Ring, NO.1
11312 Gasket, Front End Plate
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11336A Insulator, Timing Gear Cover
11338A Insulator, Timing Gear Case, NO.2
11348 Spacer, Timing Gear Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12502 Bracket Sub-assy, Chain Cover & Compressor
15133B Plug, Oil Pump Relief Valve
16603B Pulley Sub-assy, Idler
16604C Pulley Sub-assy, Idler, NO.2
16620D Tensioner Assy, V-ribbed Belt
16621B Bracket, V-ribbed Belt Tensioner
16630H Pulley Assy, Idler
16631A Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
