Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

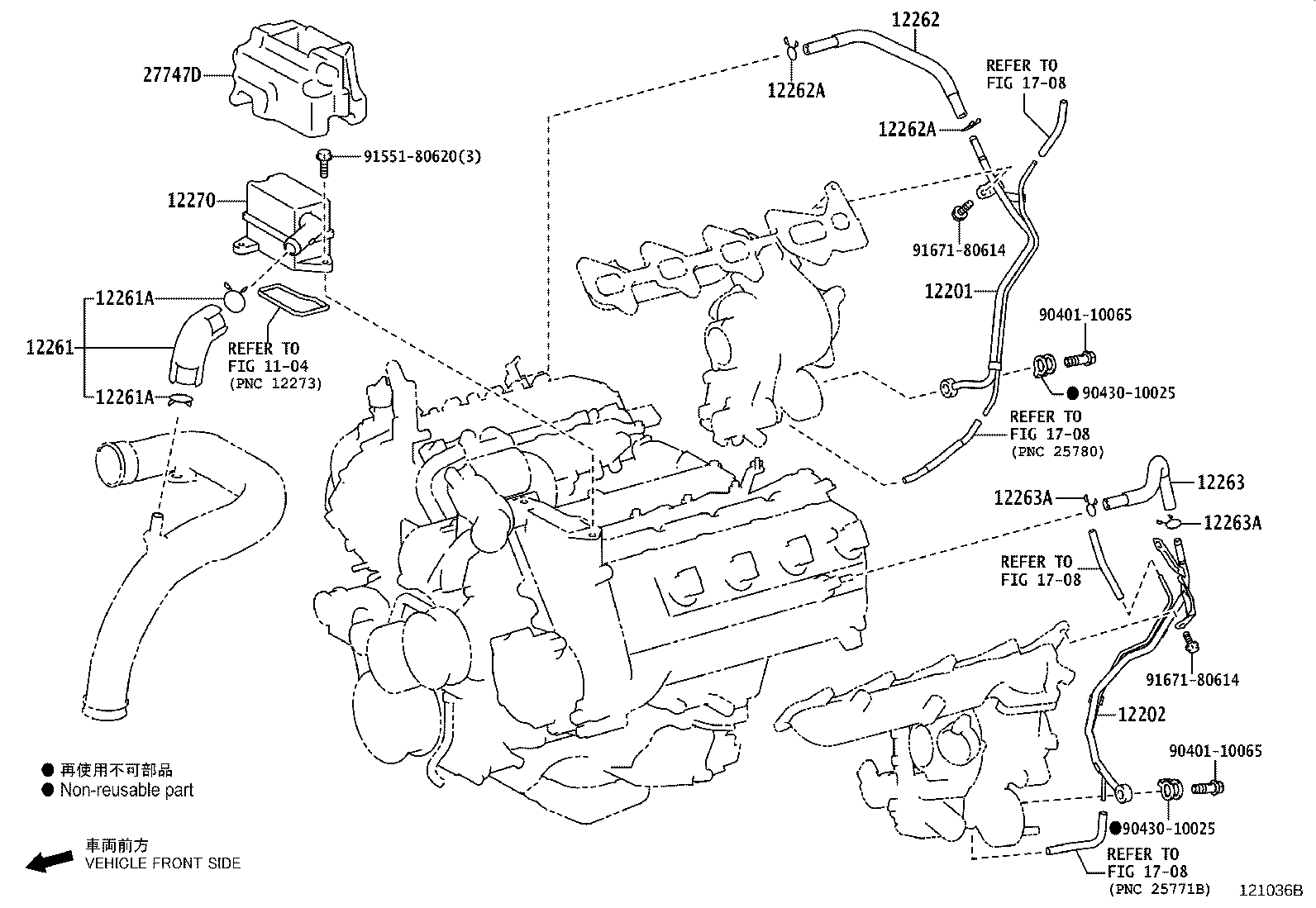

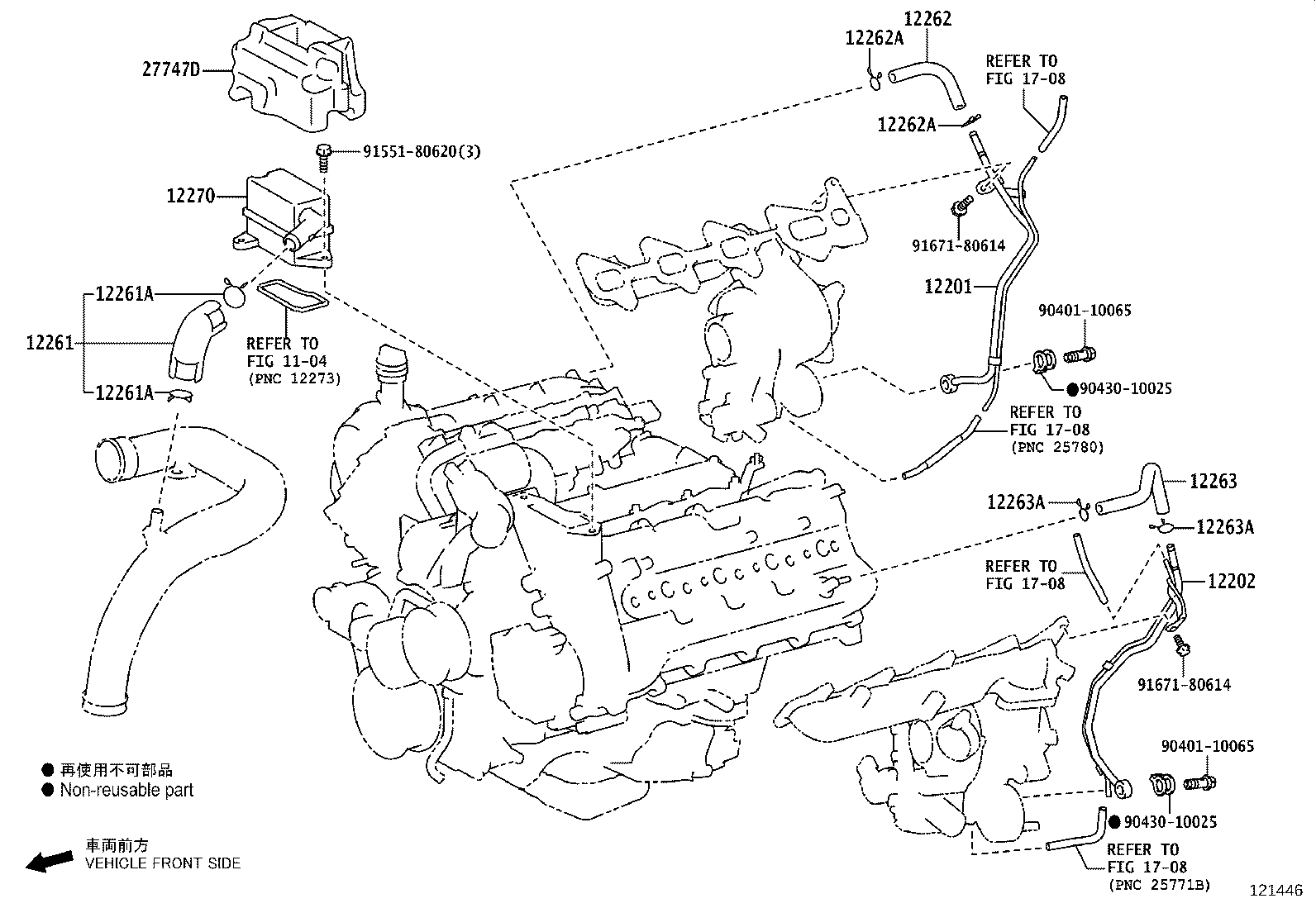

Ventilation Hose
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12109A | Pipe Sub-assy, Oil Drain |
| 12109B | Ring, O(FOR OIL DRAIN PIPE) |
| 12201 | Tube Sub-assy, Ventilation |
| 12202 | Tube Sub-assy, Ventilation, NO.2 |
| 12203 | Pipe Sub-assy, Ventilation |
| 12203A | Gasket(FOR VENTILATION PIPE) |
| 12204 | Valve Sub-assy, Ventilation |
| 12215 | Separator, Case |
| 12233 | Connector, Ventilation NO.1 |
| 12234 | Connector, Ventilation NO.2 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12264 | Hose, Ventilation, NO.4 |
| 12264A | Clip(FOR VENTILATION HOSE) |
| 12270 | Separator Assy, Oil |
| 27747D | Insulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
